RF170WDRUX5 N Freestanding Refrigerator Freezer
User Guide

Contents hide

1 RF170WDRUX5 N Freestanding Refrigerator Freezer

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Documents / Resources

5.1 References

6 Related Posts

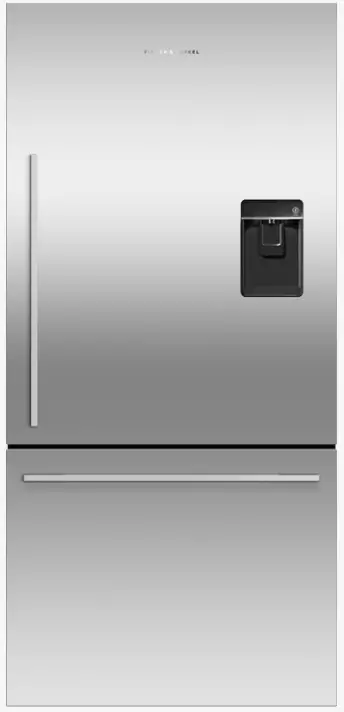

RF170WDRUX5 N Freestanding Refrigerator Freezer

QUICK REFERENCE GUIDE > RF170WDRUX5 N
Freestanding Refrigerator Freezer, 32″, 17.1 cu ft, Ice & Water
Series 5 | Contemporary
Stainless Steel | Right Hinge

This stylish right-hinge refrigerator has a large capacity and comes in timeless stainless steel.

Bottom freezer drawer
ActiveSmartTM helps keep food fresher for longer
Brushed metal handles

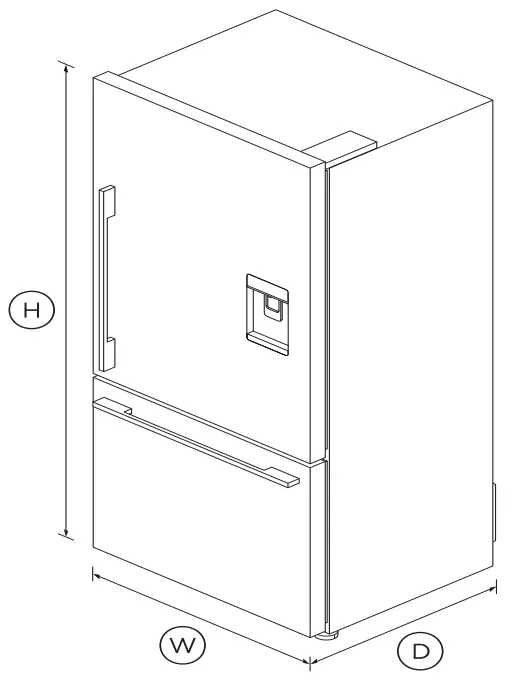

DIMENSIONS

Height	67 3/4″
Width	31 1/8″
Depth	27 3/8″

FEATURES & BENEFITS

ActiveSmartTM Foodcare
Every time you open your refrigerator, the temperature around your food changes. ActiveSmartTM food care adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.

SPECIFICATIONS

Accessories
Contemporary round handle	25379
Joiner kit	819264
Matching Replacement Water	FWC3
Surround Kit (Joined left/right	Part number 24476
Surround Kit (Right Hand)	24475
Capacity
Volume refrigerator	12.3cu ft
Consumption
Energy usage	535kWh/year
Features
Adjustable glass shelves	4
Covered door shelves	2
Door alarm	•
Fruit and vegetable bins	2
SmartTouch control panel	•
Stackable bottle holders	2
Ultra slim water dispenser	•
Water Filter	Model number 836848
Freezer Features
Automatic ice maker	•
Bottle chill	•
Fast freeze	•
Ice Boost	•
Ice bin and scoop	•
Large plastic bins	•
Performance
ActiveSmart™ Foodcare	•
ActiveSmart™ technology	•
Adaptive defrost	•
Frost free freezer	•
Humidity control system	•
Sabbath mode	•
Product dimensions
Depth	27 3/8″
Height	67 3/4″
Minimum air clearance – at rear	1 3/16″
Minimum air clearance – each	1 3/16″
Width	31 1/8″
Warranty
Parts and labor	2 years
Sealed system parts and labor	additional 3 years
SKU	25953

The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
