QUICK REFERENCE GUIDE > OR30SCG6R1
Dual Fuel Range, 30″, 4
Burners, Self-cleaning
Series 9 | Classic
Red
User Guide

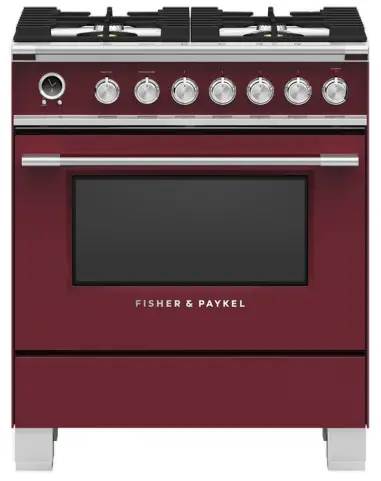

OR30SCG6R1 Dual Fuel Range 30 Inch 4 Burners Self Cleaning
Get the best of both worlds with dual fuel. A gas cooktop with wok burner is paired with a convection oven with 9 functions.
- Four burner gas cooktop with two dual wok burners
- Convection oven with 3.5 cu.ft total capacity and nine oven functions including Roast, Aero Pastry™ with pizza mode and rapid proof for baking bread
- Non-tip full-extension shelves for safe removal of hot dishes, and CoolTouch door
- High-temperature self-cleaning function breaks down food residue for an easy clean

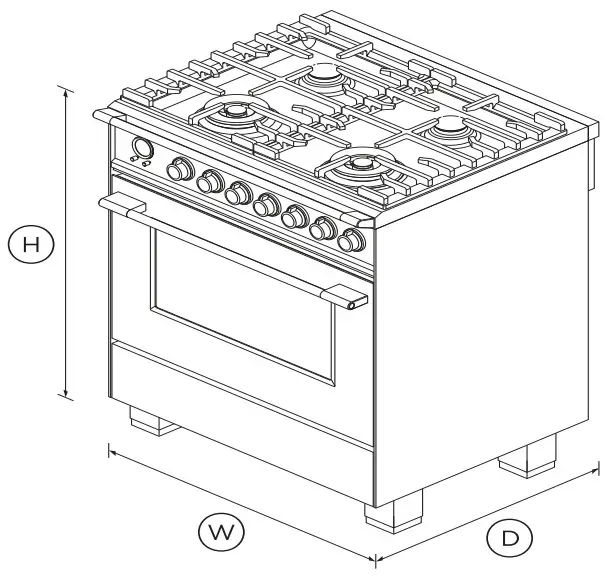

DIMENSIONS
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
MULTI-SHELF COOKING
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
QUALITY AND DURABILITY
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop grates and glowing halo dials all add up to an exceptional, premium range.
EASY TO CLEAN
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
BURNER POWER & CONTROL
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
LARGE CAPACITY OVEN
The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.
EVEN HEAT
Accurate, electronically-controlled oven heat ensures a great result every time.
SPECIFICATIONS
| Accessories | |
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Full extension telescopic | 2 sets (part 578776) |
| Small pot support | 1 (part 533981 cast) |
| Accessories (sold separately) | |
| Kick strip, red (optional) | KICKOR30R1 |
| Burner ratings | |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Maximum burner power | 18000 BTU |
| Semi-rapid burner (LPG) | 1500 – 7600BTU |
| Semi-rapid burner (natural | 1500 – 8000BTU |
| Total cooktop power | 52000 BTU |
| Capacity | |
| Shelf positions | 7 |
| Total capacity | 3.5cu ft |
| Usable capacity | 2.9cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down broil element | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel clock | • |
| Gas Requirements | |
| Supply Pressure (LPG) | 11″ W.C.P |
| Supply Pressure (natural gas) | 4″ W.C.P |
| Oven features | |
| AeroTech™ technology | • |
| Auto re-ignition system | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Concealed element | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| True convection | • |
| Turned stainless steel clock | • |
| Oven functions | |
| Aero Bake | • |
| Aero™ Pastry with Pizza mode | • |
| Number of functions | 9 |
| Rapid proof | • |
| Roast | • |
| True convection | • |
| Oven performance | |
| Broil power | 4050W |
| CoolTouch door | Triple glazed |
| Warming drawer power | 220W |
| Power requirements | |
| Amperage | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Brass burner spreader (power | • |
| Embossed brass burner cap | • |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Rangetop Performance | |
| Number of burners | 4 |
| Safety | |
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Spill containment | 1/2 gallon |
| SKU | 81720 |
