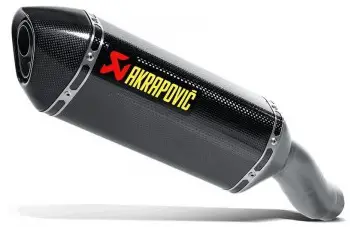

AKRAPOVIC 508361 non-original motorcycle exhaust User Manual
Technical data
Type and version of exhaust:
M-HIL001, M-HIL001 02TY, M-HIL001 02SSY, M-HIL001 02TBLY, M-HIL001 02SSBLY, M-HIL001 02T, M-HIL001 02SS, M-HIL001 02TBL, M-HIL001 02SSBL.
Marking: Engraved by laser / engraved by needle / plate fixed with rivets.
Field of application:
| Manufacturer / Trade mark | Commercial description | Vehicle type beginning with no. of homologation | Variant(s)/ Version(s) | Engine type | Component parts, dimensions in mm | Dimensions of the part in mm or original part / replacement part | Akrapovic part no. Or homologation no. |
| Yamaha Motor Co. / Yamaha | T-MAX 560 (XP 560 E | SJ18 e13*168/2013*00660* | al | J420E | Header pipe | Replacement part | H-Y5R1 |
| Connection pipe | Replacement part | C-Y5R3/1 | |||||
| T-MAX Tech MAX 560 (XP 560 D) | Catalytic converter | ø83 x 120 | P-KAT-074 ; e26*01095*F | ||||
| Catalytic converter | ø83 x 120 | P-KAT-083 ; e26*01099*F | |||||
| T-MAX (XP 560) | Connection pipe | Replacement part | L-Y5R7 | ||||
| Silencer Inlet pipe ø52 2 x Outlet pipes ø20 | Hexagonal conical 120 x 161,8 Length without end caps 400 | M-HIL001 e26*08196*G ; E26 92R-02 8196 | |||||
| T-MAX 530 (XP 530E-A) | SJ14 e13*168/2013*00047* | J415E | |||||
| T-MAX SX (XP 530-A) | |||||||
| T-MAX DX (XP 530D-A) | |||||||
The vehicles fulfil – regarding their Whole Vehicle Type Approval (WVTA) – the environmental steps: Euro (4/5)
Approval No.: E26 92R-02/00 8196 ext.00
Issued by: SLOVENIAN TRAFIC SAFETY AGENCY
Vehicle department
Kotnikova ulica 19a, SI-1000 LJUBLJANA, SLOVENIA
Place & date of type-approval: LJUBLJANA, 16.12.2021
Report No.: 21-00077-CM-GBM-00
Issued by: TÜV SÜD Auto Service GmbH
Westendstrasse 199
DE-80686 MÜNCHEN
Date of issue: 01.12.2021
Approval identification: E26 92R-02 8196
