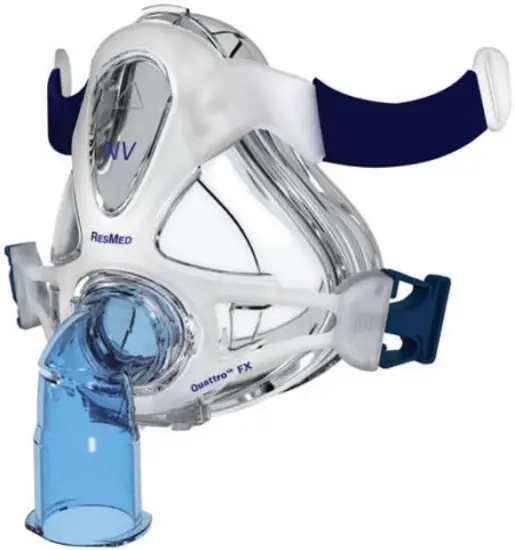

ResMed Quattro FX NV Non Vented Full Face Mask User Guide
NON-VENTED FULL FACE MASK

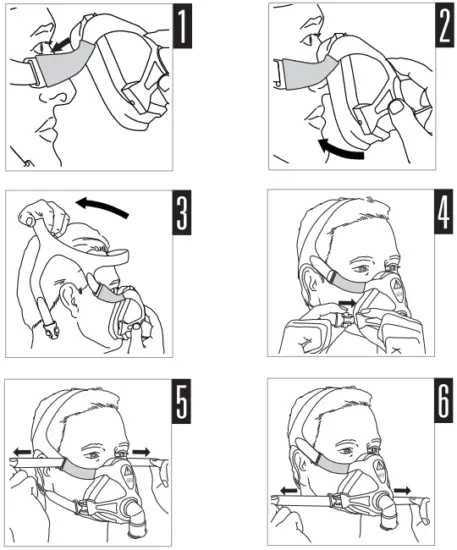

Fitting

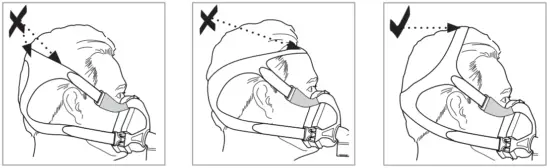

Headgear position

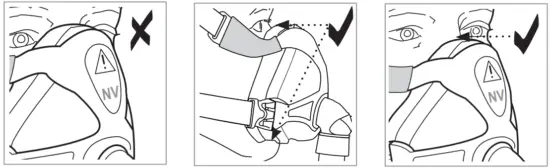

Cushion check

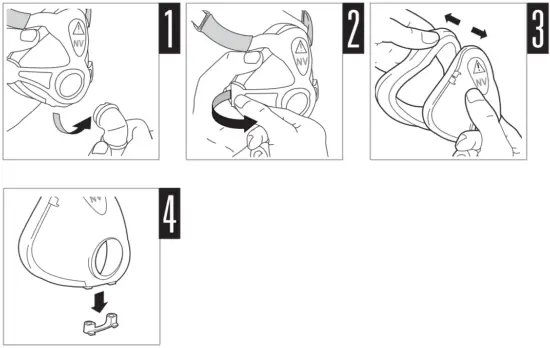

Disassembly

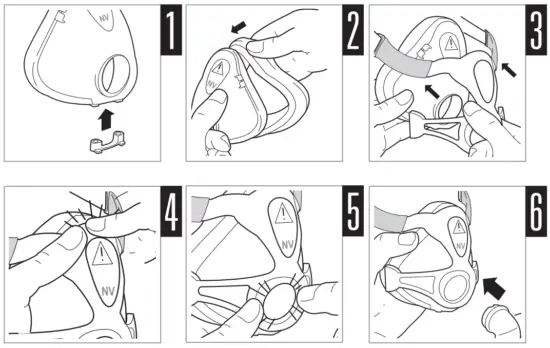

Reassembly
Product Overview

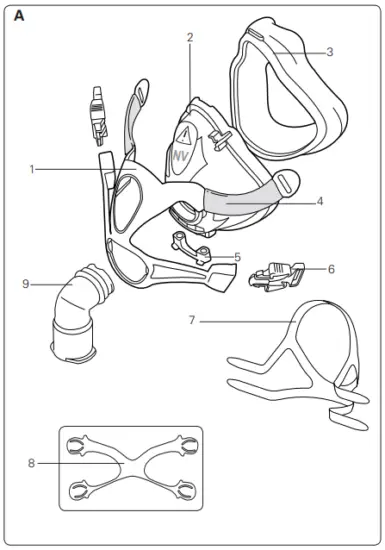

Mask components
Item | Description | Part number |
| 1 | Spring frame* | 61759 (S) 61760 (M) 61761 (L) |
| 2 | Frame | 61745 (S) 61746 (M) 61747 (L) |
| 3 | Cushion | 61721 (S) 61722 (M) 61723 (L) |
| 4 | Soft sleeves | 61758 |
| 5 | Ports cap | 16570 (2) 16571 (10) |
| 6 | Headgear clip | 61353 (2) |
| 7 | Headgear | 61734 (S) 61733 (M) 61738 (L) |
| 8 | Spring frame support | — |
| 9 | Elbow | 61762 |
| A | Complete system | 61742 (S) 61743 (M) 61744 (L) |
Includes 1 & 4
- S Small
- M Medium
- L Large

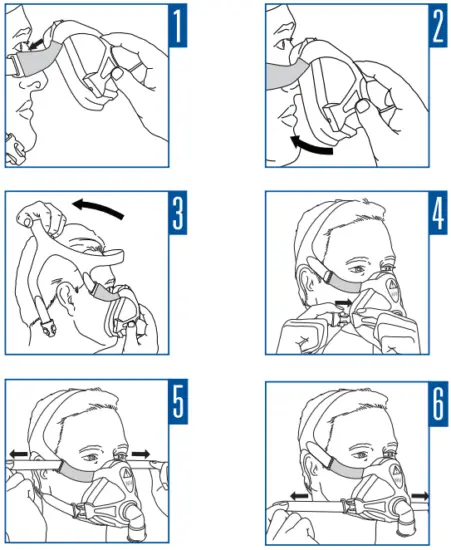

Using Instruction
