Sunell Sn-nvr3632e8 Network Video Recorder User Guide

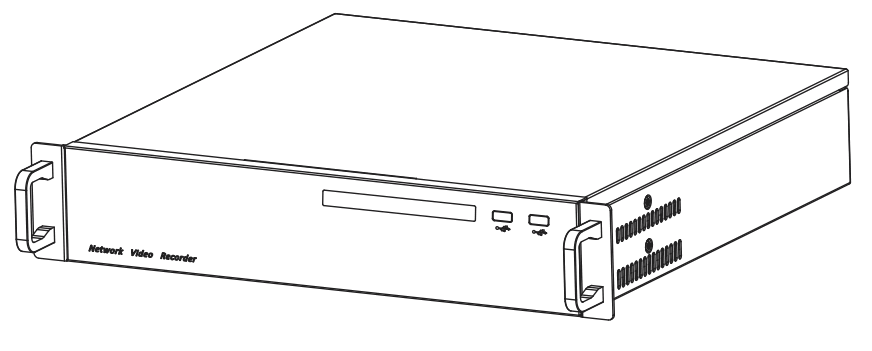

SN-NVR3632E8 Network Video Recorder
User Guide

Precautions

Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip “You have entered the area of electronic surveillance” in an eye-catching place. Failure to correctly use electrical products may cause fire and severe injuries.
WARNING
It alerts you to moderate dangers which, if not avoided, may cause minor or moderate injuries.
CAUTION
It alerts you about risks. Neglect of these risks may cause device damage, data loss, device performance deterioration, or unpredictable results.
NOTE
It provides additional information.
WARNING

• Strictly observe installation requirements when installing the device. The manufacturer shall not be held responsible for device damage caused by users’ non-conformance to these requirements.
• Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.
• Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
• If this device is installed in places with unsteady voltage, ground this device to discharge high energy such as electrical surges in order to prevent the power supply from burning out.
• When this device is in use, ensure that no water or any liquid flows into the device. If water or liquid unexpectedly flows into the device, immediately power off the device and disconnect all cables (such as power cables and network cables) from this device.
• If this device is installed in places where thunder and lightning frequently occur, ground the device nearby to discharge high energy such as thunder strikes in order to prevent device damage.

CAUTION

• Avoid heavy loads, intensive shakes, and soaking to prevent damages during transportation and storage. The warranty does not cover any device damage that is caused during secondary packaging and transportation after the original packaging is taken apart.
• Protect this device from fall-down and intensive strikes, keep the device away from magnetic field interference, and do not install the device in places with shaking surfaces or under shocks.
• Clean the device with a soft dry cloth. For stubborn dirt, dip the cloth into slight neutral cleanser, gently wipe the dirt with the cloth, and then dry the device.
• Do not jam the ventilation opening. Follow the installation instructions provided in this document when installing the device.
• Keep the device away from heat sources such as radiators, electric heaters, or other heat equipment.
•  Keep the device away from moist, dusty, extremely hot or cold places.
• If the device is installed outdoors, take insect- and moisture proof measures to avoid circuit  board corrosion that can affect monitoring.
• Remove the power plug if the device is idle for a long time.

Special Announcement

• All complete products sold by the manufacturer are delivered along with nameplates, quick setup guide and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products.
• The manufacturer will update this manual according to product function enhancement or changes and regularly update the software and hardware described in this manual. Update information will be added to new versions of this manual without prior notice.
• This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product, the final interpretation of company is as a standard.
• This manual is only for reference and does not ensure that the information is totally consistent with the actual product. For consistency, see the actual product.

NOTE
For more information, please refer to website.
Open Package Examination
Open the package, check the appearance of product for no obvious damage, and confirm the item list for table 1-1 is consistent.
Table 1-1 Packing list

Device Structure
2.1 Device Ports
NOTE
Different devices may have different ports and multi-head cables; Please refer to the actual product.
Front panel description of device refer to table 2-1.
Table 2-1 Front panel description

Port Name	Description
PWR Indicator	When the NVR is operating, the PWR indicator is steady on. When the NVR is shut down, the PWR indicator is turned off.
HDD Indicator	Hard disk status indicator This indicator flashes when data is transmitted.
	Supports connected to an USB mouse.

Rear panel description of device, please refer to table 2-2.
Table 2-2 Rear panel description

Port Name	Description
	Alarm input and alarm output./RS485
LINE OUT/ LINE IN	Audio output and audio input
LAN	RJ45 10 /100/1000 MPs adaptive Ethernet interface. LAN1 is deployed default gateway and used for external network. LAN2 is used for internal network.
VGA	Video output interface
HDMI
RS232	Standard RS232 serial communication interface of the device
USB 3.0	Only supports connected to 3.0 U disk
e SATA	External hard disk interface
	Safe ground screw of the device
	Power switch
	AC 110V/220V power input interface

2.2 Device Dimensions
NOTE
Different devices may have different dimensions; Please refer to the actual product.

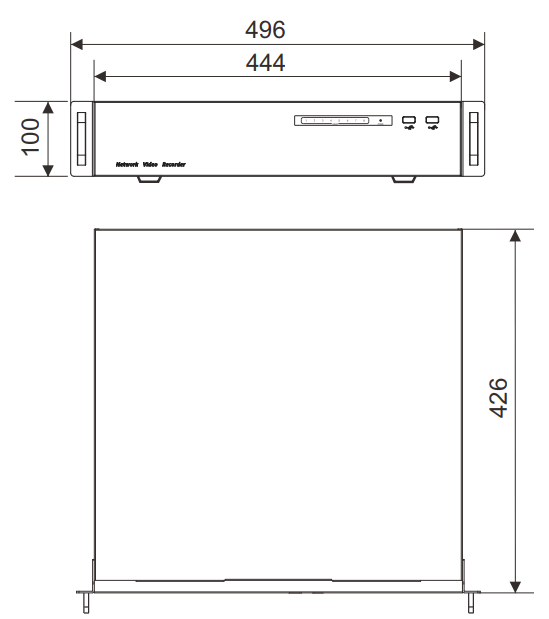

Figure 2-1 Dimensions (Unisom)

Device Installation

The hard disk of the NVR must be provided by the user. Take the following steps to install the hard disks：
Step 1 Remove the screws for fixing the cover and take down the cover.

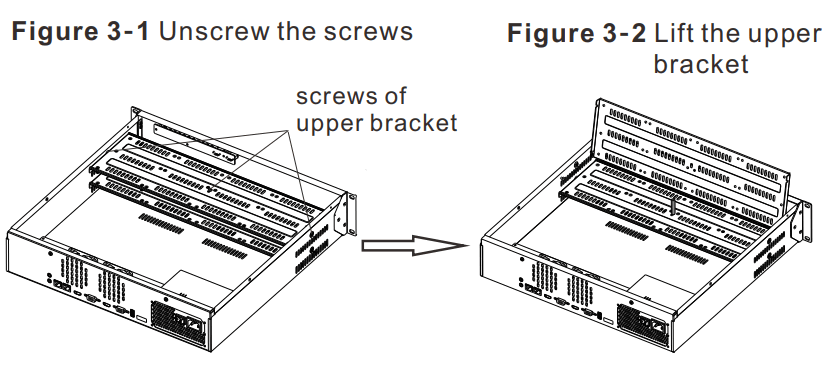

Step 2 Unscrew the screws on both sides and the upside of the upper bracket respectively, lift the upper bracket, as shown in figure 3-1& figure 3-2.Step 3 Put the hard disk under the lower bracket, hold the hard disk with one hand and aim the hard disk hole at the bracket hole, then fix the screws for hard disk, as shown  in the left figure 3-3.

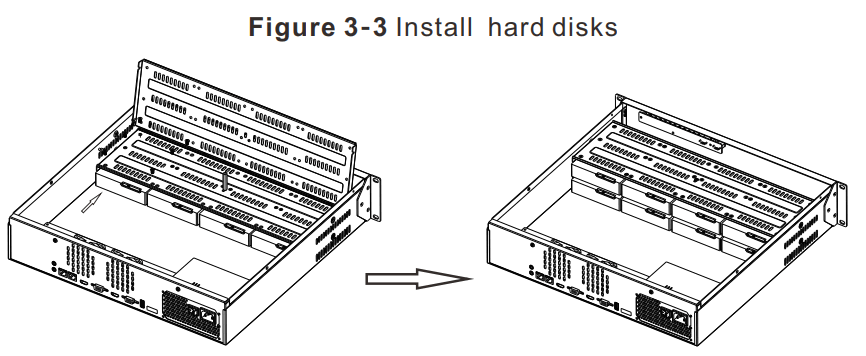

Step 4 Pull down up per bracket and screw it , then install otherward disks in upper layer following step 3, as shown in the right figure in 3-3.Step 5 Insert the hard disk data cable and power cable, and replace the upper cover and fasten the fixing screws.

Device Operation

4.1 Startup
Before starting NVR, ensure that the NVR is connected to a pow supply properly and a monitor is connected to the HDMI or VGA interface of the NVR correctly. After starting the NVR, there is a login window located in the center, as shown in figure 4-1.
In some environments, if the power supply is abnormal, the NVR may not work properly. In severe cases, the NVR may be damaged. In these environments, you are advise to use regulated power supply. NOTE

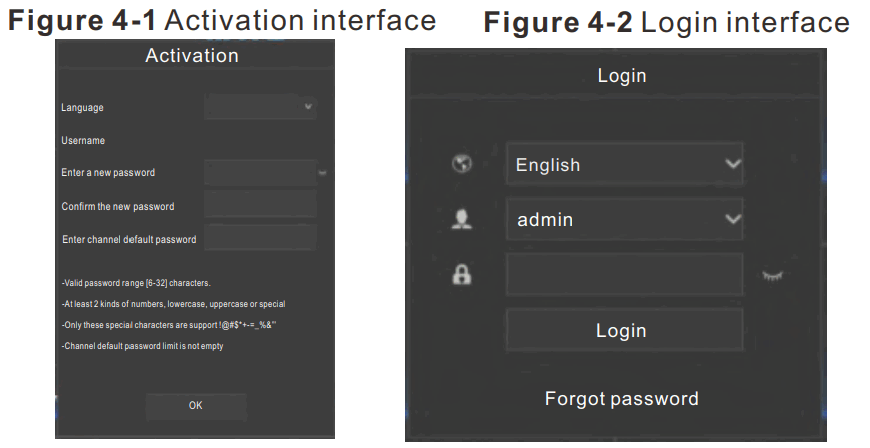

The default user name and password both are admin. For system security, users will be forced to modify password when login the system at the first time.
If the NVR need activation, please create a new password to login. User can change the system display language on the login window.

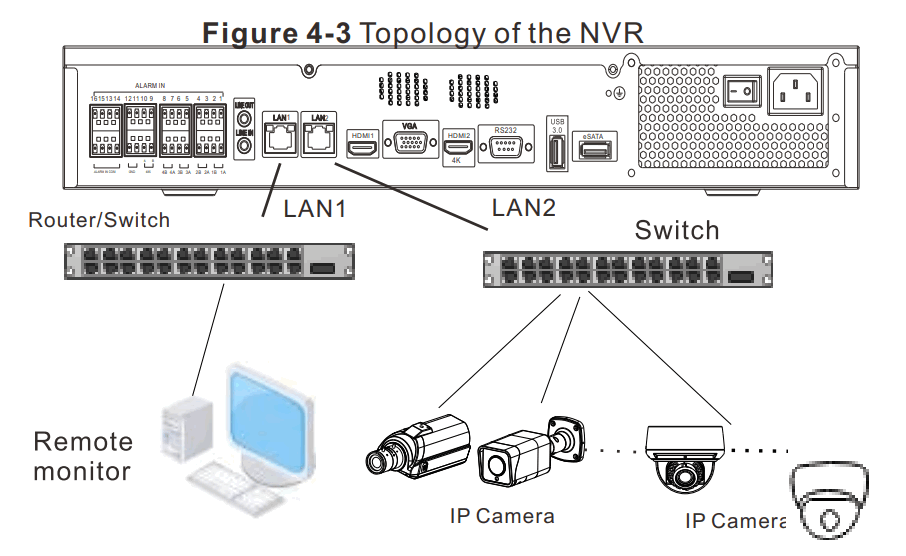

4.2 Topology of the NVR
A free network includes other network devices in addition to IP camera and NVR. For the topology of a free network can be organized freely so long as NVR and IP camera can communicate with each other smoothly. For The topology refer to figure 4-3.4.3 Special Function
Click the AI Recognition icon, Human Face, or Thermal Temperature at the bottom of page to enter the AI interface. The use can set and view the AI cameras’ parameters, include human face, vehicle license plate.
4.4 Power off
Enter the path Main Menu >System > Maintenance > Shutdown to power off the NVR.
NOTE
Before replacing the hard disk, the power must be turned off. The special function is only carried by some devices, if the current device does not have the function, please ignore it.

Quick Configuration

Plug in power to access the NVR user page. The wizard window would show at first time; The user can configure quickly or close immediately. The configuration details please refer to main menu.

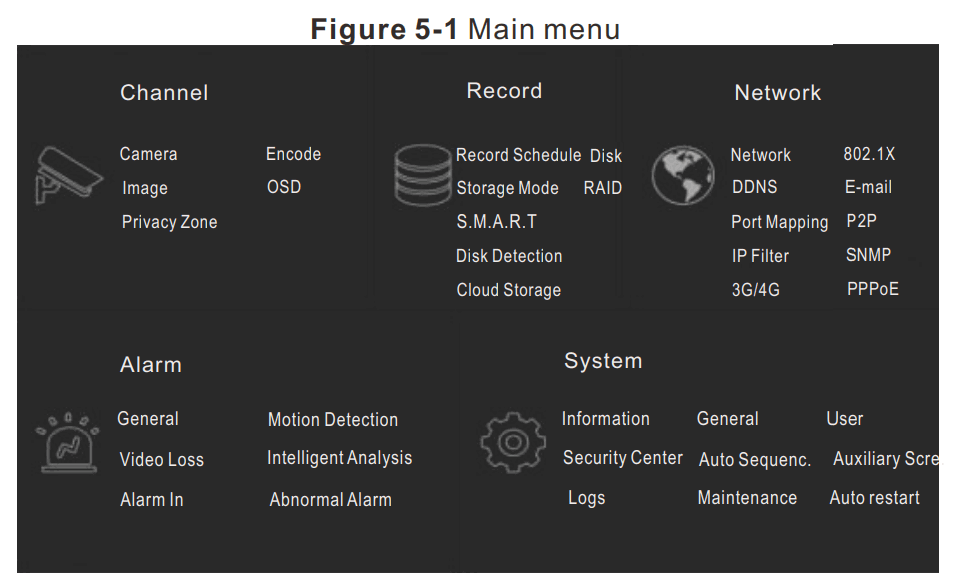

Use the mouse to right-click any where on the main interface to access the main menu. Main menu comprises Channel, Record, Alarm, Network and System settings, as shown in figure 5-1.
5.1 Channel
Channel settings contain Camera, Encode, Image, OSD, Privacy. Zone.

• Camera: user can add cameras automatically by clicking Click to Add, and add manually by clicking Add. Tick cameras then click Delete to delete cameras. User can batch update software.
• mage: adjust image parameters and user can set senor parameter.
• OSD: customize time and channel name displaying in the live video page.
• Privacy Zone: set a privacy zone by clicking anna dragging cursor and double-click an exist private area to delete it. Support up to 4 zones.
• All these settings can be copied to other channels by clicking Copy button.

5.2 Record
Record settings contain Record Schedule, Disk, Storage, RAID, SMART, Disk Detection and Cloud Storage.
Set record schedule and storage strategic. Enter SMART interface to view the state of disks. Disk detection can detect the disks. If user install more than four disks and want to keep the data safety , it is recommended to build RAID.
Cloud storage can storage alarm recording.
NOTE
5.3 Alarm
The disks of RAID must be enterprise level disks. It ups to support 100T Alarm settings contain General, Motion detection, Video loss,
Intelligent analysis, Alarm in, Abnormal alarm as shown in figure 52General: enable or disable alarm and set duration time of alarm.

• Motion Detection: enable this function, if detection the motion actions, it will alarm.

1. Event actions: contain buzzer, alarm out, push message to App, pop-up message to monitor, send E-mail and post recording (after enabling, choose the recording time from drop list.)
2. Area: set motion detection area. Press left button and drag the cursor to add a detection area, and double-click an area to delete it.
3. Schedule: set schedule to enable or disable motion detection alarm. There are three methods to set, click the double arrows button to choose all day. The second, click and adage the cursor to select periods. The third, click one by one.

• Video Loss, Intelligent Analysis are same settings as motion detection.
• Alarm In: settings for I/O alarming. Abnormal Alarm can tick disk error, IP conflict, network disconnected.

5.4 Network

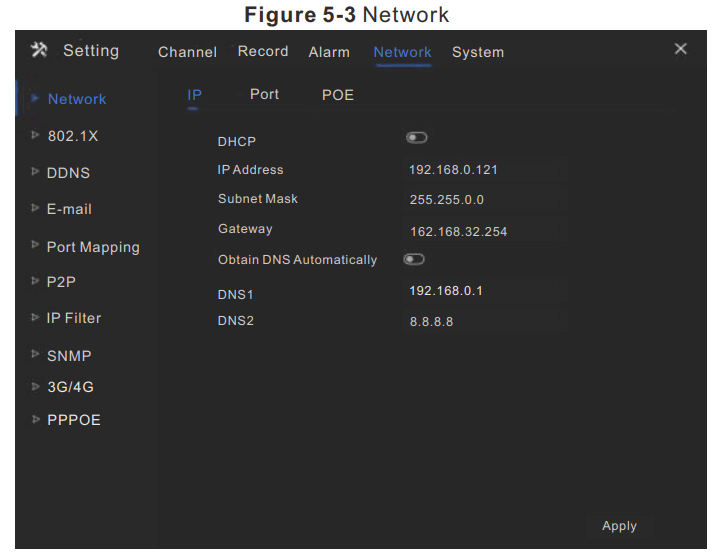

Network settings contain Network, 802.1X, DDNS, E-mail, Port Mapping, P2P, IP Filter, SNMP, 3G/4G, and PPPoE as shown in figure 5-3.

• Network, 802.1X, DDNS, and SNMP interface to set network parameters.
• E-mail: set E-mails for sending and receiving alarm messages and password retrieval message.
• Port Mapping: set the ports for remote accessing.

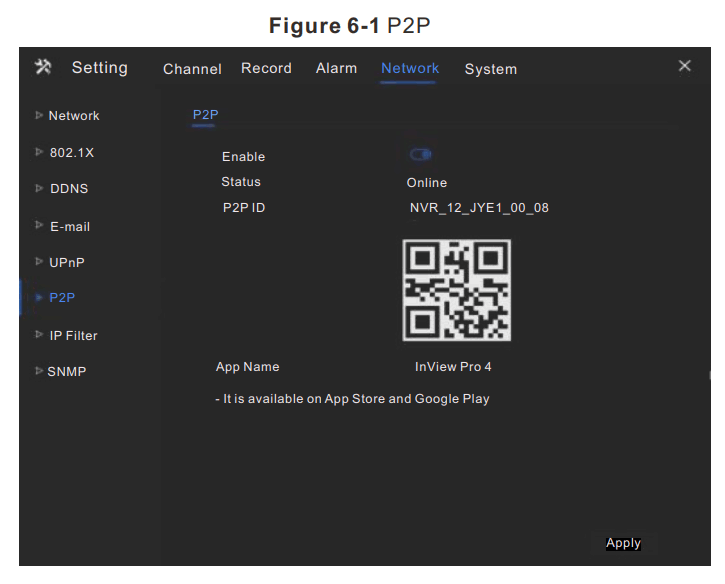

• P2P: add NVR into device list of App by accessing the QR code.
• IP Filter: settings for creating black list or white list.
• 3G/4G: use 3G/4G modem plug to NVR provide the network.
• Pepo: point to point network to access NVR directly.

5.5 System
System settings contain Information, General, User, Password, Auto Sequence, Auxiliary screen, Logs, Maintenance and Auto Restart, as shown in Figure 5-4.

• General: include system, date and time, time zone, DST.
• User: add user and set advance setting(auto login, password double authentication, boot wizard).
• Security Center: modify the password, pattern unlock, secure Email, Secure question.
•  Auto Sequence: settings for sequencing view of the channels.
• Auxiliary Screen: use HDMI and VGA view live video at the same time.
• Logs: shows operating and alarm log, user can export logs if an USB disk is plugged in.
•  Maintenance: include shutdown, reboot, exit system, reset, import configuration, export configuration and update.
• Auto Restart: enable this function to make device restart periodically.

5.6 Live Video

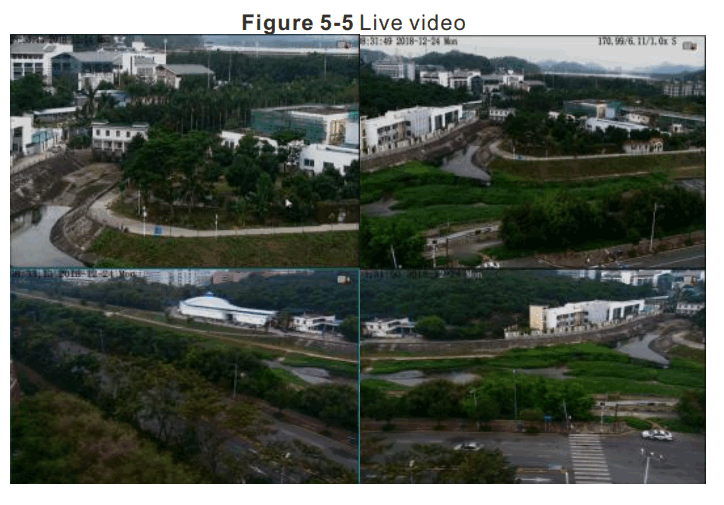

Live video page is display after starting the NVR by default, as shown in figure 5-5.

Mobile Client

Search for “iView Pro4” in App Store or Google Play to download and install the mobile client. Use the App to scan the QR code on the back board of NVR, or in P2P settings page in NVR user interface. Then input the password of the NVR to add the NVR into the device list of the App. User can manage the device through mobile client.

Web Accessing

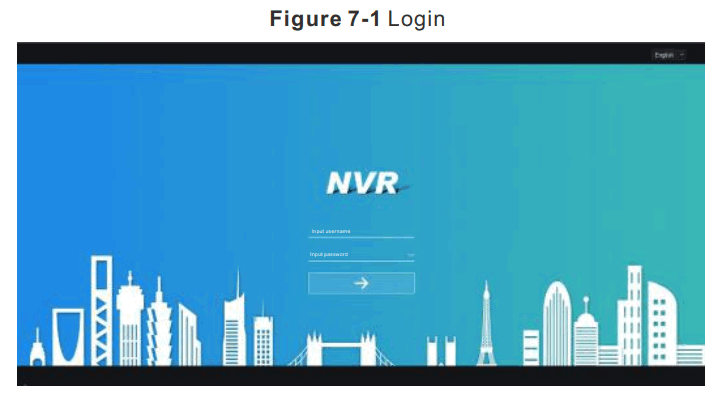

The NVR also can be accessed in a Web browser. Open a web browser like IE and enter the IP address of device (The default IP address is 192.168.0.121) in the address box, and press Enter. The login page is displayed as shown in figure 7-1. NOTE
The user name and password are same as the UI interface.
