Introduction

Sounds that lasts

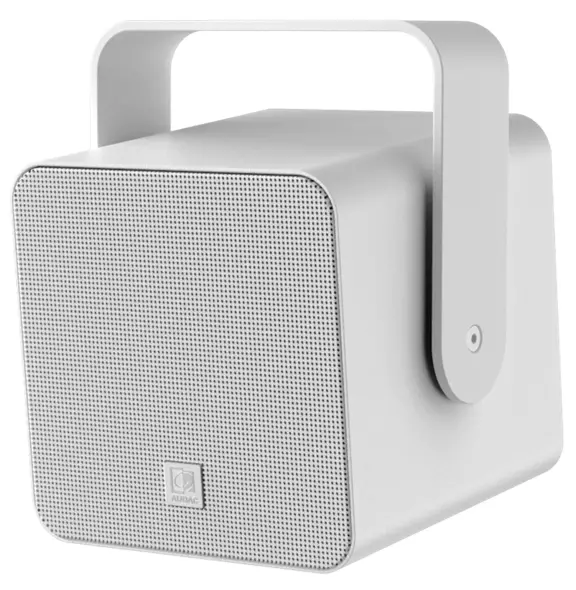

The VIRO is a powerful 2-way performance speaker which is designed for outdoor and indoor use, ensuring true-to-nature, high fidelity reproduction of music and speech in every environment, ranging from residential applications to the most demanding outdoor applications in parks, hotels, and even clubs.
Its stunning design is made of robust and elegant aluminum. The aluminum construction and grill with hydrophobic cloth provide the necessary protection for all weather conditions. The combination of the cloth, sealing rubbers and drainage holes on the bottom of the speaker make it IP55 compliant. The VIRO loudspeaker is available in Black (/B) or White (/W).

Precautions

READ THE FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY
ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY
ALWAYS HANDLE THIS UNIT WITH CARE
HEED ALL WARNINGS
FOLLOW ALL INSTRUCTIONS
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, OR ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH
LIQUID ON TOP OF THIS DEVICE
NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS
DO NOT STICK ANY OBJECTS THROUGH THE VENTILATION OPENINGS.
DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT
PLACE THE UNIT ON A STABLE BASE OR MOUNT IT IN A STABLE RACK
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER
UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME
USE THE APPARATUS ONLY IN MODERATE CLIMATES

CAUTION – SERVICING
This product contains no user-serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to)
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and further relevant specifications described in the following directives: 2014/30/EU (EMC) & 2014/35/EU (LVD).
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
The WEEE marking indicates that this product should not be disposed of with regular household waste at the end of its life cycle. This regulation is created to prevent any possible harm to the environment or human health.
This product is developed and manufactured with high-quality materials and components that can be recycled and/or reused. Please dispose of this product at your local collection point or recycling center for electrical and electronic waste. This will make sure that it will be recycled in an environmentally friendly manner, and will help to protect the environment in which we all live.

Chapter 1 Connections and connectors

CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment

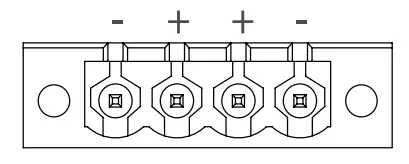

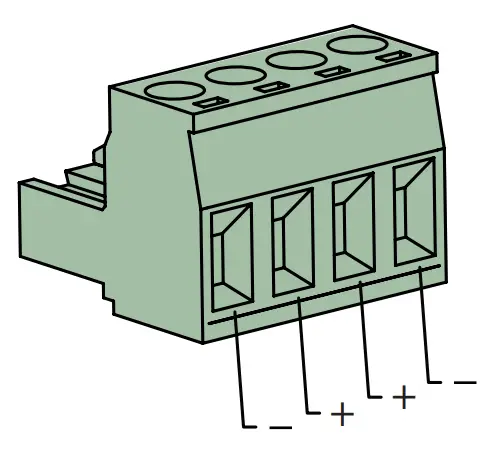

4-Pin Terminal block:
For signal input and output linking connections

Chapter 2 Overview VIRO: Back

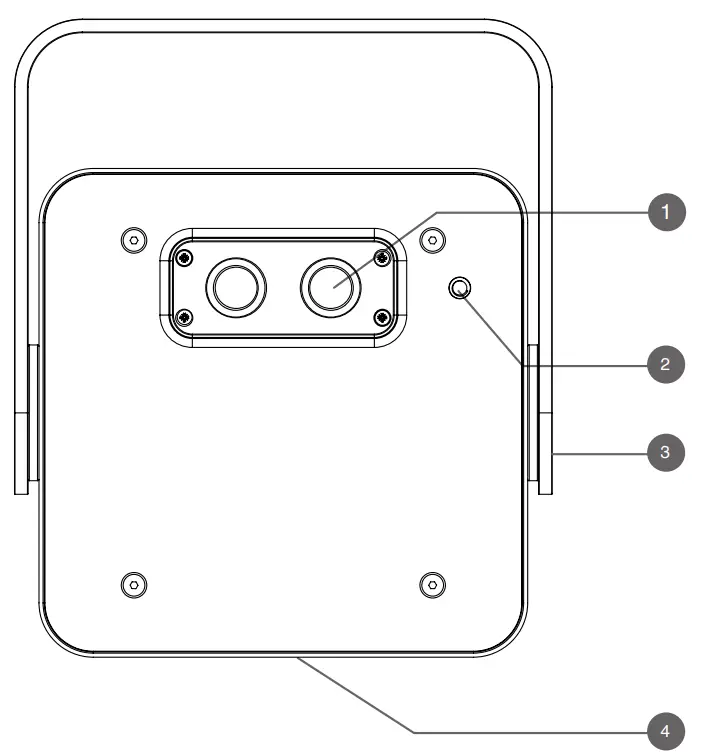

1. Cable entry plate
   To connect the VIRO, the cable must pass through the backplate. The VIRO has two standard cable grommets inthe provided openings. This grommet provides water-tight protection.
   An optional speakON connection plate with two NL4MPconnectors (CVS102) is available. It can be installed by loosening the four screws of the cable entry plate. To connect, the back plate must be released.
2. Drop safety bushing
   The VIRO5 has an M6 safety bushing. This provides the option of mounting drop safety wires. Please check your local regulations if this is required.
3. Bracket
   The bracket of the VIRO is attached to the center point of the speaker. It is designed in such a way that it can be fully rotated around the center point. This allows the bracket to be mounted in all directions. More information about the bracket is in ‘Chapter 3’.
4. Water drainage holes
   Two drainage holes are located at the bottom of the VIRO.
   The loudspeaker has a protection class of IP55 thanks to the sealing rubbers, the water-repellent cloth behind the grill, and the drainage holes.
   Install VIRO at a minimum down tilt of 5°. Standing water is avoided through this installation. At the same time, make sure that the drainage holes are located at the bottom.

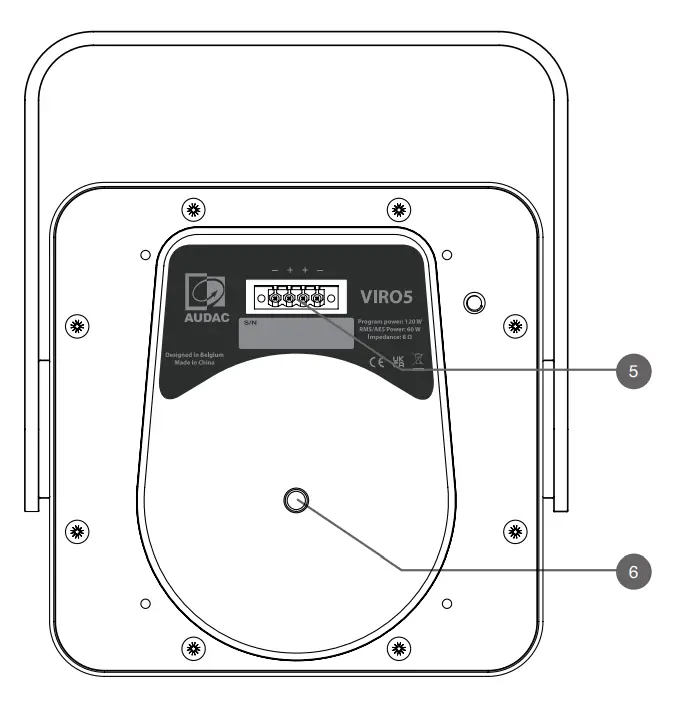

5. Terminal block
   The VIRO has the possibility of a link through connection. For this purpose, a 4-pole terminal block is provided. The wires coming from the amplifier must be connected to the left poles of the terminal block via the cable entry plate.
   The correct polarity is indicated above the connector. Make sure that the polarity is correct throughout the system.
6. Transformer module point
   Mounting point for the optional 70/100V transformer module (TRV106).

Chapter 3 Bracket

The bracket of the VIRO is attached to the center point of the speaker. It is designed in such a way that it can be fully rotated around the center point. This allows the bracket to be mounted in all directions, on the ceiling, wall, or floor. As a result, VIRO can be attached to various accessories.

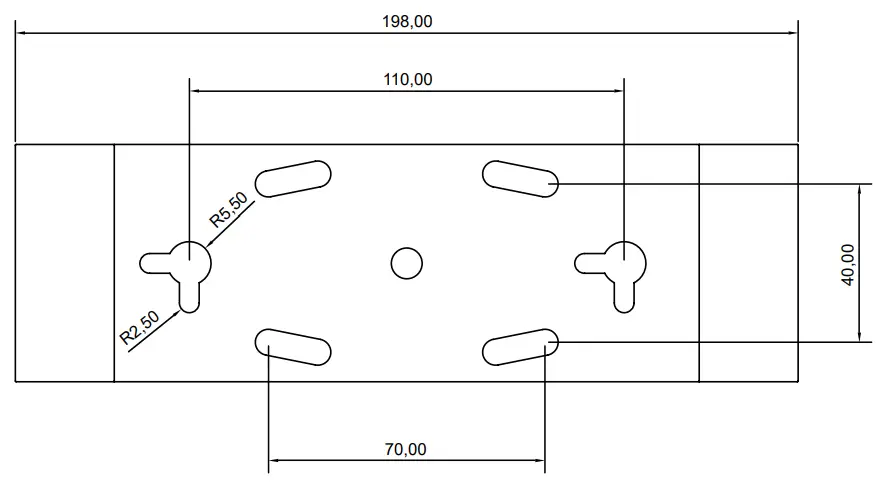

For a solid fixation of the loudspeaker, it should always be attached by at least two screws. The position of the fastening holes depends on the surface to be mounted. Always use the proper fasteners depending on the mounting surface. Once the bracket is mounted on the desired location, the loudspeaker can be fixed to the bracket.

Chapter 4 Connecting VIROs

Multiple videos can be connected to each other. Make sure that all devices are switched off.
Connect the amplifier to the far left +/- of the 4-pin terminal block. The right-hand +/- at the terminal block is the connection to the next VIRO. If the optional transformer module is installed, the link through must be done at the primary side of the transformer.

Technical specifications

Discover more on audac.eu
