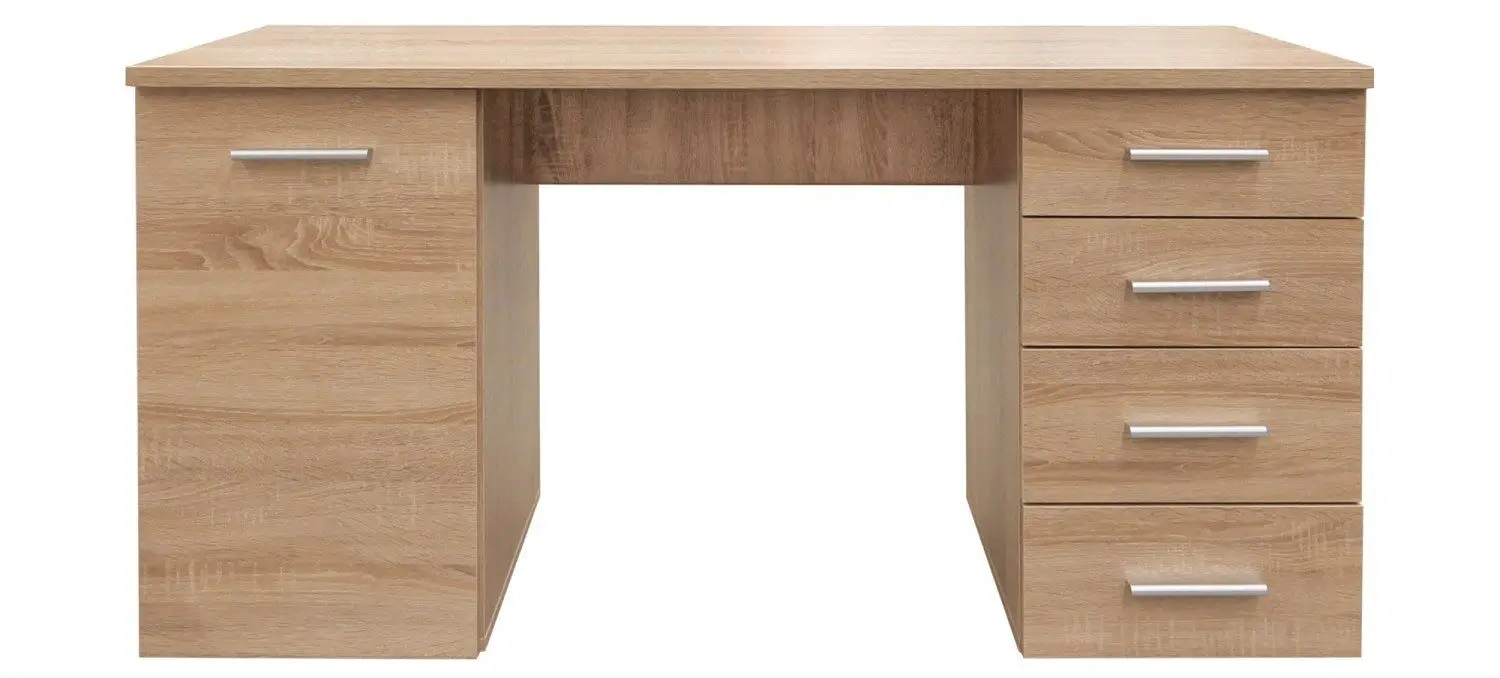

DEDEMAN LIBER COMPUTER TABLE
The specified installation time applies to professionally trained persons (professional installers)
BEFORE STARTING, REFER TO THE ASSEMBLING ADVICE IN ANNEX

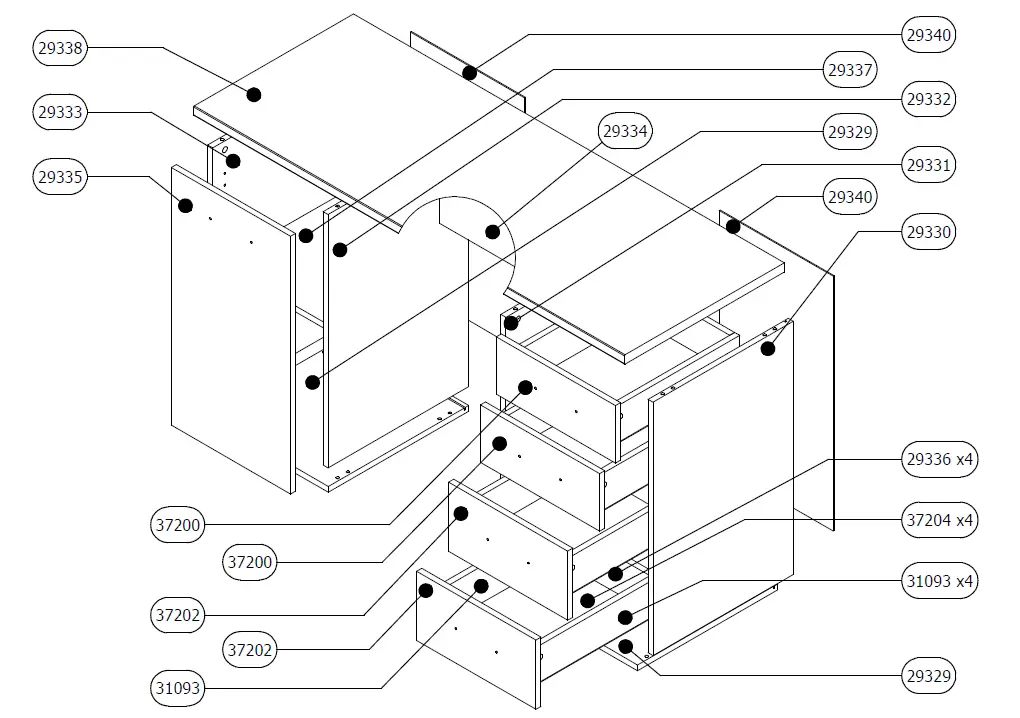

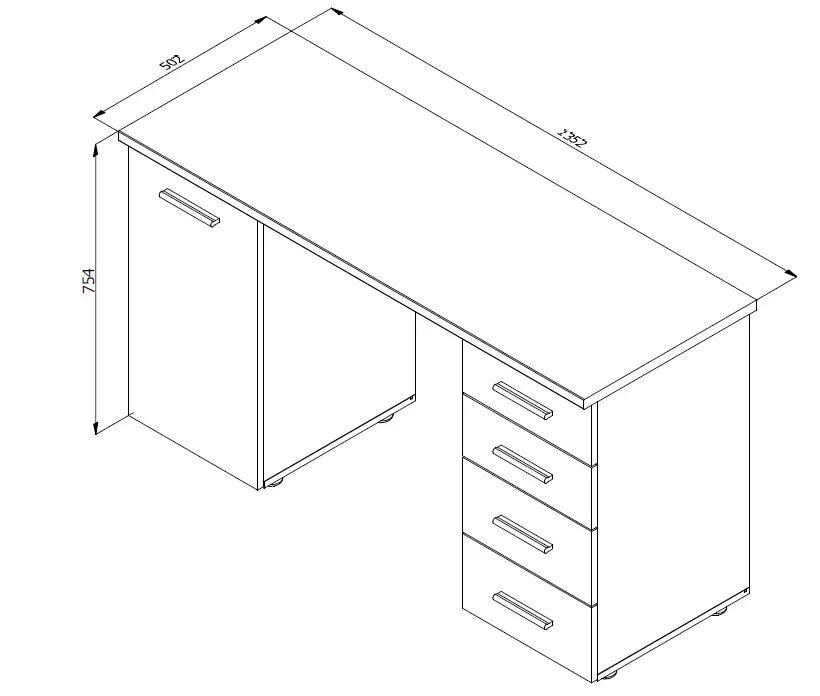

DIMENSION
| 29329 | 380 mm | 440 mm | 16 mm | 2 |
| 29330 | 688 mm | 440 mm | 16 mm | 1 |
| 29331 | 688 mm | 440 mm | 16 mm | 1 |
| 29332 | 688 mm | 440 mm | 16 mm | 1 |
| 29333 | 688 mm | 440 mm | 16 mm | 1 |
| 29334 | 592 mm | 198 mm | 16 mm | 1 |
| 29335 | 374 mm | 700 mm | 16 mm | 1 |
| 29336 | 290 mm | 100 mm | 16 mm | 4 |
| 29337 | 345 mm | 400 mm | 16 mm | 1 |
| 29338 | 1352 mm | 502 mm | 25 mm | 1 |
| 29340 | 357 mm | 692 mm | 3 mm | 2 |
| 31093 | 400 mm | 100 mm | 16 mm | 8 |
| 37200 | 374 mm | 156 mm | 16 mm | 2 |
| 37202 | 374 mm | 188 mm | 16 mm | 2 |
| 37204 | 399 mm | 320 mm | 3 mm | 4 |
| Package 1/1 | |
| 29329 | 2 |
| 29330 | 1 |
| 29331 | 1 |
| 29332 | 1 |
| 29333 | 1 |
| 29334 | 1 |
| 29335 | 1 |
| 29336 | 4 |
| 29337 | 1 |
| 29338 | 1 |
| 29340 | 2 |
| 31093 | 8 |
| 37200 | 2 |
| 37202 | 2 |
| 37204 | 4 |
Assembly of the product should be done on a clean and soft surface (cardboard, fabric)- To prevent damage of the product, it is necessary to adhere to the assembly instructions
- While reporting defective products, please quote codes in manual
Assembly of the product should be done on a clean and soft surface (cardboard, fabric)
Assembling
STEP1,2,3,4

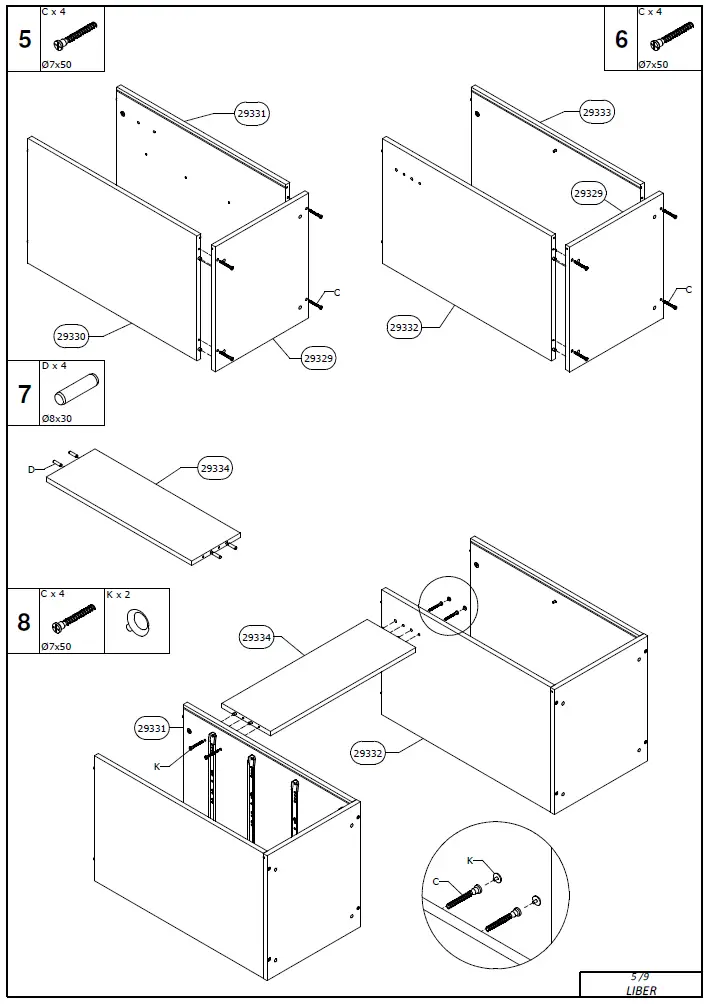

STEP5,6,7,8
STEP 9,10

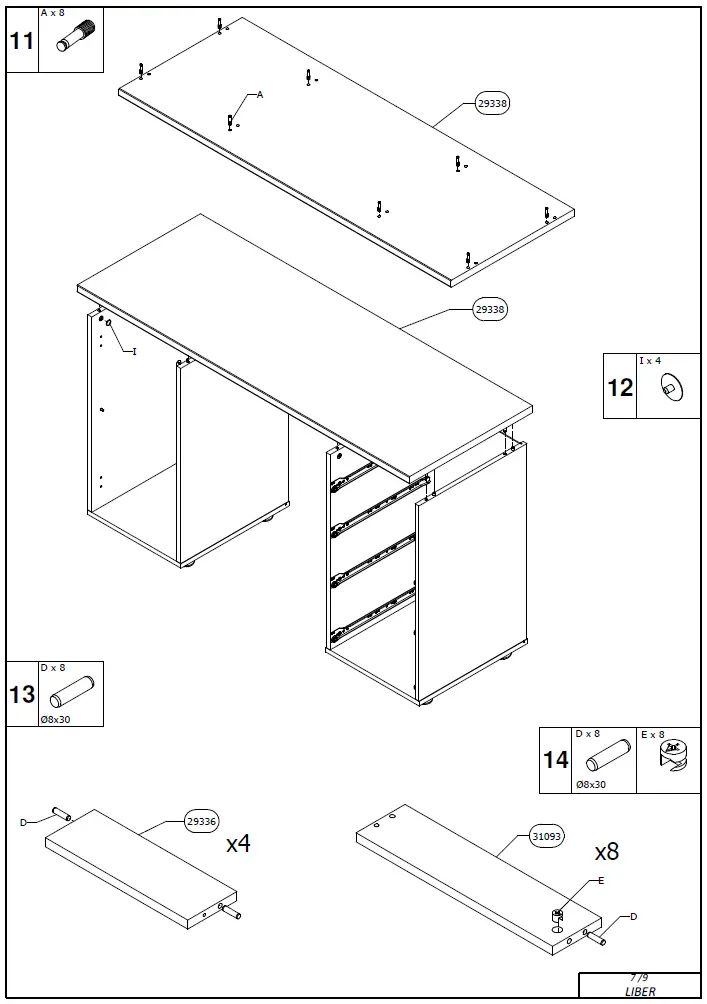

STEP 11,12,13,14

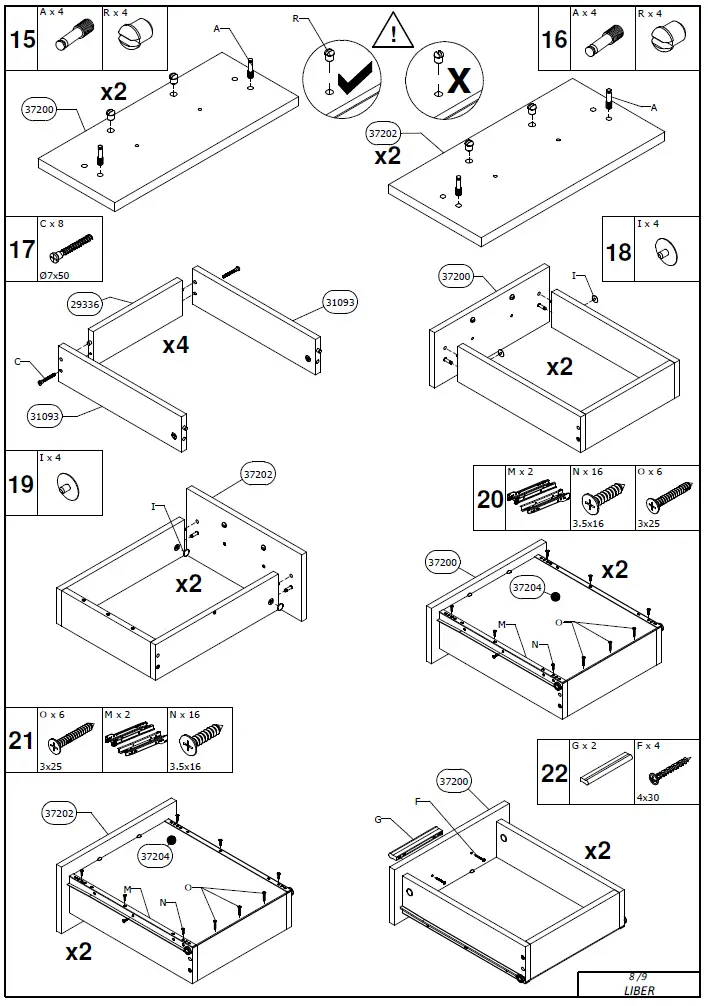

STEP 15,16,17,18,19,20,21,22

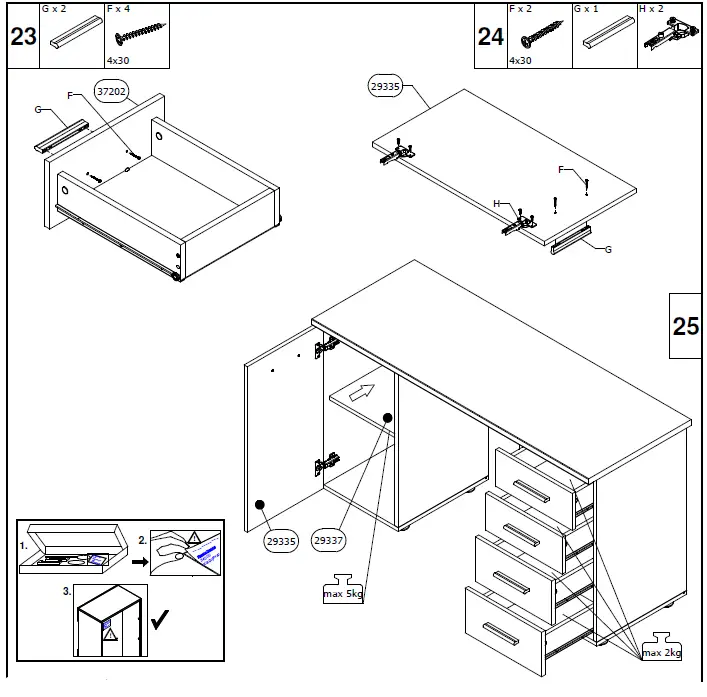

STEP 23,24,25
CAUTION
