NEO LITE Smart Outdoor Switch
User Guide
Imax NEO LITE Smart outdoor switch 16A, IP68, WIFI
TECHNICAL SPECIFICATIONS:
Power consumption: AC 120 – 240 50 Hz / 60 Hz
Maximum current: 16 A (3680W)
Protocol: Wi-Fi
Frequency: 2400MHz – 2483.5MHz
Maximum RF output power: WiFi: 20dBm
Mains standby power supply (Pnet): 0.5W
Wireless range: 30 m direct visibility, 10 m in built-up area
Operating temperature: -20°C to 60°C
Operating humidity: 20% – 80%.
Degree of protection: IP68
Dimensions: 135 mm x 62 x 40 mm
Weight: 120g
DOWNLOAD AND REGISTRATION
Scan QR code and download the Immix NEO PRO application
https://smartapp.tuya.com/immaxneosmart
Or find and install the Imax NEO PRO app in the App Store or Google Play.
– Launch the Imax NEO PRO app and click on “Register-Wat” to create your your own account.
– When you are done registering, log in with your account.
PAIRING THE PRODUCT TO THE APPLICATION

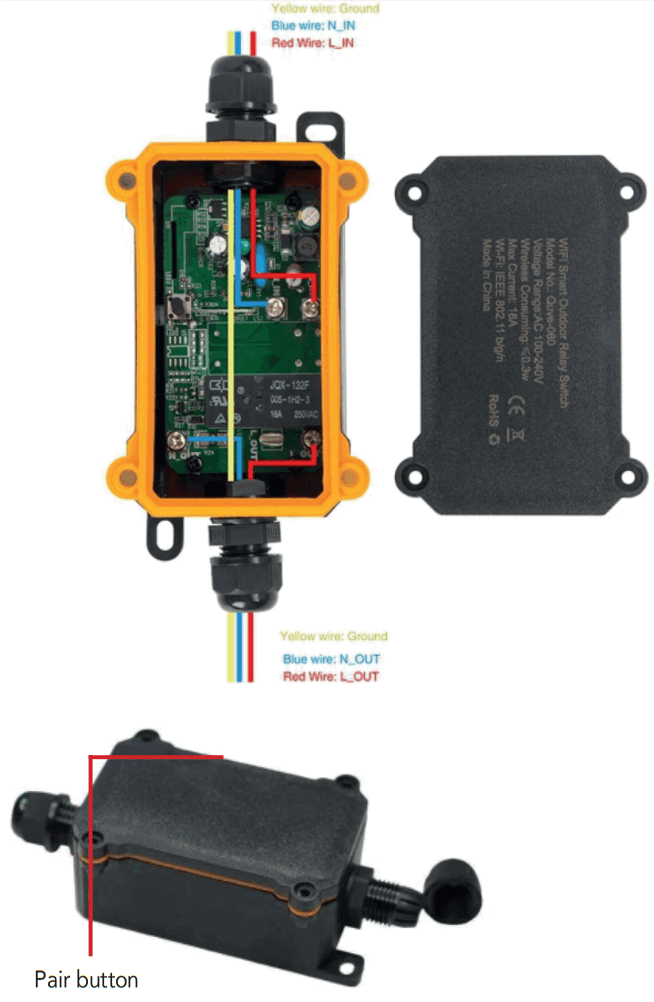

Preparation: connect the Smart Switch to the power supply according to the information on the product body and open the Immix NEO PRO app. Make sure you are connected to the same WIFI network that the product will be connected to. Perform a device reset – press the reset button on the product for more than 5 seconds. The LED light behind the device will start flashing rapidly.
In Imax NEO PRO, click on the Room tab and then the “+” button to add the device. In the Immix NEO tab, select the product. Enter your WIFI network access data and confirm. The product will then be paired and added to the Imax NEO PRO.
SAFETY INFORMATION
CAUTION: Keep out of reach of children. This product contains small parts, which may cause suffocation or injury if swallowed.
WARNING: Every battery has the potential to leak harmful chemicals that can damage skin, clothing or area where the battery is stored. To avoid the risk of injury, do not allow any substance from the battery to come into contact with the eyes or skin. Every battery may burst or even explode if exposed to fire or other forms of excessive heat. Take care when handling the batteries. To reduce the risk of injury from mishandling the batteries, take the following precautions:
– Do not use different brands and types of batteries in the same device
– When replacing the batteries, always replace all the batteries in the device
– Do not use rechargeable or reusable batteries.
– Do not allow children to insert batteries without supervision.
– Follow the battery manufacturer’s instructions for proper battery handling and disposal.
CAUTION: The product and batteries should be disposed of at a recycling center. Do not dispose of them with normal household waste.
CAUTION: To ensure safe use of the product, wires must be brought at the installation site according to valid regulations. The installation must only be carried out by an individual with the appropriate certification in the field of electronics. During installation or when a fault is detected, the power cable must always be disconnected from the socket (in the case of direct connection, the relevant circuit breaker must be switched off). Improper installation can damage the product and cause injury.
CAUTION: Do not disassemble the product, electric shock may occur.
CAUTION: Use only the original power adapter provided with the product. Do not operate the device if the power cord shows signs of damage.
CAUTION: Follow the instructions in the enclosed manual.
MAINTENANCE
Protect the device from contamination and soiling. Wipe the device with a soft cloth, do not use rough or coarse materials.
DO NOT USE solvents or other aggressive cleaners or chemicals.
A Declaration of Conformity has been issued for this product. More information can be found at www.immax.cz
Manufacturer and importer:
IMMAX, Pochoir 703, 742 85 Versine, EU
www.immaxneo.cz | www.immaxneo.com
Vyrobeno v P.R.C.
