User Manual
BW-FLT2
Packaged Include:
Lamp Head 1, Pole 4,Lamp Base 1, Power Adapter 1, emote Contrope1, User Manual 1
Specification
| Model | BW-FLT2 |
| Material | Iron+PC |
| Input Voltage | AC100-240V |
| Wattage | 24W |
| Lumen | 1800LM |
| Color Temperature | 2700-6500K |
| Beam Angle | 120° |
| Controlled By | Remote Control/Touch |
| Working Temperature | -20-4-40°C |
| Working Hours | ≥-20000h |
| Product Size | 0250*H1750MM |

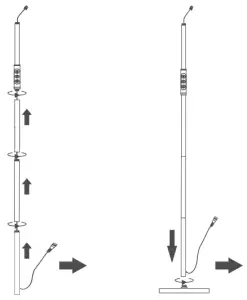

Assembly Instruction
Place the lamp base on a flat surface, and then assemble the product and plug the adapter into the outlet. The lamp head can be adjusted by 180″ in the vertical direction and 350° the horizontal direction

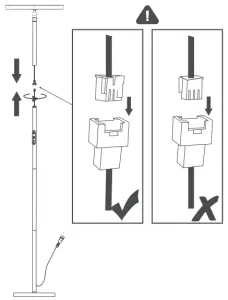

Note:
- Please take care not to pinch or damage the wires
- For better installation, please tighten the bottom pole and lamp base firstly
- Make sure each section of tubes are tightened
Operation
Key Function Of Lamp
 | Power Button | Press it to turn on/off; |
 | Color Temperature Button | Short press it to display 5 color temperatures from warm to cool; Long press it to adjust the color temperature from the warm to cool in 0-100% or vice versa; |
 | Brightness Button | Short press it to display 4 brightness in turn loop; Long press it to adjust brightness from 10% to 100% or vice versa; |
Key Function of Controller
Tips:
- If you want to pair the remote control with the floor lamp, please turn on the floor lamp first, and then press “
” of remote control for 3–5s, the pairing is complete when the floor lamp flashes - There is a magnet on the back of the remote control, which can be adsorbed on any iron metal surface such as floor lamp pole
