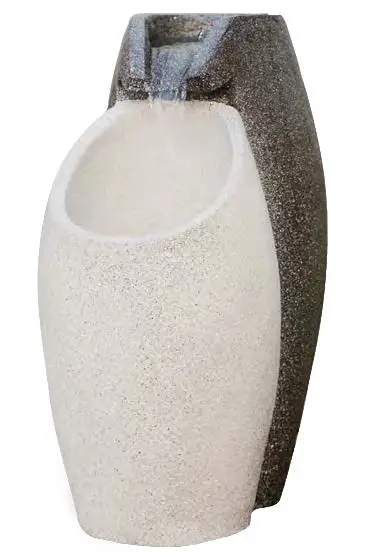

XBRAND GE2512FTGR Waterfall LED Fountain

XBRAND GE2512FTGR Waterfall LED Fountain image

Warranty

Limited 1-Year Manufacturer Warranty

Manufacturer warranty covers:

  • Parts that are deemed defective within 30 day will be shipped free of charge.
  • Any warranty claim after 30 days, will require shipping to be paid by the customer.

What is included

  • FountainXBRAND GE2512FTGR Waterfall LED Fountain fig1
  • HoseXBRAND GE2512FTGR Waterfall LED Fountain fig2
  • LEDXBRAND GE2512FTGR Waterfall LED Fountain fig3
  • Auto Shut Off PumpXBRAND GE2512FTGR Waterfall LED Fountain fig4
  • LED CapXBRAND GE2512FTGR Waterfall LED Fountain fig5

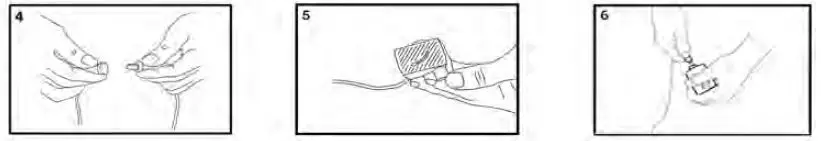

Assembly instructions

  1. Connect LED to hose
  2. Through the opening, connect hose to the top part of the fountain
  3. Connect hose to the pumpXBRAND GE2512FTGR Waterfall LED Fountain fig6
  4. Connect the LED to short connection from pump
  5. Flow adjustable by pump
  6. Connect end of pump connection to adapterXBRAND GE2512FTGR Waterfall LED Fountain fig7
  7. Completely submerge pump in waterXBRAND GE2512FTGR Waterfall LED Fountain fig8

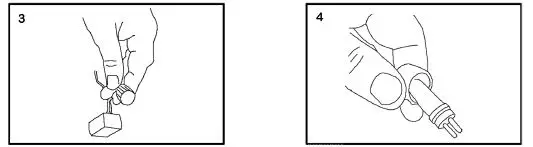

Option to Shut-Off LED

  1. Disconnect the LED connection from the pump connection
  2. Make sure to put the LED cap to the pump connectionXBRAND GE2512FTGR Waterfall LED Fountain fig9
  3. The cap should be twisted tightly to ensure it cannot get wet
  4. You can leave the prongs of the LED connection in the waterXBRAND GE2512FTGR Waterfall LED Fountain fig10

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
