User Manual

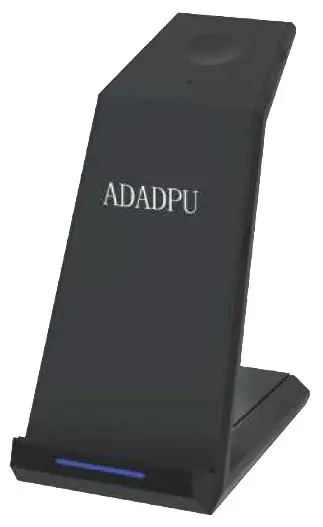

3 IN 1 WIRELESS CHARGER
HM004
Notice: To ensure charging 3 devices safely and efficiently, you must use a 9V/2A adapter(Qualcomm Quick Charger 2.0 or 3.0) and a quick charge cable.(if not use the appropriate adapter and quick charge cable, the charger may not charge the phone,or may not charge 3 devices simultaneously,or may even damage the charger).

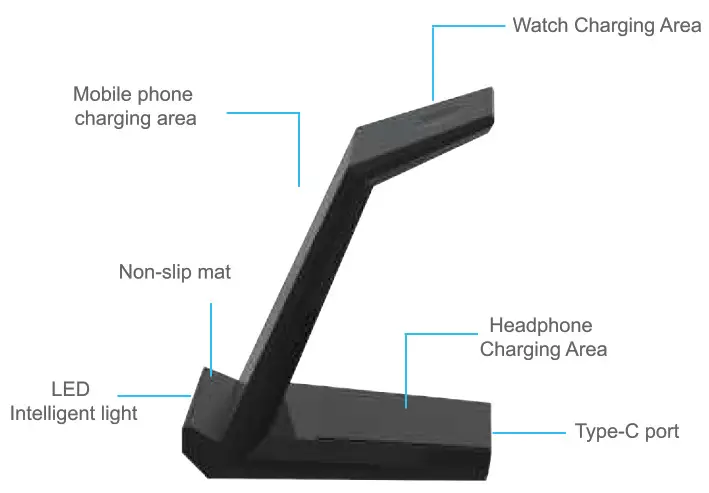

Product Appearance
Product Introduction
The 3-in-1 wireless charger, a compact charging house, powered from only one outlet, Can charge 3 devices simultaneously. When charging your mobile phone, apple watches, and your Airpods 2 or Airpods Pro. just put them on, wireless charging will automatically start, all this will make your desk clean and tidy, and make your life easier. The charger is so space-saving design. Can help you integrate your mobile phone intelligence and life very well, especially for Apple users.
| Working Status | LED Indicator |
| Connected to power |  |
| Standby |  |
| On changing |  |
| Fully Charged |  |
| 1. Metal or abnormal temperature detected 2. Using a non-Quick Charge Wall Charger |  |
Operation Steps
- Connect the charger to a 9V/2A QC3.0 adapter through
a Type-C quick charge cable to switch on the power - Put your phone on then charge
- Put the apple watch on and suck it up to charge(roll the watch band to minimize to charge better)
- Put the charging case of your earphones on the earphone charging area to charge
Product Specification
Input:5V-3A;9V-2A;12V-1.5A
Phone Output:15W/10W/7.5W/5W
Watch Output:2.5W
Earphone Output:3W
Input Interface: Type-C port
Transmission Distance(Phone):≤5mm
Conversion Rate(Phone):≥73%

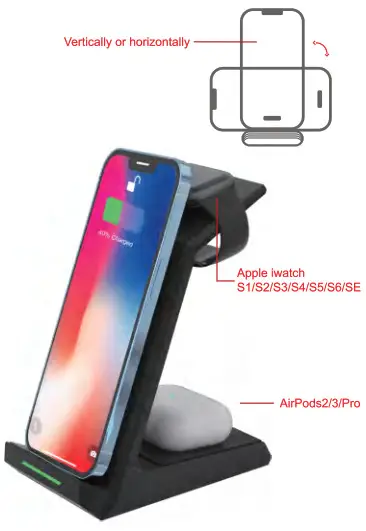

Charging Schematic Diagram
Charging 3 Apple devices simultaneously
FCC STATEMENT:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
