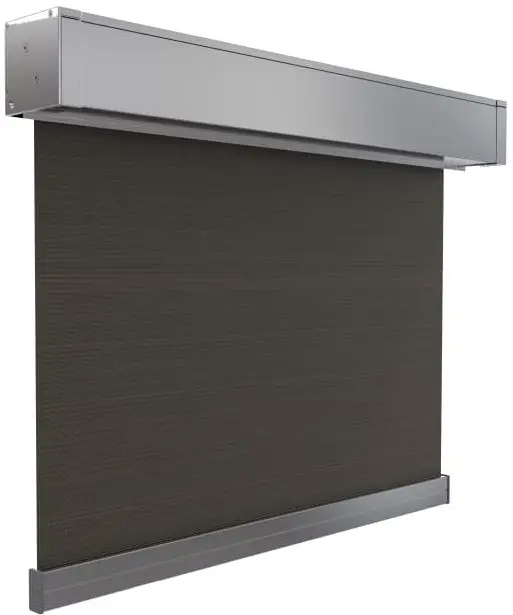

Betta Veue | Straight Drop Installation Guide

betta VEUE | Straight Drop

TOOLS AND ADDITIONAL ITEMS REQUIRED

PART A – TOOLS REQUIRED

• Saw
• Saw
• Drill
• Screw Driver – Philips Head & Flat Head
• Jaw Pliers
• Allen Key Set
• Mallet
• Scissors

PART B – ADDITIONAL ITEMS REQUIRED (NOT SUPPLIED)
To install a VEUE | Straight Drop, the following non-stocked items are required:

• Fixings for Box/Open Brackets/Hardware (ensure appropriate fixings are used to suit application)
• Trims to conceal packing (if required)

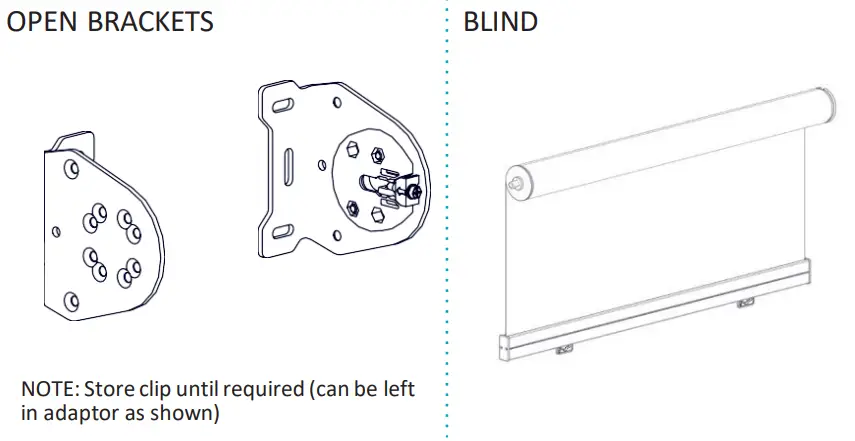

PART C – BLIND ITEMS REQUIRED

INSTALLATION

PART A – PREPARING INSTALLATION SPACE

• STEP 1. – CHECK FOR OBSTRUCTIONS
  Check for any obstructions that may interfere in installation.

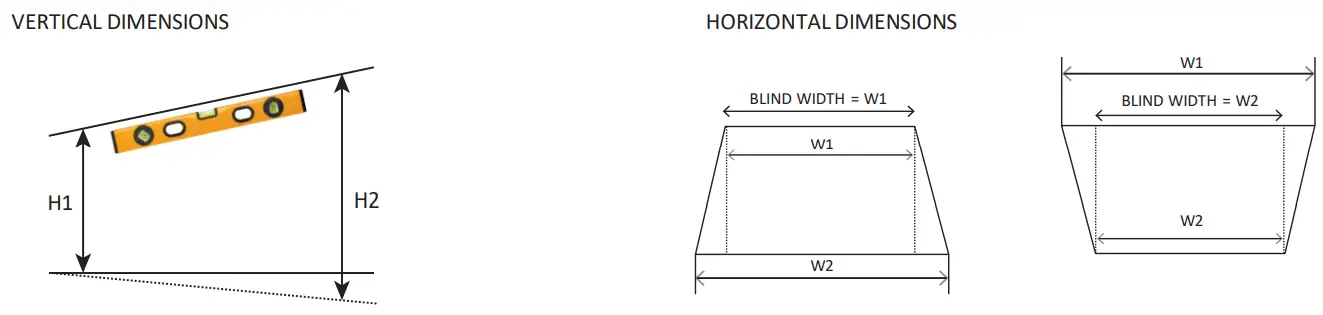

• STEP 2. – CHECK VERTICAL & HORIZONTAL INSTALLATION DIMENSIONS

  Check if top of installation space is level. • If H1 ≠ H2, corrective actions may need to be considered prior to installation

PART B – BOX INSTALLATION

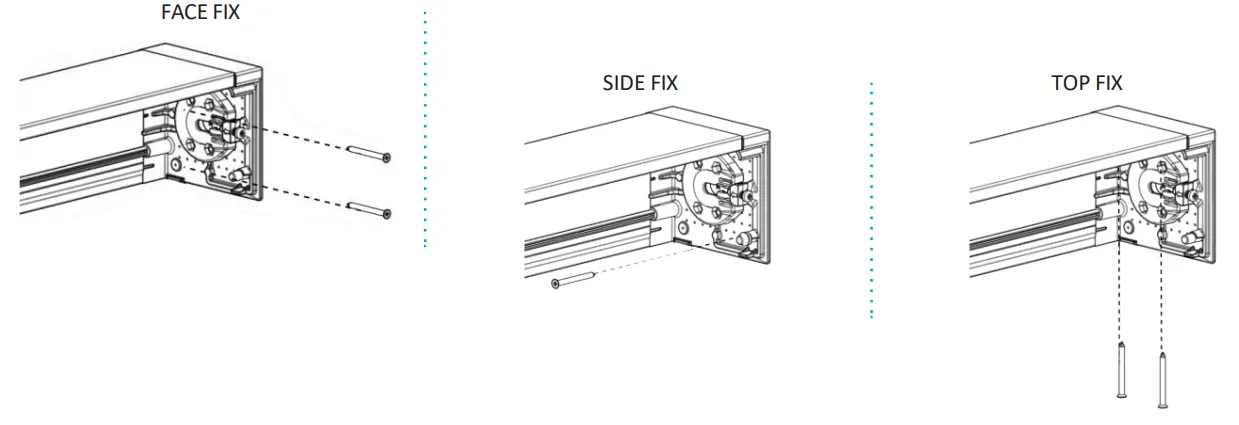

• STEP 1 – INSTALL BOX TO WALL/CEILING


  NOTE:
  Use appropriate fixings to suit application. Ensure Box is Aligned and Level. Ensure 2 fasteners are used per side.

PART C – OPEN BRACKET INSTALLATION

• STEP 1 – INSTALL BRACKETS TO WALL/CEILING


  NOTE:

  • Use appropriate fixings to suit application. Ensure Box is Aligned and Level. Ensure 2 fasteners are used per side.
  • Ensure brackets are aligned and level.
  • Measure brackets end to end to confirm measurement is correct.

PART D – BLIND INSTALLATION

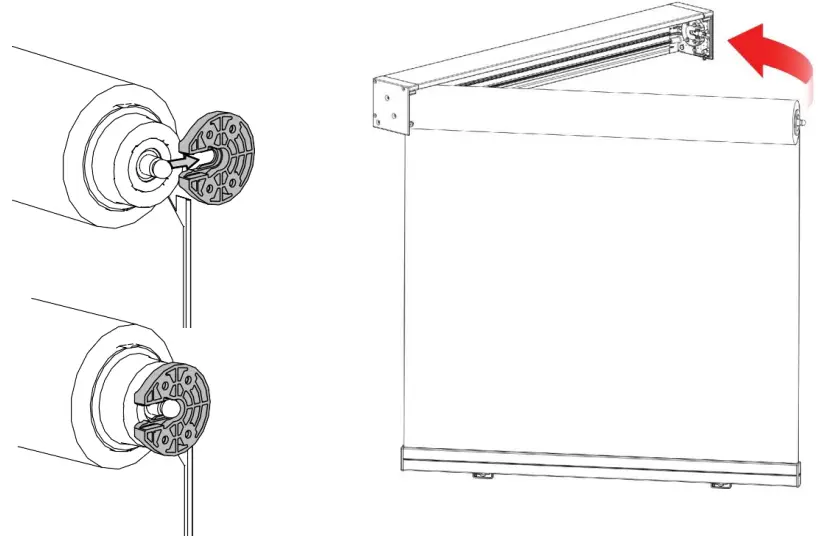

• STEP 1 – INSERT BLIND INTO BOX

  User effort will be required to push the booster head/Idler pin into the adapter, a noticeable “click” will indicate that the component is correctly located.

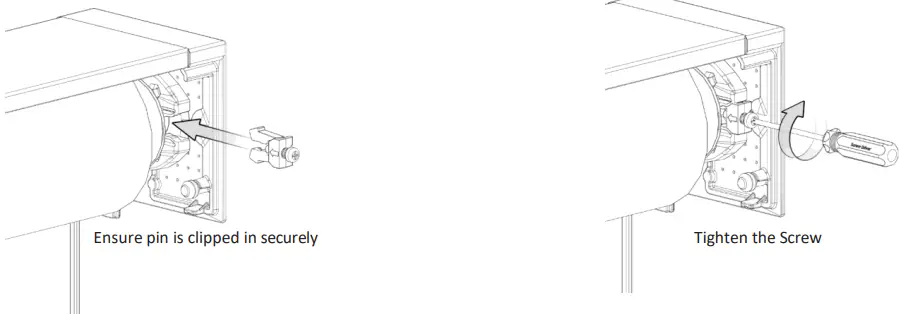

• STEP 2 – INSERT RETAINER CLIP MKII ONTO IDLER ADAPTER
  IDLER END

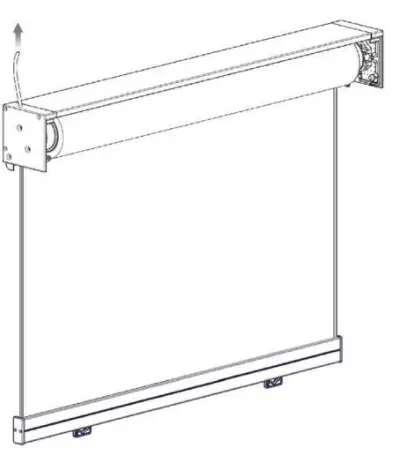

• STEP 3 – FEED THROUGH MOTOR CABLE (FOR MOTOR ONLY)

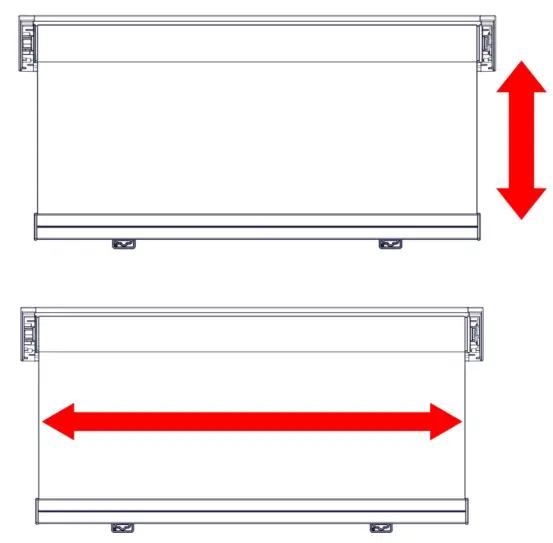

• STEP 4 – RUN BLIND DOWN + CENTRE
  • For motor operation, ensure wiring is correct and motor is operating correctly. For gear operation, ensure operation is smooth.
  • Ensure the fabric is centered.
  • Once blind is operating correctly, proceed to the next step.

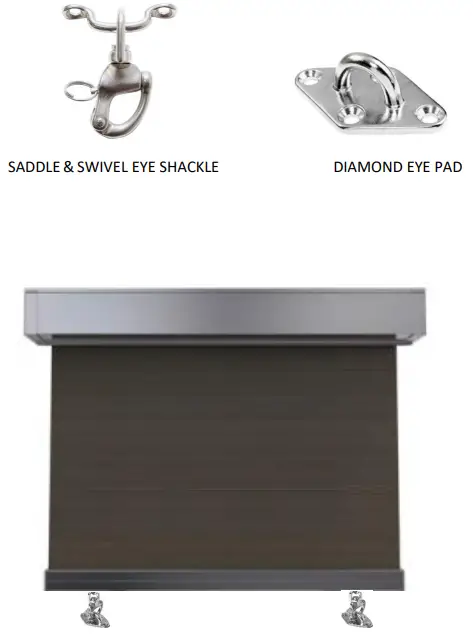

PART E – LOCK OFF SS SADDLES & ATTACH DIAMOND EYE PAD

• OPTION 1 – CLIP
  • STEP 1 – UNLOCK SADDLES AND SLIDE TO REQUIRED POSITION (SUGGESTED 100MM NOMINAL FROM END CAP), LOCK BOTH SADDLES TO THE BOTTOM RAIL
  • STEP 2 – ATTACH THE DIAMOND EYE PAD DIRECTLY BELOW SWIVEL EYE SHACKEL WITH APPROPRIATE SCREWS



PART F – INSERT BOX / COVER

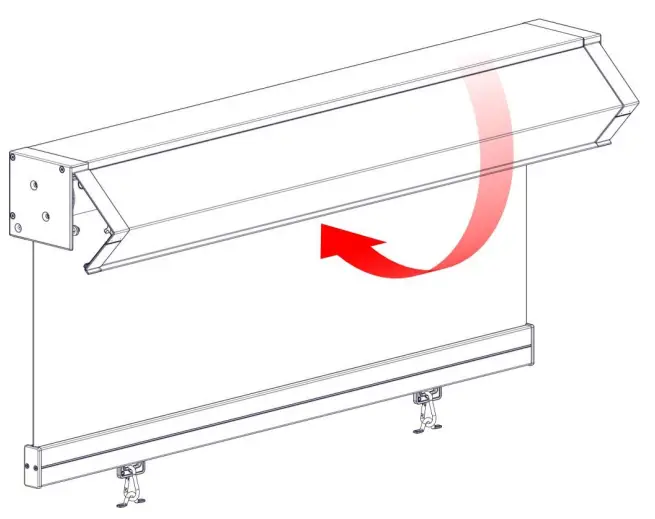

• STEP 1 – INSERT BOX 120 COVER AS SHOWN, SUPPORT THE EXTRUSION AS REQUIRED TO ENSURE SMOOTH ENGAGEMENT

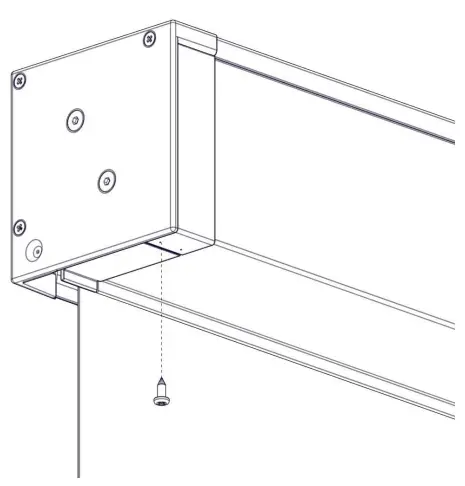

• STEP 2 – SECURE COVER AT BOTH ENDS

  Note: It is recommended that the Box Cover be fixed to ensure it is not accidentally dislodged.

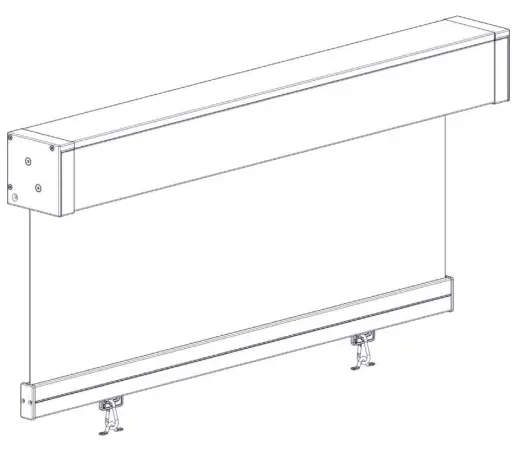

PART G – INSTALLED STRAIGHT DROP

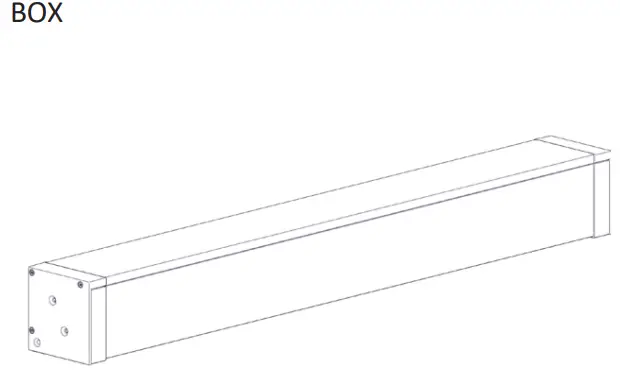

BOX

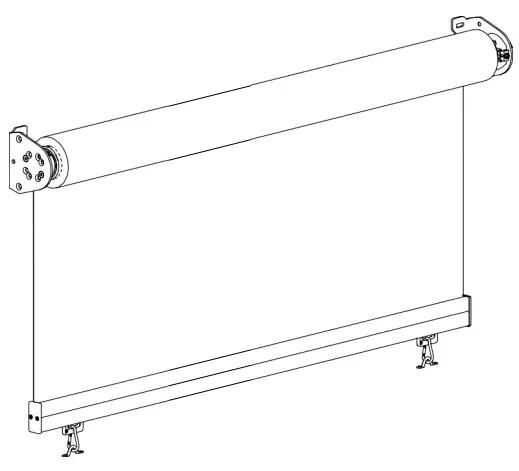

OPEN

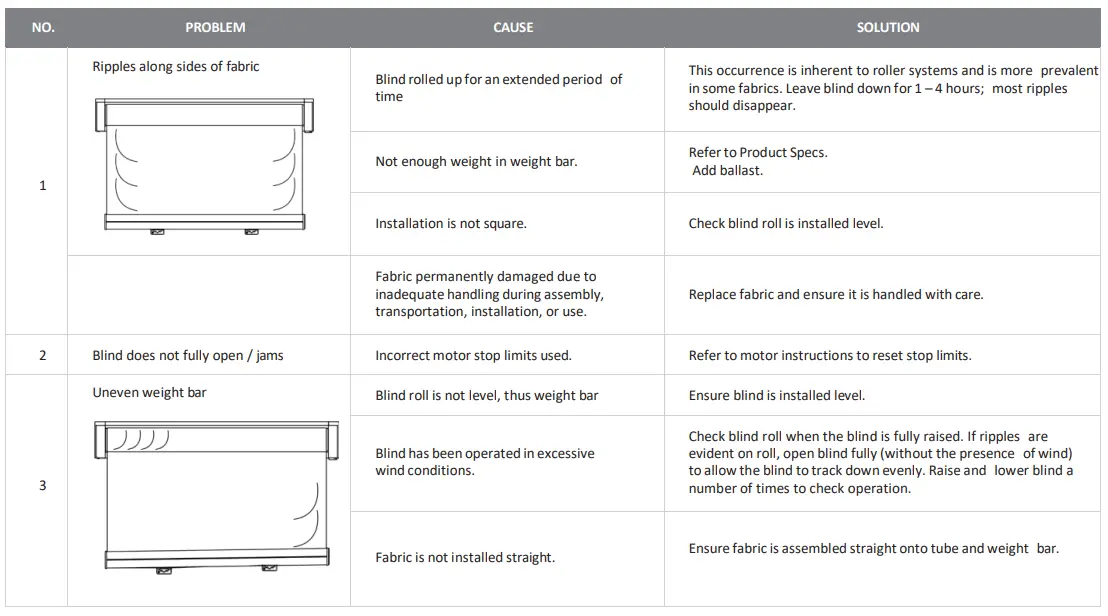

TROUBLESHOOTING
