JBL BAR 2.1 Deep Bass

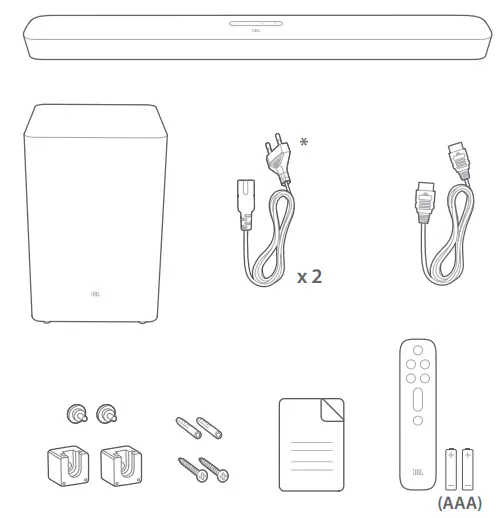

WHAT’S IN THE BOX

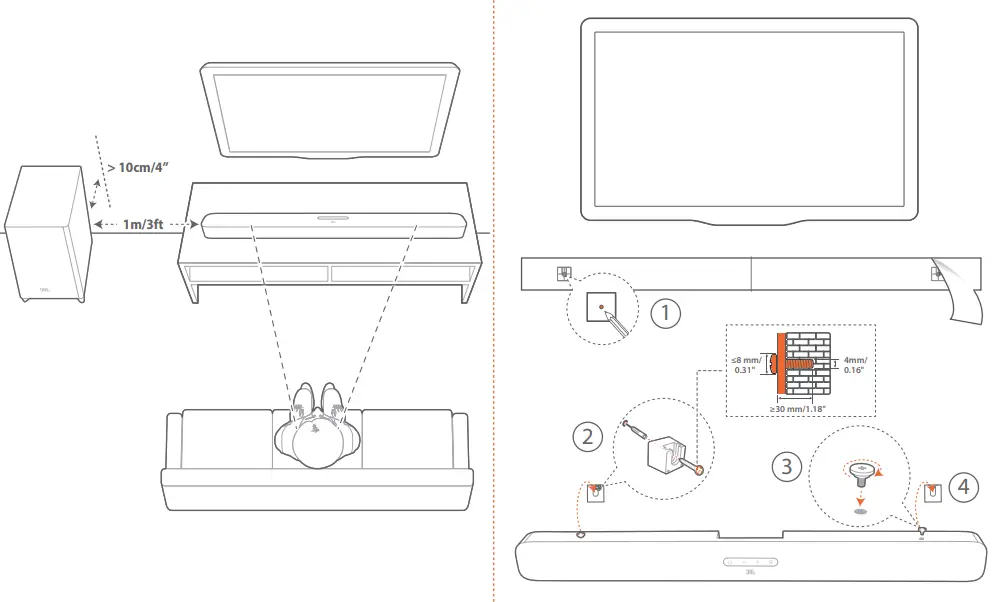

SETTING
CONNECTION

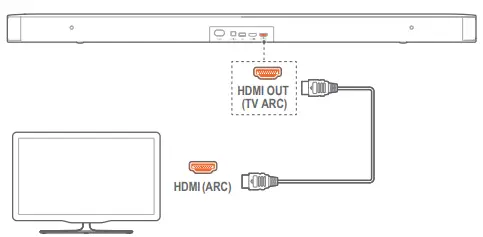

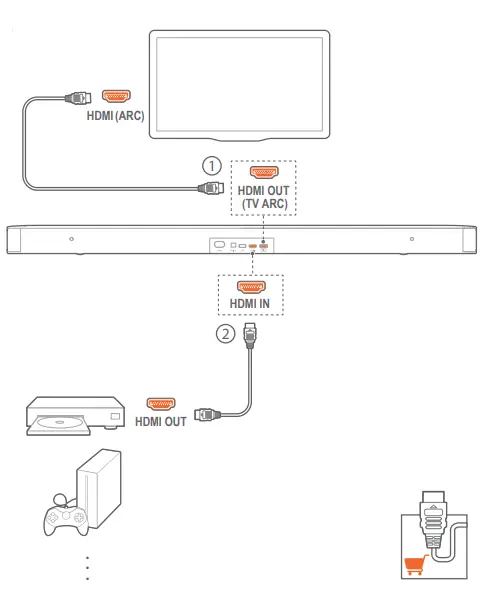

- HDMI OUT

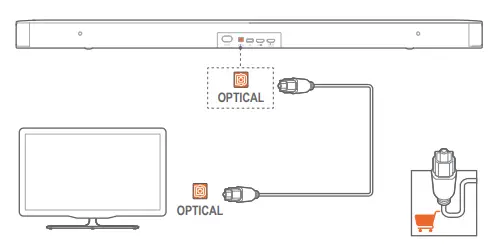

- OPTICAL

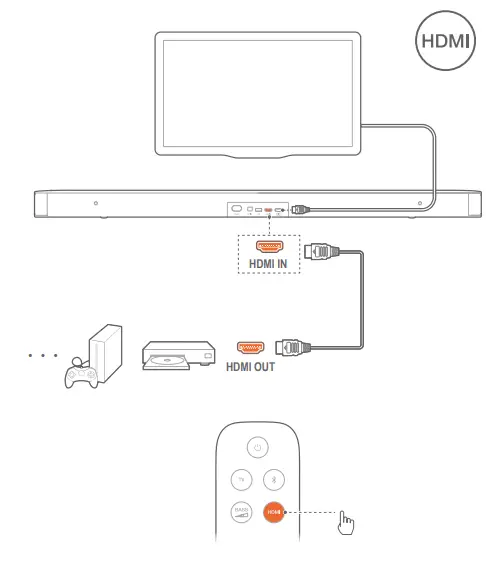

- HDMI IN

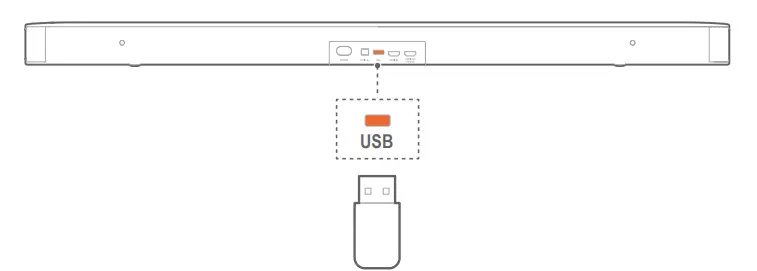

- USB

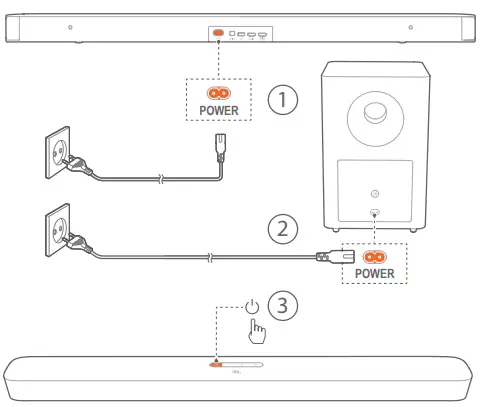

POWER
- The subwoofer and the soundbar will be paired automatically when both are powered on.

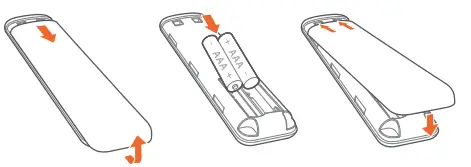

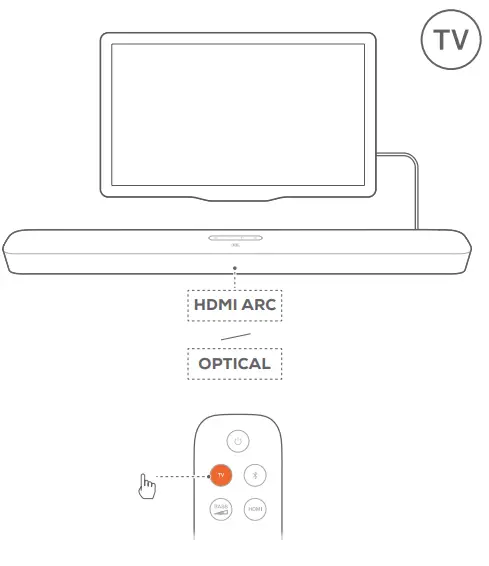

REMOTE USE
- Before using this product, read the safety sheet carefully.
- Power cord quantity and plug type vary by region.
- For software upgrade. USB playback is available in the US version only.
- For software upgrade. USB playback is available in the US version only.
General specification
- Model: Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)
- Power supply: 100 – 240V AC, ~ 50/60Hz Total speaker power output (Max.
- THD 1%): 300W
- Output power (Max. @THD 1%): 2 x 50W (Soundbar); 200W (Subwoofer)
- Transducer: 4 x race-track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)
- Soundbar and Subwoofer standby power: <0.5W
- Operating temperature: 0°C – 45°C
- Video specification:
- HDMI Video Input: 1
- HDMI Video output (With Audio return channel): 1
- HDMI version: 1.4
- Audio specification:
- Frequency response: 40Hz – 20KHz
- Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
- USB specification:
- USB port: Type A
- USB rating: 5V DC/ 0.5A
- Supporting file format: mp3, wav
- MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate: 16KHz – 48 KHz
- MP3 bitrate: 80kbps – 320kbps
- WAV sample rate: 16KHz – 48 KHz
- WAV bitrate: Up to 3000kbps
- Wireless specification:
- Bluetooth version: 4.2
- Bluetooth profile: A2DP V1.3,
- AVRCP V1.5
- Bluetooth frequency range: 2402MHz – 2480MHz
- Bluetooth Max. transmitting power: <10dBm (EIRP)
- Modulation Type: GFSK, π/4 DQPSK, 8DPSK
- 5G Wireless frequency range: 5743MHz – 5832MHz
- 5G Max. transmitting power: <10dBm
- Modulation Type: FSK
- Dimensions:
- Dimensions (W x H x D): 965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar); 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)
- Weight: 2.16 kg (Soundbar); 5.67 kg (Subwoofer)
- Packaging dimensions (W x H x D): 1045 x 310 x 405mm
- Packaging weight (Gross weight): 10.4kg
