AVAMIX ADM1WM Commercial Milkshake Machines
MOTOR REPLACEMENT INSTRUCTIONS

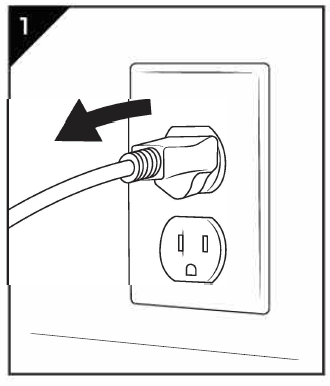

- Unplug mixer.

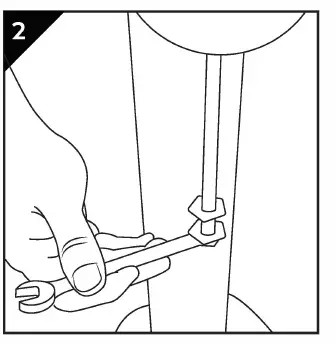

- Remove the agitators from the spindle using a wrench.

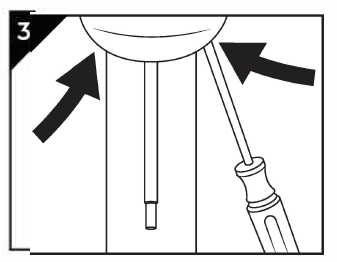

- Use a screwdriver to remove the two screws from the top cover.

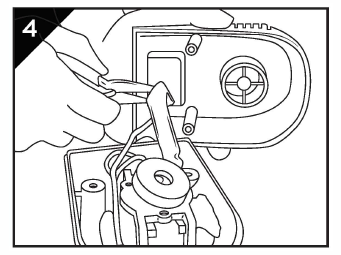

NOTE: These screws can be found underneath the housing, on each side of the spin - Unplug the blue wire that connects the motor and the top cover housing

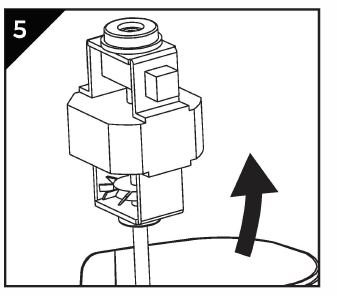

NOTE: remember where each plug belongs for reassembly. - Lift the motor assembly straight up and out of the housing.

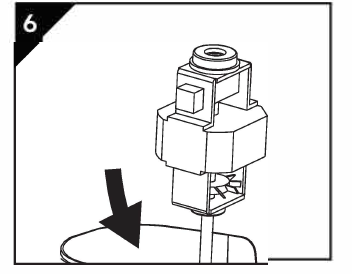

- Lower the new motor assembly into the housing by guiding the spindle through the hole.

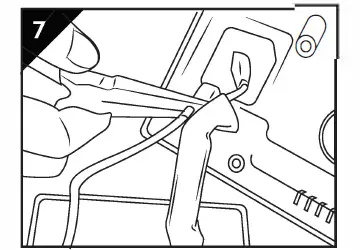

- Plug the new motor into the top cover and housing just as it was before Step 3.

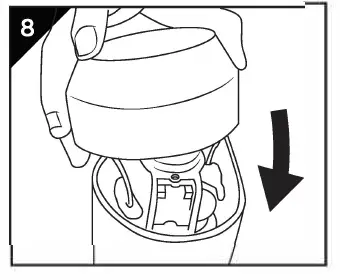

- Secure the top cover using a screwdriver and the original two screws.

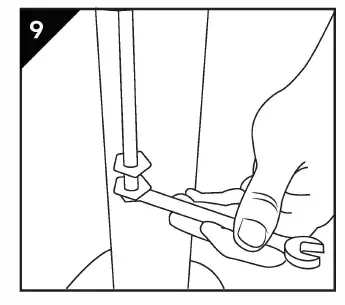

- Secure agitators to the spindle using a wrench.
ADMlWM,ADMl, 928ADM1, 928ADM3
