FABTECH logoINSTALLATION INSTRUCTIONS

FTS22216 4 Inch 4 Link System for FORD

K22164” 4-LINK SYSTEM W/PERFORMANCE SHOCKS
1FTS222074” COIL BOX
1FTS222164” 4-LINK BOX 1
1FTS222174” 4-LINK BOX 2
1FTS222144” REAR BOX KIT
2FTS7236PERFORMANCE SHOCK (FRONT)
2FTS7266PERFORMANCE SHOCK (REAR)
K2216DL4” 4-LINK SYSTEM W/ DLSS SHOCKS
1FTS222074” COIL BOX
1FTS222164” 4-LINK BOX 1
1FTS222174” 4-LINK BOX 2
1FTS222144” REAR BOX KIT
2FTS8109622.25 DIRT LOGIC SS N/R (FRONT)
2FTS8100522.25 DIRT LOGIC SS N/R (REAR)
K2216M4” 4-LINK SYSTEM W/ STEALTH SHOCKS
1FTS222074” COIL BOX
1FTS222164” 4-LINK BOX 1
1FTS222174” 4-LINK BOX 2
1FTS222144” REAR BOX KIT
2FTS6236STEALTH MONOTUBE SHOCK (FRONT)
2FTS6063STEALTH MONOTUBE SHOCK (REAR)
K2228DL4” 4-LINK SYSTEM W/ DLSS 4.0 C/O RESI
1FTS222164” 4-LINK BOX 1
1FTS222174” 4-LINK BOX 2
1FTS22309REAR BOX KIT
1FTS835242D4.0 DLSS C/O RESI (DRIVER)
1FTS835242P4.0 DLSS C/O RESI (PASS)
2FTS8100522.25 DIRT LOGIC SS N/R (REAR)

2017-2021 FORD F250/350 4WD
4” 4-LINK SYSTEM
FTS22216

FTS22207    4” FORD F250/350 FRONT COILS
2FT306484” FRONT COIL
FTS222164” 4-LINK SYSTEM BOX 1
2FT30129BKLOWER LINK
2FT30692UPPER LINK
2FT306504-LINK POCKET
FTS222174” 4-LINK SYSTEM BOX 2
1FT30122PITMAN ARM
2FT306534” BUMP STOP EXTENSION
1FT30724TRACK BAR DROP BRACKET
1FT30670HARDWARE KIT
1FT30671HARDWARE SUBASSEMBLY
1FT30672STEERING STABILIZER BRACKET
1FT30686STEERING STABILIZER CLEVIS MOUNT
1FT3400-112PSWAY BAR DROP (DRIVER)
1FT3400-112DSWAY BAR DROP (PASSENGER)
FTS222144” REAR BOX KIT
4FT728UUBOLT RD 5/8-18 X 16.50 X 3.50
2FTBK414” BLOCK W/ BUMPSTOP
1FT58H5/8” UBOLT HARDWARE KIT
FTS22309REAR BOX KIT – COILOVER KIT
4FT742UUBOLT RD 5/8-18 X 18.00 X 3.50
2FTBK535” BLOCK
1FT58H5/8” UBOLT HARDWARE KIT
2FT30891BUMP STOP BRACKET
FT30671HARDWARE SUBASSEMBLY
1FT22216iINSTRUCTIONS
1FT30258SECTOR SHAFT NUT
2FT30659BRAKE LINE TAB
2FT50290BUMP STOP NUT TAB
8FT147MISALIGNMENT
1FT292ALIGNMENT CAM KIT
1FT30604SPACER
1FTAS12STICKER FT BLUE 10X4 DIE CUT
1FTAS16DRIVER WARNING DECAL
1FIREGUARDREGISTRATION CARD
FT30670- HARDWARE KITLOCATION
87/16 SAE WASHER G8 ZINCSWAY BAR
47/16-14 C-LOCK NUT ZINC
47/16-14 X 1 1/4 HEX HD
23/8-16 X 1” HEX BOLTBRAKE LINE
43/8” SAE WASHER
23/8-16 NYLOCK NUT
21/4 SAE WASHER
11/4-20 GR C-LOCK NUT
11/4-20 X 3/4 HEX BOLT G5 ZINC
21/2-13 X 1-1/4 HEX BOLTBUMP STOP
21/2-13 X 1-1/2 HEX BOLT
61/2 SAE WASHER
21/2-13 C-LOCK NUT
43/4-10 X 1-1/2” HEX BOLT4-LINK
23/4-10 X 5” HEX BOLT
163/4 SAE WASHER
83/4-10 C-LOCK NUT
1COTTER PIN
1M12-1.75 X 70MM HEX BOLTSTEERING STABILIZER
2M12 WASHER
1M12-1.75 C-LOCK
19/16-12 NYLOCK NUT
39/16 SAE WASHER
1THREAD LOCKING COMPOUND 1 MIL
1HOSE CLAMP

– TOOL LIST –

Required Tools (Not Included)

-Basic Hand Tools
-Assorted Metric and S.A.E sockets, and Allen wrenches
-Torque Wrench
-Die Grinder w/ Cutoff Wheel or Sawzall
– 1-1/4” Hole Saw
-Basic Hand Tools
-Floor Jack
-Jack Stands
-Drill

– PRE-INSTALLATION NOTES –
For technical assistance call: 909-597-7800 or e-mail: [email protected]

READ THIS BEFORE YOU BEGIN INSTALLATION –
Check all parts to the parts list above before beginning installation. If any parts are missing contact Fabtech at 909-597-7800 and a replacement part will be sent to you immediately.
Read all instructions thoroughly from start to finish before beginning the installation. If these instructions are not properly followed severe frame, driveline and/or suspension damage may occur.
Check your local city and state laws prior to the installation of this system for legality. Do not install if not legal in your area.
Prior to the installation of this suspension system perform a front-end alignment and record. Do not install this system if the vehicle alignment is not within factory specifications. Check for frame and suspension damage prior to installation.
The installation of this suspension system should be performed by two professional mechanics.
This suspension must be installed with Fabtech shock absorbers.
Use the provided thread-locking compound on all hardware.
WARNING- Installation of this system will alter the center of gravity of the vehicle and may increase rollover as compared to stock.
Vehicles that receive oversized tires should check ball joints, uni balls, tie rod ends, pitman arm, and idler arm every 25005000 miles for wear and replacement as needed.
Verify differential fluid is at the manufactures recommended level prior to kit installation. Installation of the kit will reposition the differential and the fill plug hole may be in a  different position. (For example, if the manufacturer recommends 3 quarts of fluid, make sure the diff has 3 quarts of fluid). Check your specific manual for the correct amount of fluid.

Recommend Tires and Wheels:
-Use 35/12.50R18 tire w/ 18×9.5 wheels w/ 4-3/4” BS w/ required fender well trimming
-Use 35/12.50R20 tire w/ 20×9 wheels w/ 5” BS w/ required fender well trimming
FOOTNOTES –
– Non-dually models only
– Some models may require a steering stabilizer for oversized tires.
– Diesel models only

INSTRUCTIONS

FRONT SUSPENSION

  1. Disconnect the negative terminal on the battery. Jack up the front end of the truck and support the frame rails with jack stands. NEVER WORK UNDER AN  UNSUPPORTED VEHICLE! Remove the front tires.

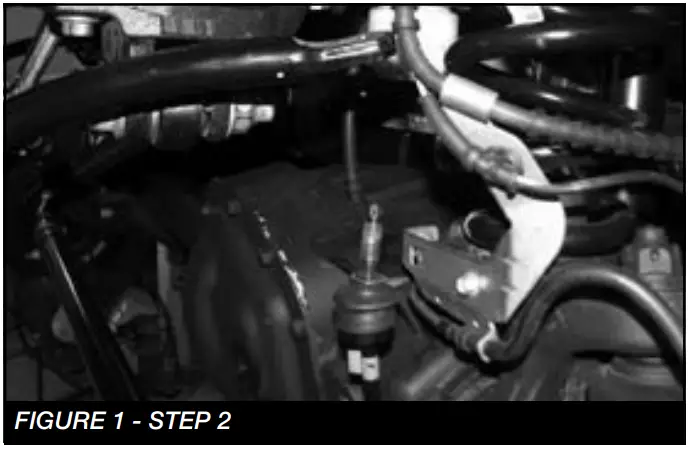

  2. Disconnect the sway bar from the sway bar end links and frame. Remove the sway bar. Save hardware. SEE FIGURE 1FABTECH FTS22216 4 Inch 4 Link System for FORD

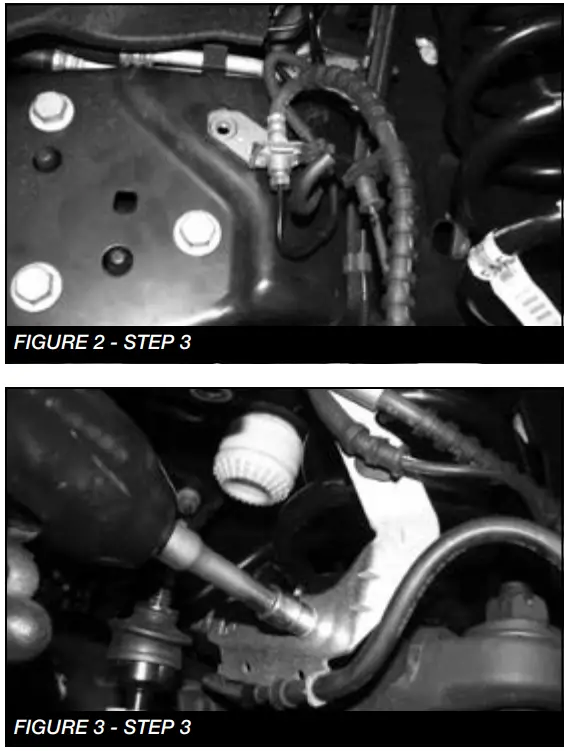

  3. Disconnect the brake line from the frame and axle on both driver and passenger sides. Save hardware. SEE FIGURES 2-3FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURES 2-3
  4. Remove the front shocks and discard, save the hardware.
  5. Lower the front axle allowing the coil springs to come free of tension and remove the coil springs. EXERCISE EXTREME CAUTION WHEN WORKING WITH COIL SPRINGS UNDER LOAD!
  6. Disconnect the factory steering stabilizer from the frame mount. Remove the steering stabilizer frame bracket. Discard the frame bracket. Save all hardware.
  7. Remove the drag link from the pitman arm. Use care not to damage the threads on the drag link.
  8. Disconnect the track bar from the frame bracket. Remove the track bar bracket from the frame, save the original hardware and discard the factory trac bar bracket.
  9. Remove the factory pitman arm from the steering box using a large pitman arm puller. Discard hardware and arm.
  10. Install FT30122 (Pitman Arm) using the supplied FT30258 (Sector shaft nut). Torque to 350 ft-lbs. NOTE: This is a one-time-only use nut. If removed, it must be discarded.

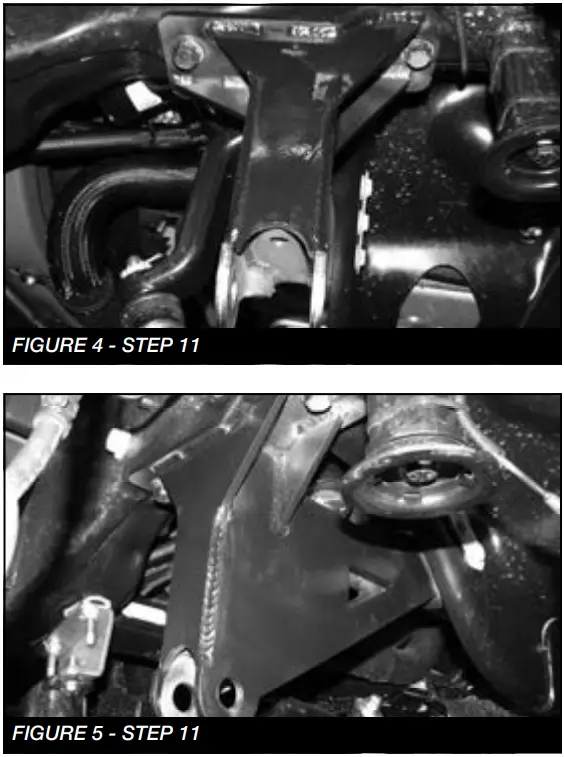

  11. Locate FT30724 (Track Bar Bracket). Attach to the frame using the original hardware in the same position. Torque bolts to 120 ft-lbs. DO NOT ATTACH THE TRACK BAR TO THE FRAME BRACKET AT THIS TIME. SEE FIGURES 4-5FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURES

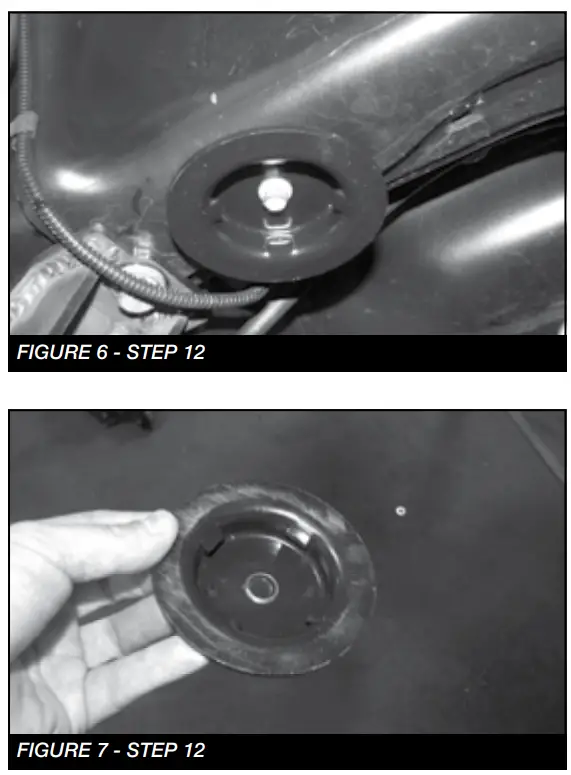

  12. Working from both sides of the truck, locate and remove the factory front bump stops and save. Pull on the bump and stop itself to free it from the cup. Remove the factory mounting cup from the frame and discard the hardware. Drill out the center hole on the factory cup to 1/2”. SEE FIGURES 6-7FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURES 6

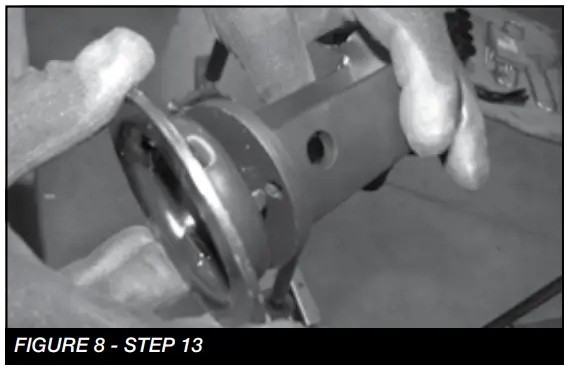

  13. Install FT30653 (Bump Stop Extension) onto the factory cup using the supplied 1/2” x 1-1/4” hardware and set aside. Torque to 127 ft-lbs. SEE FIGURE 8FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 8

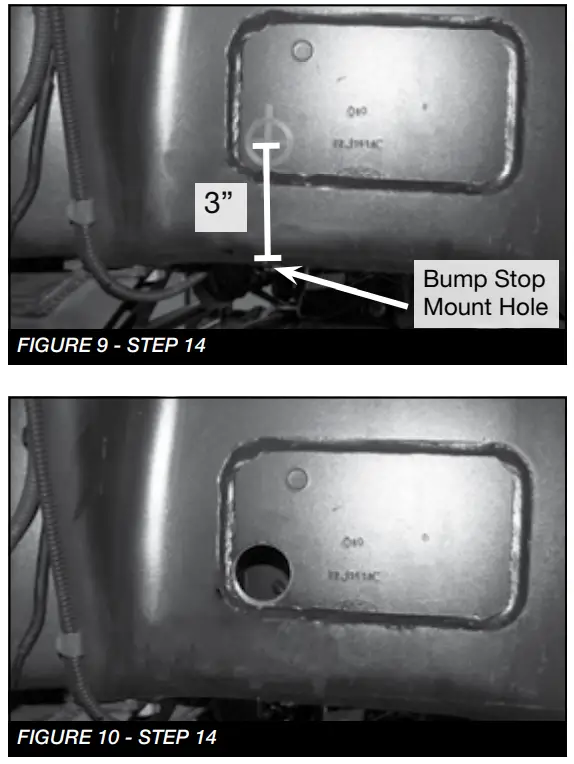

  14. Locate the factory bump stop mounting hole. Measure 3” straight up from the bottom of the frame. Mark and drill a 1-1/4” hole using a hole saw into the frame. SEE FIGURES 9-10FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURES 9

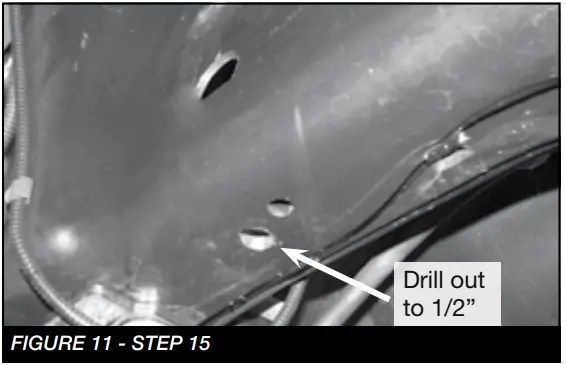

  15. Drill out the factory bump stop mount hole to 1/2”. SEE FIGURE 11FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURE 11
  16. Using FT50290 (Nut Tab) and 1/2 X 1-1/2” bolt and washer. Mount the new bump stop extension to the frame. Route the Nut tab through the 1-1/4” hole that was made in Step 11. Torque to 127 ft-lbs. SEE FIGURE 12FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 12REPEAT BUMP STOP INSTALLATION ON THE PASSENGER SIDE
  17. With the front axle still supported by the floor jack, remove the Driver side factory radius arm.

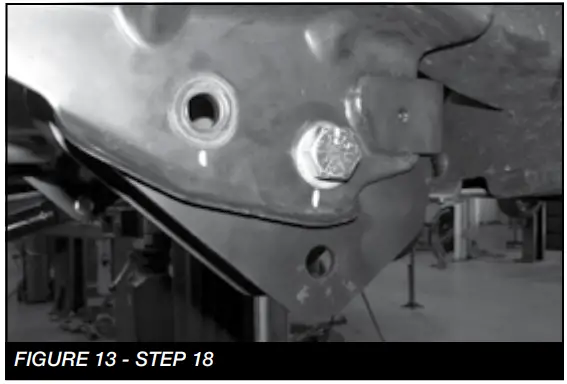

  18. Locate FT30650 (4-Link pocket). Install the bracket into the factory radius arm pocket using the supplied ¾” x 1-1/2” bolts, nuts, and washers through the original rear holes in the frame. Leave loose. SEE FIGURE 13FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURE 14

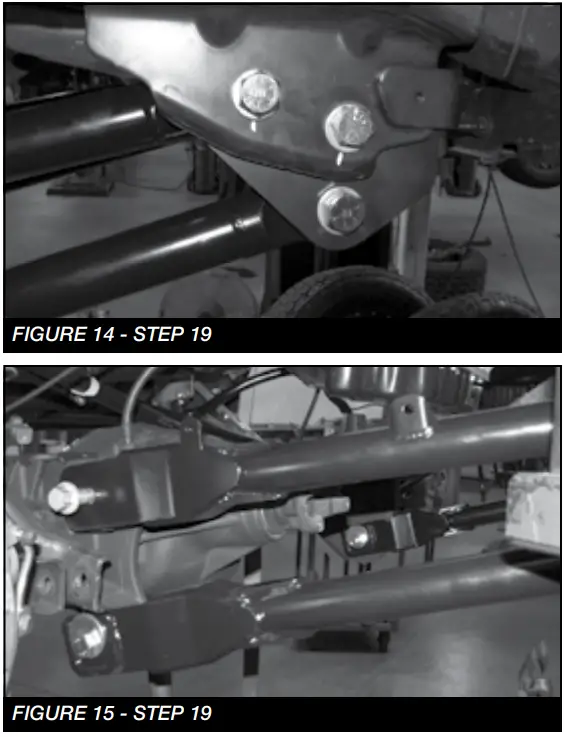

  19. Locate FT30129BK (Lower Link) and (2) FT147 (Misalignments). Install the link into the new bracket “lower hole” using the supplied 3/4” X 5” Hardware. Install the FT292 (Alignment Cam kit) hardware at the axle side. Locate FT30692 (Upper Link) and (2) FT147 (Misalignments). Install the link into the new bracket forward upper hole” using the supplied 3/4” X 5” Hardware. Use the factory hardware at the axle mount. Torque 3/4” hardware to 380 ft-lbs, and factory axle bolts/ alignment cams to 287 ft-lbs. SEE FIGURES 14-15FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURE 1REPEAT STEPS 17-19 ON THE PASSENGER SIDE
    IF INSTALLING A COILOVER CONVERSION KIT DO SO NOW, SKIP TO STEP 22

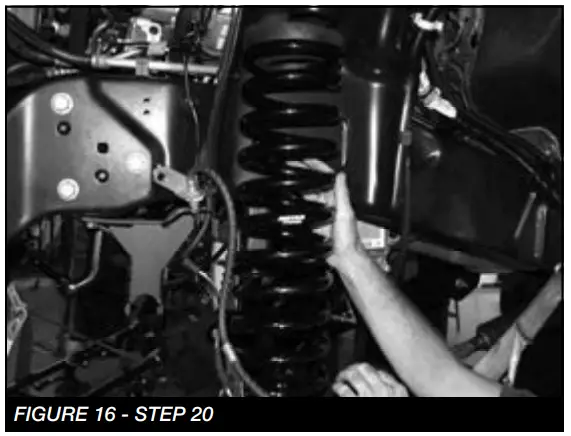

  20. Install FT30648 (Coil Spring) using the factory upper isolator. SEE FIGURE 16FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 16
  21. Install the new front shocks FTS7236, FTS6236 or FTS810962 with the supplied bushing kits. Using the factory hardware. NOTE: Install a supplied 9/16” washer at the lower mount to fill up the gap between the bushing and the mount. Due to vehicle variances, the top of the lower shock mount may need to be sanded down to clear the shock body only if installing Stealth shocks. Torque the lower hardware to 111 ft-lbs and the upper to 46 ft lbs. SEE FIGURE ON LAST PAGE.

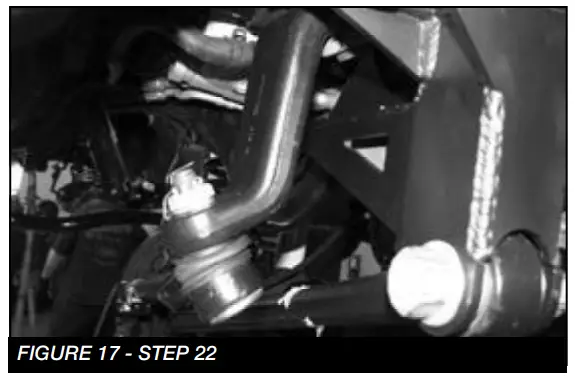

  22. Reinstall the track bar to the new frame bracket. Torque to 400 ft-lbs. Install the drag link to the new Fabtech pitman arm using the factory hardware and the new supplied cotter pin. Torque to 70 ft-lbs. NOTE: The drag link will need to be rotated 180 degrees and installed from the bottom side of the pitman arm. SEE FIGURE 17FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURE 17

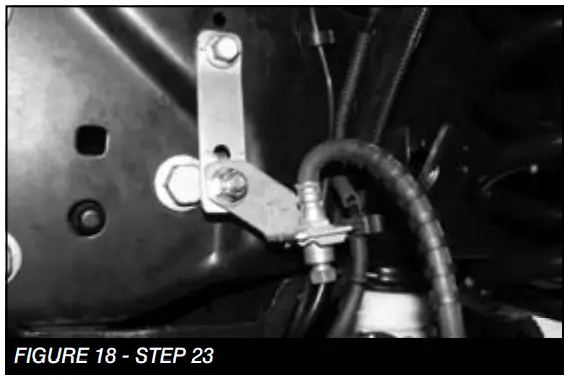

  23. (DRIVER SIDE) Install FT30659 (Brake line bracket) to the factory brake line tab using the supplied 3/8” hardware. Next, install the bracket to the frame using the factory hardware. Torque hardware to 52 ft-lbs. SEE FIGURE 18FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURE 18

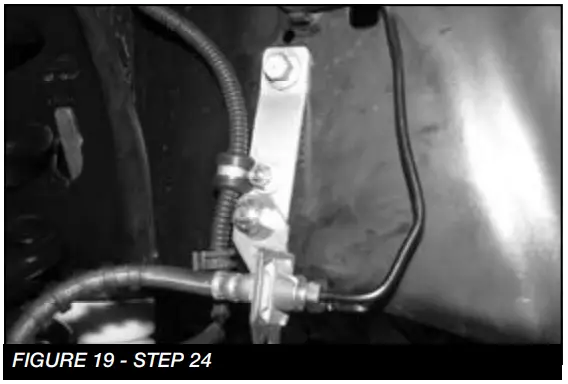

  24. (PASSENGER SIDE) Install FT30659 (Brake line bracket) to the factory brake line tab using the supplied 3/8” hardware (Use lower hole). Next, using the supplied rubber clamp and 1/4” hardware, attach the ABS line to the upper hole on the FT30659 bracket. Re-attach to the frame using the factory hardware. Torque 3/8” & factory hardware to 52 ft-lbs. Torque 1/4” hardware to 14 ft-lbs. SEE FIGURE 19FABTECH FTS22216 4 Inch 4 Link System for FORD - FIGURE 19
  25. Install FT30672 (steering stabilizer drop bracket) in the factory location using the factory hardware. Torque to 52 ft-lbs. SEE FIGURE 20FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 20

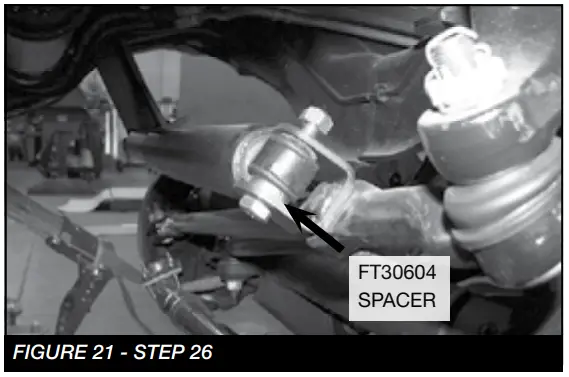

  26. Install FT30686 (Stabilizer Clevis) on the factory steering stabilizer using the supplied M12 hardware. NOTE: Install FT30604 (spacer) like shown in the figure below. Install the stabilizer using the supplied 1/2” washer and nut to the drag link. Using the factory hardware install the tapered end into the new Fabtech bracket. Torque to 127 ft-lbs. SEE FIGURE 21FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 21

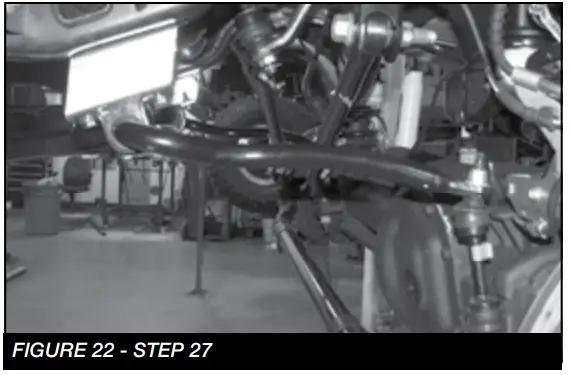

  27. Install FT3400-112P (Driver) & FT3400-112D (Passenger) Sway bar drop brackets using the factory hardware. Torque to 35 ft-lbs. Reinstall the front sway bar to the end links using the supplied 7/16” hardware torque all hardware to 83 ft-lbs. Reconnect the sway bar to the end links. Torque to 59 ft-lbs SEE FIGURE 22FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 19
  28. Install the lower brake line bracket to the lower spring perch using the factory hardware. Torque to 29 ft-lbs.
  29.  Install the front tires and wheels. Torque lug nuts to wheel manufacturer’s specifications.
    REAR SUSPENSION
  30. (4” BLOCK) Locate and install the 4’’rear lift blocks FTBK41. The factory block will need to be removed. Using the supplied u-bolts, nuts and washers align the axle, lift blocks and springs and torque to U-Bolts to 170 ft-lbs.

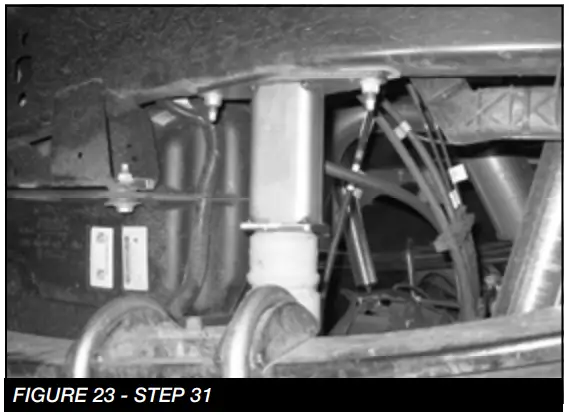

  31. (5” BLOCK) Remove the rear factory shocks, bolts, and blocks. Locate and install the 5’’ rear lift blocks (FTBK53) using the supplied u-bolts, nuts, and washers. Align axle, lift blocks and springs, and torque to U-Bolts to 170 ft-lbs. Remove the factory rear bump stop assemblies from the frame. Save hardware. Remove the foam bump from the mounting plate. Install the factory foam bump stop to FT30891 (Bumpstop bracket) Torque to 40 ft-lbs. Then, install the assembly to the frame using the factory nuts. Torque to 70 ft-lbs. SEE FIGURE 23FABTECH FTS22216 4 Inch 4 Link System for FORD - SEE FIGURE 23
  32. Install the new rear shocks FTS7266, FTS6063, or DL FTS810052 using the factory hardware, and torque the upper mount 46 ft-lbs. and the lower mount to 66 ft-lbs.
  33. Install tires and wheels and torque lug nuts to the wheel manufacturer’s specifications. Turn the front tires left to right and check for appropriate tire clearance. Note – Some oversized tires may require trimming of the front bumper & valance.
  34. Check front-end alignment and set it to factory specifications. Readjust headlights.
  35. Recheck all bolts for proper torque.
  36. Recheck brake hoses, ABS wires, and suspension parts for proper tire clearance while turning tires fully left to right.
  37. Check the fluid in the front and rear differential and fill if needed with factory specification differential oil. Note – some differentials may expel fluid after filling and driving. This can be normal in resetting the fluid level with the new position of the differential/s.
  38. Install Driver Warning Decal. Complete the product registration card and mail it to Fabtech in order to receive future safety and technical bulletins on this suspension.

Vehicles that will receive oversized tires should check ball joints, uniballs, and all steering components every 2500-5000 miles for wear and replace as required.
RE-TORQUE ALL NUTS, BOLTS, AND LUGS AFTER 50 MILES AND PERIODICALLY THEREAFTER.
For technical assistance call: 909-597-7800

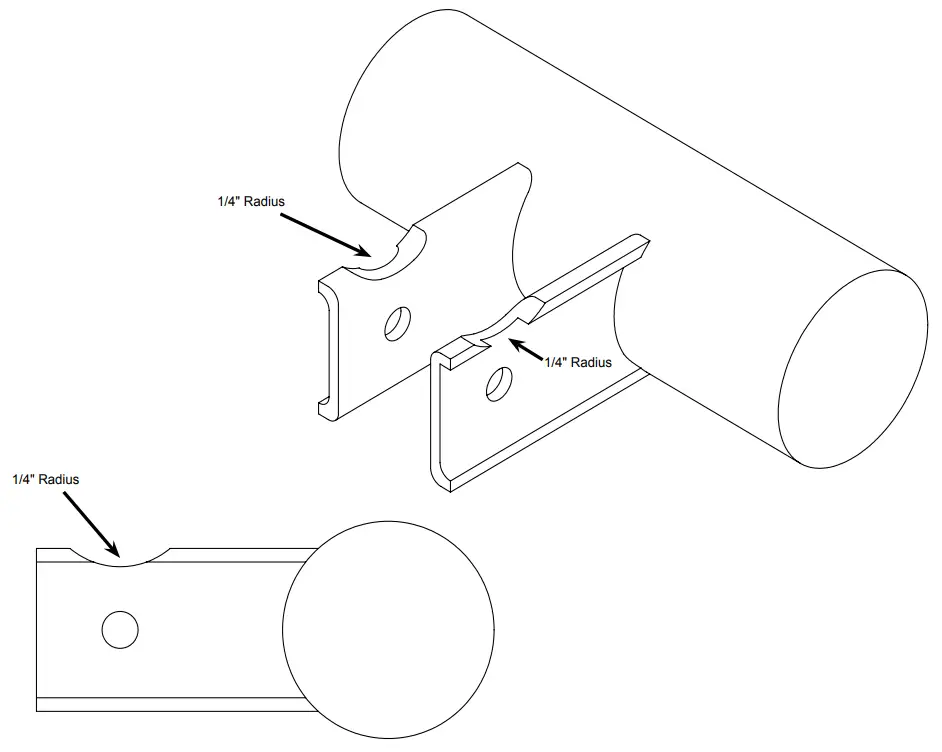

FABTECH FTS22216 4 Inch 4 Link System for FORD - fig

– Product Warranty and Warnings –

Fabtech provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was originally installed, for defects in workmanship and materials.

The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting straps, cross shafts, Heim joints, and driveshafts.  These parts are subject to wear and are not considered defective when worn.
They are warranted for 60 days from the date of purchase for defects in workmanship.

Dirt Logic and Performance Coilover take-apart shocks are considered serviceable shocks with a one-year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.

Fabtech does not warrant any product for finish, alterations, modifications, and/or installation contrary to Fabtech’s instructions.
Alterations to the finish of the parts including but not limited to painting, powder coating, plating, and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.

Fabtech products are not designed nor intended to be installed on vehicles used in race applications or for racing purposes or for similar activities. (A “RACE” is defined as any contest between two or more vehicles, or any contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United  States of America.

Installation of most suspension products will raise the center of gravity of the vehicle and will cause the vehicle to handle differently than stock. It may increase the vehicle’s susceptibility to a rollover, on-road and off-road, at all speeds. Extreme care should be taken to operate the vehicle safely at all times to prevent rollover or loss of control resulting in serious injury or death.

Fabtech front-end Desert Guards may impair the deployment or operation of vehicles equipped with supplemental restraining systems/air bag systems and should not be installed if the vehicle is equipped as so.
Fabtech makes every effort to ensure the suspension product compatibility with all vehicles listed on the website, but due to unknown auto manufacturer’s production changes and/or inconstancies by the auto manufacturer, Fabtech cannot be responsible for 100% compatibility, including the fitment of tire and wheel sizes listed. The Tire and Wheel sizes listed in Fabtech’s website are only a guideline for street driving with noted fender trimming. Fabtech is not responsible for damages to the vehicle’s body or tires. Fabtech is not responsible for premature wear of factory components due to the installation of oversized tires and wheels.

Fabtech’s obligation under this warranty is limited to the repair or replacement, at the Fabtech option, of the defective product only.
All costs of removal, installation or re-installation, freight charges, and incidental or consequential damages are expressly excluded from this warranty. Fabtech is not responsible for damages and/or warranty of other vehicle parts related or nonrelated to the installed Fabtech product. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been subject to accident, negligence, alteration, abuse or misuse as determined by Fabtech.

Fabtech suspension  components must be installed as a complete system including shocks as shown on our website. All warranties will become void if Fabtech parts are combined and/or substituted with other aftermarket suspension products. Combination and/or substitution of other aftermarket suspension parts may cause premature wear and/or product failure resulting in an accident causing injury or death. Fabtech does not warrant products not manufactured by Fabtech.

Depending on the condition of the factory suspension components retained after the installation of a Fabtech suspension, not all vehicles may have the same ride stance front to rear as described on the website. The blue color of suspension components shown in all Fabtech photographs are for display purposes only. The majority of all Fabtech components will be black specifically where noted with part numbers ending in BK.

Installation of Fabtech products may void the vehicle’s factory warranty; it is the consumer’s responsibility to check with their local vehicle’s dealer for warranty disposition before the installation of the product. Some state laws may prohibit the modification of suspension to a vehicle in whole or in part. It is the responsibility of the installer and consumer to consult local laws prior to the installation of any Fabtech suspension product to comply with such written laws.

It is the responsibility of the distributor and/or the retailer to review all warranties and warnings of Fabtech products with the consumer prior to purchase.

Fabtech reserves the right to super cede, discontinue, or change the design, finish, part number, and/or application of parts when deemed necessary without written notice. Fabtech is not responsible for misprints or typographical errors within the website or price sheet. For the most recent Product Warranty and Warnings visit our website  www.fabtechmotorsports.com
Instruction Sheet Part# – FT22216i

Fabtech Motorsports | 4331 Eucalyptus Ave. Chino, CA 91710
ech Line: 909-597-7800 | Fax: 909-597-7185 | Web: www.fabtechmotorsports.com
