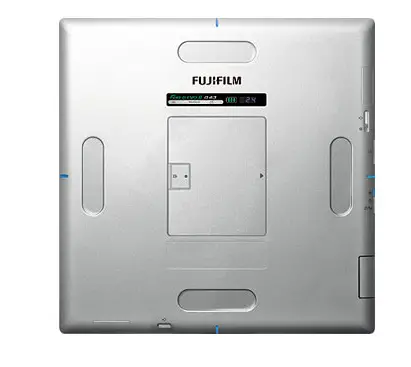

FUJIFILM DR-ID 1200 FDR D-EVO II Digital Radiography
Disinfection Instructions
WARNING
Confirm that the respiratory density of disinfectant including solvent is under legal regulation. Certain disinfectants may damage health. When using a disinfectant, follow instructions supplied by the manufacturers.
WARNING
Do not use the following disinfectants or sterilizers at the time of disinfection. Quality, performance and safety of the equipment cannot be assured.
- Chloric disinfectant which is strongly corrosive to metals and rubber parts.
- Disinfectant whose uses on metals, plastics, and coating are forbidden according to the instructions supplied with the disinfectant.
- Formalin gas and disinfectant sprays that may get inside the equipment.
Disinfectant ethanol is recommended for disinfection. Carefully read the instructions and cautions supplied with the disinfectant before use. For details on the disinfectant, contact a FUJIFILM dealer or the service representatives at the agency from which you purchased the disinfectant. For details of the ultraviolet sterilizers, see the each operation manual of DR-ID 1201SE/DR-ID 1202SE/DR-ID 1211SE/DR-ID 1212SE/DR-ID 1213SE, DR-ID 1200MP, DR-ID 1200DS or DR-ID 1200PB.
CAUTIONS
If the sensor unit of the flat panel sensor is not disinfected, it may lead secondary infection. Clean the sensor unit of the flat panel sensor with ethanol for disinfection, etc. for each patient to prevent infection.
A.4 Cleaning Fluids
This chapter describes cleaning fluids that can be used for cleaning the parts of the equipment. FUJIFILM has confirmed that the parts have resistance to these cleaning fluids.
Carefully read the instructions provided with them.
* Depending on cleaning methods, sufficient disinfection effect may not be exerted.

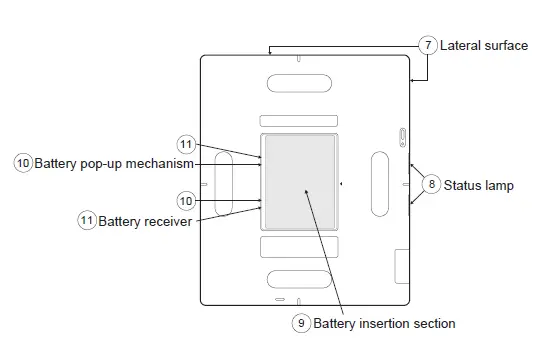

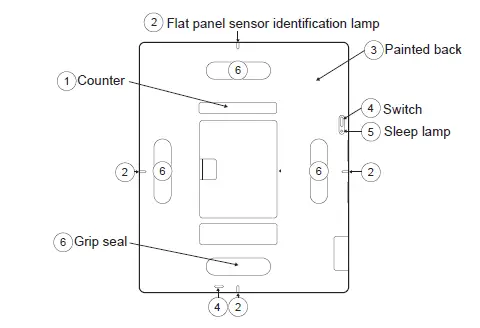

| 1 | 2 | 3 | 4 | 5 | 6 | |
| Dehydrated ethanol | Yes | Yes | Yes | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | Yes | Yes | Yes | Yes |
| 7 | 8 | 9 | 10 | 11 | |
| Dehydrated ethanol | Yes | Yes | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | Yes | Yes | Yes |

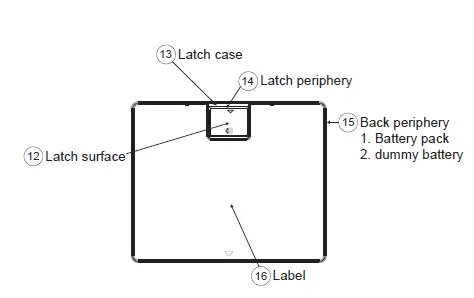

| 12 | 13 | 14 | 15 1. | 15 2. | 16 | |
| Dehydrated ethanol | Yes | Yes | Yes | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | No | Yes | Yes |

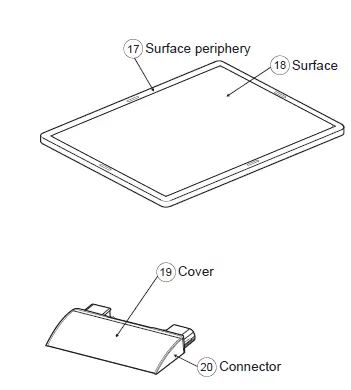

| 17 | 18 | |
| Dehydrated ethanol | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes |
| 19 | 20 | |
| Dehydrated ethanol | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes |
| 21 | 22 | 23 | 24 | 25 | 26 | |
| Dehydrated ethanol | Yes | Yes | Yes | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | Yes | Yes | Yes | Yes |

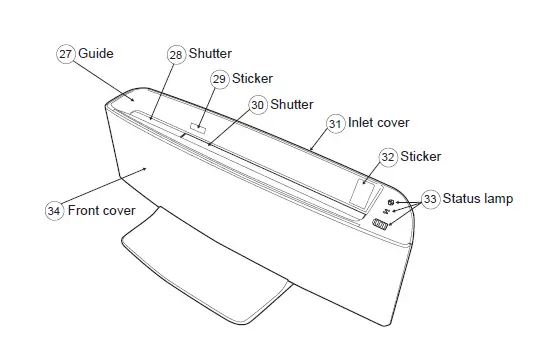

| 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | |
| Dehydrated ethanol | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |

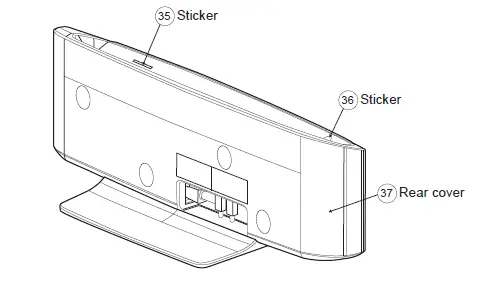

| 35 | 36 | 37 | |
| Dehydrated ethanol | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | Yes |

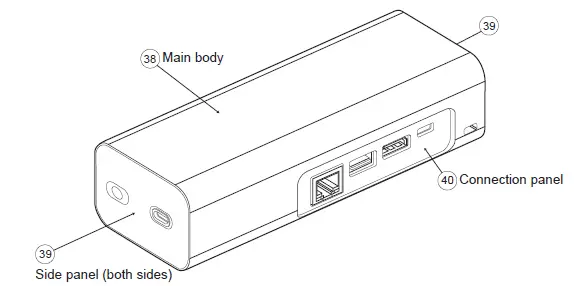

| 38 | 39 | 40 | |
| Dehydrated ethanol | Yes | Yes | Yes |
| Isopropyl alcohol (concentration of 99.0% or more) | Yes | Yes | Yes |
