GV11 DLP Projector
Instruction Manual
Feature High Light
- 135 Degree Rotated Lens
- 130 Mins Battery Life
- 5W Speaker
- Auto 1D Keystone
- Drop Proof from 70 cm Height
- BenQ Smart Control App for Mobile Devices
Display
| Projection System | DLP 3435 |
| DMD type | 0.23″ |
| Native Resolution | 854 × 480 pixels |
| Brightness | 200 ANSI Lumen |
| Contrast Ratio* | 100,000:1 |
| Display Color | 24 Bits (16.7 million colours) |
| Aspect Ratio | Native 16:9 (5 aspect ratio selectable) |
| Light Source | LED |
| Light Source life* | 20,000 hrs(Normal) |
Optical
| Throw Ratio | 1.3 (35″@1M) |
| Zoom Ratio | Fixed |
| Keystone Correction | Auto 1D Vertical, ± 40 degrees |
| Projection Offset | 100% ± 5% |
| Projection Size (Clear Focus / Maximum) | 30″~100″ |
SOC
| IC | Mstar V56 |
| OS | NA |
| RAM | 2GB(Dongle) |
| Flash | 16GB(Dongle) |
| Audio | |
| Built-in Speaker | 5W Speaker |
| Special Feature | |
| Feature | 135 Degree Rotated Lens, 1D Auto Keystone, 130 mins Battery |
| Compatibility | |
| Resolution Support | HDMI: up to 1080/60p 480i 720 x 480 |
| Power | |
| Power Consumption with adapter (Max/Normal/Eco/Low Battery) | 27.84W/ 27.84W/ 25.76W/ 21.7W |
| Power Supply | 12V/2.32A |
| Battery | 7.4V 3000.0mAh 27.84W |
| Dimension and Weight | |
| Product Dimensions (WxHxD) | 4.5 x 5.5 x 5.9 in 113.5 x 140 x 150 mm |
| Product Weight | 0.97 kg |
| Operation Condition | |
| Noise Level (Normal/Eco Mode/Low Power) | 25dBA/25dBA/23dBA |
| Operating Temperature | 0 ~ 40º C |
| Accessories | |
| Accessories (Standard) | Power Adaptor Adapter Plug (depends on SKU) Carry Bag Remote Control (RCI067) Quick Start Guide Warranty Card (by region) Dongle Installation Guide Product Feature Card |
| Accessories (Optional) | |
| OSD | |
| On Screen Display Language | English/Français/Deutsch/Español |
Environment Notice
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specifications are subject to change without notice.
* The Contrast is measure by Full On Full Off standard.

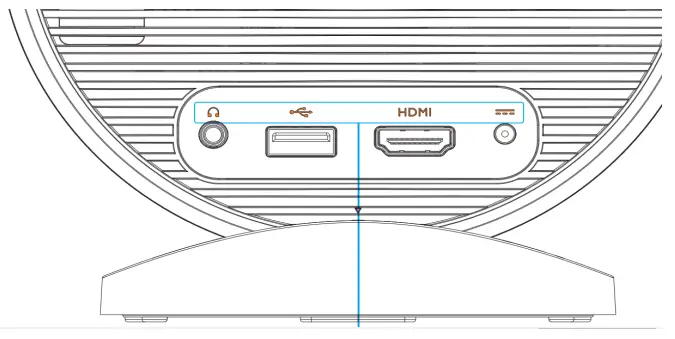

Connectivity
| I/O Name | Quantity |
| Audio out | 1 |
| DC in | 1 |
| USBUSB 2.0 (5V/1A | 1 : Media reader, FW download |
| HDMI in (1.4a / HDCP 1.4) | 1: 5V Signal detect |
Installation (TBD)

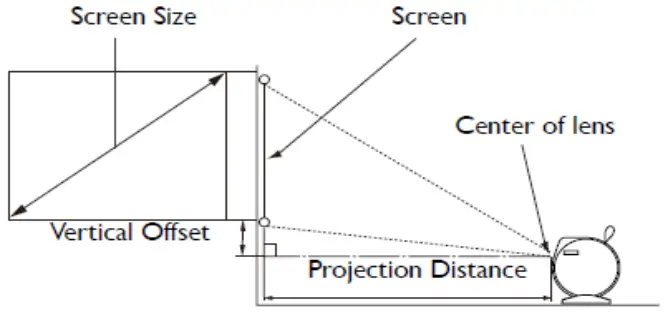

Projection dimensions
Use the illustration and tables below to help you determine the projection distance.
| Screen Size | Projector distance (mm) | |||
| Diagonal | H (mm) | W (mm) | Average | |
| Inch | mm | |||
| 30 | 762 | 373 | 664 | 864 |
| 35 | 889 | 436 | 775 | 1007 |
| 40 | 1016 | 498 | 886 | 1151 |
| 45 | 1143 | 560 | 996 | 1295 |
| 50 | 1270 | 622 | 1107 | 1439 |
| 55 | 1397 | 684 | 1218 | 1583 |
| Screen Size | Projector distance (mm) | |||
| Diagonal | H (mm) | W (mm) | Average | |
| Inch | mm | |||
| 60 | 1524 | 747 | 1329 | 1727 |
| 65 | 1651 | 809 | 1439 | 1871 |
| 70 | 1778 | 871 | 1550 | 2015 |
| 75 | 1905 | 933 | 1661 | 2159 |
| 80 | 2032 | 996 | 1771 | 2303 |
| 85 | 2159 | 1058 | 1882 | 2447 |
| 90 | 2286 | 1120 | 1993 | 2591 |
| 95 | 2413 | 1182 | 2104 | 2735 |
| 100 | 2540 | 1245 | 2214 | 2879 |
All measurements are approximate and may vary from the actual sizes. If you want a permanent installation of the projector. we recommend that you use the actual projector to physically test the projection size, distance, and the projector’s optical characteristics prior to the installation. This helps you determine the exact mounting position which best suits your installation.
Feature icons
