QUICK REFERENCE GUIDE > AS82FFAHRA-SET
Flexis Air Conditioner, 8.0 kW
White

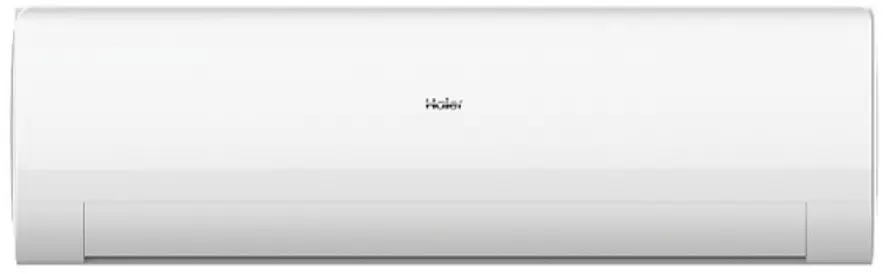

AS82FFAHRA-SET Flexis Air Conditione 8.0 kW
As our premium air conditioner, the Flexis gives you the highest level of convenience and efficiency with Wi-Fi and more.
- Self-cleaning function for continued clean, fresh air
- Wi-Fi enabled for use with the SmartHQ™ app and smart speaker voice control
- Evenly heat the room with 3D Airflow, which directs air horizontally and vertically
FEATURES & BENEFITS
Voice and remote control
Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi enabled Flexis with Google Home or Amazon Alexa voice control.
Healthier air
Your Flexis air conditioner will continue working efficiently to produce clean air, with a Self-clean function that stops dirt from accumulating and reduces the growth of mould and bacteria. Other innovations such as a carbon filter and anti-bacterial silver ion coating also help to filter and kill bacteria.
Sleep mode
Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night to ensure maximum comfort.
Even airflow
Enjoy an even temperature throughout the room with 3D Airflow. Air is directed horizontally as well as vertically for consistent heating and cooling, with airflow that reaches up to 20m.
Eco sensor
The Eco movement sensor detects when there is nobody in the room, switching to Energy Saving mode after 20 minutes for more efficient temperature control.
Easy installation and maintenance
Designed for straightforward installation and maintenance, Flexis includes simple positioning specifications and easy access to the control board and motor.
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 8.2kW |
| Heating capacity (kW) | 9.0kW |
| Consumption | |
| COP | 3.60 / 3.59 |
| EER | 3.61 / 3.60 |
| HSPF-RES (Hot/Average/Cold) | 4.113 / 3.574 / 3.138 |
| HSPFCOM (Hot/Average/Cold) | 4.127 / 3.804 / 3.420 |
| Star-Cool (Hot/Average/Cold) | 3.0 / 2.5 / 2.5 |
| Star-Heat (Hot/Average/Cold) | 2.5 / 2.0 / 1.5 |
| TCSPF-COM (Hot/Average/Cold) | 4.829 / 4.886 / 5.191 |
| TCSPF-RES (Hot/Average/Cold) | 4.563 / 4.344 / 4.488 |
| Features | |
| 3D airflow | • |
| Blue fin coils | • |
| Built-in Wi-Fi smart control | • |
| Compressor type | Rotary |
| DC inverter | • |
| DRED (Demand Response) ready | • |
| Exquisite filter | • |
| Quiet mode | • |
| Refrigerant factory charge | 1.50kg |
| Standard controller | YR-HQ |
| Installation | |
| Indoor unit model | AS82FFAHRA |
| Indoor unit weight | 21.0kg |
| Liquid line | 6.35mm |
| Maximum pipe run | 25m |
| Outdoor unit model | 1U82SAAFRA |
| Outdoor unit weight | 57.5kg |
| Suction line | 15.88mm |
| Performance | |
| DC inverter | • |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 72dBA |
| Sound pressure SPL (indoor) | 48 / 44 / 40 / 36dBA |
| Sound pressure SPL (outdoor) | 55 / 57dBA |
| Working temperature cooling | -10℃ ~ 46℃ |
| Working temperature heating | -15℃ ~ 24℃ |
| Power Requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Indoor unit depth | 275 mm |
| Indoor unit height | 365 mm |
| Indoor unit width | 1342 mm |
| Outdoor unit depth | 385 mm |
| Outdoor unit height | 762 mm |
| Outdoor unit width | 920 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51621 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
