Corvette Clear Body Felony & Infraction C8 Instruction Manual

ASSEMBLY INSTRUCTIONS

Congratulations on your purchase of the PROTOform ci=tverre’m body for your ARRMA® Felony’/Infractionm! Please take a moment to review these instructions. Follow the painting & trimming tips below before making the necessary adjustments to your chassis for a perfect fit

PAINTING & TRIMMING TIPS

Scan this QR Code for painting tips!

https://www.youtube.com/watch?v=6fXfazftU8A

1. Wash the inside of your body with dish soap and place window masks inside
2. Paint your custom livery using polycarbonate-safe paint
3. Peel off the protective overspray film on the outside of your body & remove window masks
4. Detail your body using the included decal sheet
5. Trim your body & wing on marked lines using body scissors and/or a hobby knife
6. Drill/ream 8.5mm diameter body post holes on the four marked locations (hood and rear deck)
7. Install Rear Wing using the included hardware, drilling/reaming holes on the marked locations on wing and wing posts
8. Secure body using body clips

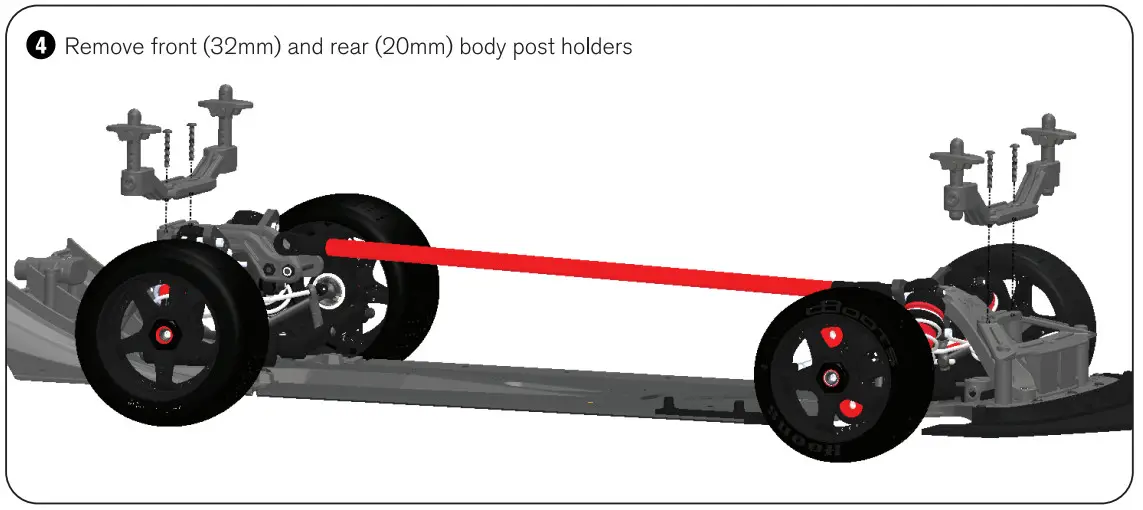

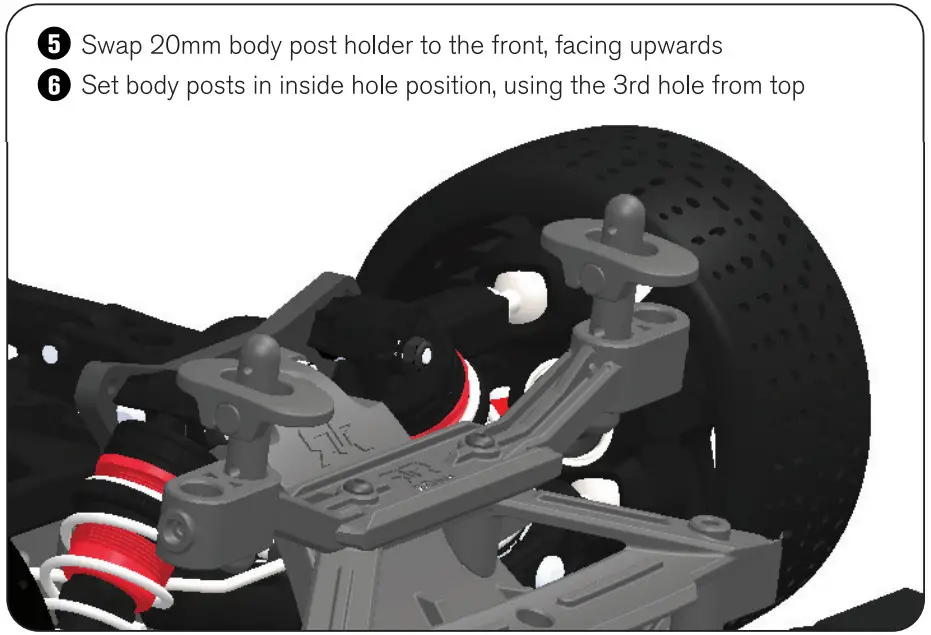

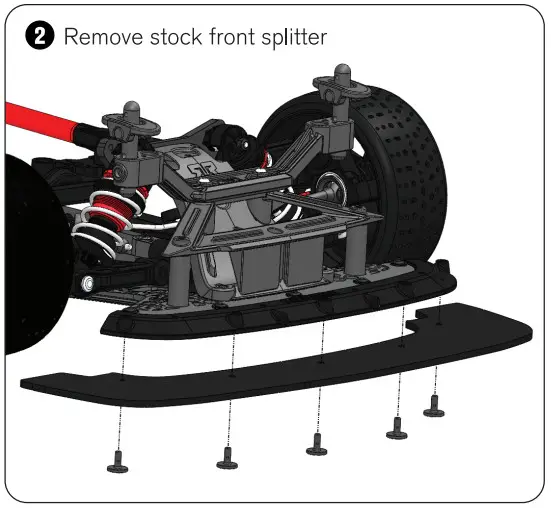

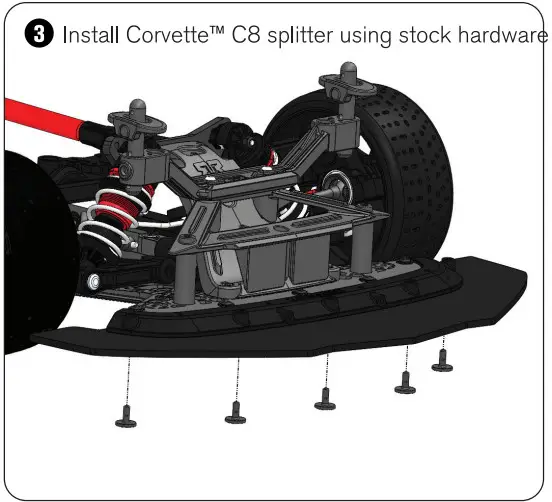

PREPARE YOUR CHASSIS

1. Remove all stock body panels & rear exhaust pipe from chassis (if applicable)

IMPORTANT NOTE FOR INFRACTION’ OWNERS
This body was designed with wider rear fenders as a direct fit for the Felony’ to clear the 53/107 tires. It will work with Infraction” rear tires, but to get the optimal look/fit, you can optionally choose to either widen the rear of your Infraction’ chassis with stock rear tires or use Felony’s rear tires with modifications to the rear gear ratio. See parts required lists at right to make these modifications.
