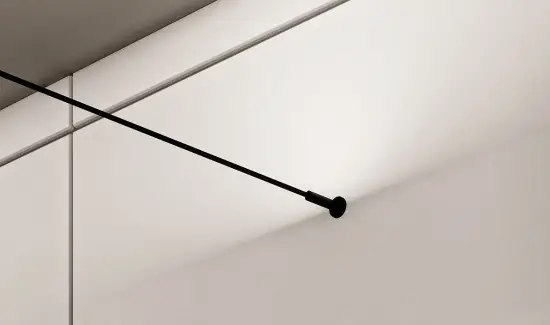

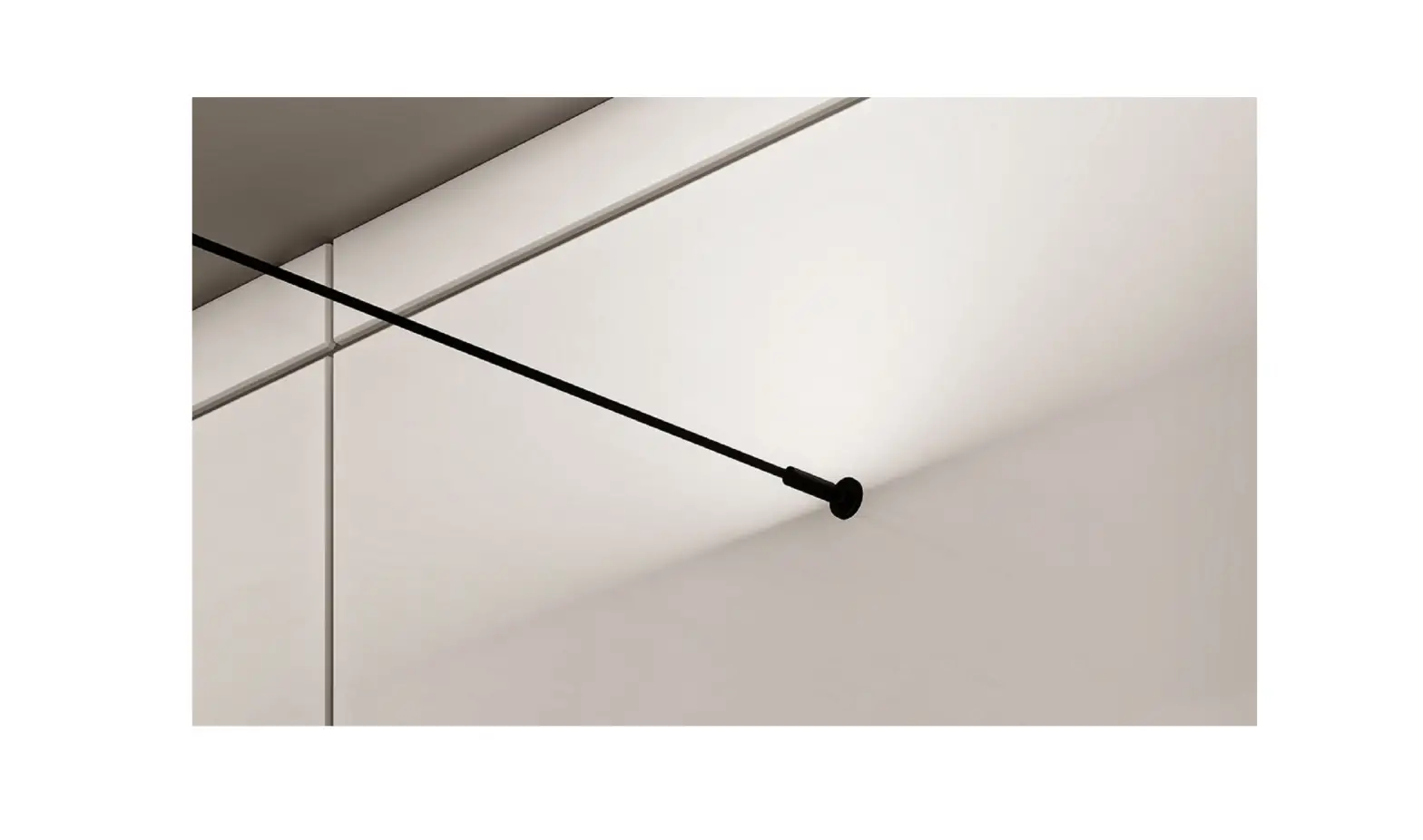

LEDCO TS10/NE TESEO Taut Lighting Instructions
- Read these instructions carefully before commencing installation and retain for future reference.
- The luminaire should be installed by a licensed electrician and in accordance with local regulations.
- Make sure that the power is off before installation or maintenance.
Parts Needed
- MANICOTTO
- GHIERA
- CILINDRO FILETTATO
Assembly Instructions
- Locate mark the mounting position of the base. Use an electric drill to

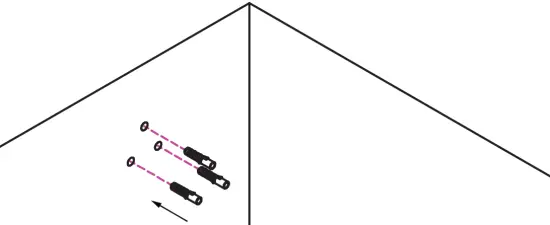

drill holes in the marked position on the wall, and then drive in the expansion rubber plug.

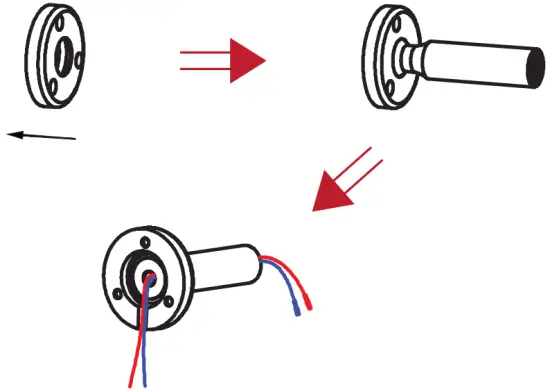

- Push the base into the round sleeve, and then insert the power cable from one end of the base to one end of the round sleeve.

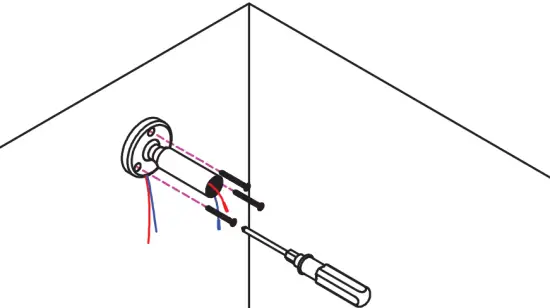

- Align the base of the power cord and the round sleeve with the expansion rubber plug, insert the screw, and tighten the screw with a screwdriver.
- Cut the steel strip according to the distance from the wall,the cutting length of steel strip is 19,5cm shorter than the actual wall.

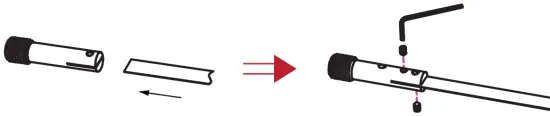

- Push the steel strip into the nixing port and tighten the screw with an alien key.

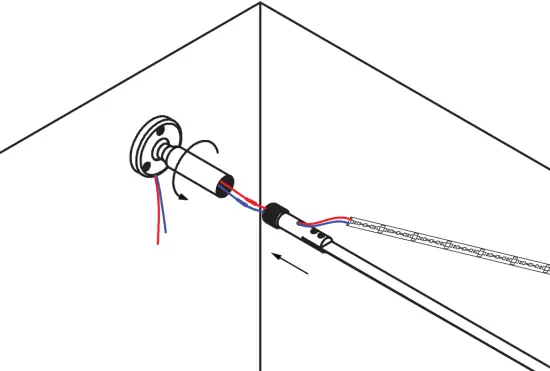

- Connect the wires, push in the steel belt fastener, and rotate the round sleeve to straighten the steel belt.

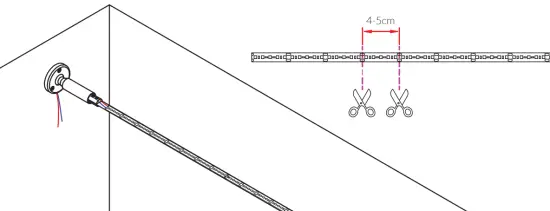

- Place the LED strip on the steel strip and cut off the excess.

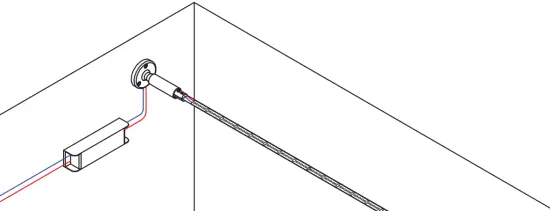

- Connect the power cables of the LED strip to the dedicated power supply.
