FOXSUR FBC122412D 12V 12A-24V6A7 – Stage AutomaticSmart Battery Charger

IMPORTANT SAFETY INSTRUCTIONS

Please read this manual and follow the instructions carefully before using.

WARNING：

• The FBC122412D charger is designed for 12V and 24V Lead-Acid, LiFePO4 batteries with capacity from 6AH – 200AH(12V), 6AH – 100Ah(24V).
• Check battery manufacturer specifications before using.
• Explosive gases may emitting from battery during charging. Provide ventilation to prevent flames and sparks.
• Do not expose charger to the sun, or under high temperature environment.
• Battery acid is corrosive. Rinse immediately with water if acid comes into contact with skin or eyes.
• Do not charge a frozen or damaged battery.
• Do not charge non-rechargeable batteries.
• Do not place the charger on the battery while charging.
• Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion.
• When working with a lead-acid battery, remove personal metal items such as rings, bracelets, necklaces, watch…
• Do not smoke or allow a spark or flame while charging.
• In order to reduce risk of electric shock, unplug charger from AC outlet before doing any maintenance or cleaning.
• Not for use by children or by anyone who is unable to follow instructions of this manual, unless they are supervised by an adult to ensure the proper use of charger.

MAIN FEATURES

• High efficiency (>85%).
• AGM,Car, Motorcycle , LiFePO4 Battery type can selectable
• The 7-stage microprocessor controlled charging process provides the best possible application and enables efficient battery charging.
• Charging voltage adapts to temperature, that can prevent over- or under- charging of battery.
• Capable of recharging severely discharged or heavily sulfated battery.
• Reverse polarity protection, short circuit protection, over-charge protections, parks free contact.
• LCD display: voltage, current, temperature etc.
• Ease of use. Clear charging status display.
• Full microprocessor controlled.
• Do not over-charge your battery even it is kept connecting in any mode.

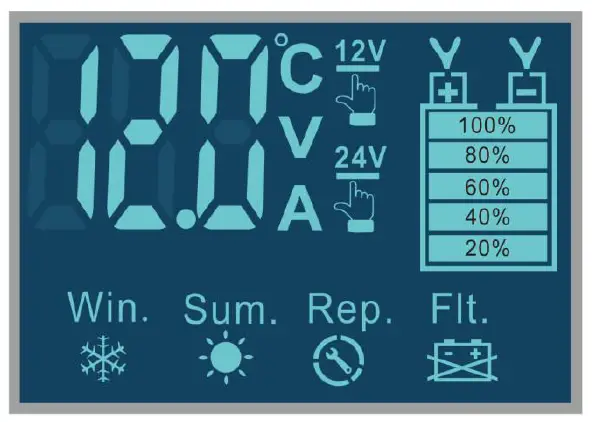

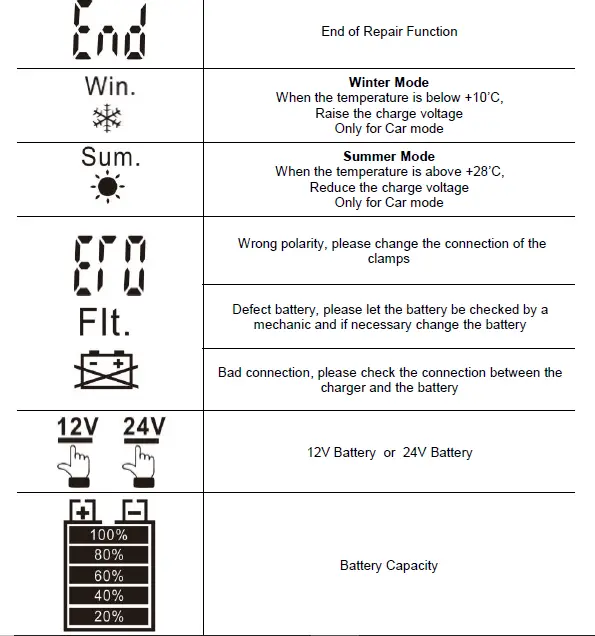

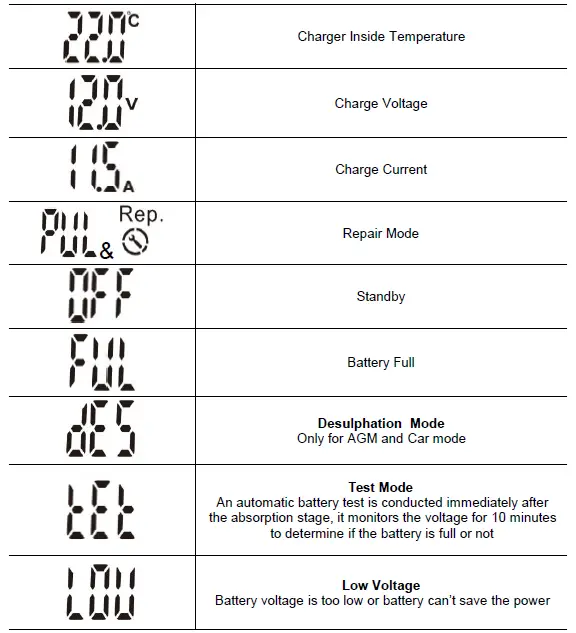

LCD DISPLAY

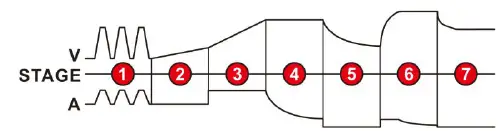

7-STAGE CHARGING PROCESS

• 1- stage: Battery desulphation
• 2- stage: Soft start charging
• 3- stage: Bulk charging
• 4- stage: Absorption charging
• 5- stage: Battery test
• 6- stage: Recondition charging
• 7- stage: Float & maintenance charging

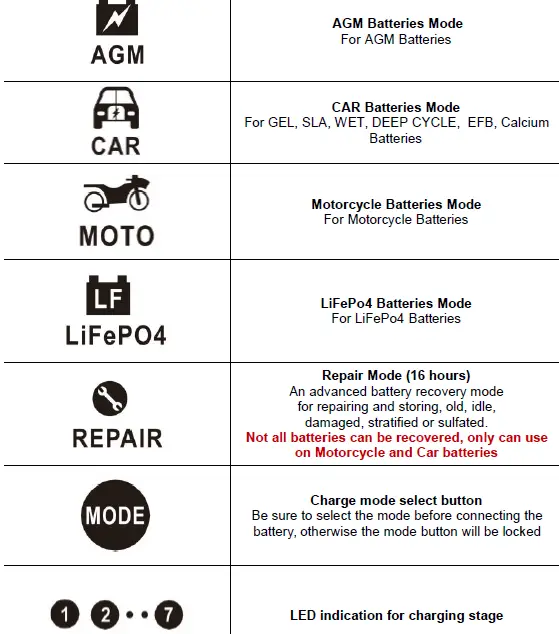

CHARGER MODES

The FBC122412D has seven (9) modes: 12V AGM, 24V AGM, 12V Car, 24V Car, 12V Motorcycle, 24V Motorcycle, 12V LiFePO4, 24V LiFePO4, REPAIR.
It is important to understand the differences and purpose of each charge mode. Do not operate the charger until you confirm the appropriate charge mode for your battery. Below is a brief description:

BEGIN CHARGING

1.  Verify the voltage and chemistry of the battery.
2.  Confirm that you have connected the AC power plug is plugged into an electrical outlet.
3. Press the mode button to toggle to the appropriate charge mode.
4. Confirm that you have connected the battery clamps or eyelet terminal connectors properly
5. The mode LED will illuminate the selected charge mode and the Charge Icon will illuminate (depending on the health of the battery) indicating the charging process has started.
6. The charger can now be left connected to the battery at all times to provide maintenance charging.
   Auto-Memory: The charger has built in auto-memory and will return to the last charge mode when connected.

TECHNICAL SPECIFICATIONS
