QUICK REFERENCE GUIDE > OB30SD14PLX1
Oven 30″, 14 Function, Selfcleaning
Series 7 | Contemporary
Stainless Steel
OB30SD14PLX1 Oven 30 Inch 14 Function Self Cleaning
With beautiful Contemporary styling and a generous 4.1 cu ft total capacity, this built-in oven helps to ensure that every dish you create is cooked to perfection.
- 4.1 cu ft total capacity with 14 oven functions including Pastry Bake, Roast and Air Fry
- Even heat circulation with AeroTechTM, ideal for multi-shelf cooking
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Guided cooking capability offers helpful tips for different food types

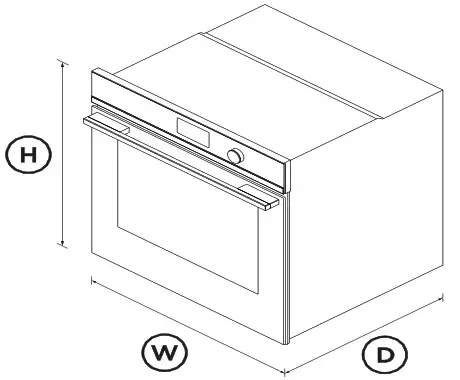

DIMENSIONS
| Height | 27 3/16″ |
| Width | 29 15/16″ |
| Depth | 23 15/16″ |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
Each function has been perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. This built-in oven has 14 functions including Pastry Bake, Pizza Bake, Roast, Slow Cook and Air Fry, allowing you to use a variety of cooking styles.
GENEROUS CAPACITY
With an incredible 4.1 cu ft total capacity in each oven, you can create several perfectly cooked dishes at once using multiple shelves.
COOK WITH CONFIDENCE
The intuitive 2.4″ screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out. Cook by food type and allow your oven to guide you through steps, or change temperature and heat type automatically, depending on your selection.
EXCEPTIONAL PERFORMANCE
AeroTech™ circulates heat evenly for a consistent temperature throughout the cavity, helping you ensure perfect results even when cooking on multiple shelves.
MULTI-FUNCTION FLEXIBILITY
Each function has been tailored, tested and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. The Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SELF-CLEANING
Our Pyrolytic self-cleaning technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and detailing to support a cohesive, considered kitchen design.
SPECIFICATIONS
Accessories
| Broil grid | 1 |
| Broil pan | 1 |
| Broil rack | 1 |
| Full extension sliding shelves | 2 |
| Pyrolytic proof shelf runners | • |
| Wired temperature sensor | 1 |
Capacity
| Total capacity | 4.1cu ft |
Cleaning
| Acid resistant graphite enamel | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
Controls
| Adjustable audio and display | • |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Halogen lights | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Sabbath mode with Star K | • |
| Soft close doors | • |
| True convection oven | • |
| Turned stainless capacitive | • |
| Wi-Fi connectivity | • |
Functions
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Classic bake | • |
| Maxi Broil | • |
| Number of functions | 14 |
| Pastry Bake | • |
| Pizza bake | • |
| Roast | • |
| Self-clean | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 4400W |
| Temperature range | 95 °F – 540 °F |
Power requirements
| Amperage | 16.6 – 19.4A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 23 15/16″ |
| Height | 27 3/16″ |
| Width | 29 15/16″ |
Safety
| ADA compliant | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82579 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
