Wireless Chargers
TWC15 Series
Manufactured by Mid-Continent Instrument Co., Inc.
Deliver up to 15 watts to smartphones and wireless headphones.
True Blue Power ® Wireless Chargers provide the thinnest charging module, the largest charging area, and the most compact design.

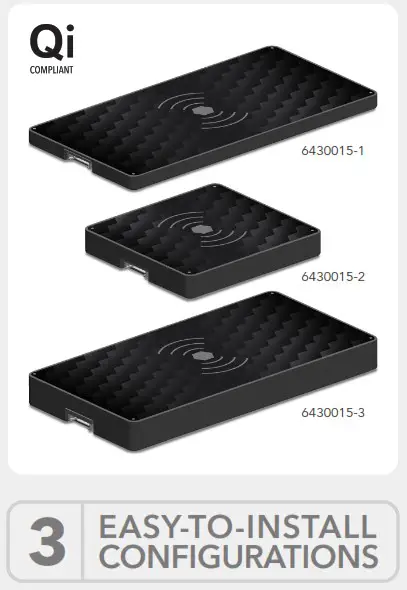

Product features
| OUTPUT POWER | 15 watts (maximum) |
| INPUT POWER | 26 watts (maximum) |
| INPUT VOLTAGE | 12 – 32 VDC (1.9A at 14 VDC) (0.9A at 28 VDC) |
| CHARGING DEPTH | Up to 0.375” (9 mm) |
| STATUS INDICATION | Standby, Charging, Charge Complete and Fault |
| PROTECTION | Short circuit, power surges, overload, over temperature, reverse polarity and foreign object detection |
| APPLICATIONS | In-seat, cabin and cockpit |
| DESIGNED AND MANUFACTURED | Wichita, Kansas, USA |
| WARRANTY | Two-year limited warranty |
| Kansas 9400 East 34th Street North Wichita, Kansas 67226 USA Tel 316.630.0101 800.821.1212 Fax 316.630.0723 [email protected] | California 16320 Stagg Street Van Nuys, California 91406 USA Tel 818.786.0300 800.345.7599 Fax 818.786.2734 [email protected] |
Technical specifications
| OUTPUT POWER | 15 watts (maximum) |
| INPUT POWER | 26 watts (maximum) |
| INPUT VOLTAGE | 12 – 32 VDC (1.9A at 14 VDC) (0.9A at 28 VDC) |
| CHARGING DEPTH | Up to 0.375“ (9 mm) |
| WEIGHT | 6430015-1 3.4 ounces (96 grams) 6430015-2 3.0 ounces (85 grams) 6430015-3 5.9 ounces (167 grams) |

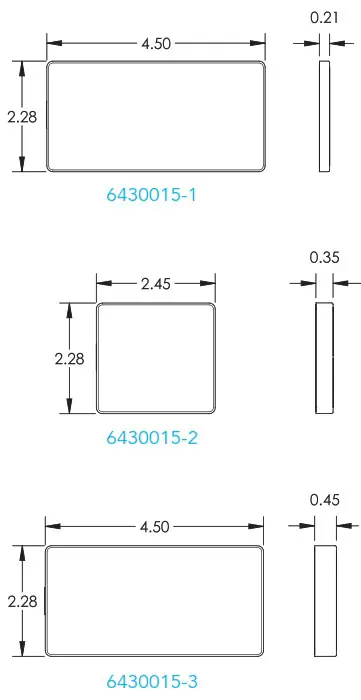

| DIMENSIONS | 6430015-1 4.50” L x 2.28” W x 0.21” H 6430015-2 2.45” L x 2.28” W x 0.35” H 6430015-3 4.50” L x 2.28” W x 0.45” H |
| MATING CONNECTOR KIT | P/N 9019739-1 (included) |
| MOUNTING | (4) #2-56 threaded holes |
| INSTALLATION | In-seat, cabin and cockpit |
| CASE | Anodized aluminum, black |
| CERTIFICATION | FAA TSO C71 RTCA DO-160G |
truebluepowerusa.com
FL-SS-212-0722
