Diymalls WS2812 Tutorial LED Ring User Manual

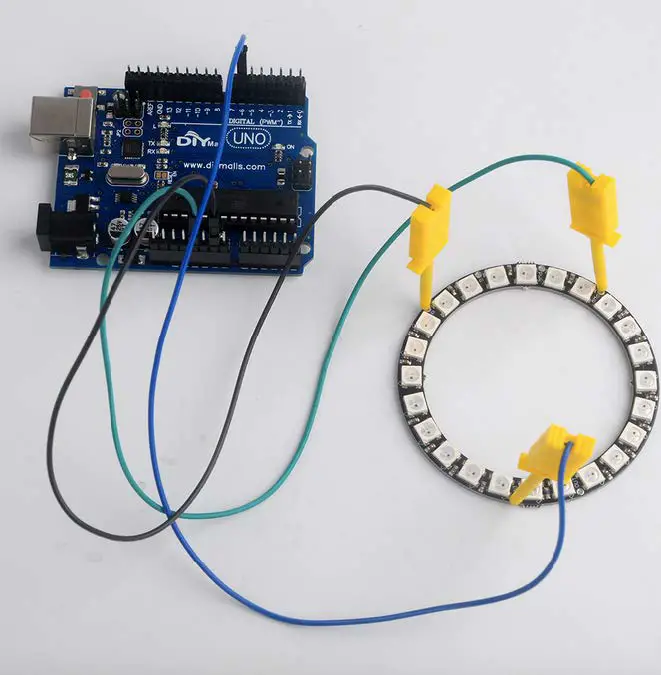

• PWR+5V to 5V
• GND to GND
• Data Input (or DI) to A6

Download library from https://github.com/adafruit/Adafruit_NeoPixel
You can open the standard test code

Please pay attention about the LED numbers, if it is 24LED, you need change 60 to 24
