Shine Kitchen Sjx-1wh Xl Cold Press Compact Juicer User Manual

SJX-1WH XL Cold Press Compact Juicer
User Manual

SJX-1WH XL Cold Press Compact Juicer

Please read this manual carefully before using it.

PRODUCT SPECIFICATIONS

IMPORTANT SAFEGUARDS

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Make sure the electricity supply is suitable for this unit.
3. This unit is intended for household use only. Commercial users will not obtain the regular warranty as stated in the terms of the warranty card. Do not use the unit at outdoors or for another purpose than intended.
4. Use the unit only as described in this manual.
5. To prevent from electrical shock, do not immerse the unit, cord set, and plug into water.
6. This is not a toy and is not to be used by children. Close supervision is required when the unit is used near children.
7. Ensure to unplug the unit when not in use, assemble or disassemble it, and before cleaning.
8. The continuous operation time of this product is up to 20 minutes.
9. No-load or overloaded operation of the machine is prohibited.
10. Do not touch or move any moving parts during the operation of the machine.
11. Do not use fingers, spoons, or other foreign objects to push fruits or vegetables into the Chute of Juicing Assembly. Only use the included Plunger.
12. Do not open the unit when it is operating.
13. Do not place the unit near any explosives, heated ovens, or hot surfaces.
14. Operate the unit only on a flat surface.
15. Do not let the cords hang over the edge of the table.
16. Hold the plug to disconnect from the power socket.
17. If any of the parts are damaged, please do not use the machine and send it to an authorized service center to be repaired by a qualified technician.
18. This product should not be operated by anyone with physical or mental disabilities unless they are under the supervision of a responsible adult.

Disposal / Recycling:

At the end of its service life, this product may not be disposed of in the normal household waste, but rather must be disposed of at a collection point for recycling electrical and electronic devices. The materials are recyclable according to their labeling. Please ask the municipal administration where the appropriate disposal facility is located.

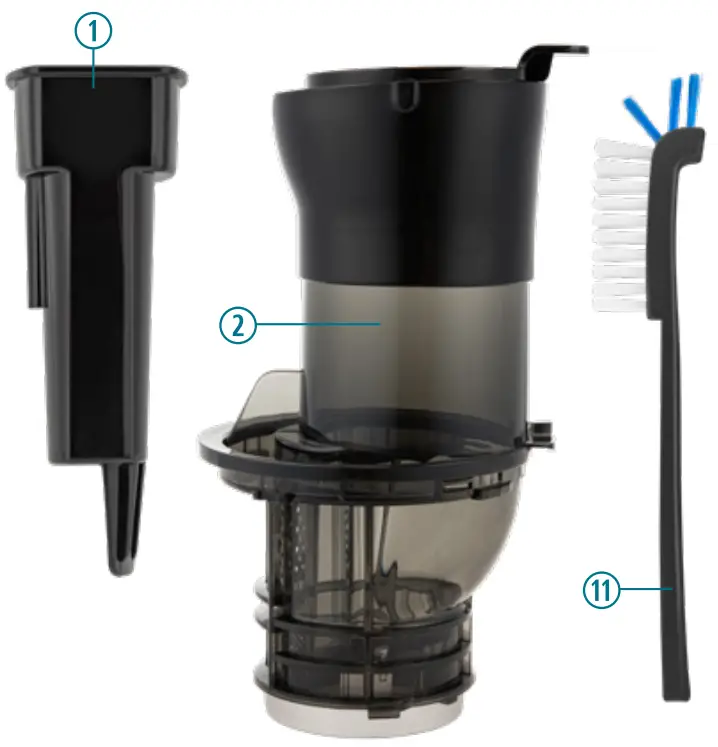

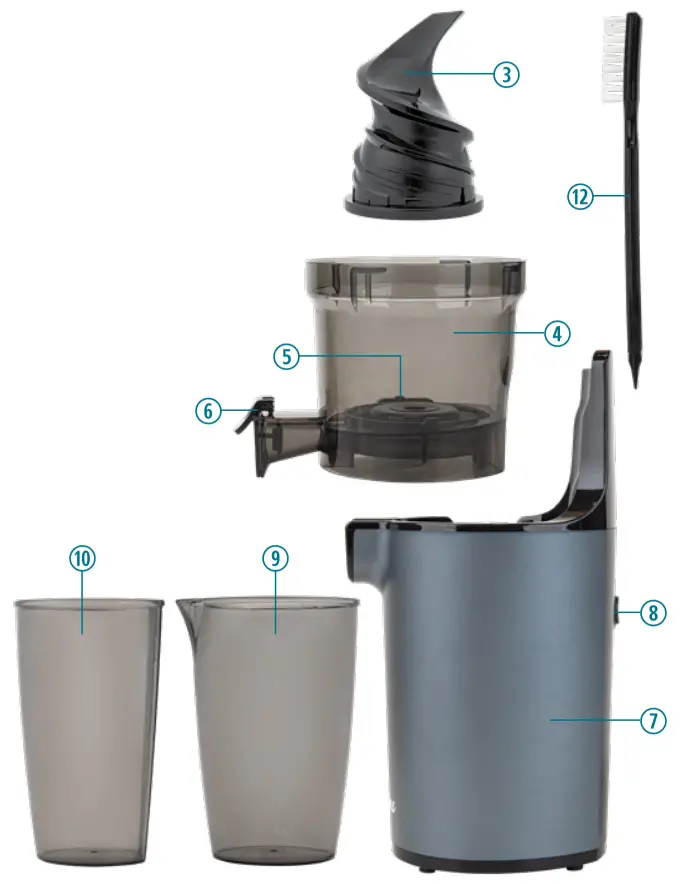

PARTS

1. PLUNGER
   Lets you get pushy with your produce.
2. JUICING ASSEMBLY WITH EASY CLEAN SCREEN
   The XL CHUTE helps auto-feed your produce into the juicer while the integrated JUICING SCREEN separates the juice from the pulp.
3. AUGER
   The specially designed AUGER never bites off more than it can chew. Low RPM operation for cold press juice without the jams.
4. AUGER HOUSING
   Where all the magic happens. The AUGER sits inside here.
5. PRESSURE PLUG
   Makes it easy to clean the pulp outlet.
6. JUICE CAP
   Keeps your countertop clean between batches.
7. MAIN BODY
   The powerhouse of the juicer.
8. POWER SWITCH
   – Turns ON the machine
   O Turns OFF the machine
   R REVERSE Function
9. JUICE CONTAINER
   Catches juice from juice outlet.
10. PULP CONTAINER
    Catches pulp from pulp outlet.
11. XL BRUSH
    Makes cleanup a breeze.
12. BRUSH WITH PULP PICK
    Easily gets into tighter spaces.

TIPS AND TRICKS

We are so happy to welcome you to the #tribestlife!
Please take a moment to read through this quick start guide before you move on to the assembly instructions so you can best enjoy the use of your new tool for healthy living!
For the best juicing experience:

Your juicer will not turn on unless all parts are properly assembled. To do this, please be sure to follow the assembly instructions on the following pages to ensure the safety switch is completely engaged.

The arrow should align with the lock symbol.

• While juicing, feed in produce then watch for the pulp to eject out of the pulp outlet.
  You may feed the juicer continuously, but do not force the machine to work faster by overfeeding it. If you overfeed the machine and cause a jam, use the REVERSE Function R  to dislodge it.
•  For easier cleaning, run water through the CHUTE with the machine on. This will push out most of the remaining pulp and shorten your cleaning time.
• To clean, twist off the entire top portion of your juicer and carry it to the sink. For best results, rinse each part right away with warm soapy water. This process should take 3-5 minutes. Your cleaning brushes can help you quickly remove any leftover pulp.
• Your machine is equipped with overheating protection. This machine has a compact motor that is designed to run for no more than 20 minutes continuously. If your motor starts to heat up, it will automatically shut off until it cools back down in order to prevent damage to the motor from overheating. Wait until the machine cools down before resuming any juicing activity.
• We offer replacement parts and additional juicing accessories at www.shinekitchen.com. If you need support or special shipping options, please contact our customer service center at [email protected] or 1-888-254-7336.

HOW TO ASSEMBLE

BEFORE YOU BEGIN:

• Make sure the machine is not plugged in prior to assembling the machine.
• Make sure the POWER SWITCH is in the OFF position O prior to assembling the machine.
• Before using the juicer for the first time, clean all parts, except for the MAIN BODY, in soapy water. Then rinse and dry thoroughly.

WARNING: Never immerse the MAIN BODY in water.

STEP 1:

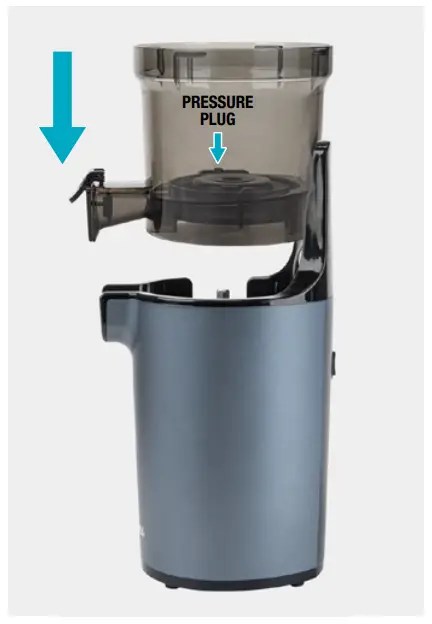

Make sure that the PRESSURE PLUG is fully inserted into the pulp outlet on the bottom of the AUGER HOUSING (see page 13 for details). Place the AUGER HOUSING on top of the MAIN BODY, making sure both the juice and pulp outlets are fully seated.

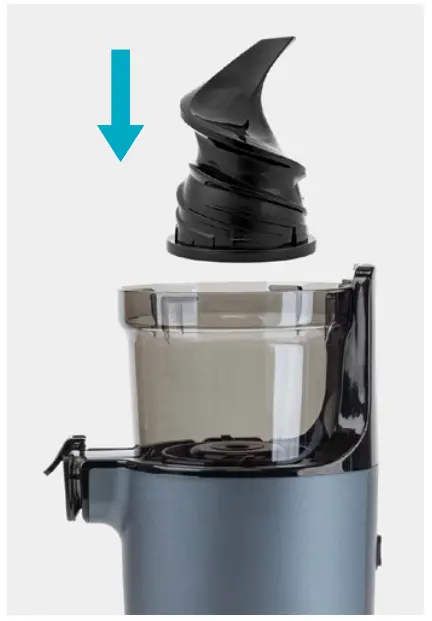

STEP 2:
Push the AUGER firmly into the center of the AUGER HOUSING, making sure the AUGER is fully seated on the bottom.

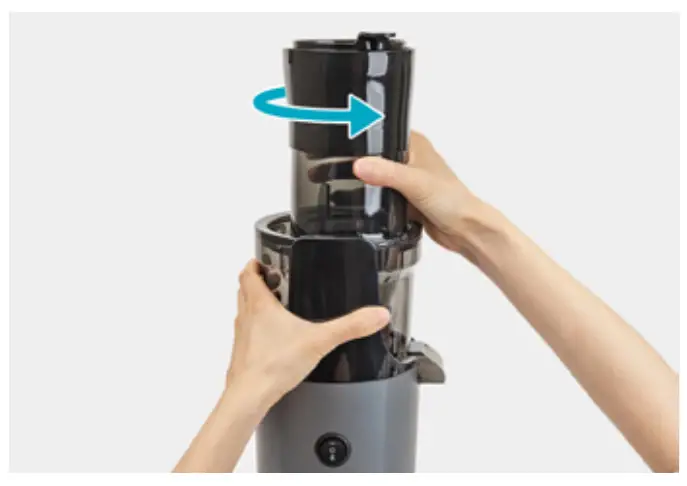

STEP 3:

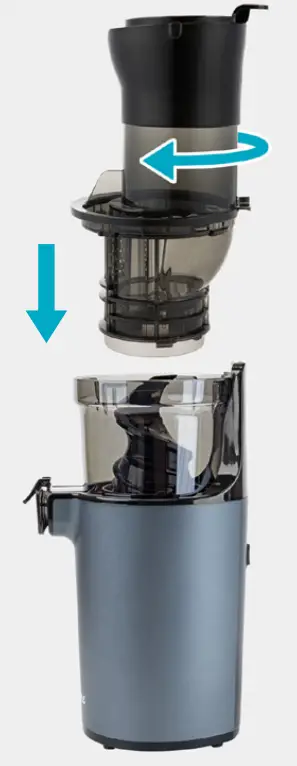

Place the JUICING ASSEMBLY over the AUGER and into the AUGER HOUSING. Align the arrow on the JUICING ASSEMBLY to the unlocked position on the MAIN BODY and twist it clockwise until it clicks into the locked position.
The arrow should align with the lock symbol to complete the assembly.STEP 4:

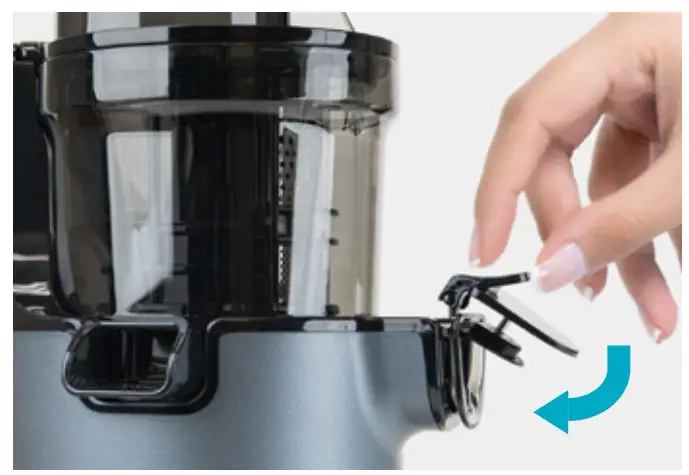

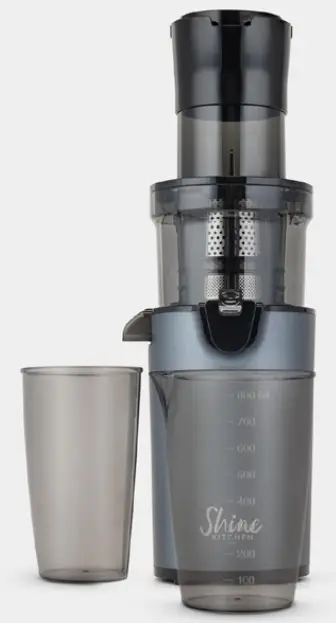

Place the JUICE CONTAINER and the PULP CONTAINER under the relevant outlets. Make sure the JUICE CAP is open before you begin juicing.
Your Shine Juicer is now fully assembled.

USING THE JUICER

BEFORE YOU BEGIN:

• Make sure the POWER SWITCH is in the OFF position O before you begin.
• Make sure the JUICE CONTAINER and PULP CONTAINER are in the correct position.
• Make sure the JUICE CAP is open before you begin juicing.

PREPARATION:

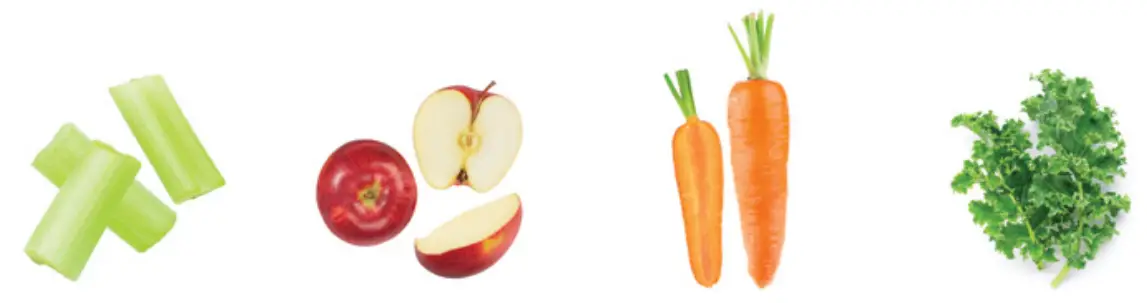

Prepare your fruits and/or vegetables. It is recommended to cut stringy vegetables like celery into small strips or cubes. Larger produce like carrots only need to be cut enough to fit through the XL CHUTE.
See examples below:

CELERY Cut into strips	APPLES Whole, Halved, or Quartered	CARROTS Whole or Halved	LEAFY GREENS Whole or Chopped

CONTINUOUS OPERATION TIME:
Do not use the juicer continuously for longer than 20 minutes per session. Allow the juicer to rest for 10 minutes between operations.
OVERHEAT PROTECTION:
Your juicer is equipped with an automatic shut-off feature to protect your motor from burning out. If the motor overheats during juicing, your machine will automatically shut off. If this happens, it is recommended to allow your juicer to rest for 20-30 minutes after overheating protection kicks in. For additional information, refer to the troubleshooting guide on page 15.
STEP 1:

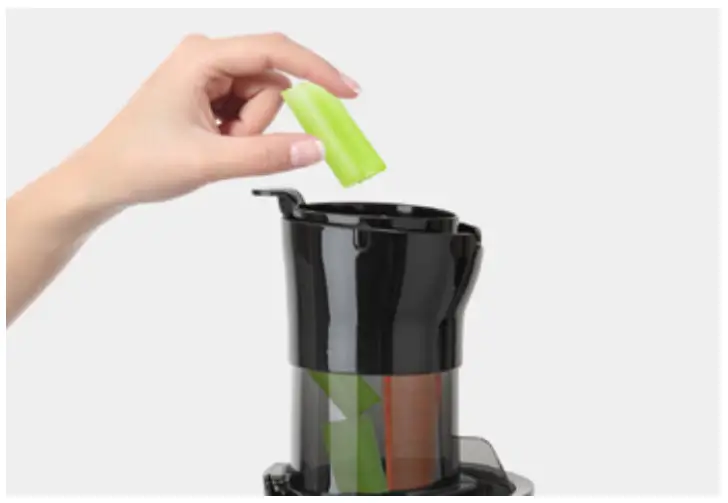

Begin by filling up the CHUTE with fresh produce for simple batch juicing.

STEP 2:
Plug in the power cord to an electrical outlet. Turn on the machine with the POWER SWITCH by pressing the line symbol – .
NOTE: The machine will not turn unless the parts are properly assembled. Refer to the assembly instructions on page 8.

STEP 3:
To juice, even more, add products to the QUICK FILL FLIP TOP or insert through the slot for easy continuous feed operation.

STEP 4:
Allow the juicer to run for 30 seconds after the last ingredient was fed. Then turn off the machine and close the JUICE CAP.
NOTE: The PLUNGER only needs to be used if ingredients are stuck inside the FEEDING CHUTE. Using the REVERSE Function R can also dislodge food.

HOW TO DISASSEMBLE

BEFORE YOU BEGIN:
Before disassembling the juicer after use, switch the juicer to the OFF position O on the POWER SWITCH and disconnect the juicer from the power source.

STEP 1:

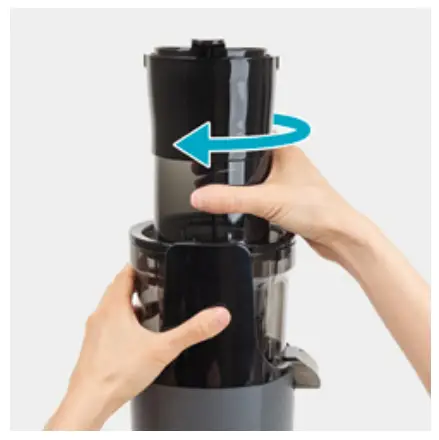

Unlock the JUICING ASSEMBLY by turning it counterclockwise so that the arrow aligns with the unlocked position.STEP 2:
Lift up from the AUGER HOUSING and bring all the juicing parts to the kitchen sink for cleaning.

STEP 3:

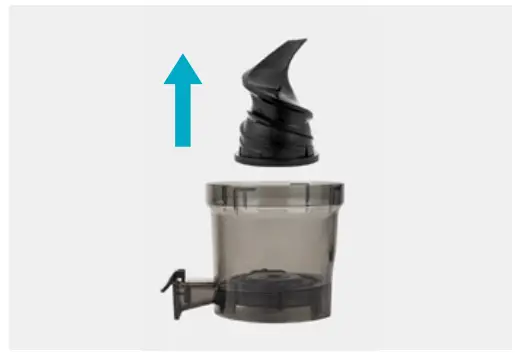

Remove the JUICING ASSEMBLY from the AUGER HOUSING by lifting it up vertically.STEP 4:
Remove the AUGER from the AUGER HOUSING by lifting it up vertically.

CLEANING

1. Wash immediately after each use to avoid pulp residue.

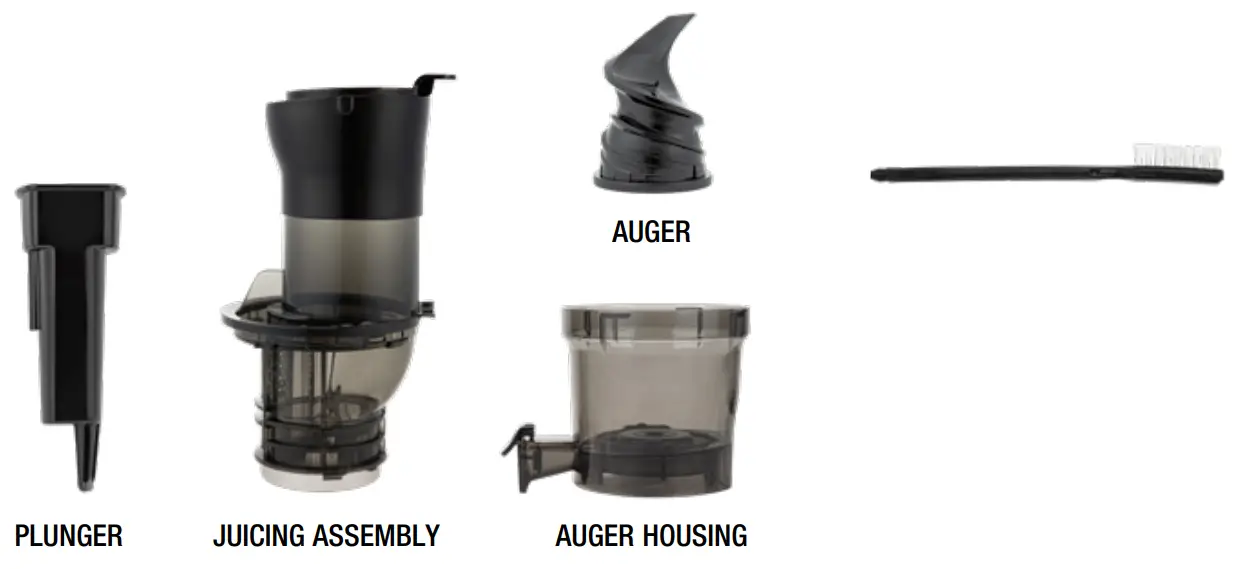

2. Wash and rinse the parts shown below with warm soapy water. These parts may be soaked for easier cleaning. Use the cleaning BRUSHES to thoroughly clean all juicing parts.
3. Use a damp cloth or sponge to clean and wipe down the MAIN BODY after use, if necessary.
   Never submerge or use running water over the MAIN BODY.
4. Dry all parts with a cloth to prevent water spots before putting them away for storage.TIP: Use the BRUSH WITH PULP PICK to quickly clean the pulp out from the underside of the AUGER.

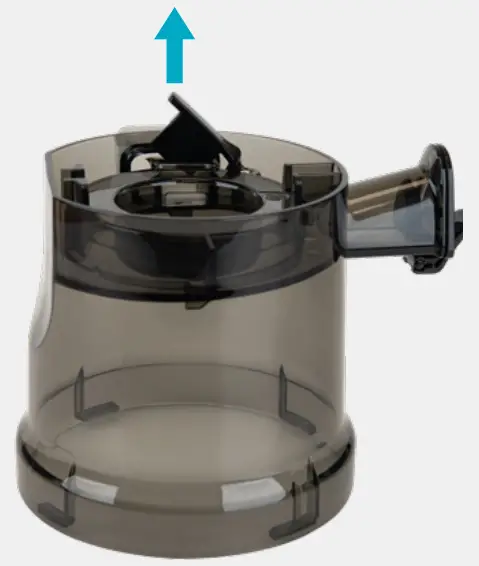

CLEANING THE PRESSURE PLUG
To clean the pulp outlet of the AUGER HOUSING, simply pull out the PRESSURE PLUG from the bottom and clean it under running water. Then dry and push the plug back into its slot.
Note: Do not remove the screw that holds the PRESSURE PLUG in place.

USEFUL TIPS

If you have any questions, or comments, or need any tips, please feel free to call us or send us an email.
If you purchased your product outside of the United States, please refer to your warranty card for your nearest service center.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE / SOLUTION
The juicer won’t turn on.	•  Your electrical outlet is not working. Make sure the power cord is plugged into a functioning outlet. •  The parts have not been assembled correctly. Make sure all parts are properly assembled as shown on page 8. •  The safety switch has not been engaged. The arrow on the JUICING ASSEMBLY needs to align with the lock symbol on the MAIN BODY to engage the safety switch.
The juicer stopped running suddenly.	• Use the REVERSE Function R to dislodge any jams. If the machine still isn’t running, try cleaning the machine thoroughly before use. •  If the motor overheats during juicing, your machine will automatically shut off for protection. If this happens, it is recommended allowing your juicer to rest for 20-30 minutes after overheating protection kicks in.
The juice yield is low or juice flows out of the AUGER HOUSING.	The AUGER HOUSING and PRESSURE PLUG is not installed properly. Make sure the PRESSURE PLUG is plugged all the way into its slot and the AUGER HOUSING is fully seated on the MAIN BODY. Refer to instructions on page 8.
Mineral deposits have formed on the parts.	Mineral deposits are common over time and can cause parts to look dull. To remove mineral deposits, we recommend soaking in a solution of hydrogen peroxide and water (50/50) for 30 minutes to an hour, then scrubbing with warm soapy water. To prevent buildup, wash the parts right after juicing for the best results. Do not let them sit.
The containers and parts are stained after use.	Parts can get stained due to the natural dye pigments of fruits and veggies, such as turmeric, carrots, and beets. Make sure to clean the juicer immediately after use under running water using the cleaning BRUSHES. You can try to remove some of the colored stains by soaking the parts in 70% white wine vinegar and 30% water.

Shine Kitchen Co. by Tribest
1143 N. Patt St. Anaheim, CA 92801
Toll-Free: 1-888-254-7336
Tel: +1 714 879 7150
[email protected]
tribest.com • shinekitchen.co
Follow us @tribestlife

Please contact Tribest directly regarding any issues with your product before contacting the original retailer you purchased from. Our support team is more than happy to help you.
© 2022 Shine Kitchen Co. by Tribest V06012022
