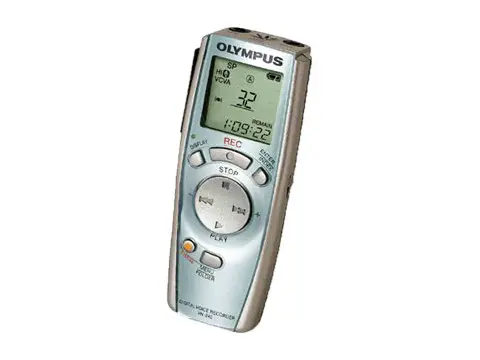

VN-240 PC Digital PC Link Voice Recorder
User Manual
VN‑240
- More than 4 hours of recording time
- 4 folders for file management (A/B/C/D)
- Timer recording (automatic start/stop)
- Index function (marking/search)
- 3 recording qualities (HQ/SP/LP)
- Schedule function for appointments
- VCVA (voice activation) for hands-free recording
- Alarm playback
No pen or paper needed
Tired of scribbling down messages and reminders on bits of paper? Then it’s time to discover the VN-240. With its compact, lightweight, and attractive design, this digital notetaker slips comfortably into your pocket. It lets you record your notes and ideas with ease. The retrieval takes just seconds thanks to the well-laid-out menu and four folders. Recordings stored in the schedule folder are arranged according to the day they were created for a clear overview. You can even program this notetaker to remind you of important dates or appointments.
Specifications
| Storage Media | |
| Internal memory | 32MB |
| Recording Modes | |
| HQ | 1h 28min |
| SP | 2h 13min |
| LP | 4h 5min |
| Sampling frequency | |
| HQ | – |
| SP | 10.6kHz |
| LP | 5.75kHz |
| Frequency response | |
| HQ | 300 – 7.200Hz |
| LP | 300 – 2.600Hz |
| SP | 300 – 4.700Hz |
| STSP | – |
| Record function | |
| Operation | |
| Index | Up to 10 per file |
| Auto recording | VCVA recording |
| Playback function | |
| Automatic playback | Alarm playback |
| Data organization | |
| Erase | Erase single files Erase all files |
| Files per folder | 100 |
| Time/date info | – |
| Schedule recording | In folder S |
| No. of folders for Voice | 4 (A/B/C/S for schedule) |
| Interfaces Input | |
| Microphone sensitivity/gain | HI/LO |
| Microphone jack | 3.5 ø mm mini-jack, impedance 2 kΩ or more |
| Microphones | Built-in mono microphone |
| Interfaces Output | |
| Earphone jack | 3.5 ø mm mini-jack, impedance 8Ω or more |
| Power Supply | |
| Power Supply | AAA Batteries, Rated voltage: 3V |
| Alkaline battery life | Recording: Approx. 25h |
| Dimensions | |
| Weight | 66.5g (incl. batteries) |
| WxHxD | 99 x 39 x 21.5mm |
Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer.
