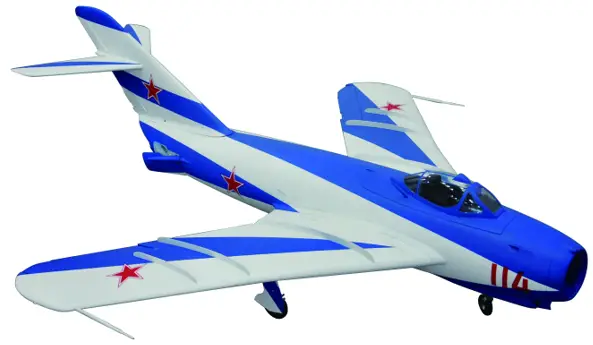

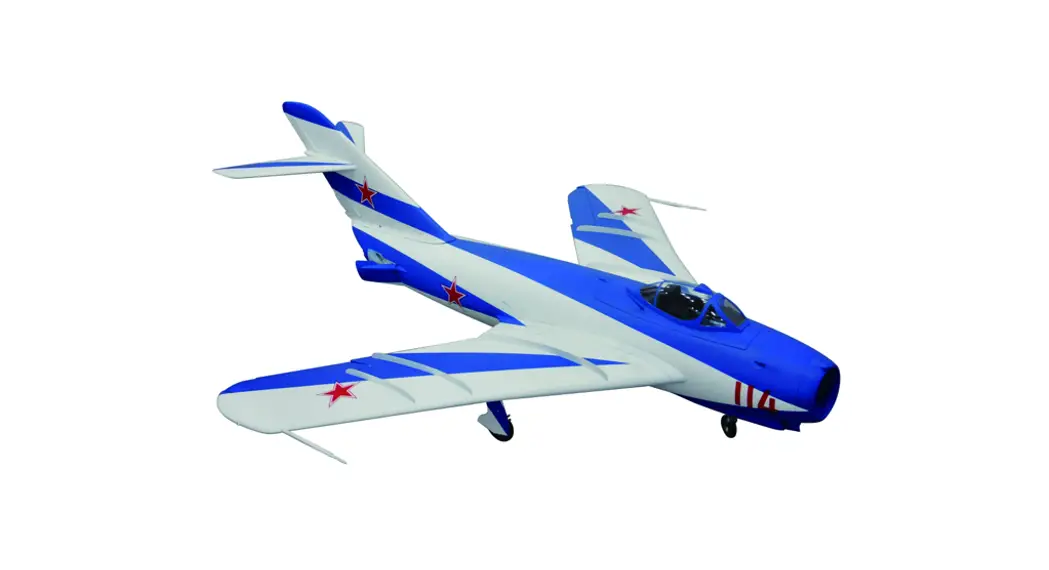

MIG-17
Instruction Manual
Please read this manual carefully before operating this plane

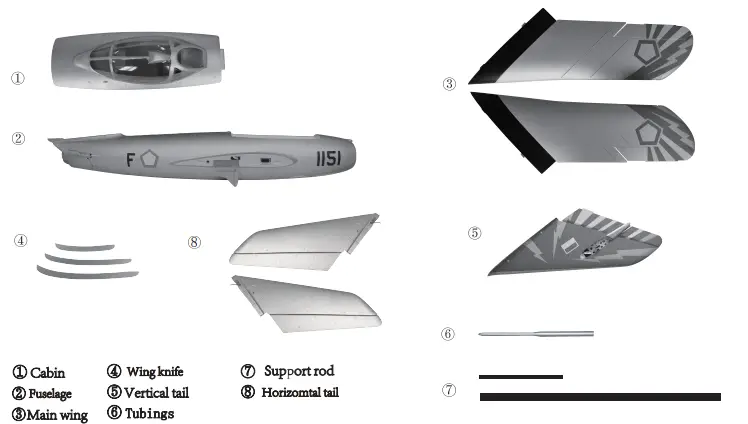

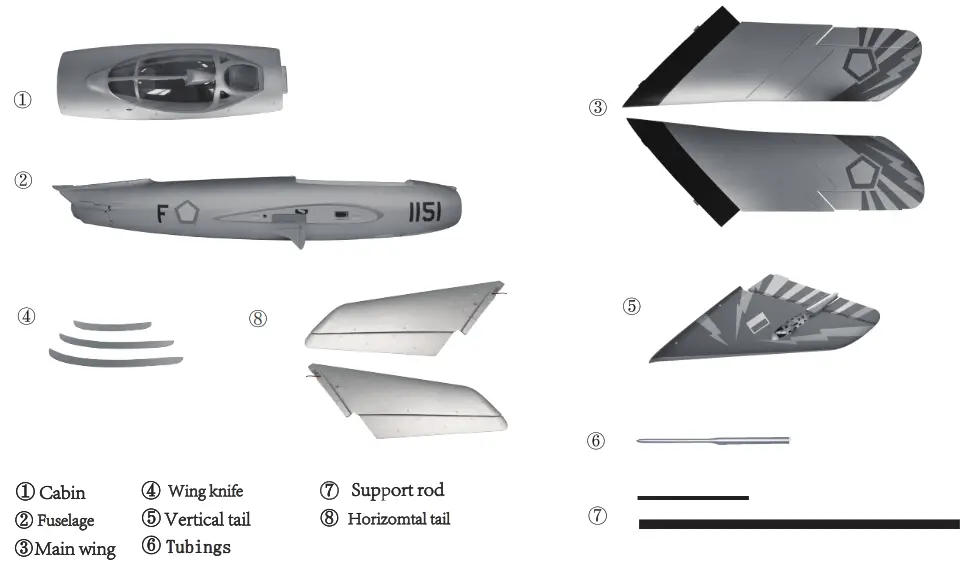

Box Contents
Turbine version Specifications
Main configuration parameters.
 | 4.5-6Kg | P N P |
 | 12g x 12pcs (Control-Main wingNercital tail/Horizontal tail) | Installed |
 | Main Tank 1350CC | Installed |
 | 3S 2200 mAh High Discharge Li-PO Battery | Installed |
 | 3.6Kg(No Fuel) | P N P |
Assembly

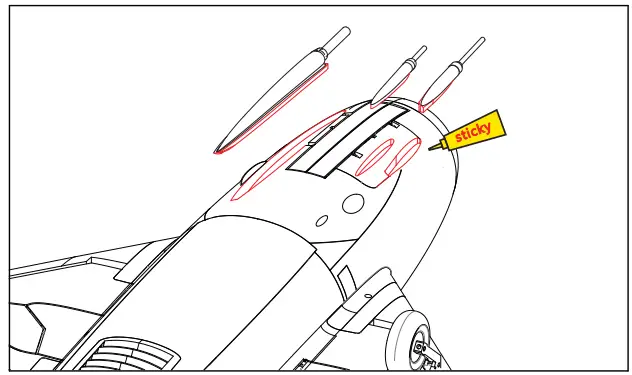

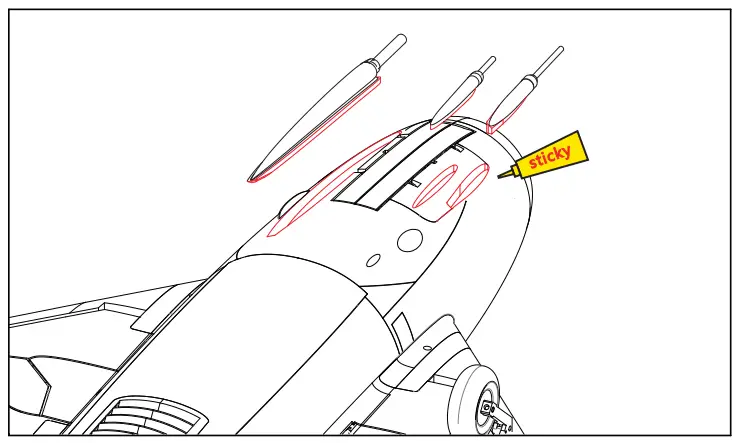

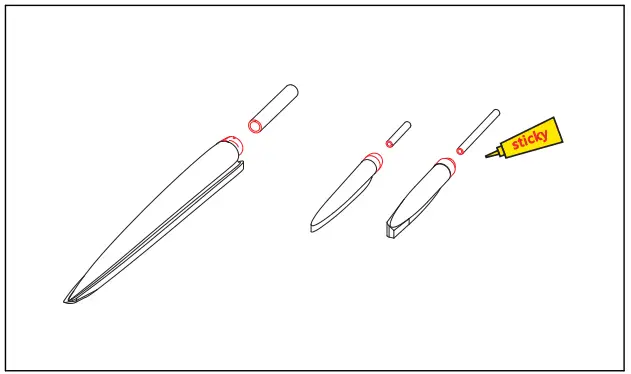

- Installation of nose machine gun trim.

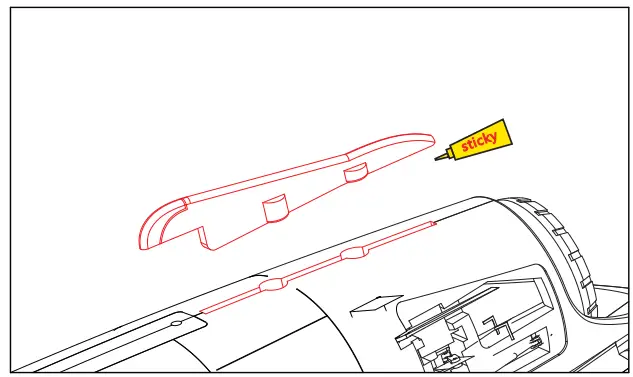

- Install the caudal fin.

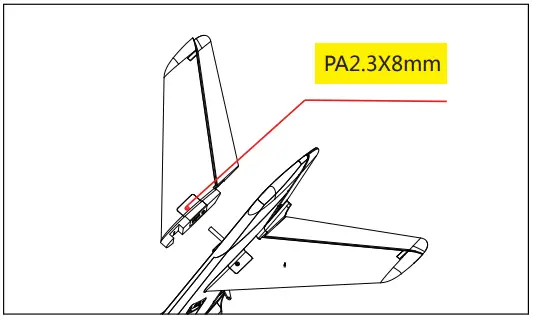

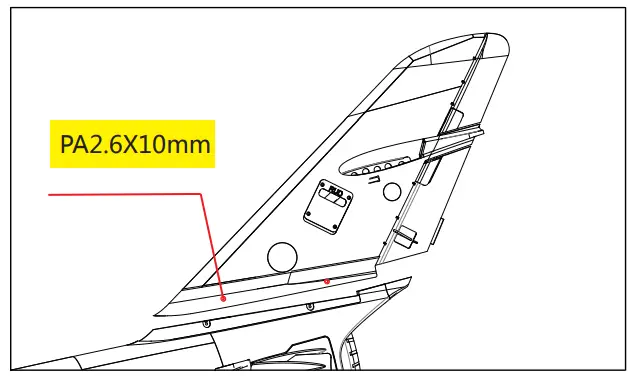

- Installation of the vertical tail.
CG LOCATION
Make sure the center of gravity(CG) is as indicated in the following diagram.
Box Contents
Turbine version Specifications
 | 90mm EDF | PNP |
 | Brushless Outrunner Motor 3541/1550KV(65) | Installed |
 | 120A Pro Brushless ESC (with 5A UBEC) | Installed |
| Servos:(twin bearings, digital servos) 12g*lpcs 9g*11pcs | Installed |
 | Battery:6S 5000mAh 40C Li-Po | Required to Complete |
 | Radio System:2.4GHz 6CH Transmitter and Receiver | Required to Complete |
 | 40g | Installed |
 | Electronic retraction 3pcs | Installed |
Assembly
- Installation of nose machine gun trim.

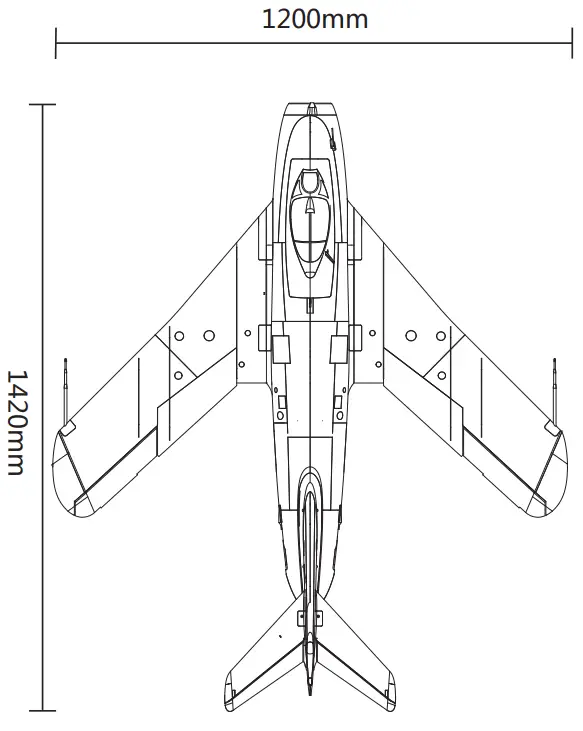

Size parameters
4.Install flat tail.

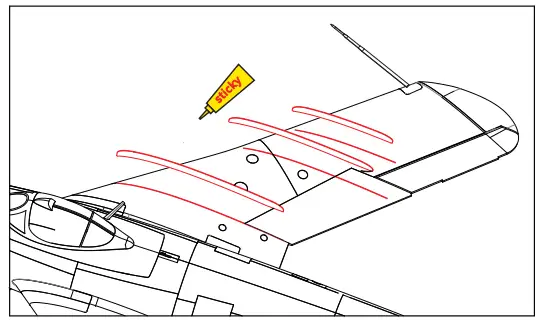

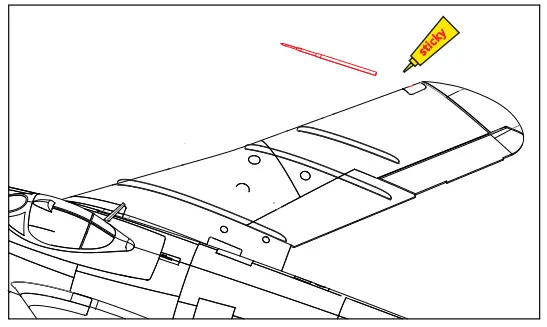

5.Install wing cutters .

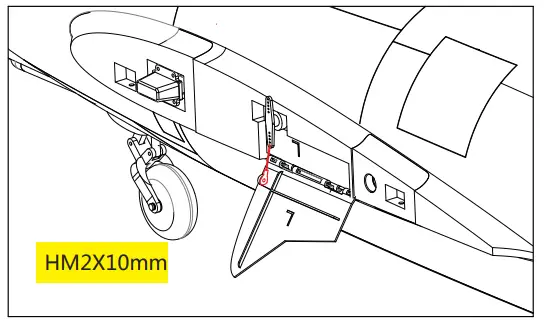

6.Install rear wheel cover.

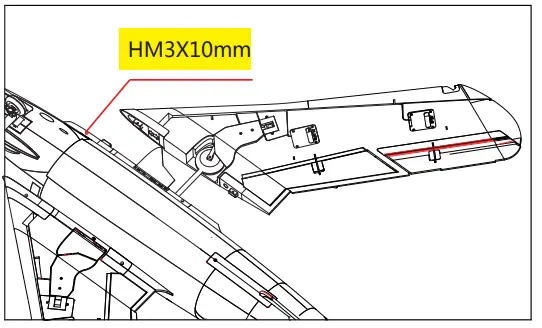

7.Install the wings.
8.Install the antenna.
9.Install wing antenna.
WWW.af-model.com
[email protected]
