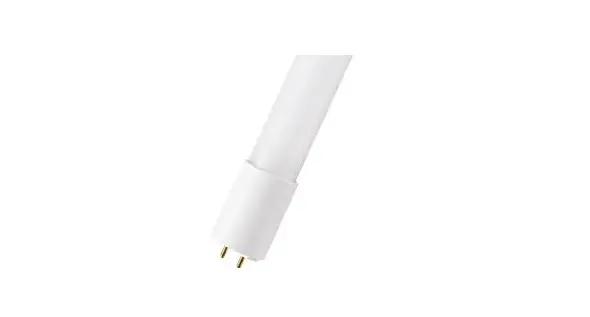

ecobasic LED T8
Manual
| Operating voltage | AC 220-240V 50/60Hz |
| Beam angle | 280° |
| Operating temperature | -20°C ~ 50°C |
| IP Rating | IP20 |
Installation

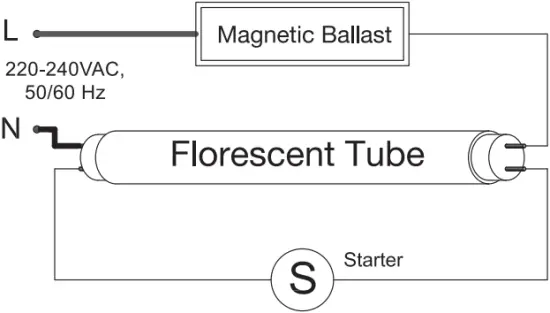

Magnetic Ballast Circuit
Installation

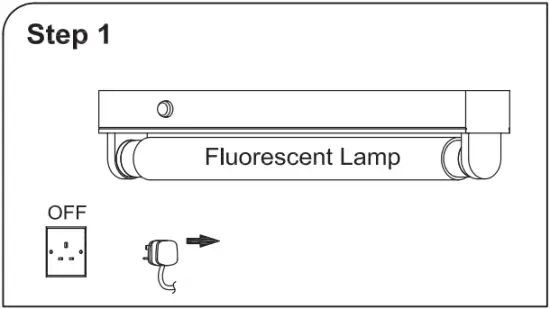

1) Switch off power

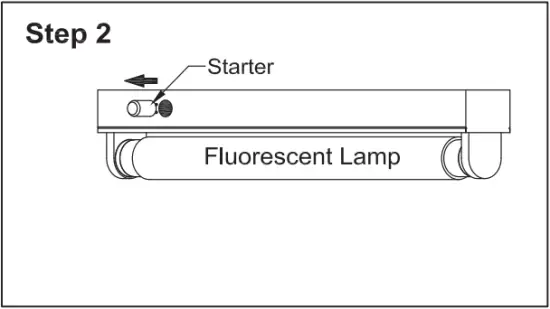

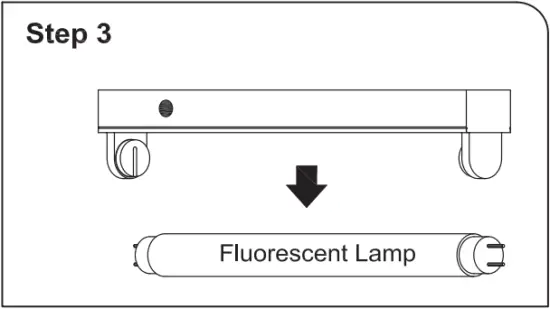

2-3) Remove starter and fluorescent lamp

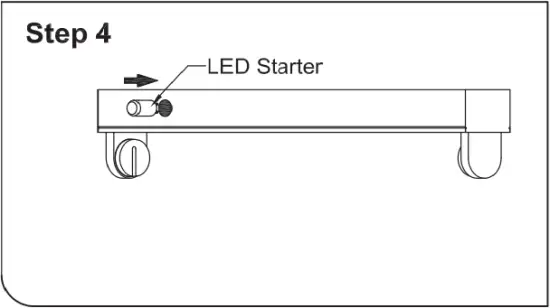

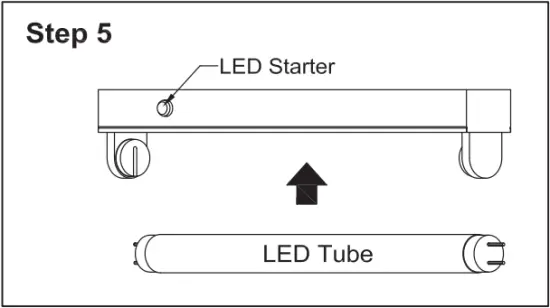

4-5) Insert LED starter and LED tube

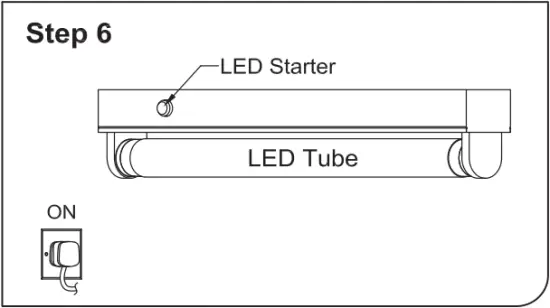

6) Turn power back on
* Recommend to remove the capacitor (if installed)

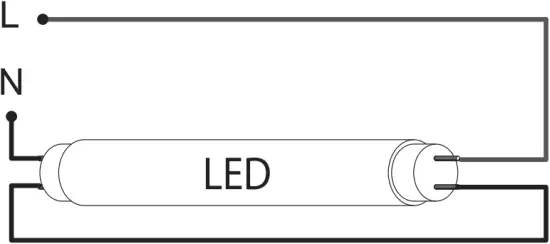

New installation / Re-wiring
Installation
Switch off power
Remove starter and fluorescent lamp

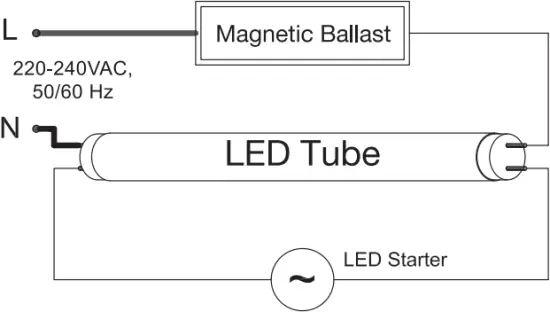

Re-wire according diagram
Insert LED starter and LED tube
Turn power back on
Warning
Not for electronic ballast
Installation information:
Power must be switch off before installation, mound it in the corresponding connection base.
- Before installation please read the specifications to make sure that this product is suitable for the operating environment.
- Please check if the power supply is suitable before use.
- Make sure that the power supply is switched off before installing to prevent an electric shock.
- Operation against rules may damage your property even harm to your personal safety.
- LED retrofit installation should be done by a qualified professionals and all safety instruction must be followed to avoid a risk of injury or property damage.
- Do not disconnect existing wires from a lamp holder.
- Not for use with dimmers.
- Not suitable for use with emergency units.
- Wet applications requires an IP rated fixture.
- Suitable for 50 Hz or 60 Hz operation.
- The tube should be used in fitting with good ventilation.
Bailey Electric & Electronics bv Netherlands
Everdenberg21 +31 (0)162 52 2446
4902 TT Oosterhout MADE IN CHINA
