FOCAL K2 POWER M Woofer
Product Information
The K2 POWER M is a high-quality audio amplifier designed to enhance the sound quality in your car audio system. It is manufactured by Focal, a renowned brand in the audio industry.
Key Features
- Quick Start function for easy setup
- Powerful amplification for improved sound performance
- User-friendly interface for convenient operation
- Compact and sleek design for easy installation
- Multiple language support for user manuals and
instructions
Product Usage Instructions
- Before starting, ensure that the power supply to your car audio system is turned off.
- Locate a suitable location in your vehicle to install the K2 POWER M amplifier. Ensure that there is enough space and proper ventilation for the amplifier.
- Connect the input cables from your car audio system to the corresponding input ports on the K2 POWER M. Make sure to match the left and right channels correctly.
- Connect the output cables from the K2 POWER M to your car speakers. Ensure that the positive and negative terminals are properly connected.
- Double-check all the connections to ensure they are secure and properly seated.
- Once all the connections are complete, turn on the power supply to your car audio system.
- Refer to the user manual for detailed instructions on adjusting the settings and optimizing the sound performance of the K2 POWER M amplifier.
- Enjoy enhanced audio quality and clarity in your car audio system with the K2 POWER M amplifier.
For more detailed instructions and information, please refer to the user manual provided by Focal.
GO TO THE USER MANUAL
https://www.focal.com/usermanual/k2-power-m

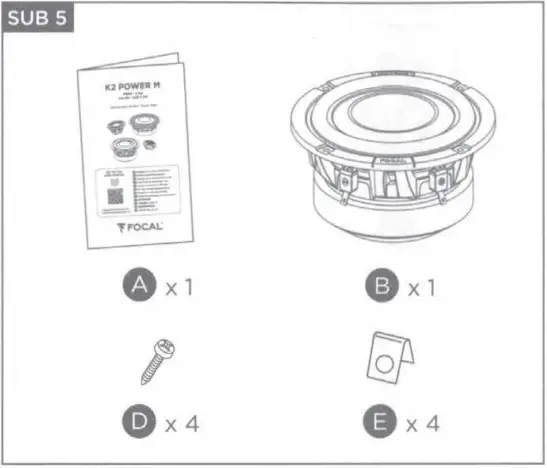

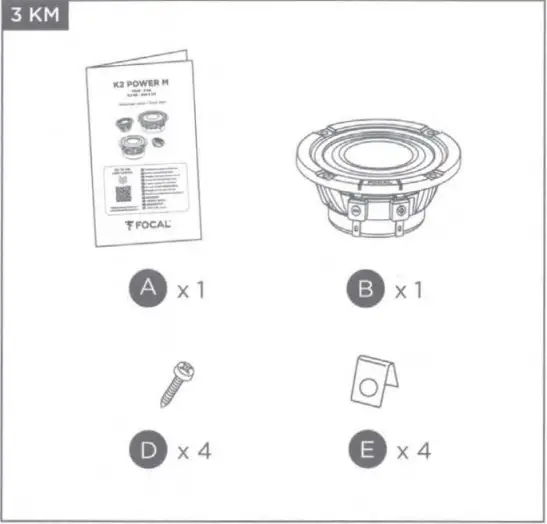

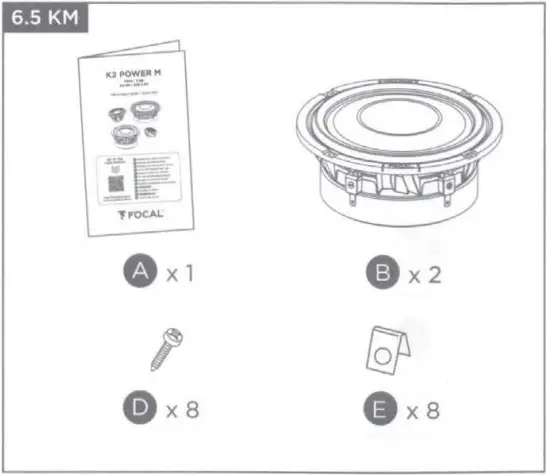

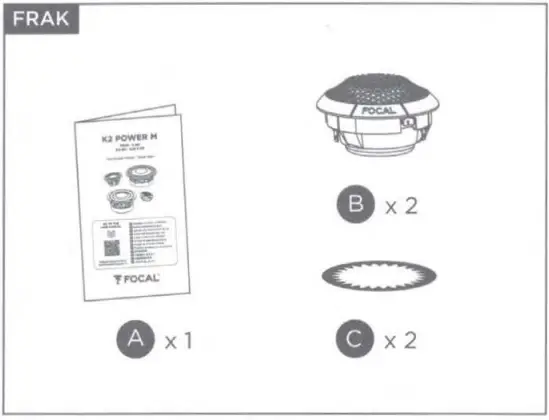

PACKAGE CONTENT

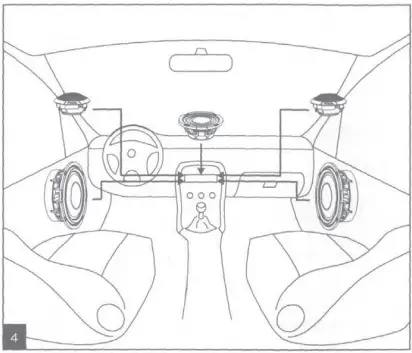

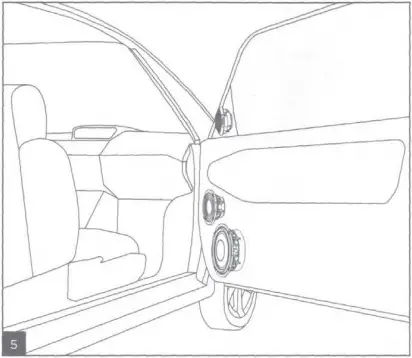

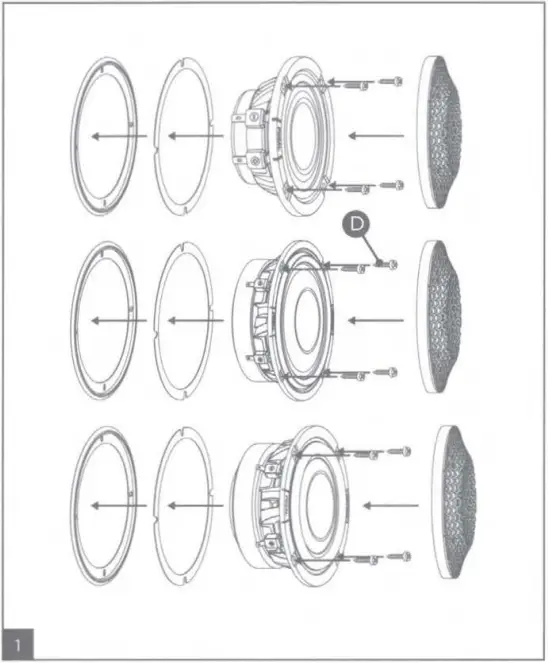

INSTALLATION
| Active filter setup suggested frequency range Configuration filtre actif, reponses en frequence suggerees | ||
| 2-way | 3-way | |
| SUB 5 KM | 30Hz/70-100Hz | 30Hz/70-100Hz |
| 6.5 KM | S0Hz/2.SkHz | 50Hz/400Hz |
| 3KM | 400Hz/4kHz | |
| FRAK | l.5-3Hz/30kHz | 4kHz/30kHz |
| Active filter setup suggested frequency range Configuration filtre actif, reponses en frequence suggerees | ||
| Center channel | Surround | |
| SUB 5 KM | ||
| 6.5 KM | ||
| 3KM | 300Hz/13kHz | 300Hz/14kHz |
| FRAK | 600Hz/30kHz | |
| Volume(L) | Frequence/Frequency F-3 (Hz) |
| 4 | 41 |
| 6 | 39 |
REGISTER YOUR PRODUCT ONLINE
Product sheet

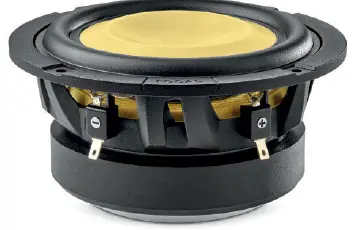

Power and compactness are the watchwords of the new K2 Power M line. Our engineers have packed the best Focal technologies, around our iconic K2 cone made with aramid fibre, renowned for its exceptional dynamics and high performance. The SUB 5 KM boasts an impressively powerful boost bass, despite its ultra-compact size. Available “à la carte”, the K2 Power M products enable you to create the active audio system of your choice for a bespoke installation.

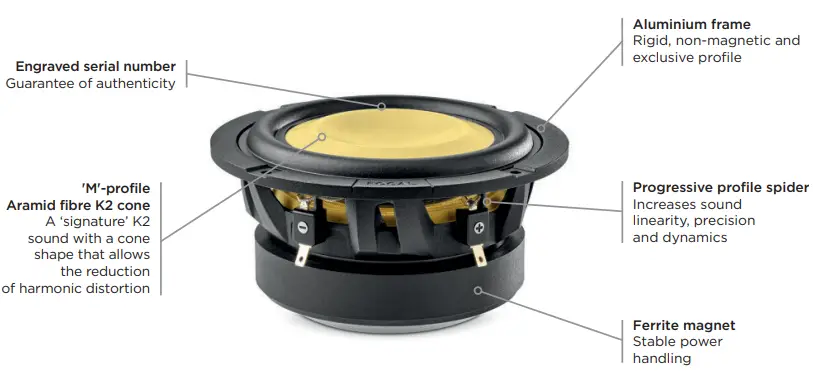

Key points
- Exclusive ‘M’-profile K2 cone
- Compact speaker driver
- Exceptional power handling
- Active product
- Aluminium grille (optional)

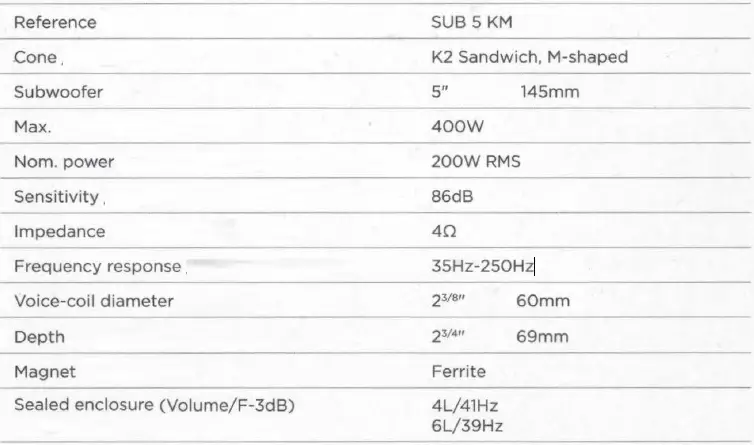

SPECIFICATION
Type/Subwoofer
- Subwoofer: 5″ (145mm)
- Depth: 23/8″ (69mm)
- Cone: K2 Sandwich, M-shaped
- Maximum power: 400W
- Nominal power: 200W RMS
- Sensitivity (2.83V/1m): 86dB
- Frequency response: 35Hz – 250Hz
- Impedance: 4 Ώ
- Magnet: Ferrite
- Voice-coil diameter: 23/8″ (60mm)
- Suspension: Catenary profile
- Sealed enclosure (Volume/F-3dB): 4L / 41Hz 6L / 39Hz
Subwoofer

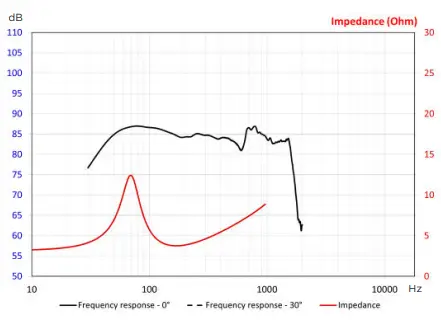

FREQUENCY RESPONSE/IMPEDANCE

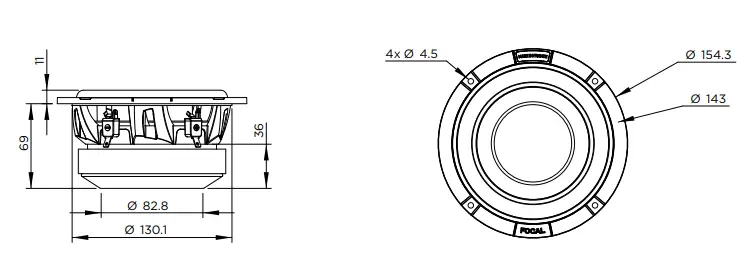

MECHANICAL DRAWING
SPECIFICATIONS
| Nominal power | 200W |
| Maximum power | 400W |
| Sensitivity | 86dB |
| Nom. impedance | 4Ω |
| Frequency response | 35Hz-250Hz |
| Cone | Kevlar Sandwich, M |
| Surround | TMD® |
| VC diameter | 60mm 2 3/8“ |
| Net weight | 2200g |
PARAMETERS
- Rdc 3Ω
- Fs 65Hz
- Mms 51g
- Cms 0.12mm/N
- Vas 1.5l
- Qts 1
- Qes 1.3
- Qms 5
- Bxl 7N/A
- Sd 95cm²
Subwoofer
© Focal-JMlab – BP 374 – 108, rue de l’Avenlr 42353 La Talaudlere cedex – France Made in France – 2022 – All rights reserved. SCCG – 20/07/2022 – v1 • EMCA2279
