Atlasformen Aa836 Bluetooth Headphone Instruction Manual

MANUAL, NOTICE

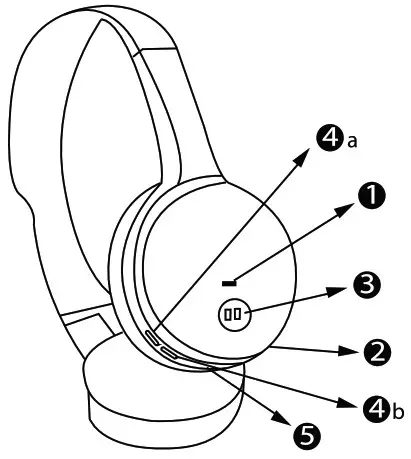

Bluetooth headphones

1. LED Light
2. Microphone
3. Play
4. a. Volume+
   b. Volume-
5. Mico USB

USB charging cable included

TECHNICAL SPECIFICATIONS

Bluetooth technology: V5.0
Operating distance: up to 10 meters
Duration of operation:

• Music/radio: up to 5 hours
• Microphone: up to § hours
• Pause: up to 200 hours

Battery capacity: 200mAh
Recharging time: 2h
Integrated microphone with hands-free kit function
Supplied accessories: USB cable
Diaphragm size: 40mm
Impedance: 32 ohm
Frequency range: 20H2 – 20KHz

Hearing safety

DANGER! To avoid hearing damage, limit the time you use the headset at a high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. Excessive sound pressure from earphones and headset can cause hearing loss. Using the headset with both ears covered while driving is not recommended and may be illegal in some areas while driving.

General information

To avoid damage or malfunction:
CAUTION! Do not expose the headset to excessive heat.
Do not allow your headset to be submerged in water.
Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.
The integrated battery should not be exposed to excessive heat such as sunshine, fire, or the like.

CHARGING

• Charge for 2-3 hours before first use
• Charge via USB charging cable connected to a computer USB port: the red LED is on.
• The red LED is on when charging and off when charging is finished.

POWER ON

• Press for 3 seconds when device is off.
• The blue LED quickly flashes and the device emits a short voice message: “The Bluetooth device is ready to prepare”.

PAIRING

• In power-off mode, press for 5 seconds. The blue LES quickly flashes, and the device emits the message: “The Bluetooth device is ready to pair’. Use a mobile phone with a Bluetooth function or another device with a Bluetooth function to perform pairing action.(Bluetooth connection name: AA836).
• Bluetooth connected: blue LED flashes slowly.

PLAY/PAUSE

• Press to pause when the device is playing.
• And also press to play when the device is paused.

VOLUME UP/VOLUME DOWN

• Press “4b”for 3 seconds to decrease the volume.
• Press “4a” for 3 seconds to increase the volume.

PLAYBACK/PREVIOUS

• Press “4b” for 1 second to play previous track.
• Press “4a” for 1 second to play next track.

POWER OFF

• Press  for 3 seconds when the device is on,
• and all the LEDs will turn off with a beep.

LOW BATTERY WARNING:

• The blue LED flashes while beeping.

ANSWER CALL

• Press once while the call is incoming.

END CALL

• Press for 2 seconds to end call.

REJECT CALL

• Press for 2 seconds to reject call when the phone is ringing.

REDIAL CALL

• Double click (@ to dial the last number you dialed.

FM FUNCTION :

• Triple-click ¢¢y to enter the FM Radio function.
• Then double-click ((‘) for the search function.
• Use 4a/4b to change the channel.
• Triple-click again (¢’ in order to switch to Bluetooth mode.

 Product covered by the EU Directive 2012/19/EU

This product contains a built-in rechargeable battery covered by the EU Directive 2013/56/EU that cannot be discarded among unsorted waste. The product must be sent to separate collection facilities for recovery and recycling. The rechargeable battery must be removed by a professional. Never dispose of the product and its rechargeable batteries with normal household waste.

BLUETOOTH HEADPHONES
MODEL: EA0014
INPUT:SV555200mA
CAPACITY:3.7V 200mAh 0.74Wh
FCC ID:2A2RY-EA0014
IC 1D:27602-EA0014

designed in France
importer: GNG PROMOTION
www.gngpromotion.fr

FCC WARNING

FCC number 2A2RY-EA0014

This equipment may generate or use radiofrequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The rating information is located at the bottom of the unit.

IC WARNING
IC number 27602-EA0014

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

EU DECLARATION OF CONFORMITY

We hereby declare that the below listed Product

Listed Product Name : Bluetooth headphones EA0014
SKU : AA836

is manufactured in conformity with the following EU directives

• EMC Directive 2014/53/EU
• ROHS Directive 2011/65/EU and its amendment (EU) 2015/863
• Radio Equipment Directive 2014/53/EU
• WEEE Directive 2012/19/EU
• REACH Regulation (EC) No 1907/2006 and Amendment (EC) No 552/2009 and (EU) 2018/2005

by applying the following standards:

Technical documentation is available from the EU representative at the address shown below.
The undersigned confirm that the above product complies with the requirements stated and has been CE marked accordingly

Duchamp Christophe for GNG Promotion
26 rue Gay-Lussac 94430
Chennevieres sure Marne
EU declaration of conformity available on demand in all languages: [email protected]
