Valor TM Valor® 3000 Xtreme
Compact Precision Scales
Rugged, full stainless steel design in a high-performance, easy-to-use, portable scale.
The Valor 3000 Xtreme Compact Precision Scale continues the OHAUS tradition of building high-quality, durable products that are easy to use and hard to beat. The alor 3000 Xtreme takes these OHAUS virtues to a new level by offering high precision 40,000d readability, durability, and ease-of-use, encased in a sleek and fully stainless steel compact housing. Washdown versions ensure that the Valor 3000 Xtreme meets the needs of even the most demanding environments.
Standard eatures Include:

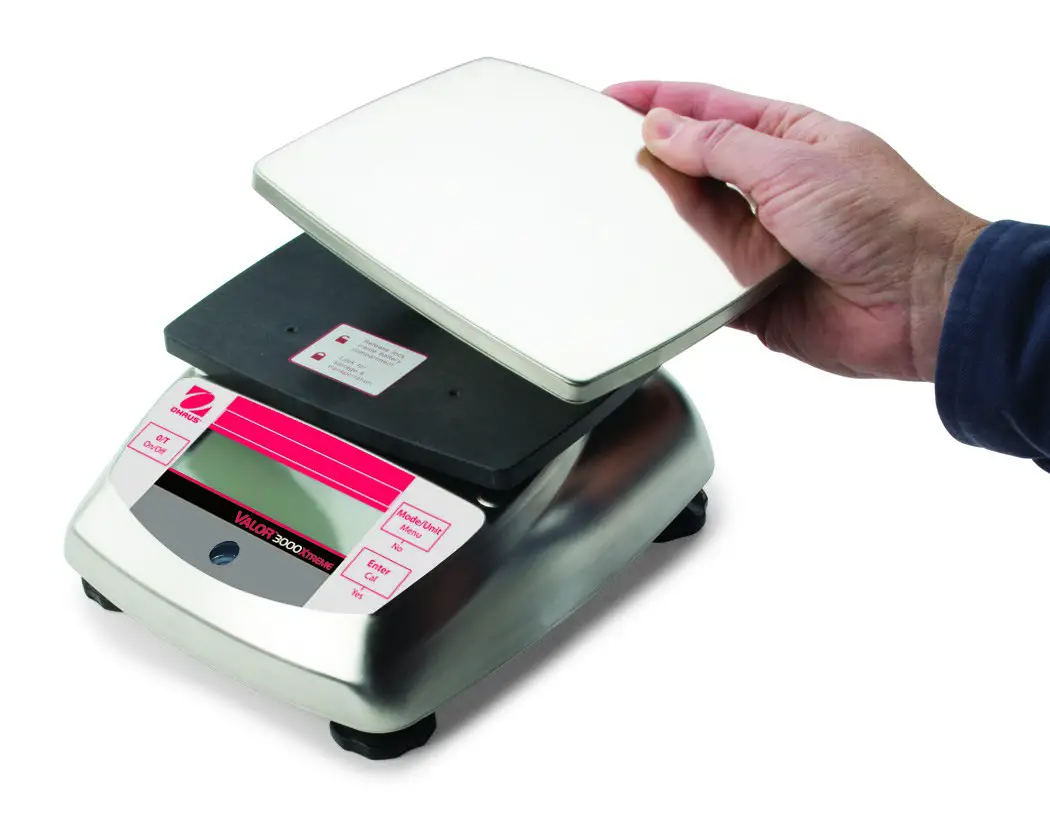

- Extreme Design — Full stainless steel housing with added chemical resistance and removable stainless steel weighing pan are durable and easy to clean (NEMA 4X/IP65 water resistant models available).
- Extreme Protection — Technically advanced overload protection rated at 10x capacity is ideal for tough environments where capacity is frequently exceeded
- Extreme Performance — The Valor 3000 Xtreme offers resolutions up to 40,000d and 0.01g, roviding precise measurements in demanding environments. User adjustable filtering and stability settings allow the Valor 3000 Xtreme to operate accurately in drafty and unstable condition
- Extremely Friendly — OHAUS’ SmarText™ user interface utilizes a bright backlit LCD and simple text prompts to guide users through application use and scale setup, making the Valor 3000 Xtreme very easy to use
Valor® 3000 Xtreme Compact Precision Scales
Extreme Design
Extreme design means OHAUS took a clean-sheet design and focused on offering the most durable and portable portioning product available. The Valor 3000 treme is the highest precision scale in its class with complete stainless steel construction – both top and bottom housings are made of T304 stainless steel.

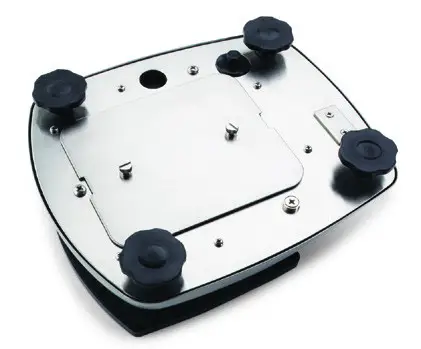

For use in et applications, the Valor 3000 Xtreme offers an even higher level of protection by offering full NEMA 4X/IP65 water-resistant models. ll Valor 3000 Xtreme models are USDA-AMS accepted, NSF listed/certified, and will support a HACCP certified system. Valor 3000 Xtreme is battery powered for maximum portability d convenience. Valor 3000 Xtremefeatures QuadraStanceTM, with four wide adjustable feet to ensure that the scale stays ultra-secure and slip-free during operation in wet or dry conditions, on any surface.
Extreme Overload and Shock Protection
All OHAUS products are designed to be the most rugged and durable products on the market, and the Valor 3000 Xtreme is no exception. Leveraging the advanced overload and shock resistance technology found in the cout® Pro, OHAUS designed the Valor 3000 Xtreme’s overload protection system to provide ten imes capacity overload protection. This extreme overload protection makes each Valor 3000 Xtreme ideal for tough environments where scale capacity is exceeded regularly.
Extreme Performance
The Valor 3000 Xtreme has a rugged design, combined with high precision weighing cells offering resolutions up to 40,000d. Every scale has user adjustable stability, filtering, and auto zero settings allowing Valor 3000 Xtreme to operate in drafty and unstable environments.

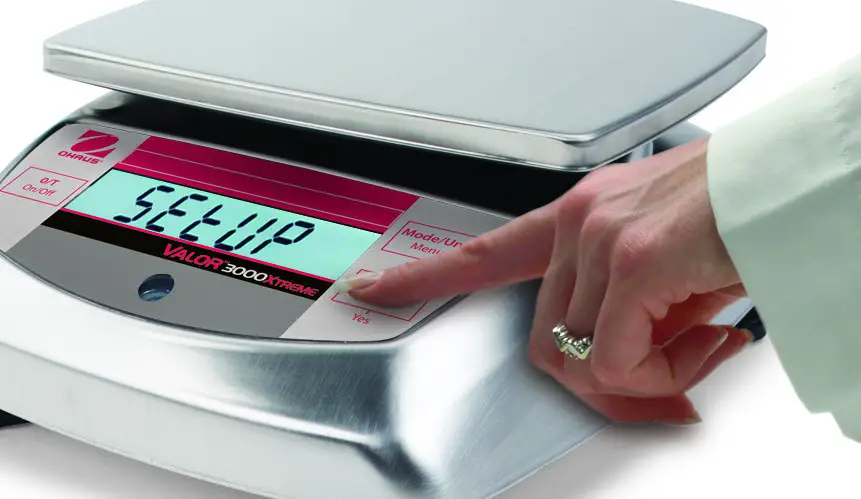

Extremely Friendly
Every Valor 3000 Xtreme is designed with OHAUS’ SmarText™ interface that utilizes a bright backlit LCD and simple English text prompts to guide users through application use and scale setup.

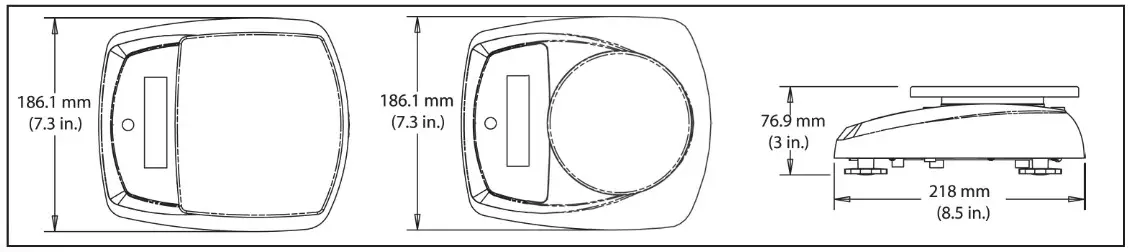

Outline Dimensions

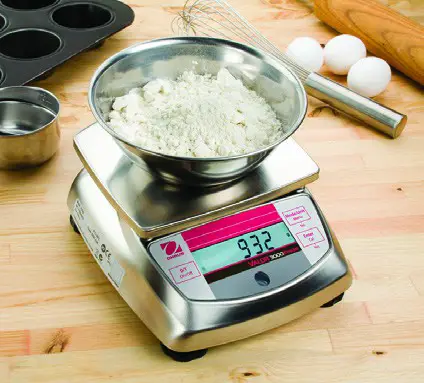

Application Modes
The Valor 3000 Xtreme series is loaded with software specifically designed for simple use and maximum throughput. Application modes include:
Percentage Weighing — This mode is great for compounding, mixing ingredients, and formulation allowing users to compare the weight of a sample as the percentage of a reference weight. This function allows for quick portioning and checking of multiple samples against a target, and for quickly preparing multiple samples of the same size. The Valor 3000 Xtreme can automatically compute Baker’s Percentages, eliminating guesswork and speeding use.
Specific Gravity Determination — This mode is perfect for rapidly and easily determining the specific gravity of a sample without the need for manual calculations. ot only can this be critical in materials testing, it is also useful for checking the aeration of mixes for food processing and food service applications.

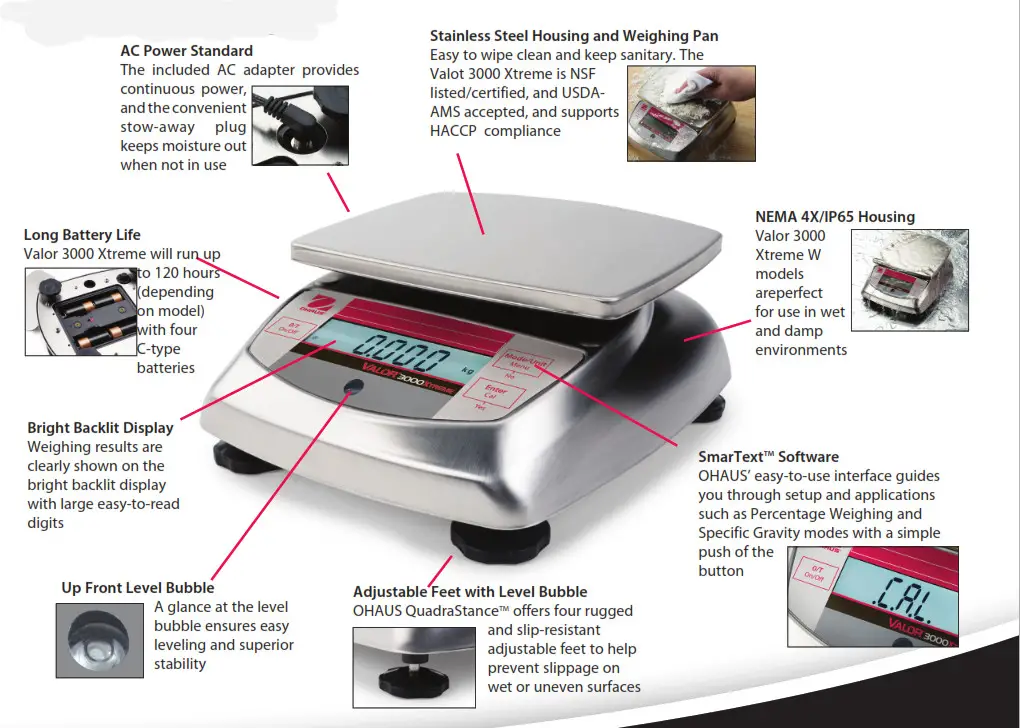

Other Standard Features
Valor® 3000 Xtreme Compact Scales
| Models | V31XH202 | V31 XH402 | V31X501 | V31 XH2 | V31 XH4 | V31 X3 | V31X6 | V31XW301 | V31 XW3 V31X3N• V31 XW6 | V31X6N• |
| Capacity x Readability | 0.4409 x 0.00005 lb 7.055 x 0.0005 oz 7x 1/8oz N/A N/A 02 x 0.00001 kg 200 x 0.01 g 6.763x 0.00058 oz | 0.88185 x 0.00005 lb 14.1095 x 0.0005 oz 14 1/8 x 1/8oz N/A N/A 0.4 x 0.00001 kg 400 x 0.01 g 135255×0.00050 oz | 1.1025 x 0.0005 lb 17.635 x 0.005 oz 17 5/8 x 1/8oz 1Ib:1.64 ozx 0.01 oz IIb:l 5/8 ozx 1/8oz OS x0.0001 kg SOO x 0.1 g 16.905 x 0.005 fl oz | 4.409 x 0.00051b 70.55 x 0.005 oz 70 Y2 x 1/8oz 41b:6.55 ozx 0.01 oz 4 13:6 1/2ozx 1/8 oz 2 x 0.0001 kg 2000 x 0.1 g 67.63 x 0.00511oz | 8.8185 x 0.0005 lb 141.095 x 0.005 oz 141 1/8 x 1/8 oz 81b:13.1 ozx 0.01 oz 81b:13 l/8x 1/8oz 4 x 0.0001 kg 4000x 0.1 g 135.255 x 0.0050 oz | 6.615 x 0.005 lb 105.8 x0.05 oz 105 Y2 x 1/8oz 61b: 9.8 oz x 0.05oz 616:9Yaozx 1/8 oz 3 x 0.0001 kg 3000 x 1 g 101.44 x 0.05 ft oz | 13.225 x 0.005 lb 211.65 x 0.05 oz 211%x 1/8oz 13 Ix 3.6 oz x 0.05oz 136:38ozx 1/8oz 6 x 0.001 kg 6000 x / g 202.9 x 0.05 fl oz | 0.6615 x 0.00051b. 10.585 x 0.005 oz 10 1/2 x 1/8oz N/A N/A 0.3 x 0.0001 kg 300 x 0.1 g 10.14 x 0.005 fl oz | 6.615 x 0.002 lb 105.80 x 0.02 oz 105 Y2 x 1/8 oz 6lb:980oz x0.02 oz 61b:9%ozx 1/8oz 3 x0.0005 kg 3000x 0.5 g 101.44 x 0.02 ft oz | 13.225 x 0.005 lb 211.6 x 0.05 oz 211 YI X 1/8oz 13 lb:3.6 oz x 0.05 oz 136:3Y2ozx1/8oz 6 x 0.001 kg 6000 x 1 g 202.9 x 0.05 fl oz |
| Capacity x Readability (•NTEP certified) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 6.6 x 0.005 lb 105.8 x 0.05 oz 3 x 0.001 kg 3000 x 1 g | 13.225 x 0.005 lb 211.6 x 0.1 oz 6 x 0.002 kg 6000 x 2 g |
| Weighing Units | lb, decimal or fractional oz, lb:oz, fluid oz (of water), kg, g | |||||||||
| Modes | Simple weighing, percent weighing, combined zero/tare, specific gravity (S) | |||||||||
| Keyboard | Three mechanical switches (1 left 2 right) | |||||||||
| Calibration | Digital external span calibration | |||||||||
| Display | 7 segment, 6 digit, 0.78in / 20mm high LCD with white LED backlight | |||||||||
| Display Indicators | Center of zero, stability, over/under load, weighing unit and battery status | |||||||||
| Tare Range | Full capacity by subtraction | |||||||||
| Stabilization Time | 3 seconds or less | |||||||||
| Auto-Zero Tracking | Off, 0.5, 1 or 3 divisions | |||||||||
| Operating Temp. / “‘timidity | 32°F to 104°F (0°C to 40°C) at 10% to 9596 relative humidity Non-condensing, up to 2.5 miles / 4000m above sea level | |||||||||
| ‘ower | 9 – 12 VDC 0.5A AC wall adapter 100-120VAC, 50.60 Hz (included) or four 1.5 volt “C” batteries (not included) | |||||||||
| Battery Life | 50 hours | I 120 hours | I 50 hours | I 120 hours | I 50 hours | |||||
| Dimensions Lx W x H | 8.5x 7.3 x3 in/218 x 186x 77mm | |||||||||
| Pan size L x W | 4.7 in /120 mm dia. | I 5.8x 6.2 in/146 x158 mm | I 5.8 x6.2 in/ 146 x 158 mm | |||||||
| Carton Dimensions Lx W x H | 12.79 x 9.92 x 5.51 in / 325 x 252 x 140 mm | |||||||||
| Net Weight | 2.61b/ 1.2 kg | 2.9 lb/ 1.3 kg | 3.1 lb / 1.4 kg | |||||||
| Shipping Weight | 4.3 lb / 2 kg | 4.6 lb / 2.1 kg | 4.8 lb / 2.2 kg | |||||||
| Ingress Protection | (battery power only) _ | – | — 1 | — 1 | NEMA 4X/IP65″ | |||||
** Note: Models V31X3N and V31X6N are not rated NEMA 4X/IP65.
Standard Features
Removable stainless steel pan, digital external calibration software, selectable environmental settings, fast stabilization with selectable Auto-tare, integrated level ubble and adjustable feet, bright backlit display, selectable Auto-Off, selectable weighing unit, selectable power-up unit, AC power adapter included.
Accessories
Oversize sandwich platter†, french fry platter†, ice cream platter†, carrying case. Contact your local OHAUS representative for availability.
Note: Platters not applicable to models below 2000g capacity (V31XH202, V31XH402, V31X501)
Approvals
- Food Service: NSF Listed/Certified to NSF/ANSI 169-2005 Special Purpose Food Equipment and Devices (formerly NSF C-2); USDA/AMS Accepted to NSF/3-A 14159-1 Hygiene Requirements for the Design of Meat nd Poultry Processing Equipment; meets requirements for HACCP conformity.
- Electrical/Emissions: CE listed, meets AS/NZS4251.1 Emission/AS/NZS4252.1 Immunity, FCC Class B Part 15 operation, Industry Canada Class A. cULus AC power pack. Compliant to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE)
- Legal-for-Trade: *NTEP CoC No. 08-008
- Quality: OHAUS quality management system registered to ISO 9001:2008
