QUICK REFERENCE GUIDE > RS7621SLK1
Integrated Column
Refrigerator, 76cm
Series 11 | Integrated
Panel Ready | Left hinge
Install it separately or pair it with another Column for true design freedom – this model is a left hinge with stainless steel interior.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Variable Temperature Zone lets you change a compartment to Fridge, Pantry, or Chill for optimal storage
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

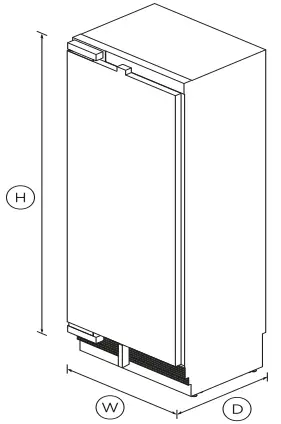

DIMENSIONS
| Height | 2134mm |
| Width | 756mm |
| Depth | 610mm |
FEATURES & BENEFITS
Variable temperature zones
When it comes to optimal food preservation, one temperature does not fit all. Create the perfect climate for different food and drink types using Variable Temperature Zones. Change a compartment to Fridge, Pantry, or Chill Mode for maximum everyday convenience, or change modes for additional capacity when you need it.
Pantry Mode
Not everything benefits from cold storage. Pantry Mode (11 to 13°C) is the perfect climate to store foods that benefit from a cool, dark place, including bread, many types of fruit, bananas, avocados, tomatoes, nuts, grains, and cereals.
Mix & match
Integrated Column Refrigeration gives you the freedom to mix and match. Different-sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customize to match your own kitchen cabinetry.
Clever energy
Our ActiveSmart™ Foodcare Refrigerator Freezers adapt to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.
Appealing illumination
Bright LEDs light up each ceiling, shelf, bin, and tray in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design quality
The premium design and quality finish include a steel interior lining as well as full-extension metal shelf runners for easy access, and robust glass shelving.
Easy install
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers. All models come with front adjustable leveling feet and they’ve been designed to easily slide into place as separate units.
SPECIFICATIONS
Accessories
| 1220mm Stainless steel toe | AKRS12210 |
| 1372mm Stainless steel toe kick | AKRS13710 |
| 1524mm Stainless steel toe | AKRS15210 |
| 1981mm Stainless steel toe kick | AKRS19810 |
| 2134mm Stainless steel toe | AKRS21310 |
| 762mm Stainless steel toe kick | AKRS7610 |
| Contemporary round handle | AHS-RD21 |
| Contemporary square handle | AHD3-RD21 |
| Joiner kit | AJ-RS21LR |
| Professional round flush handle | AHP3RDSF |
| Square fine aluminum handle | AHD5RDSF |
| Square fine black handle kit | AHD5RDSFB |
| Stainless steel door panel | RD7621L10D |
| Stainless steel door panel | RD7621R10D |
Capacity
| Volume | 463L |
| Volume refrigerator | 463L |
Consumption
| Energy rating | 3.5 star |
| Energy usage | 227kWh/year |
Features
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 3 |
| Covered door shelves | 1 |
| Door alarm | • |
| Gallon door shelves | 1 |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
| Soft-close fruit and vegetable | • |
| Stackable bottle holders | 4 |
| Wi-Fi connectivity | • |
Installation Dimensions
| Minimum inside width of | 762mm |
| Minimum internal depth of | 635mm |
| Minimum internal height of | 2134mm |
Performance
| ActiveSmart™ Foodcare | • |
| Dual evaporator | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable food modes | Pantry; Fridge; Chill |
| Variable temperature zones | 2 |
Power requirements
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 610mm |
| Height | 2134mm |
| Width | 756mm |
Warranty
| Parts and labor | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26161 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
