OWNER’S MANUAL
Safety and Reference
LED TV*

* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
Before reading this manual

• Read this manual thoroughly before operating your TV and keep it for future reference.
• On the website, you can download the manual including installation, using, troubleshooting, specifications, license, etc, and view its contents on your PC or mobile device.

Separate Purchase

• Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models.
• The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
• A cable to connect antennas and external devices must be purchased separately.

Note

• Product specifications or contents of this manual may be changed without prior notice due to the upgrade of product functions.
• The items supplied with your product may vary depending on the model.
• The image shown may differ from your TV.

Warning! Safety instructions

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
• Do not place the TV and/or remote control in the following environments:
  – Keep the product away from direct sunlight.
  – An area with high humidity such as a bathroom
  – Near any heat source such as stoves and other devices that produce heat.
  – Near kitchen counters or humidifiers where they can easily be exposed to steam or oil.
  – An area exposed to rain or wind.
  – Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit).
  – Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.
  – Do not install in excessively dusty places.
  Otherwise, this may result in fire, electric shock, combustion/ explosion, malfunction, or product deformation.
• Ventilation
  – Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase.
  – Do not install the product on a carpet or cushion.
  – Do not block or cover the product with cloth or other materials while the unit is plugged in.
• Take care not to touch the ventilation openings. When watching TV for a long period, the ventilation openings may become hot.
• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device.
• Do not move the TV whilst the Power cord is plugged in.
• Do not use a damaged or loosely fitting power cord.
• Be sure to grasp the plug when unplugging the power cord.
  Do not pull on the power cord to unplug the TV.
• Do not connect too many devices to the same AC power outlet as this could result in fire or electric shock.
• Disconnecting the Device from the Main Power
  – The power plug is the disconnecting device. In case of an emergency, the power plug must remain readily accessible.
• Do not let your children climb or cling to the TV. Otherwise, the TV may fall over, which may cause serious injury.
• Outdoor Antenna Grounding (Can differ by country):
  – If an outdoor antenna is installed, follow the precautions below.
  An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.
• Grounding (Except for devices that are not grounded.)
  – TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet. Ensure that you connect the earth-ground wire to prevent possible electric shock.
• Never touch this apparatus or antenna during a lightning storm. You may be electrocuted.
• Make sure the power cord is connected securely to the TV and wall socket if not secured damage to the Plug and socket may occur and in extreme cases a fire may break out.
• Do not insert metallic or inflammable objects into the product. If a foreign object is dropped into the product, unplug the power cord and contact customer service.
• Do not touch the end of the power cord while it is plugged in.
  You may be electrocuted.
• If any of the following occur, unplug the product immediately and contact your local customer service.
  – The product has been damaged.
  – If water or another substance enters the product (like an AC adapter, power cord, or TV).
  – If you smell smoke or other odors coming from the TV
  – When lightning storms or when unused for long periods of time.
  Even the TV is turned off by remote control or button, the AC power source is connected to the unit if not unplugged in.
• Do not use high voltage electrical equipment near the TV (e.g., a bug zapper). This may result in product malfunction.
• Do not attempt to modify this product in any way without written authorization from LG Electronics. Accidental fire or electric shock can occur. Contact your local customer service for service or repair. Unauthorized modification could void the user’s authority to operate this product.
• Use only an authorized attachments/accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage.
• Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
• Handle the adapter carefully to avoid dropping or striking it.
  An impact could damage the adapter.
• To reduce the risk of fire or electrical shock, do not touch the TV with wet hands. If the power cord prongs are wet or covered with dust, dry the power plug completely or wipe the dust off.
• Batteries
  – Store the accessories (battery, etc.) in a safe location out of the reach of children.
  – Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a fire. Batteries should not be exposed to excessive heat.
  – Caution: Risk of fire or explosion if the battery is replaced by an incorrect type.
• Moving
  – When moving, make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV. Otherwise, this may result in product damage, fire hazard, or injury.
• Keep the packing anti-moisture material or vinyl packing out of the reach of children.
• Do not allow an impact shock, any objects to fall into the product, and do not drop anything onto the screen.
• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it. It may cause damage to the screen.
• Cleaning
  – When cleaning, unplug the power cord and wipe gently with a soft/dry cloth. Do not spray water or other liquids directly on the TV. Do not clean your TV with chemicals including glass cleaner, any type of air freshener, insecticide, lubricants, wax (car, industrial), abrasive, thinner, benzene, alcohol, etc., which can damage the product and/or its panel. Otherwise, this may result in electric shock or product damage.

Preparing

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.

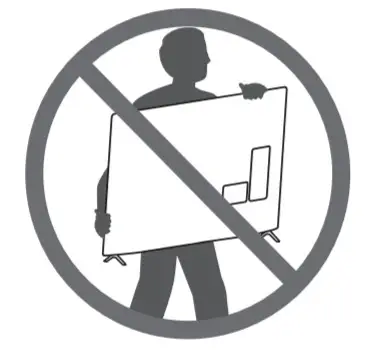

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

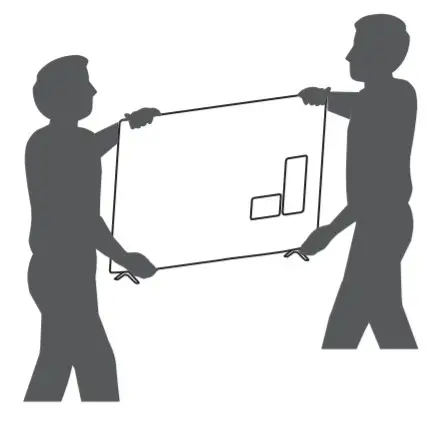

• When transporting a large TV, there should be at least 2 people.

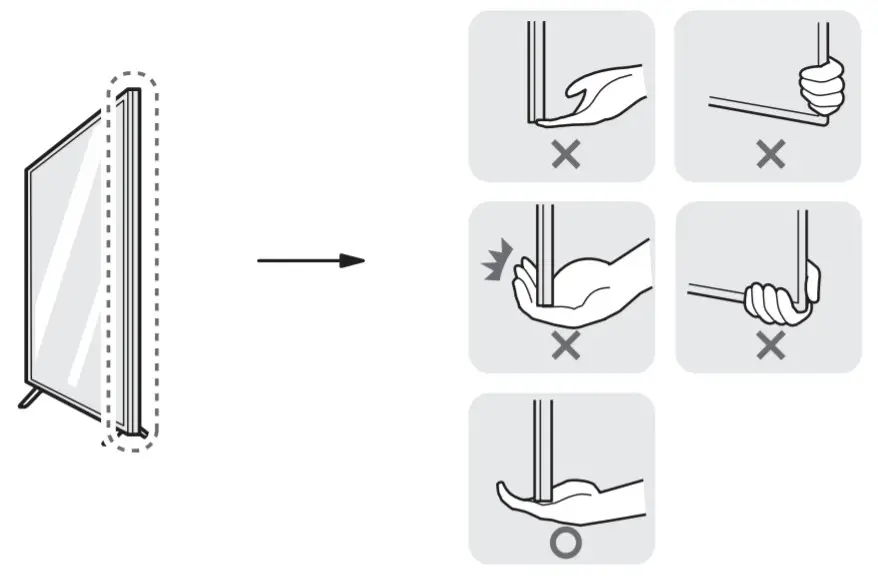

• When transporting the TV by hand, hold the TV as shown in the following illustration.
• When transporting the TV, do not expose the TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage the screen.
• When handling the TV, be careful not to damage the protruding buttons.

• Avoid touching the screen at all times, as this may result in damage to the screen.

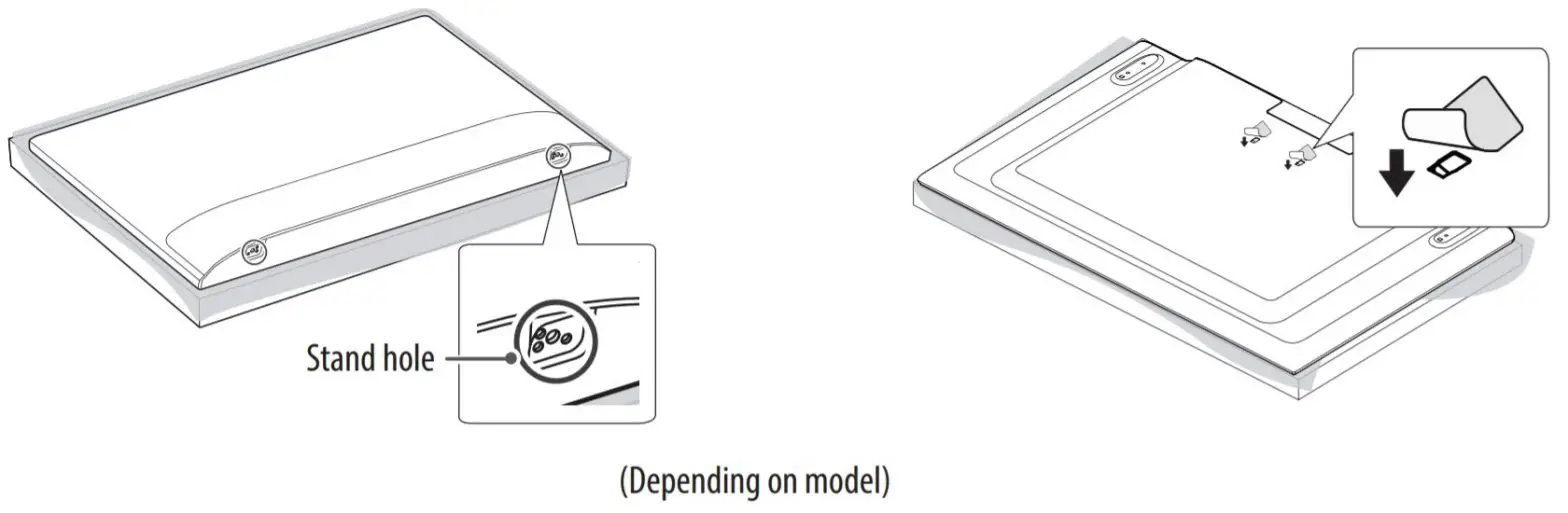

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

Mounting on the Table

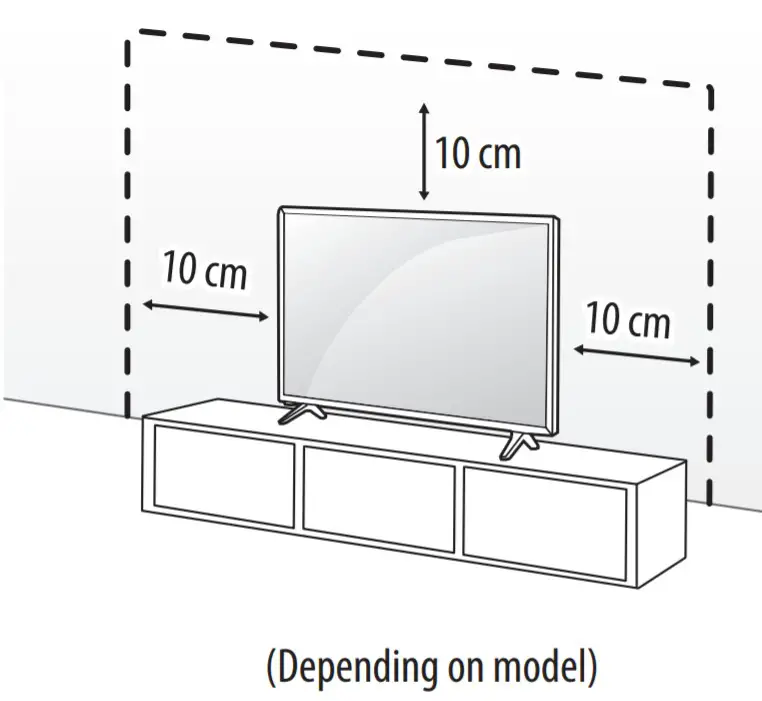

1. Lift and tilt the TV into its upright position on a table.
   • Leave a 10 cm (minimum) space from the wall for proper ventilation.
2. Connect the power cord to a wall outlet.

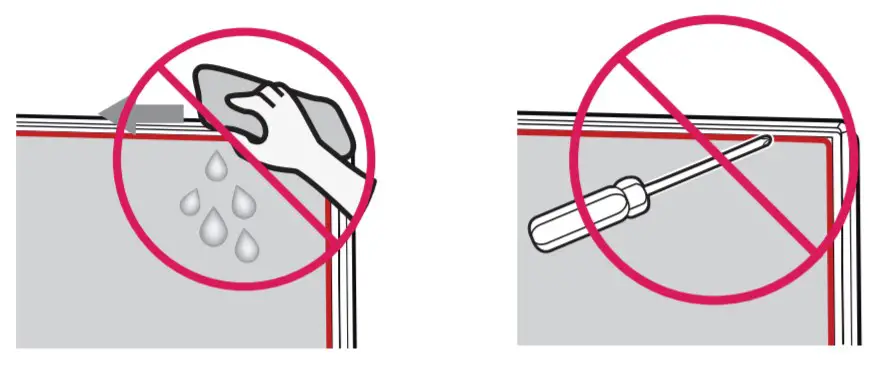

• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
• If you install the TV on a stand, you need to take action to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the manufacturer’s warranty.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over-tighten the screws; otherwise, the screw may be damaged and not tighten correctly.
• If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
  – Using cabinets or stands recommended by the manufacturer of the television.
  – Only using furniture that can safely support the television.
  – Ensuring the television is not overhanging the edge of the supporting furniture.
  – Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
  – Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
  – Educating children about the dangers of climbing on furniture to reach the television or its controls.

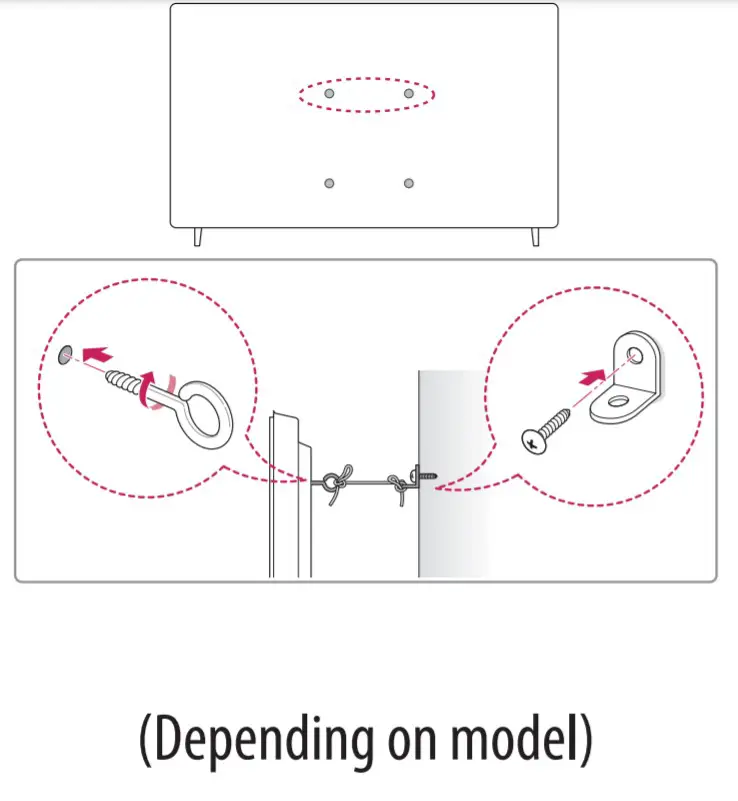

Securing TV to the Wall

1. Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
   • If there are bolts inserted at the eye-bolts position, remove the bolts first.
2. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3. Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.
   • Use a platform or cabinet that is strong and large enough to support the TV securely.
   • Brackets, bolts, and ropes are not provided. You can obtain additional accessories from your local dealer.

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a  qualified professional installer. Please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• For more information on screws and wall mount brackets, refer to the Separate Purchase.

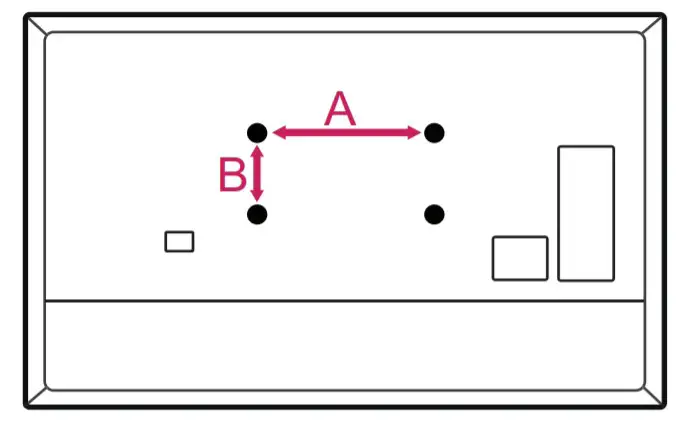

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product.

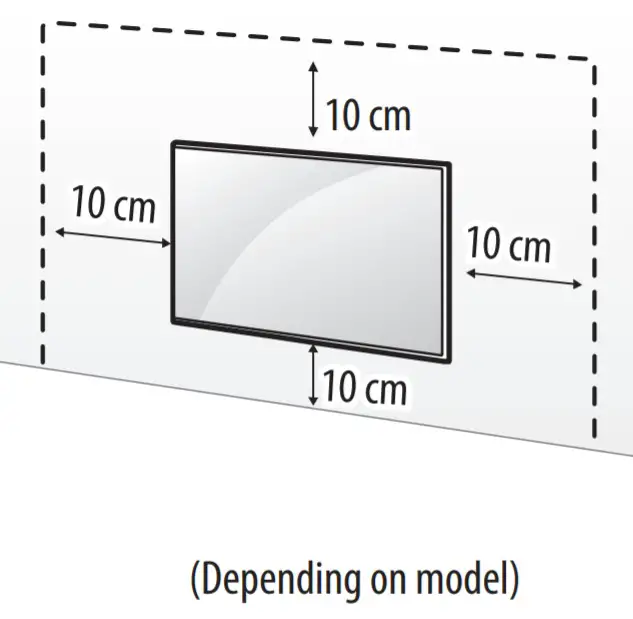

  When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
• When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.
• Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.
• When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model)

Antenna/Cable

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• For a location that is not supported with Ultra HD broadcasting, this TV cannot receive Ultra HD broadcasts directly.

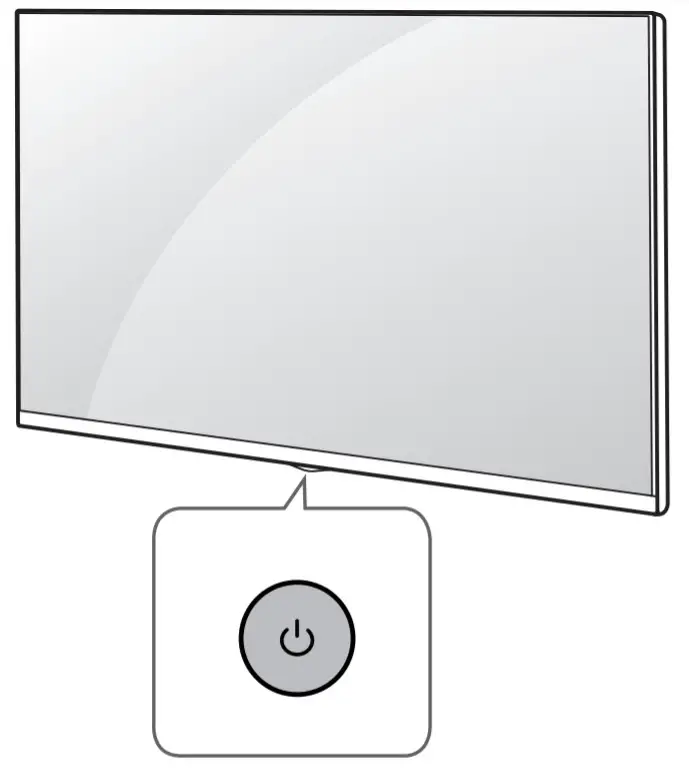

Starting TV

Turning on the TV

You can simply operate the TV functions, using the button.

Using button

	Power On (Press)	1) All running apps will close, and any recording in progress will stop.(Depending on the country)
	Power Off 1) (Press and Hold)

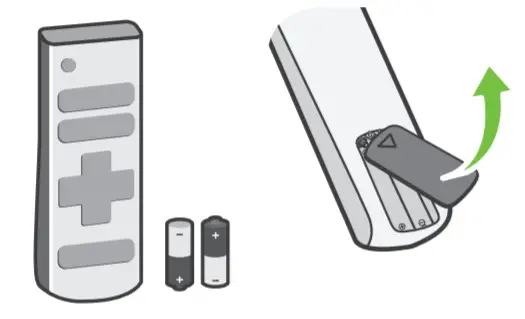

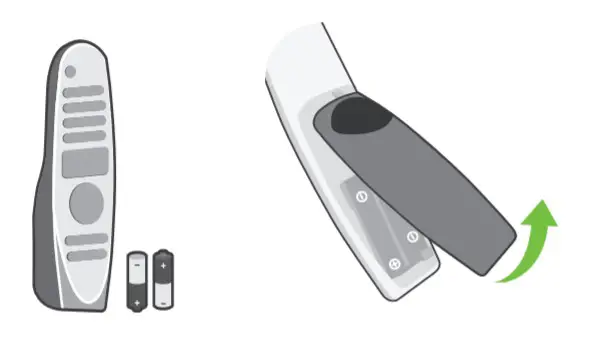

Inserting the battery
(Depending on model)

• When the message [Magic Remote battery is low. Please change the battery.] is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the ends to the label inside the compartment, and close the battery cover.

• To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.
• Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution.
• This apparatus uses batteries. In your community, there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information.
• Batteries inside or inside the product shall not be exposed to excessive heat such as sunshine, fire, or the like.
• In Analogue TV and some countries, some remote control buttons may not work.

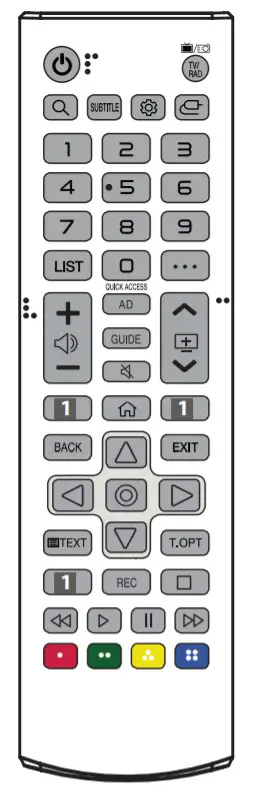

Using Remote Control

Using Remote Control

(Depending on model)
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

Power Turns the TV on or off.
Search Check for recommended content. (Some recommended services may not be available in some countries.)
Search for content such as TV programs, movies, and other videos, or perform a web search by entering text in the search bar.
Recalls your preferred subtitle in digital mode.
Accesses the saved programs list.
Volume buttons Adjust the volume level.
The audio descriptions function will be enabled. (Depending on model)
Shows program guide.
Mute Mutes all sounds.
**Mute Accesses the [Accessibility] menu.
Returns to the previous level.,

Navigation buttons (up/down/ left/right) Scrolls through menus or options.
Starts to record and displays the record menu. (Only Time Machine Ready supported model) (Depending on model)
Teletext buttons These buttons are used for Teletext.
Control buttons for media content.
Selects Radio, TV, and DTV program.
Q. Settings Accesses the Quick Settings.
Input Changes the input source.
Number buttons Enter numbers.
More actions Displays more remote control functions.
Edits QUICK ACCESS. (Depending on model)
QUICK ACCESS is a feature that allows you to enter a specified app or Live TV directly by pressing and holding the number buttons.
Program buttons Scrolls through the saved programs.
Home Accesses the Home menu.
**Home Launches the last used apps.
Clears on-screen displays and returns to TV viewing.
OK Selects menus or options and confirms your input.
**OK, Accesses the [Magic Explorer].
When using [TV Guide], [Settings], [Sports Alert], or [Art Gallery], press and hold down on the text.

These access special functions in some menus.
Streaming Service buttons Connect to the Video Streaming Service.

(Some buttons and services may not be provided depending on models or regions.)
Note
To use the button, press and hold for more than 1 second.

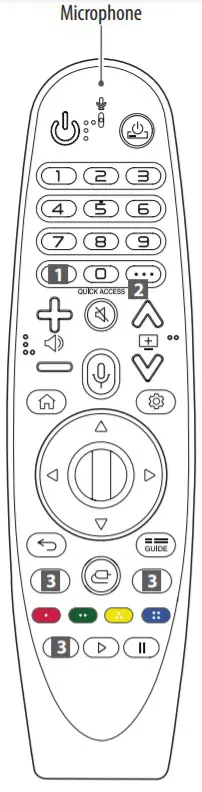

Using Magic Remote Control

(Depending on model)
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

Power Turns the TV on or off.
STB Power You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV.

(Dash) Inserts a between numbers such as 2-1 and 2-2.
Accesses the saved programs list.
Shows program guide.
Edits QUICK ACCESS.
– QUICK ACCESS is a feature that allows you to enter a specified app or Live TV directly by pressing and holding the number buttons.
Volume buttons Adjust the volume level.
Program buttons Scrolls through the saved programs.
Home Accesses the Home menu.
**Home Shows the previous history.
Input Changes the input source.
**Input Accesses the [Home Dashboard].
Wheel (OK) Press the center of the button to select a menu. You can change channels by using the button.
Back Returns to the previous level.
**Back Clears on-screen displays and returns to last input viewing.
Number buttons Enter numbers.
More actions Displays more remote control functions.
Video/audio descriptions function will be enabled.
Mute Mutes all sounds.
**Mute Accesses the [Accessibility] menu.
A Voice recognition Network connection is required to use the voice recognition function.
Once the voice display bar is activated on the TV screen, press and hold the button and speak your command out loud.
Up/Down/Left/Right Press the up, down, left, or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right.
Q. Settings Accesses the Quick Settings.
**Q. Settings Display the [All Settings] menu.
These access special functions in some menus.
Runs the record function.
Enter Cheering mode.
Control buttons Control media contents.
Streaming Service buttons Connect to the Video Streaming Service.

(Some buttons and services may not be provided depending on models or regions.)
Note **To use the button, press and hold for more than 1 second.

Connections

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection,
refer to the manual provided with each device.

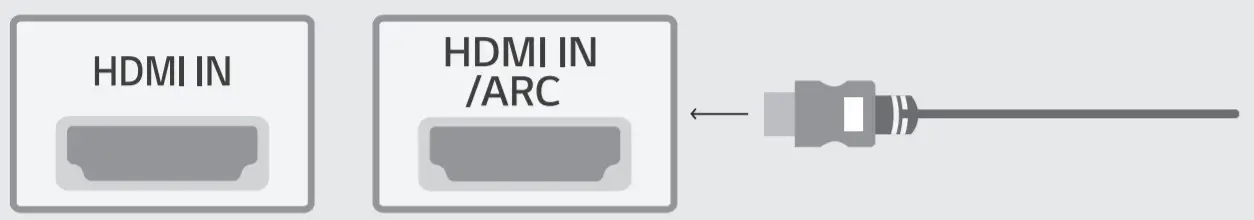

HDMI

• When connecting the HDMI cable, the product and external devices should be turned off and unplugged.

• Supported HDMI Audio format (Depending on model):
  Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)

PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
Note
If the device connected to Input Port also supports Ultra HD Deep Colour, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, change the TV’s [HDMI Deep Colour] setting to off.

• →→ [General] → [Devices] → [HDMI Settings] → [HDMI Deep Colour]
  – On: Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
  – Off: Support 4K @ 50/60 Hz (4:2:0)
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI Cable Types
  – Ultra High-Speed HDMI® /™ cable (3 m or less)

USB
Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.

Note

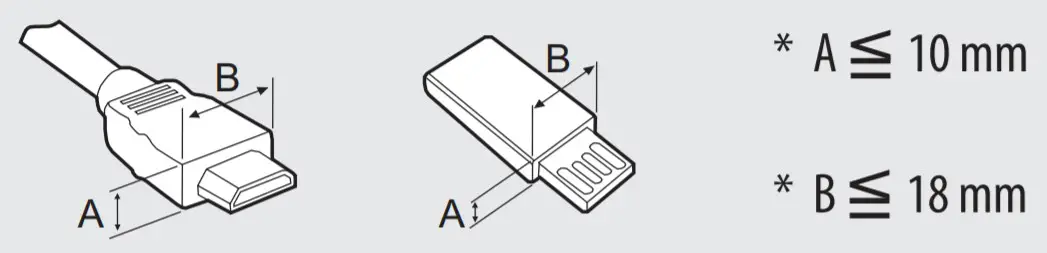

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm wide. Use an extension cable that supports if the USB cable or USB memory stick does not fit into your TV’s USB port.


External Devices
Available external devices are Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
Note

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a Blu-ray/DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device.
• Refer to the external equipment’s manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast, or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the [Picture] menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.
• If Ultra HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s performance. (Depending on model)
• When connecting via a wired LAN, it is recommended to use a CAT 7 cable. (Only when the port is provided.)

Troubleshooting

• When cleaning the product, be careful not to allow any liquid or foreign objects to enter the gap between the upper, left, or right side of the panel and the guide panel. (Depending on model)

• Make sure to wring any excess water or cleaner from the cloth.
• Do not spray water or cleaner directly onto the TV screen.
• Make sure to spray just enough water or cleaner onto a dry cloth to wipe the screen.

Specifications

(Depending on the country)

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
For the consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Environment condition

• For information on the power supply and power consumption, refer to the label attached to the product.
  – The typical power consumption is measured in accordance with IEC 62087 or each country’s energy regulations* On some models, the label is inside the external device connection terminal cover.
  * Depending on the model or country, the typical power consumption may not be on the label.

(Only Nigeria)
Connection and use of this communications equipment is permitted by the Nigerian
Communications Commission

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open-source licenses, that are contained in this product, please visit https://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Licenses

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.

Regulatory

WARNING! (STABILITY HAZARD)
A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions
such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Symbols

	Refers to alternating current (AC).		Refers to stand by.
	Refers to direct current (DC).		Refers to “ON” (power).
	Refers to class II equipment.		Refers to dangerous voltage.

(Only Jordan)
WEEE
Disposal of your appliance
The symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin.

[For Saudi Arabia]

1. All batteries should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. The correct disposal of your old batteries will help to prevent potential negative consequences for the environment, animal, and human health.
3. For more detailed information about the disposal of your old batteries, please contact your city office, waste disposal service, or the shop where you purchased the product. Also, You can contact our LG Support Representative (call center from below Link https://www.lg.com/sa_en/support/contact/telephone

The model and a serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
For any Suggestions, Opinions,
Complaints, Please Call
800 54 in UAE
0800 545454 in South Africa
080 100 54 54 in Morocco
19960 in Egypt
021 36 54 54 in Algeria
Other countries, Please contact our
local dealer or log into
http://www.lg.com

https://www.lg.com/global/ajax/common_manual
www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.

References

• LG Electronics & Home Appliances | Shop Now | LG USA
