BENIDUB Phase 12-Stage Stereo Optical Phaser
PHASE it’s a 12-stage all-analog optical stereo phaser specifically engineered for studio production and live-mix settings. Old-school mojo with modern improvements and routing versatility packed in an easy-to-use layout.

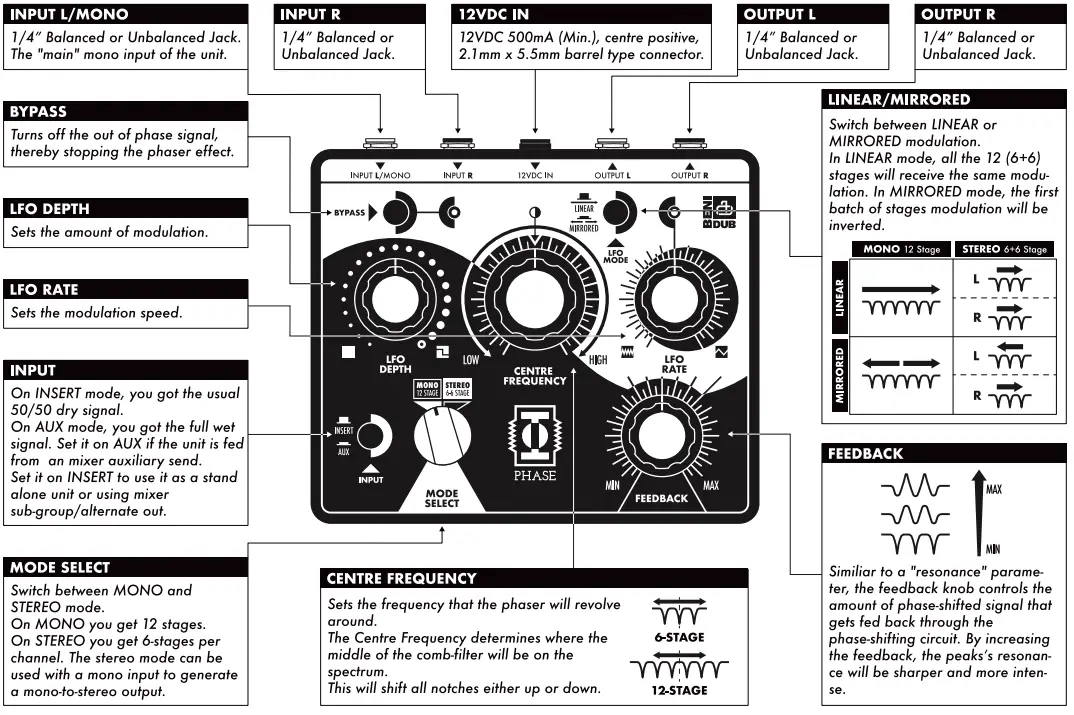

PHASE is an optical, photoresistor-based phaser design, featuring a 12-stage MONO or a 6-stage STEREO phaser. You can switch between the two modes with the “Mode Select” control at any time allowing for a wider sound palette regardless of the wiring.
As any other BEN/DUB device, its built with high quality components for a rich, complex and organic sound. We also packed it with several convenience features, routing possibilities (check the AUX/INSERT controls!) and our signature peformance-oriented design, making it one of the most versatile and compact optical phaser on the market.

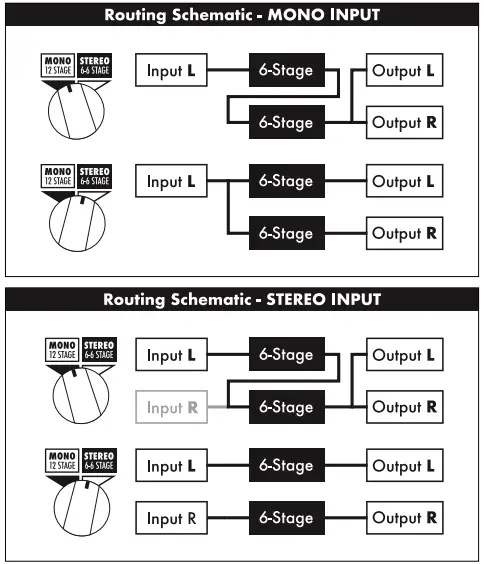

Routing Schematic – MONO INPUT
For a correct use of the Benidub Phase
- The Benidub Phase provides a line-output, it needs to be connected to a line-input channel of a mixer or preamp.
- The Benidub Phase is designed to receive a line-level signal. Don’t use it with a guitar, mic or similiar sources.
- AUX/INSERT: set it on AUX if the unit goes to an “Auxiliary Send” or an auxiliary mix. Set it on INSERT to use it as a stand alone stompbox.
- Only use the provided power supply or one compatible with the specifications.

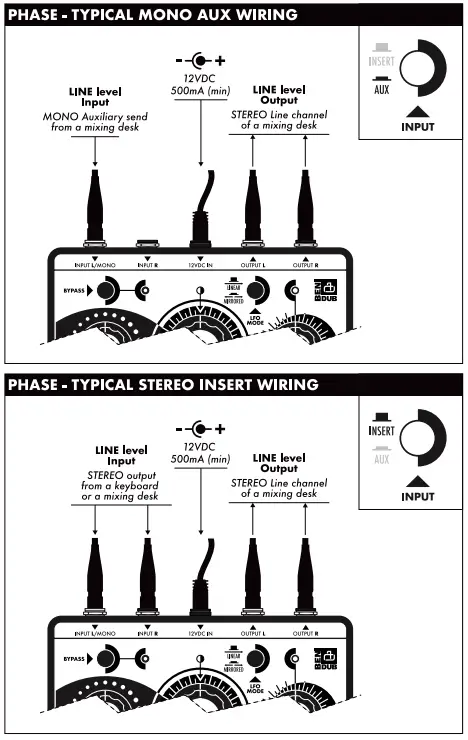

PHASE – TYPICAL MONO AUX WIRING
BENIDUB Phase
Info:
www.benidub.com
[email protected]
Technical Specifications:
Power Supply: 12VDC, center positive, 2.1 mm x 5.5mm barrel type connector.
Current draw: less than 500mA
Audio input: 1/4″ balanced or unbalanced Jack Audio output: 1/4″ balanced or unbalanced Jack Audio output: 1/4″ balanced or unbalanced Jack Size: 120x150x60 mm
