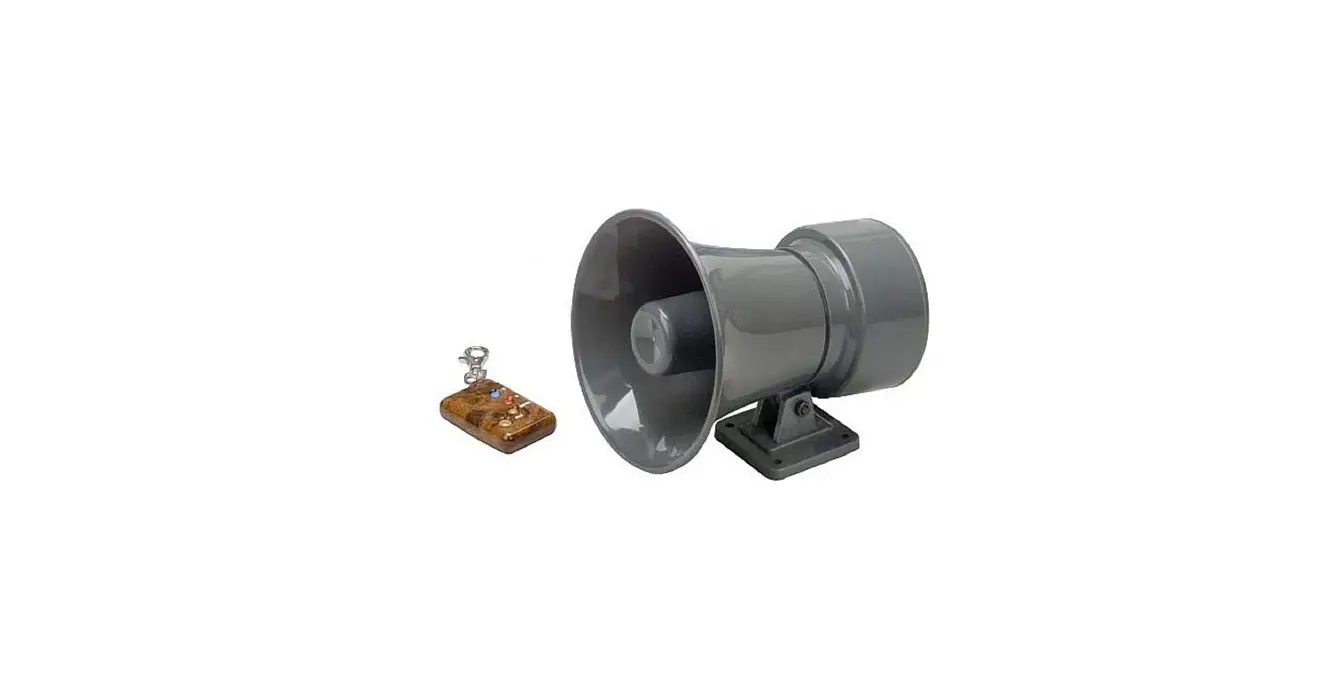

Wolo 001 Music Time Remote Controlled Electronic
INTRODUCTION
Property installed “Music Time”™ will provide years of high quality sound. Give your installation the same care and attention that went into making this fine product. Once installed Music Time™ requires no maintenance.
MOUNTING THE MUSICAL SPEAKER
Carefully select a position in the engine compartment that will keep the speaker and the electronics dry. Equally as important, protect the plastic speaker housing by not allowing it to come in contact with hot engine parts.
With the mounting position located, use the musical speaker as a template, and mark the location of the four mounting holes. Drill 4 holes using a 7/32 drill bit. Remove the mounting bracket from the speaker and fasten the bracket to the vehicle using the hardware provided. Secure the speaker to the mounting bracket, tilting speaker housing slightly downward to prevent water from collecting in speaker cone.
WIRING
Music Time ™ will be ready to work after making only two electrical connections. Connect the fuse wire to any electrical circuit that is powered when the ignition is ”on”. Secure the wire with the ring terminal under a speaker mounting bolt or to any convenient body bolt.
CONTROLLER
Four buttons on the key chain transmitter provides Music Time™ with full control of all sound functions.
Button functions: The “Large” button turns the system on and off. “Red and Blue” buttons select songs, and volume button adjusts the sound level.

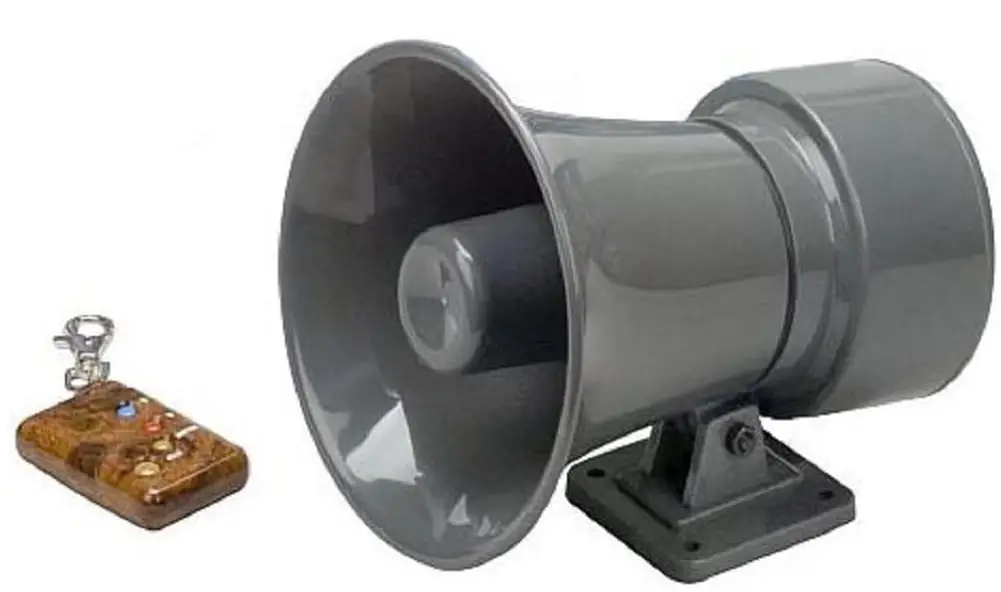

PRODUCT DESCRIPTION
The Wolo 002 is an easy to install one piece musical horn that delivers true musical instrument sounds. Simple to install into the engine compartment; connect one wire to ground, the other to 12-volt and Music Time is ready to play. All functions: on/off, volume and song selection are controlled by a key chain transmitter from within or outside the vehicle. Packaged in an attractive full color box.
FEATURES
- Easy to install one piece musical horn that delivers true musical instrument sounds
- Simple to install into the engine compartment; connect one wire to ground, the other to 12-volt and Music Time is ready to play
- All functions: on/off, volume and song selection are controlled by a key chain transmitter from within or outside the vehicle
- Packaged in an attractive full color box
WARRANTY
Wolo Manufacturing Corporation (“Wolo”) warranties to the original purchaser, for three months from the date of pur-chase, that this product is free from defects in workmanship and materials. If there is such a proven defect, Wolo, at its option, will either repair or replace the item free of charge, if it is returned to Wolo within three months from the date of purchase together with proof of purchase as described below. Wolo reserves the right to inspect any defect prior to settling any warranty claim by repair or replacement. This warranty is limited as above provided and Wolo will not be responsible for fire or other casualty or accident, due to neglect, abuse, abnormal use, modifications, faulty installation of this product, or natural causes.
ANY EXPRESSED WARRANTY NOT PROVIDED HEREIN IS EXCLUDED AND DISCLAIMED. THE IMPLIED WAR-RANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF THREE (3) MONTHS. UNDER NO CIRCUMSTANCES SHALL WOLO BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY OR OTHERWISE.
Note: If your transmitter should ever be misplaced, a new unit is available for $28.65. This price includes postage. When ordering by check allow 10 days. Using a credit card or money order will make expedited delivery. Please be sure to include your name, address with zip number and, also the system’s 3 digit code number located on the rear of the speaker.
Your sound system is guaranteed to be free of defective components or a failure due to workmanship for 90 days from the date of purchase. If service should be required, return the speaker and transmitter to the address below, with the dated receipt of purchase. Include a check or money order for ten dollars ($10.00) to cover shipping. Do not void guarantee by removing rear speaker cover in an attempt to make repairs.
Have any questions, call our help line: 1-888-550-4676
WOLO MANUFACTURING CORP. One Saxwood Street, Deer Park, NY 11729
E-mail: [email protected]
FAQs
Being audible up to one mile away. USCG Accredited. 70 or more bursts (1 second blast)
Squeezing the rubber bulb that is fastened to the metal horn causes it to work. A steel reed that is situated in the horn’s throat forces the air out when the bulb is squeezed. As a result, the throat vibrates and emits one note.
Vehicles with electronic horns emit warning signals produced by an electrical circuit. To generate the fundamental frequency and cause the diaphragm to vibrate, a solenoid is magnetised and demagnetized. As a result, there is high pressure created, which travels into the trumpet horn and produces music.
The required components are included in HornBlasters, which also offers wiring instructions and a diagram. Additionally, the wiring process takes about 1-2 hours.
Using an electromagnet or solenoid and a thin metal disc, it generates sound electronically. The solenoid applies force to the metal disc as soon as it is activated or electrified by the button. A loud vehicle sound known as horns is produced as a consequence of this operation.
Hearing horns amplify sounds when waves are reflected into a gradually smaller region, increasing the sound pressure that reaches the ear [21,22], whereas speaking horns do so by matching the acoustic impedance of outgoing sounds to the surrounding air [20].
Automobile horns can be used as a signal while locking the car remotely in addition to serving as a warning device. The central locking system frequently only employs the gentler horn.
Determine the power side of the circuit and test it in accordance with your car’s manual. Set your metre to the volts setting to check for electricity. Put one metre lead on the (+) pin of the horn connector and the other on ground. Battery voltage should be shown on your metre.
The fundamental benefit of horn loudspeakers is that they are more effective; on average, they can generate three times (10 dB) as much sound strength from an amplifier output as a cone speaker.
The Motor Vehicles Act, Section 177, states that shrill horns are punishable by a fine of Rs 100 for a first offence
The electronic component that is a part of the car’s horn circuit is called the horn relay. It acts as the relay for the circuit that powers the car’s horn. The horn’s power circuit is finished when current is applied to the relay, enabling the horn to work and ring.
A conventional automotive horn is composed of a flexible metal diaphragm, typically made of spring steel, an electromagnet formed by a coil of wire, a switch, and a housing that resembles a megaphone.
Quickly touch the other end of the clamp to the positive battery connection after attaching one clamp to the horn’s terminal. The horn won’t work if the fuse blows. If the horn clicks, there might not be a good ground connection, which would cause the issue. Try re-powering the horn after cleaning the ground connection.
Your horn needs two terminals so that the electricity may operate it without needing to be grounded. It must be grounded if it just has one contact point in order to make a complete circuit. It is simple to check the horn’s functionality using jumper wires and battery power.
Electromagnetism is used by electronic horns to operate. A contractor, an electromagnet, and a steel diaphragm are components of a horn system. The electromagnet is activated when the horn is depressed. The diaphragm is subsequently made to move by the electromagnet.
