Warning symbols

	Log Cutting Saw
	Please read the user manual carefully before operating the machine.
	Wear protective gloves
	Pull out the mains plug before maintenance and repair work!
	Wear safety shoes
	Wear eye, ear protection and mouth/nose mask
	Wear protective clothing
	Warning: Safety information about hazards that can result in personal injury
	Warning against dangerous voltage
	Warning against rotating parts. Never put your hands and feet near the rotating parts.
	Warning: Risk of flying objects
	Warning against cutting injuries
	Warning against cutting injuries
	Do not expose the equipment to rain/water and store it indoor.
	Always keep hands away from the path of the saw blade.
	Keep the machine out of reach of children.
	To be used out
	Remove all undesirable items, e.g. nails and wire, before working.
	Two persons are required for implementation.

Safety instructions

As with all machinery, there are certain risks involved with the operation and use.
Exercising respect and caution will lessen the risk of personal injury considerably.
However, if normal safety precautions are overlooked or ignored it might result in personal injury to the operator or damage of property.

• Read and become familiar with the entire user manual. Learn the machine’s applications and limitations as well as the specific potential hazards particular to it.
• The machine must only be used by grown-ups who have read the user manual before use. No-one must use the machine without having read the manual.
• It is important to wear safety footwear at all times to provide protection against the risk of logs falling accidentally on your feet.
• It is important at all times to wear gloves protecting the hands against chips and
  splitters, which may be produced during work.
• It is important at all times to wear goggles or a visor, which protects the head against chips and splinters that may be produced during work.
• You must not remove or tamper with the protection devices and safety devices.
• You must not stand in the range of action of the machine. Apart from the operator, no other person or animal may be present within a radius of 5 meters from the machine.
• Danger of cutting or crushing the hand exists: never touch hazardous areas while the wedge is moving.
• Never remove a log trapped in the wedge with your hands. Never touch the moving parts of the machine when the machine is on.
• Inspect for damaged parts. Before further use of the machine, a guard or any other part that may be damaged shall be inspected to ensure that it will operate properly  and perform in its intended function. Check for alignment of the moving parts, breakage of parts, mounting, or any other conditions that may affect its operation. A  guard or other parts that are damaged should be properly repaired or replaced.
• Keep guards and slide bars in place and in working order.
• Always remove adjusting keys/spanners etc. Form habit of checking to ensure that keys and spanners etc. are removed from the machine before turning it on.
• Never use the machine under influence of drugs, alcohol or medication.
• You must never stand on the machine; injury could occur in case of a fall.
• Never let the machine run unattended. Disconnect the power when you leave the machine.
• Stop the engine when adjusting, changing parts or repairing the machine.
• Do not wear any jewelry or loose clothing that could be snagged by the log splitter.
• The pressure must not be adjusted.
• The user shall operate the log saw with both hands.
• Never cut two logs at once, they can tilt and create danger.
• Never place a new log on the machine before you’ve finished the previous as this can be very dangerous.
• Draw attention to the blade always being sharp, replace when necessary.

Electric motor
It is important that the saw is connected to a corresponding current, as described on the machines type tag.
If the cord is less than 25 meters the copper cross section must be minimum 1,5mm2.
If the cord is more than 25 meters the cross section must be minimum 2,5mm2. Note, however, that there may be national differences with regard to type of plug. Therefore,  check that the plug which is being used respects the demands of your country’s legislation concerning earth connection. A 16 Ampere fuse shall be used.
Motor brake
The electric motor is equipped with a motor brake which automatically shuts the motor off at overload.

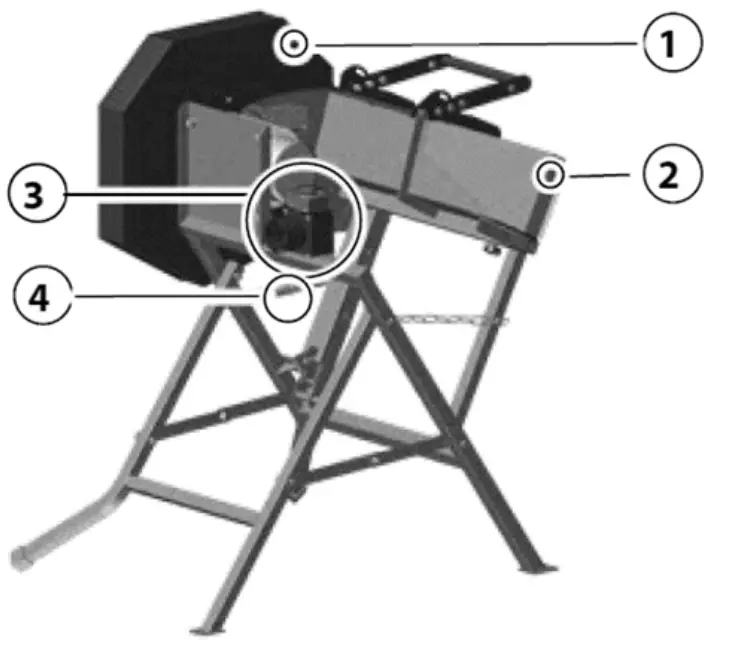

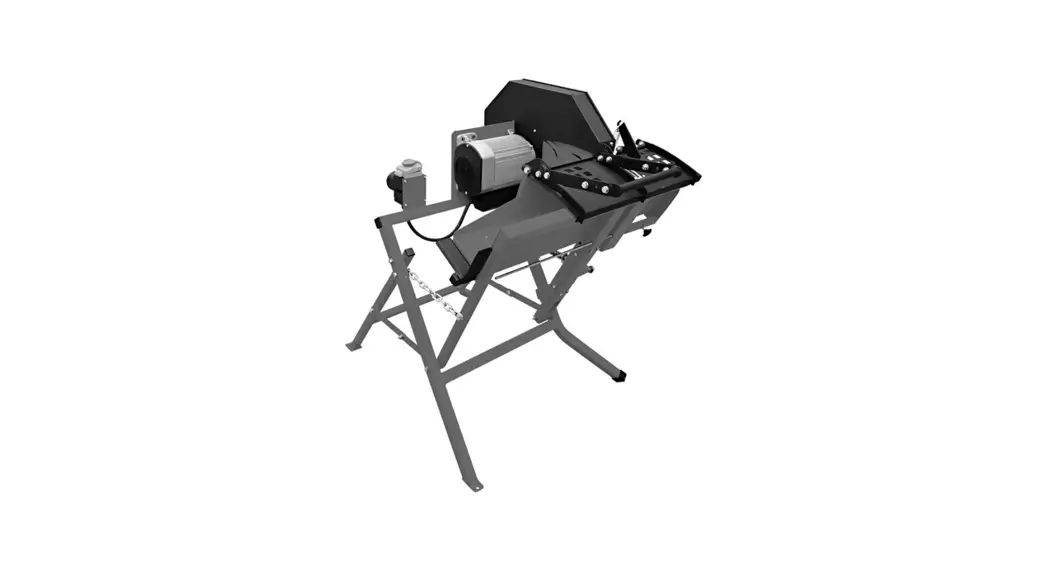

 Main features of the Power Saw

1. Saw blade protection
2. Freed cradle
3. Emergency stop
4. Tension spring


Mounting

Assemble the log cutting saw as shown in illustrations 1-7:

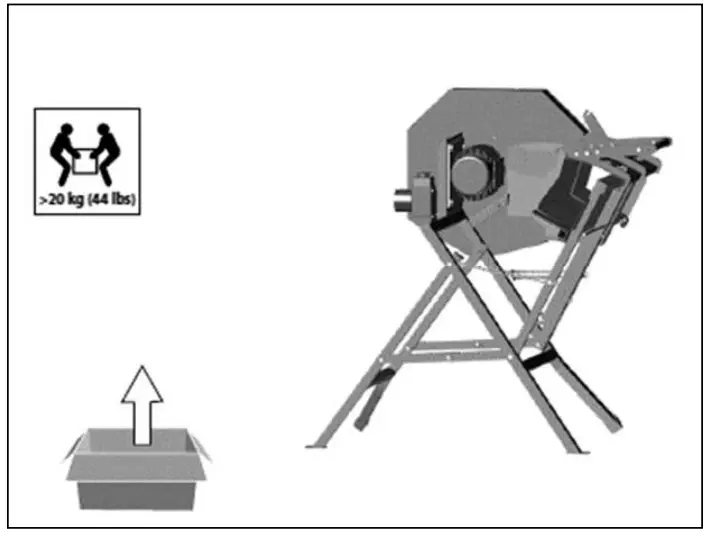

Remove the log cutting saw from the box (Fig.1). Lift the machine with 2 people (Fig.2).

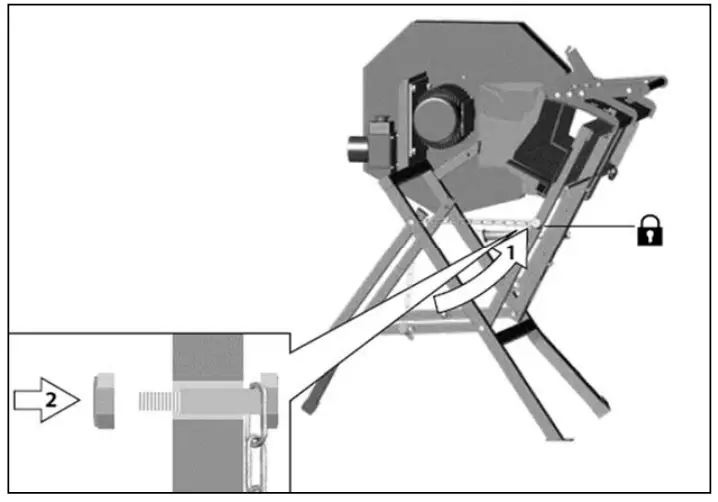

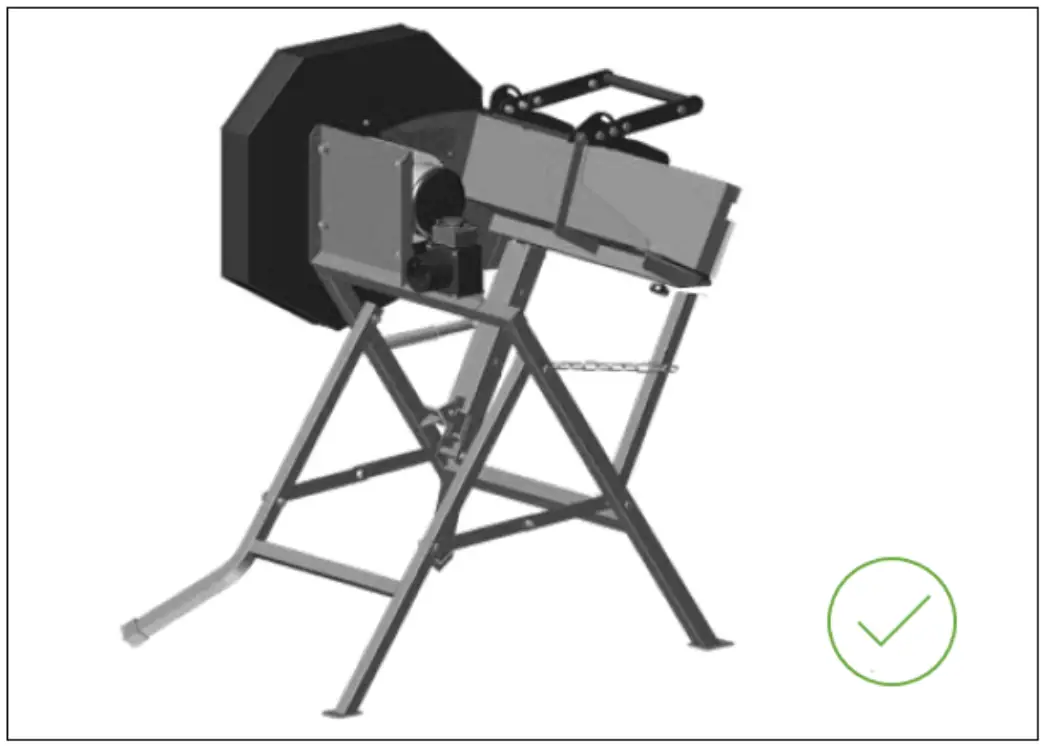

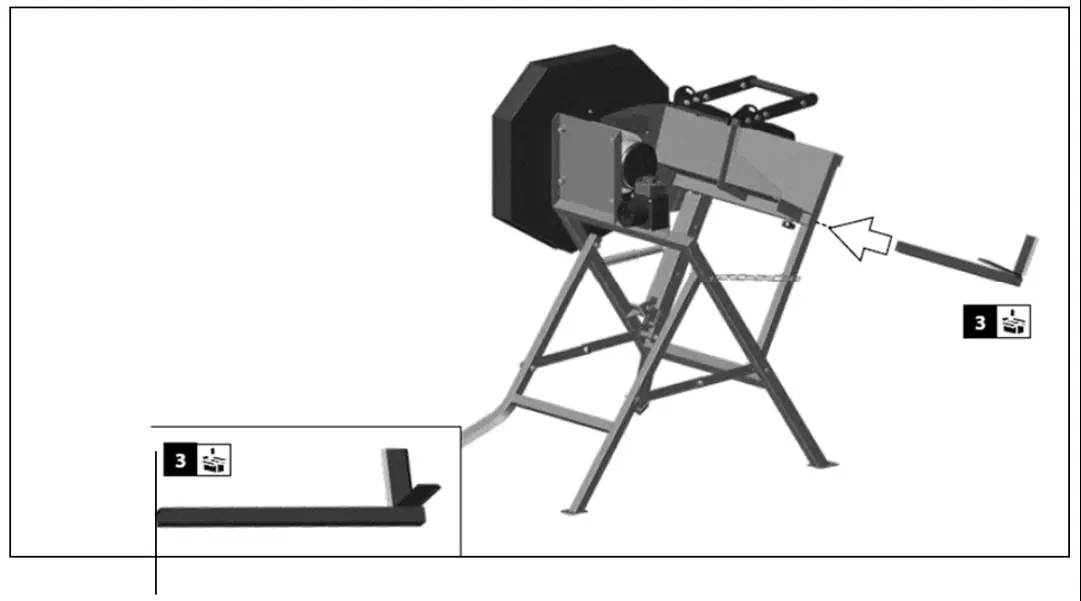

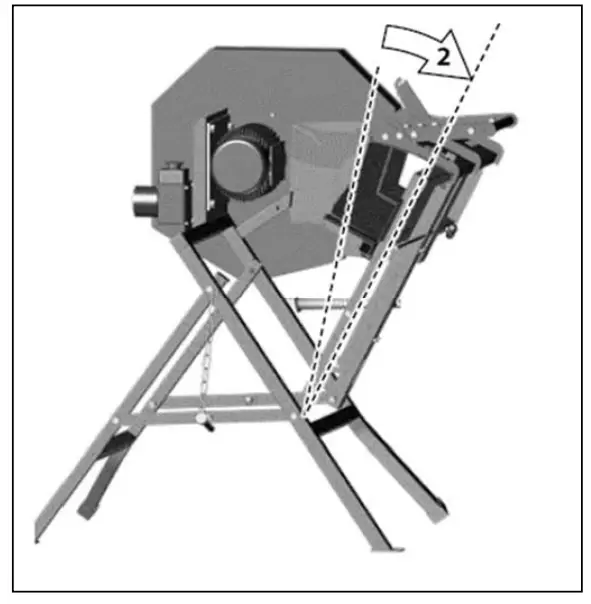

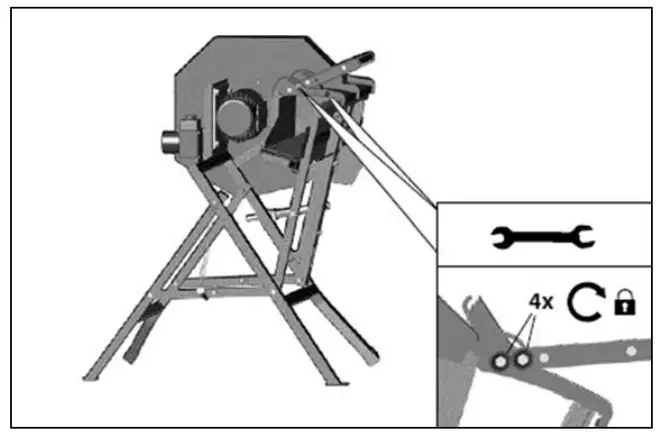

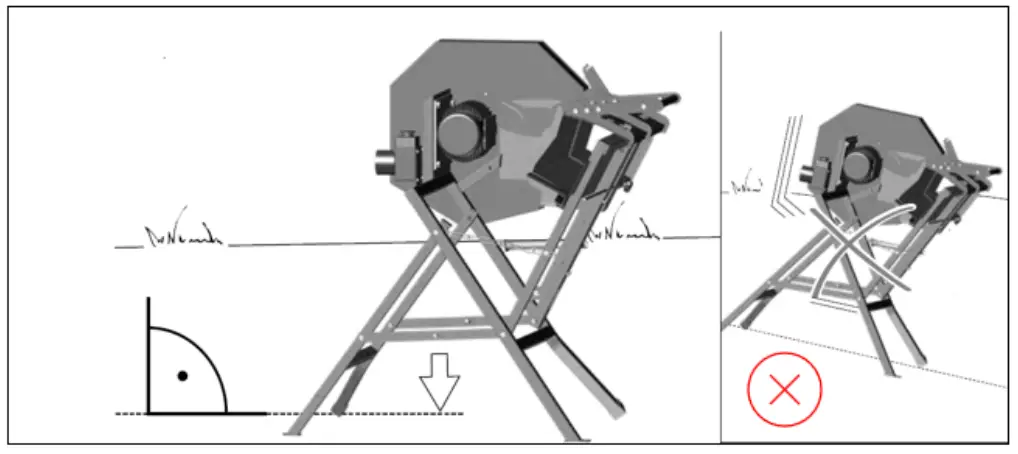

The log cutting saw is almost assembled finish from the factory and only needs a few steps to get fully assembled, see Fig. 3-7.

Operation

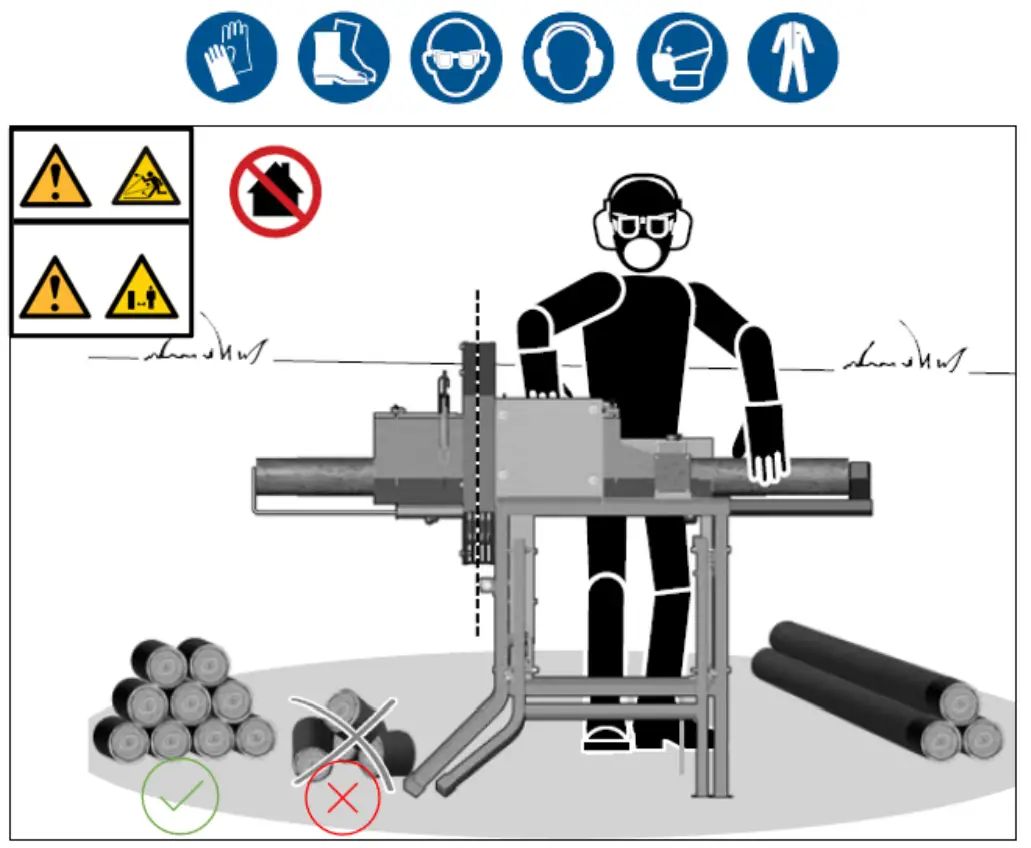

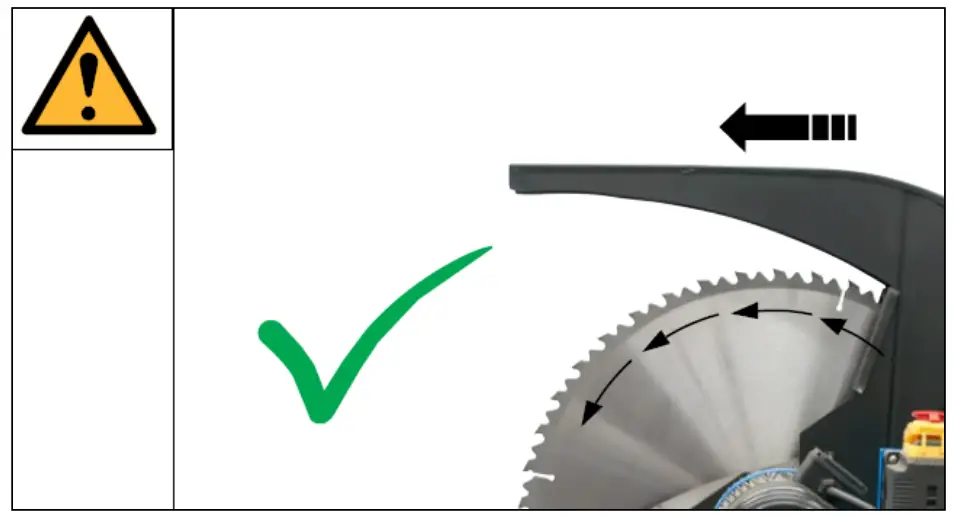

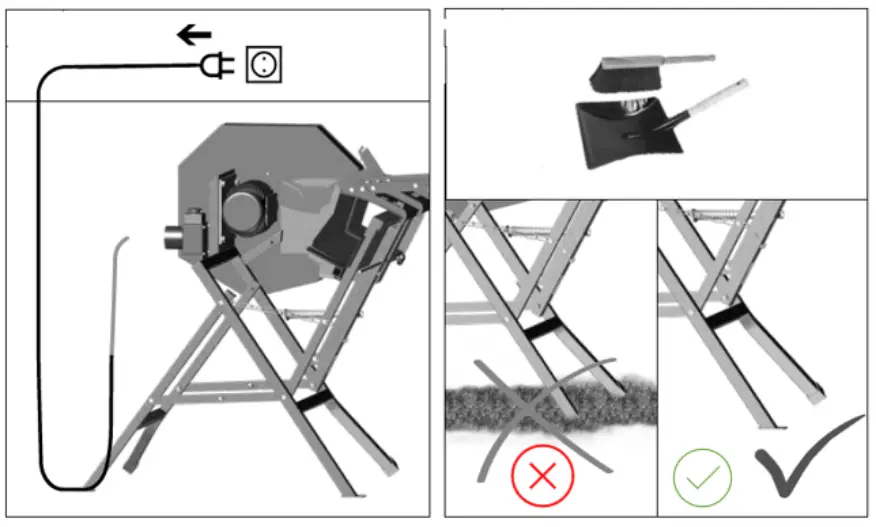

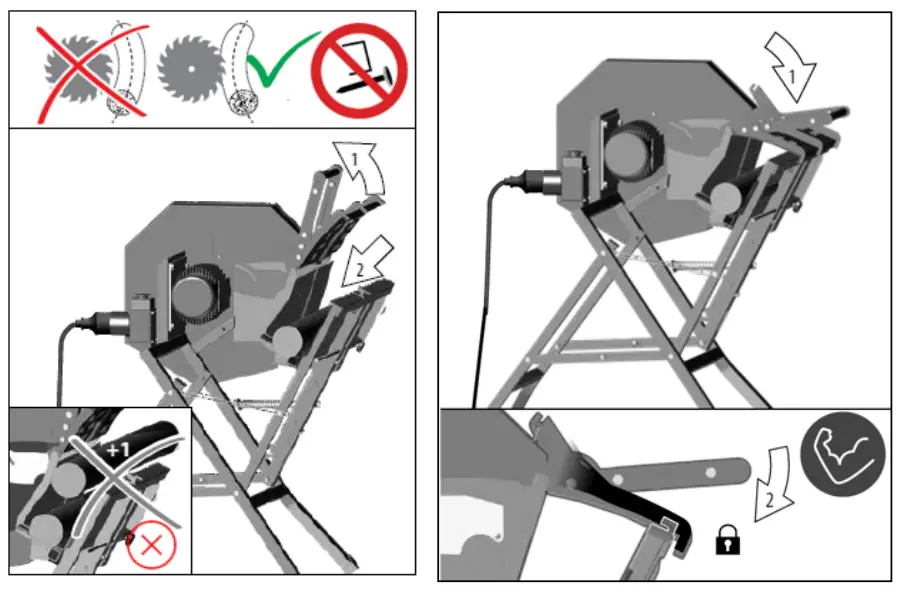

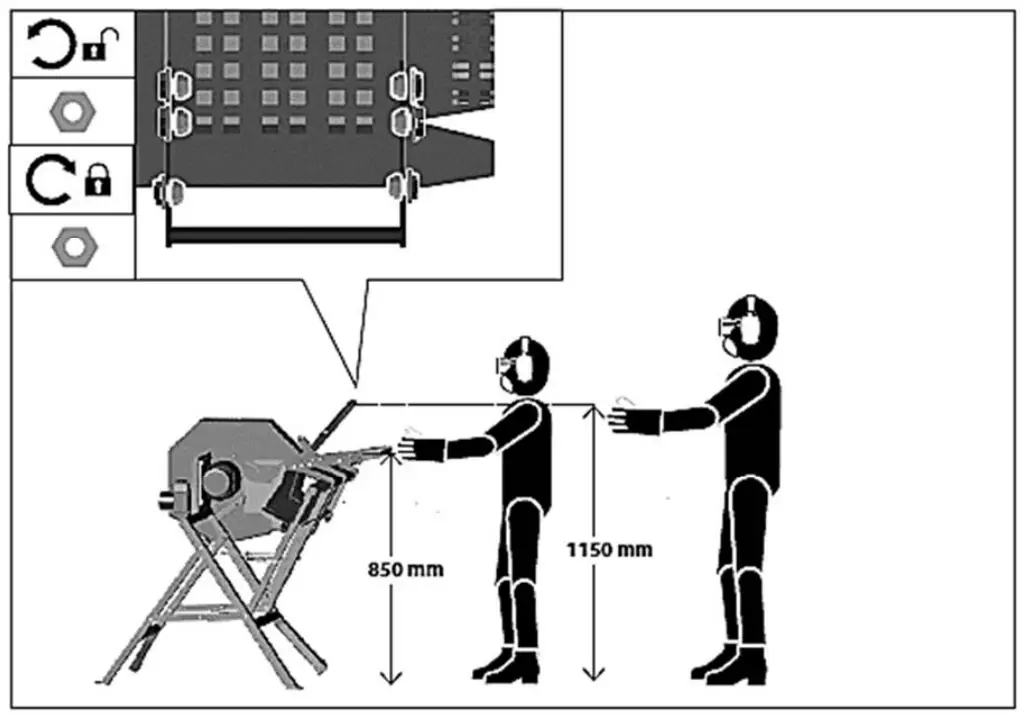

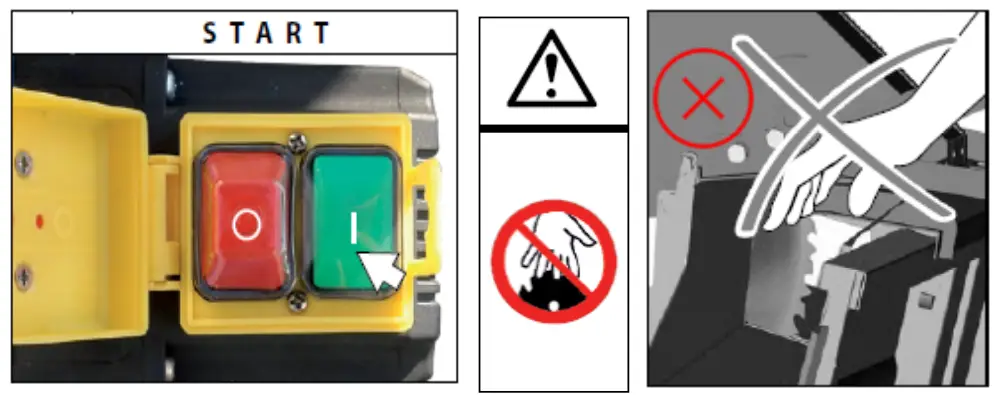

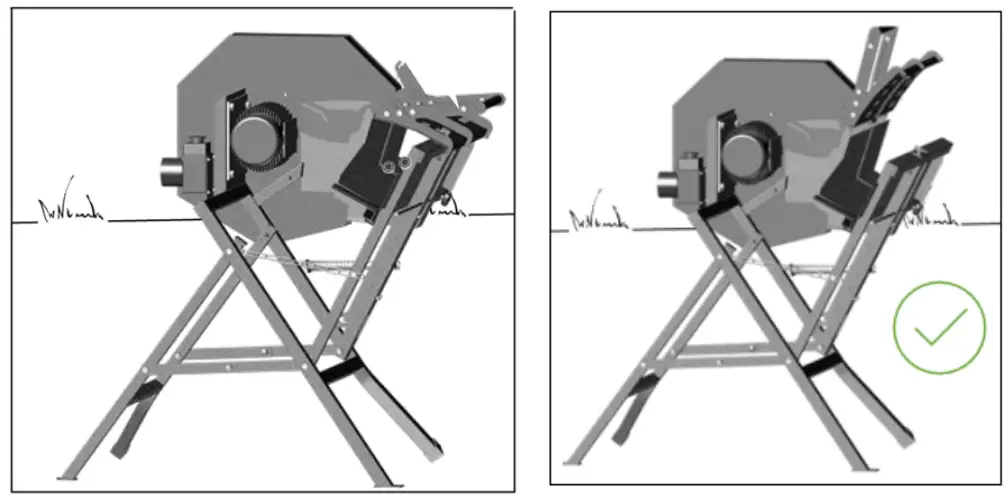

1. For correct use of the log cutting saw, see Fig. 8-13
2. It is important to have a clean working area. This is for your own safety. Make sure that the wood is easy to obtain and reach. There should also be good space to stack  the cut wood.
3. Gain good footing and carry all kinds of protection such as guard, safety goggles, ear protection and gloves
4. The saw is constructed so that it can saw maximum length of up to 1,5 meters.
5. Only one piece of wood must be layer on the saw at a time, regardless diameter (maximum diameter 120 mm)

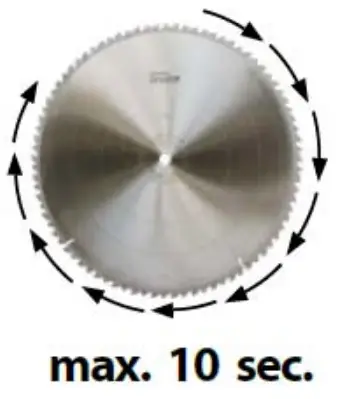

6. The saw blade runs down for app. 10 seconds. The saw blade must not be braked by side back pressure. The engine makes a grumbling noise when braking and shortly after breaking. The switch must not be pressed (on or off) in any case in this phase. The engine may be started again only after there is no more grumble.

Maintenance

The log cutting saw is almost maintenance free.
Always store the log cutting saw in a dry area. Even though the saw has been treated for rust, it may start to rust when exposed to too much damp.
Always disconnect the current when adjusting, repairing or maintaining the Power Saw.

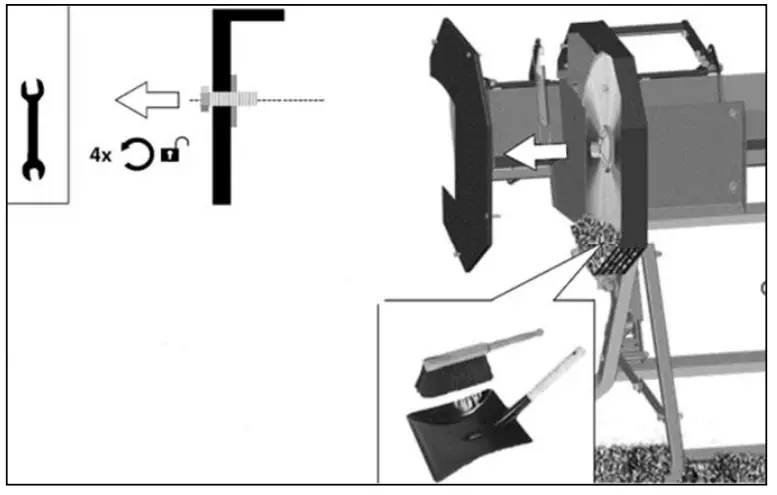

Replacing the blade:

1. Disconnect the current; open the protection shield, outer protection and front protection.
2. Use only a sharp and complete blade.

Specifications

PLEASE READ THE FOLLOWING CAREFULLY
ALL REPAIRS AND REPLACEMENTS MUST BE CARRIED OUT BY AN AUTHORIZED DEALER AND NOT BY THE PURCHASER. THE PURCHASER  ASSUMES ALL RISKS AND LIABLILITIES ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT OF PARTS  THERETO OR INSTALLATION OF THESE.
Due to continued product development Texas A/S preserves the right to improve the product without improving already sold models.

EC Declaration of conformity
Manufacturer Texas Andreas Petersen A/S
Hereby certifies that the following
Power Saw 1800
Is in compliance with the specifications of the machine directive and subsequent modifications
2006/42/EC – 2014/30/EU – 2011/65/EU – 2015/863/EU

Conforms with the following standards

EN 55014-1:2017+A11, EN IEC 55014-1:2021, EN 61000-3-2:2019+A1,
EN 61000-3-3:2013, EN 61000-3-3:2013+A1+A2, EN 55014-2:1997+A1+A2,
EN IEC 55014-2:2021, EN 1870-6:2017, Alpes GS 2014:01 PAK
Serial numbers: 2301130001 – 2512139999

Texas Andreas Petersen A/S
Cullen 22 • DK-5260 Odense S
17.01.2023
Responsible for documentation
Johnny Loll

Johnny  Loll
Managing Director
