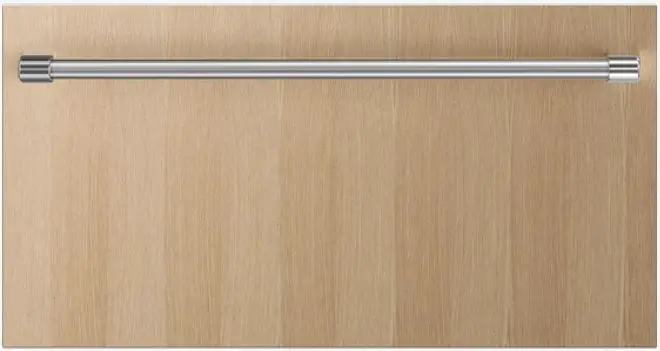

FISHER PAYKEL RB9064S1 Integrated CoolDrawer Multitemperature Drawer
Designed with the flexibility to be placed anywhere in your home, you can change your CoolDrawer™ from refrigerator to pantry or freezer with the push of a button.
- Variable Temperature Zone lets you change between five different food modes – fridge, freezer, pantry, chill, and wine
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

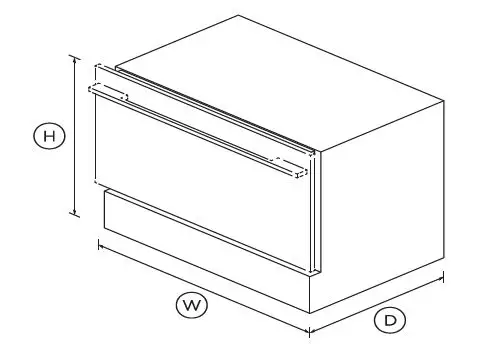

DIMENSIONS
| Height | 640mm |
| Width | 855mm |
| Depth | 557mm |
FEATURES & BENEFITS
Fridge
The ideal storage for most foods such as fruit, vegetables, dairy products, and drinks. The compact upper storage tray is a perfect place for sensitive foods while the tall bin is ideal for large bottles and containers.
Pantry
Designed for foods that require a cool, dark place for storage, such as tropical fruits, tomatoes, and cereals.
Freezer
Ideal for general frozen food storage with the added flexibility of three freezer functions – bottle chill, fast freeze, and deep freeze. Freezer mode is set at -18°C for longer-term storage of frozen items.
Wine
Wine Mode is ideal for long-term storage of all wine at 12°C, or short-term storage at 7°C for white wine and 15°C for red wine.
Chill
Chill Mode sets the compartment to a temperature ideal for highly perishable meats, poultry, and seafood. Chill Mode sets the compartment at -0.5°C, just above the freezing temperature for meat.
SPECIFICATIONS
Accessories
| Contemporary round handle | AHS-RB90S |
| Contemporary square handle | AHD3RB90S |
| Square fine aluminium handle | AHD5RD90S |
| Square fine black handle kit | AHD5RD90SB |
Capacity
| Total net volume | 104L |
| Volume | 80L |
Consumption
| Energy consumption | 88kWh/year (refrigerator |
| Energy rating | F |
Features
| Door alarm | • |
| Full extension runners | • |
| LED lighting | • |
| SmartTouch control panel | • |
| Spill-proof removable bins | • |
| Variable temperature control | • |
Performance
| ActiveSmart™ Foodcare | • |
| Noise emissions | 39dBA |
| Noise emissions class | C |
Product dimensions
| Depth | 557mm |
| Height | 640mm |
| Width | 855mm |
Warranty
| Parts and labor | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26091 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
