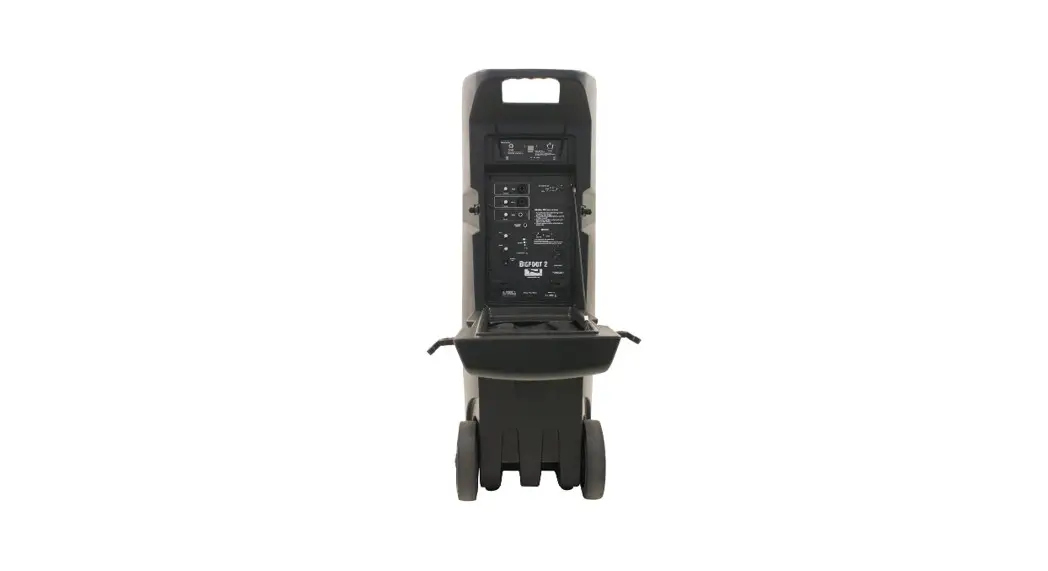

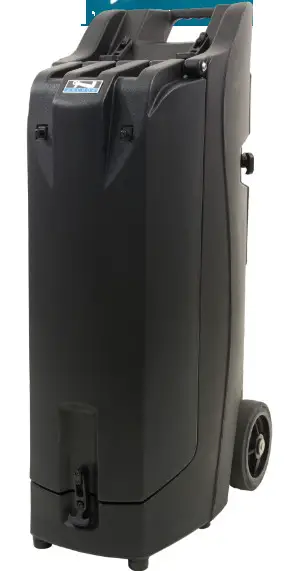

Anchor Bigfoot Bluetooth Speaker Installation Guide

BIGFOOT
BLUETOOTH INSTALLATION

REQUIREMENTS:

• 8,000 or series 2 Go Getter unit with I/O board at revision E (or newer)
• Screw drivers (Phillips #1 and #2)
• 8 mm Nutdriver

INSTRUCTIONS:

1. Make sure the unit is powered off and the plug is disconnected.
2.  Remove the screws around the back panel.
3. Remove the back panel.
4. Remove the battery harness.
5. Remove the low, medium, and high and speaker harness
   a. If applicable please remove the mic receiver harness
6. Remove the internal power supply harnesses.
7.  Remove the old Bluetooth module.
8. Remove the old harness from the Bluetooth module and use the included harnesses with the new Bluetooth module.
9. Connect the black and white audio cables to BT Audio.
10. Connect the red and black cables to BT only.
11. Reinstall the back panel to the unit and tighten with screws.
