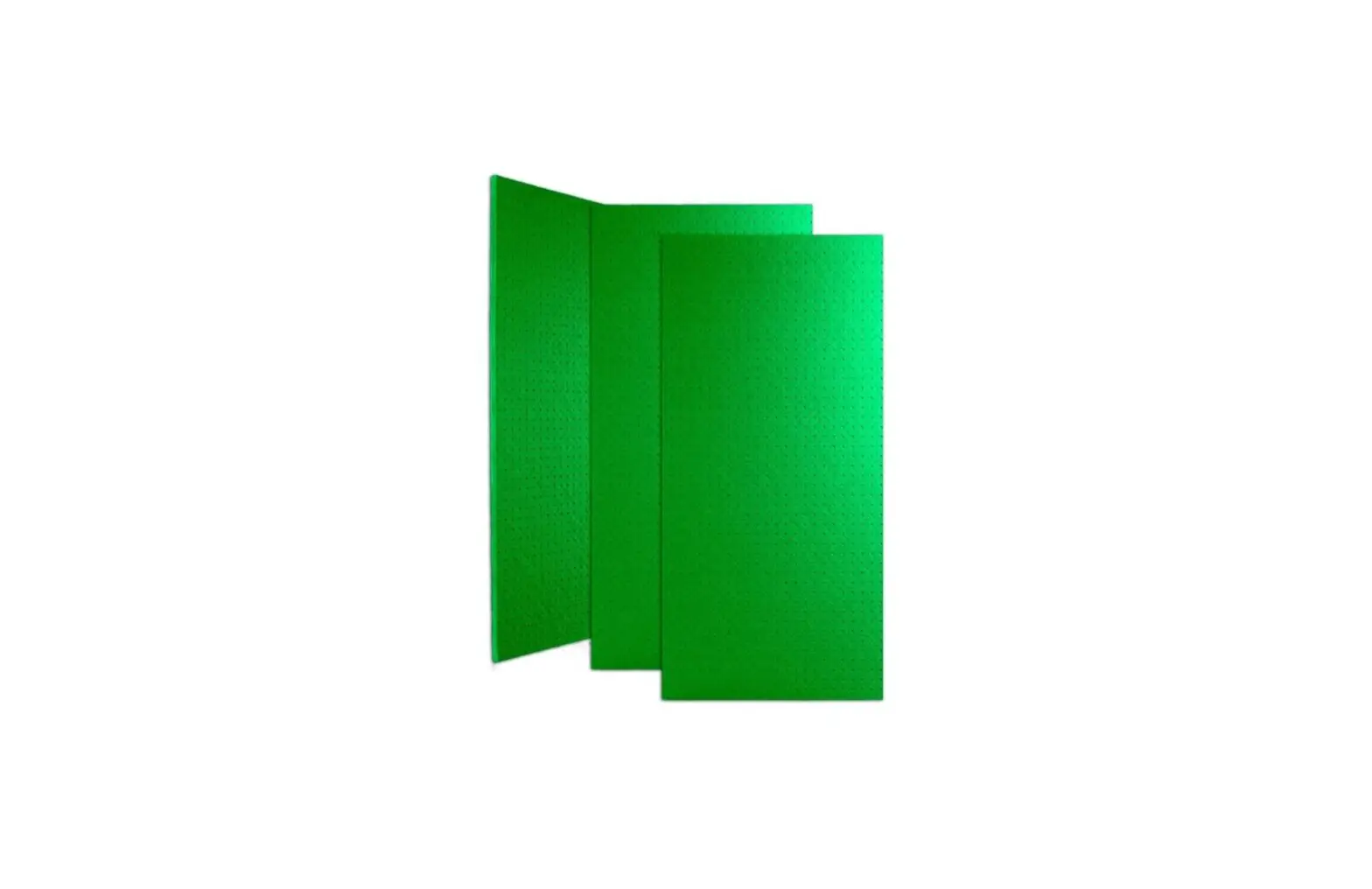

THE HOME DEPOT SONOpan Soundproofing Panels4 Foot x 8 Foot Thick Instruction Manual
Noise STOP Technology
How it Works
Thousands of impressions are made in each panel during the manufacturing process to create varying densities within each panel. Each density absorbs a different soundwave ranging from low bass to high pitched frequencies.
Noise STOP Technology is why SONOpan should be your only choice when choosing a soundproofing panel.
Calculating Panels Required
Each panel is 32 sq. ft. Complete the formula below with the length and width of the wall or ceiling being soundproofed and add 10% or a minimum of 1 sheet for overage
L__________ x W__________ = /32 =__________
Working with SONOpan
- Eco friendly CANADIAN manufacturing
- No VOC, No added formaldehyde
- 100% recycled wood & 100% recyclable
- Lightweight & Easy to install
- Contains no glues or chemicals

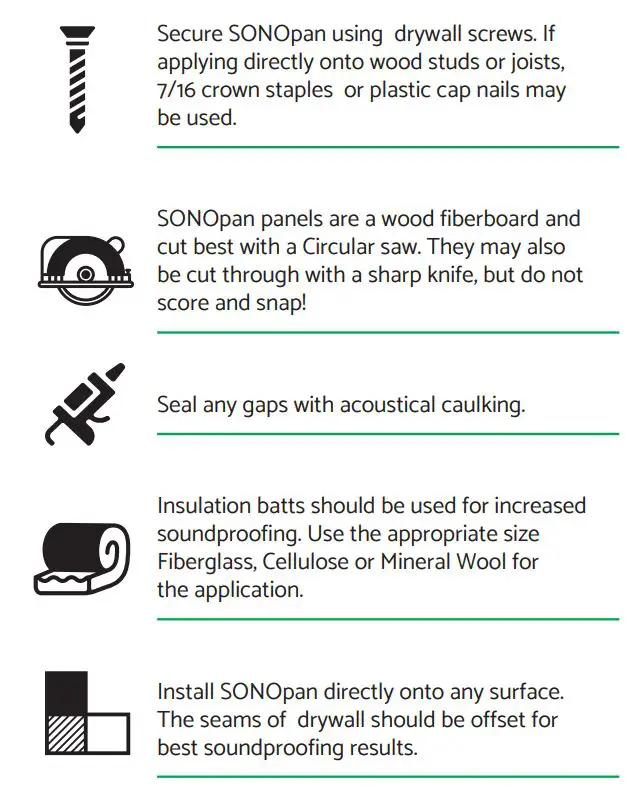

Installation Instructions
For more information visit sonopan.com
Technical Specifications
- Dimensions 48” x 96” x ¾”
- R value = 2.45
- Weight – 26lbs
- SONOpan panel STC Rating – 27
New Construction

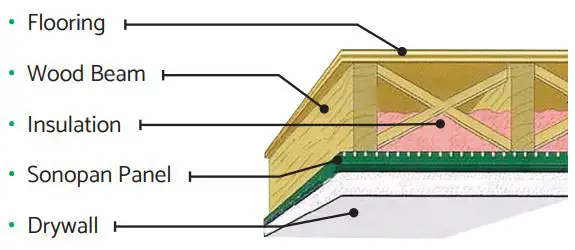

Ceilings
Exceptional for: Basements, Theatre Rooms, Bedrooms, Washrooms, Utility rooms and Offices

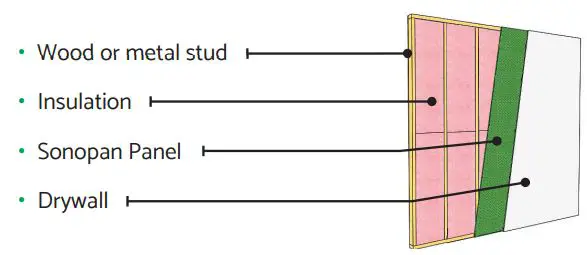

Walls
Retrofitting SONOpan
When applying SONOpan over an existing wall, follow the normal installation procedure. Ensure screws are long enough to secure into framework. Drywall over as usual. If no insulation is present, it is recommended to have some blown in.
Use in conjunction with insulation and drywall for best results. Follow drywall requirements for fire ratings. SONOpan is rated for STC, For IIC refer to MSLfibre.com
