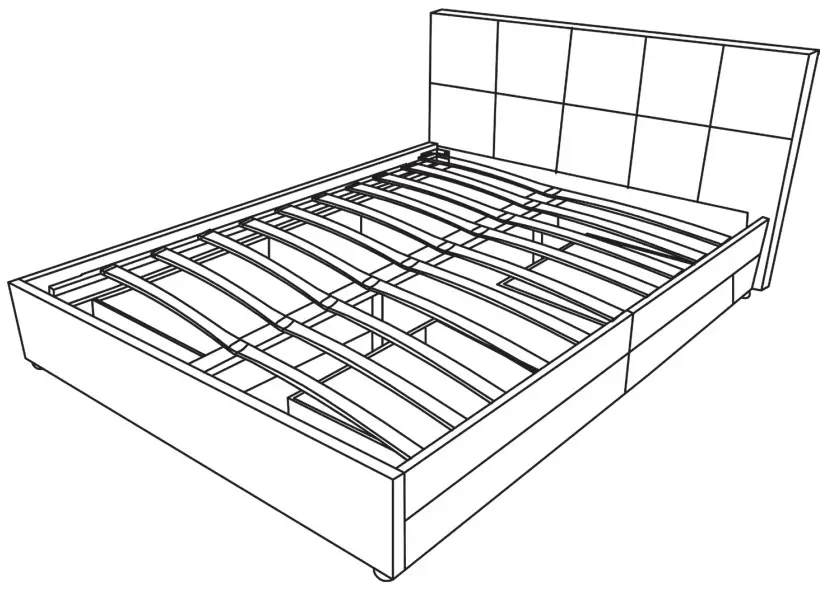

THEODORE STORAGE BED
WITH DRAWERS, DOUBLE
OVTHEODRDGA, OVTHEODRDCA, OVTHEODRDBA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to assembly and use.
Retain this user guide for future reference.

• Strictly follow these instructions when assembling this bed.
• Ensure all components are accounted for. If components are missing, or if the hardware is mismatched, contact help.Kogan.com for assistance. Using mismatched hardware may cause damage to the bed.
• Do not exceed the weight limit of 350kg.

CLEANING & CARE

• Use a rag or slightly damp cloth to clean the surface of the bed.
• Do not use strong abrasive cleaners as this may cause damage.

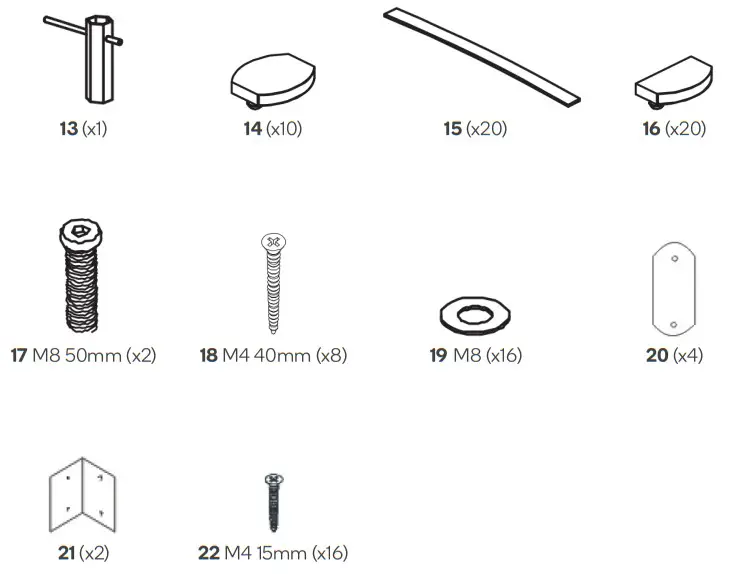

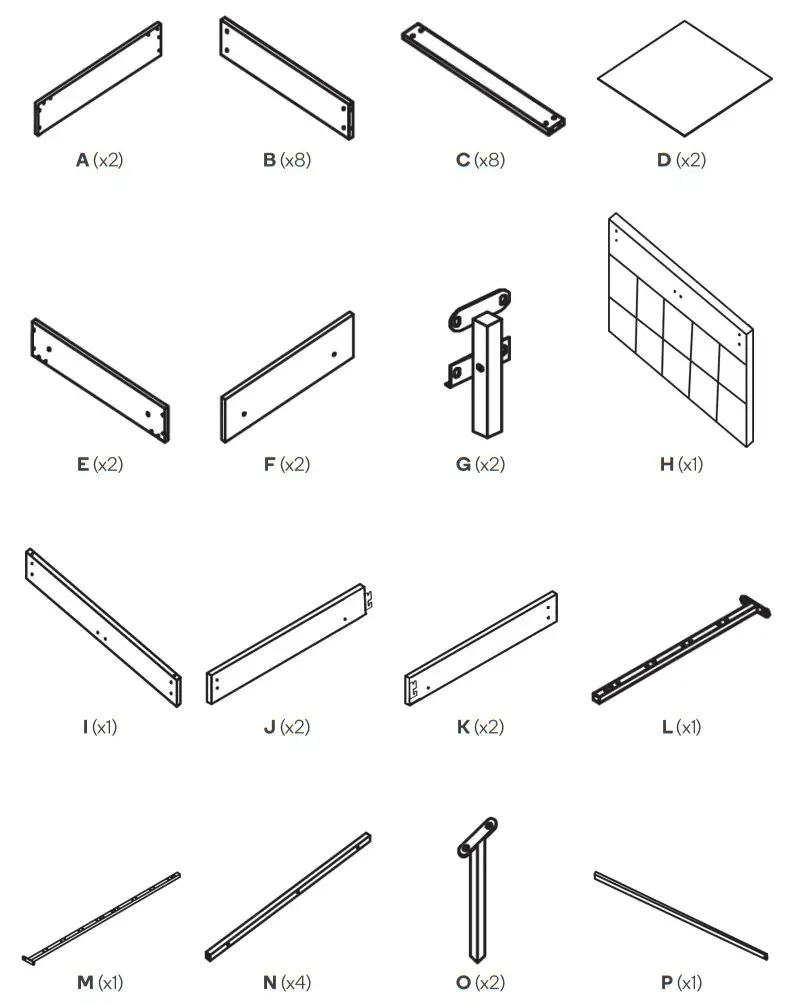

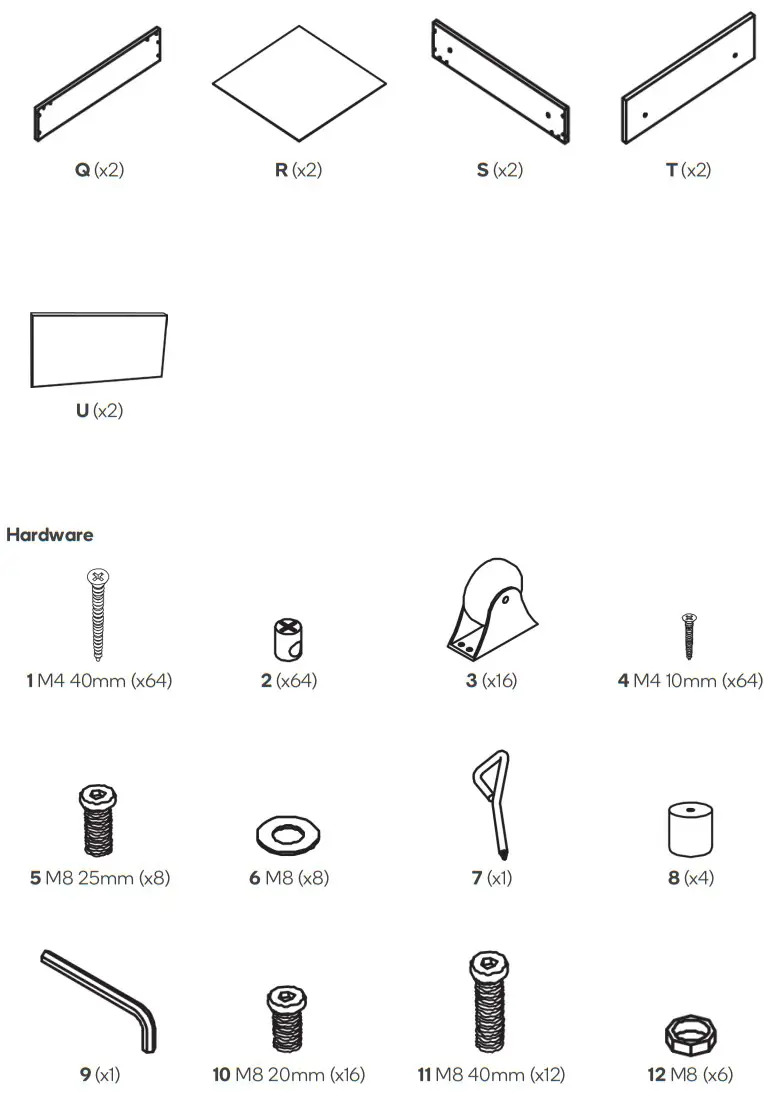

COMPONENTS

ASSEMBLY

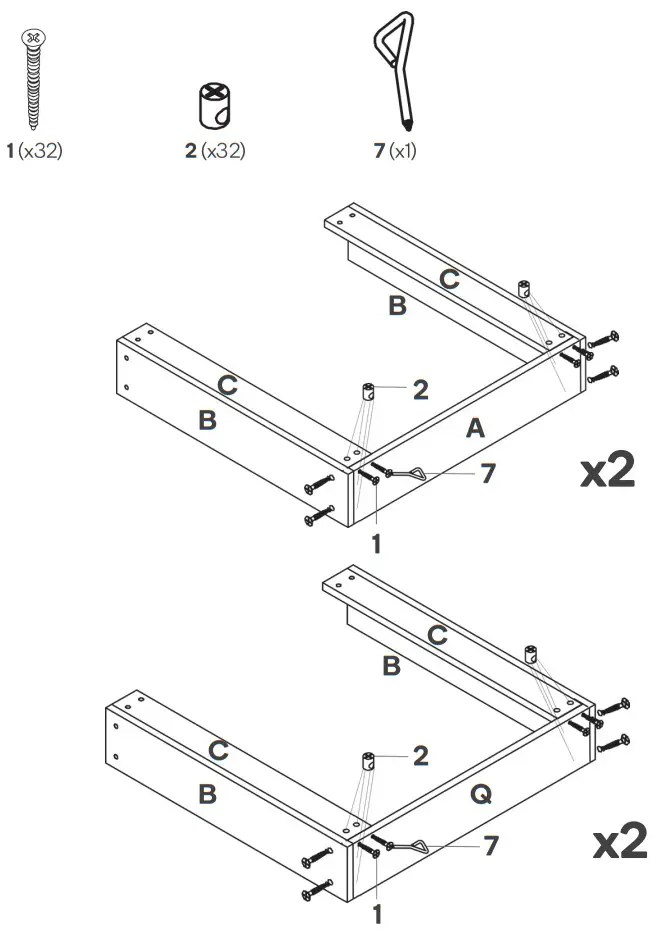

Step 1: Drawer assembly
Ensuring the holes on the cross dowels (2) are facing towards the screw holes on parts A and B, insert the cross dowels into parts A and C.
Ensuring the holes on the cross dowels (2) are facing towards the screw holes on parts Q and B, insert the cross dowels into parts Q and C.
Using the screwdriver (7), secure the M4 40mm screws (1) through the screw holes and into the cross dowels.

Bed assembly

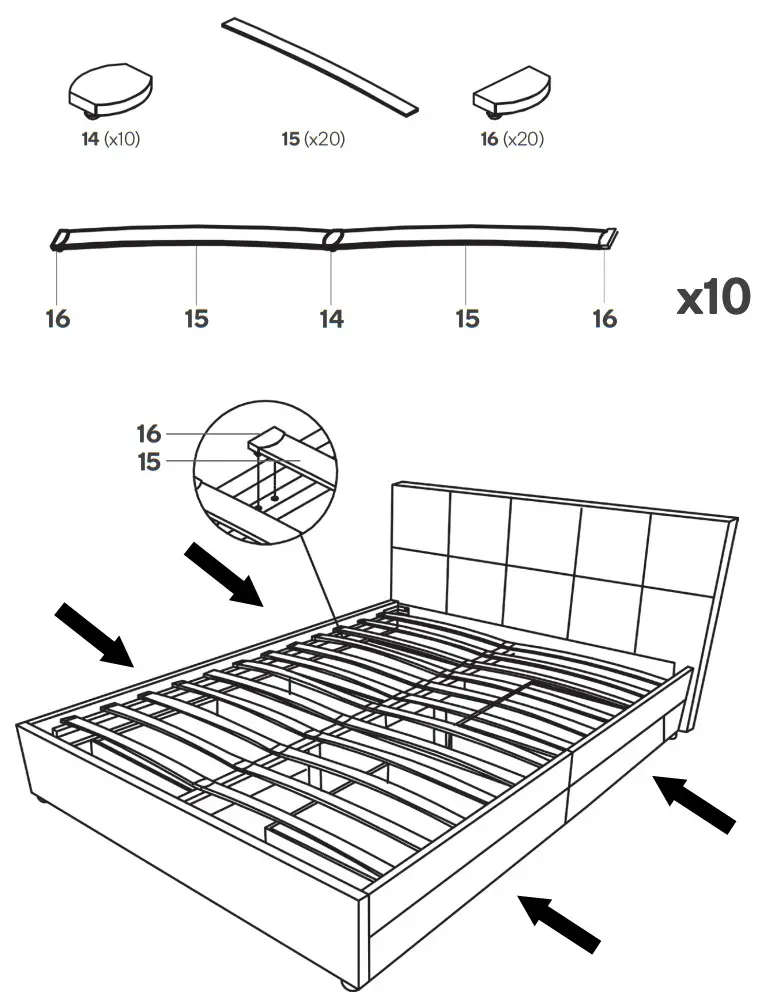

Step 14: Connect the two slats (15) with one inner cap (14) and two end caps (16) to create a slat assembly. Repeat this ten times.
Lock the slat assemblies onto the bed frame, then insert the drawers into position.

Assembly is complete.

DIMENSIONS

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
