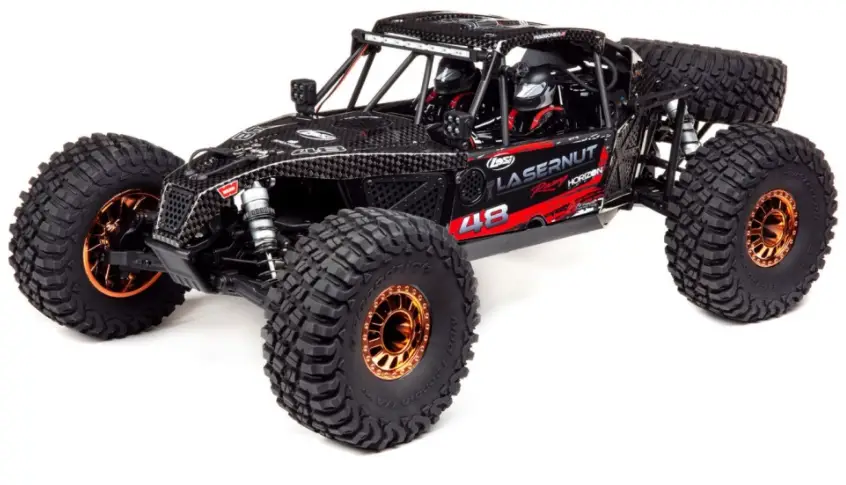

HORIZON Lasernut Tenacity Ultra 4 Rock Racer
Replacement Parts
| Part # | English | Deutsch | Français | Italiano |
| LOS230072 | Body Clip Leash (4) | Gehäuseklemme Schnur (4) | Laisse de clip de carrosserie (4) | Lacci per clip per carrozzeria (4) |
| LOS230075 | Body Set, Blue, Painted | Karosseriesatz, blau, lackiert | Carrosserie, bleue, peinte | Kit carrozzeria a vernice blu |
| LOS230076 | Body Set, Red, Painted | Karosseriesatz, rot, lackiert | Carrosserie, rouge, peinte | Kit carrozzeria a vernice rossa |
| LOS230077 | Body Set, Clear | Karosseriesatz, farblos | Carrosserie, transparente | Kit carrozzeria trasparente |
| LOS230078 | Cage Set | Käfigsatz | Ensemble cage | Kit scocca |
| LOS230079 | LED, Cage Parts | LED, Käfigteile | LED, pièces de la cage | Parti scocca, LED |
| LOS230080 | Spare Tire Rack | Ersatzreifenstange | Support de pneu de secours | Porta ruota di ricambio |
| LOS231026 | Steering Bellcrank Set | Steuerungsumlenkhebelsatz | Ensemble leviers de renvoi de direction | Kit squadrette di sterzo |
| LOS231027 | Steering Posts, Tubes & Hardware | Lenksäulen, Rohre und Hardware | Colonnes de direction, tubes et accessoires | Supporti, tubi e bulloneria dello sterzo |
| LOS231030 | Chassis Support Set | Karosserieträgersatz | Ensemble support de châssis | Kit supporti telaio |
| LOS231031 | Motor Mount | Motorhalterung | Support moteur | Supporto motore |
| LOS231033 | Steering Drag Link & Hardware | Lenkzwischenstange & Hardware | Barre d’accouplement de la direction & accessoires | Tirante di sterzo e bulloneria |
| LOS231057 | Rod Ends & Links | Stangenende und Verbindungen | Embouts de bielle et liaisons | Teste a snodo e aste |
| LOS231062 | Aluminum Chassis | Aluminiumchassis | Châssis en aluminium | Telaio in alluminio |
| LOS231063 | Side Guards | Seitenschutze | Protections latérales | Protezioni laterali |
| LOS231064 | Top Deck, Battery Mount | Oberdeck, Akkuhalterung | Pont supérieur, support de batterie | Piano superiore, supporto batteria |
| LOS231065 | Grid Set | Halterungssatz | Ensemble grille | Kit griglia |
| LOS232023 | Diff Case Set | Differentialgehäusesatz | Ensemble boîtier de différentiel | Kit scatola diff. |
| LOS232024 | Center Drive Coupler | Zentrale Antriebskupplung | Coupleur d’entraînement central | Attacco albero trasmissione |
| LOS232025 | 40T Spur Gear, Mod 1 | 40T-Stirnrad, Mod 1 | Engrenage cylindrique 40 dents, Mod 1 | Corona 40T, Mod 1 |
| LOS232026 | Diff Housing | Diffentialgehäuse | Logement du différentiel | Carter differenziale |
| LOS232027 | Front Ring & Pinion Gear Set | Vorderer Ring- und Zahnradgetriebesatz | Ensemble anneau et engrenage à pignons avant | Kit pignone e corona anteriori |
| LOS232028 | Rear Ring & Pinion Gear Set | Hinterer Ring- und Zahnradgetriebesatz | Ensemble anneau et engrenage à pignons arrière | Kit pignone e corona posteriori |
| LOS232029 | Diff Gear Set w/Hardware | Differentialgetriebesatz mit Hardware | Ensemble engrenage de différentiel avec accessoires | Kit ingr. diff. con bulloneria |
| LOS232030 | Outdrive, Diff (2) | Flexwelle, Diff (2) | Entraînement extérieur, différentiel (2) | Outdrive, diff.(2) |
| LOS232031 | Wheel Hex Set (4) | Sechskantradsatz (4) | Ensemble écrous hexagonaux de roue (4) | Kit esagoni ruote (4) |
| LOS232032 | Front/Rear Driveshafts (2) | Front/Heck Antriebswellen (2) | Arbres de transmission avant/arrière (2) | Alberi trasmissione ant./post. (2) |
| LOS232033 | Front Center Dogbone (1) | Vorderes mittiges Dogbone (1) | Dogbone central avant (1) | Cardano centrale ant. (1) |
| LOS232034 | Rear Center Dogbone (1) | Hinteres mittiges Dogbone (1) | Dogbone central arrière (1) | Cardano centrale post. (1) |
| LOS232054 | Center Dogbone Set | Mittiger Dogbone-Satz | Ensemble dogbone central | Kit cardano centrale |
| LOS232055 | Aluminum Diff Case | Aluminium-Differentialgehäuse | Ensemble différentiel en aluminium | Scatola diff. in alluminio |
| LOS233011 | Shock Plastics Set | Kunststoff-Stoßdämpfersatz | Ensemble plastiques d’amortisseur | Kit plastiche ammortizzatori |
| LOS233013 | Spring Set | Federnsatz | Ensemble ressort | Kit molle |
| LOS233014 | Rear Shock Shaft (2) | Hintere Kolbenstange (2) | Arbre d’amortisseur arrière (2) | Albero amm. post. (2) |
| LOS233015 | Front Shock Shaft (2) | Vordere Kolbenstange (2) | Arbre d’amortisseur avant (2) | Albero amm. ant. (2) |
| LOS233025 | Adjuster Nut | Einstellmutter | Écrou de réglage | Dado di registrazione |
| LOS233026 | Aluminum Shock Caps | Aluminium Stoßdämpferkappen | Capuchons d’amortisseur en aluminium | Tappi amm. in alluminio |
| LOS233027 | Aluminum Front Shock Bodies | Vordere Stoßdämpfergehäuse, Aluminium | Corps d’amortisseur avant en aluminium | Carcasse amm. in alluminio ant. |
| LOS233028 | Aluminum Rear Shock Bodies | Hintere Stoßdämpfergehäuse, Aluminium | Corps d’amortisseur arrière en aluminium | Carcasse amm. in alluminio post. |
| LOS234016 | Front Arm Set | Vorderarmsatz | Ensemble bras avant | Kit braccio anteriore |
| LOS234017 | Rear Arm Set | Hinterarmsatz | Ensemble bras arrière | Kit braccio posteriore |
| LOS234018 | Front Spindle & Carrier Set | Front-Spindel- & Trägersatz | Ensemble axe et support avant | Kit fuselli e portafuselli ant. |
| LOS234019 | Front/Rear Pin Mount Cover Set | Vorderer/Hinterer Stift Halterungsabdeckungssatz | Ensemble cache de support axe FR/R | Kit protezione montanti perni ant/post. |
| LOS234020 | Rear Hub Set | Hinterradnabensatz | Ensemble moyeu arrière | Kit mozzi posteriori |
| LOS234021 | Hingepin & Kingpin Set | Scharnierstift & Sattelzapfensatz | Ensemble axe de charnière et axe de pivot | Kit perni e cardini |
| LOS234023 | Pivot Pin Mount Set, Steel (4) | Drehzapfensatz, Stahl (4) | Ensemble support axe de pivot, acier (4) | Kit supporto perno girevole, acciaio (4) |
| LOS234035 | Aluminum Front Shock Tow | Vordere Aluminium-Stoßdämpferbrücke | Tour d’amortisseur avant en aluminium | Torre amm. in alluminio, ant. |
| LOS234036 | Aluminum Rear Shock Tow | Hintere Aluminium-Stoßdämpferbrücke | Tour d’amortisseur arrière en aluminium | Torre amm. in alluminio, post. |
| LOS234037 | Sway Bar Set | Schwingen-Set | Ensemble barre stabilisatrice | Kit barra antirollio |
| LOS234038 | Rear Sway Bar Set | Heck Schwingen-Satz | Ensemble barre stabilisatrice arrière | Kit barra antirollio posteriore |
| LOS235011 | Set Screw, M3 x 3mm Cup Point (10) | Stellschraube M3 x 3 mm Ringschneide (10) | Vis de fixation M3 x 3 mm Bout cuvette (10) | Kit viti, M3 x 3 mm, senza testa (10) |
| LOS235012 | Set Screw, M4 x 4mm Cup Point (10) | Stellschraube M4 x 4 mm Ringschneide (10) | Vis de fixation M4 x 4 mm Bout cuvette (10) | Kit viti, M4 x 4 mm, senza testa (10) |
| LOS235024 | Button Head Screw, M3 x 25mm (10) | Rundkopfschraube, M3 x 25mm (10) | Vis à tête bombée M3 x 25 mm (10) | Viti a testa tonda, M3 x 25 mm (10) |
| LOS235025 | Button Head Screw, M3 x 30mm (10) | Rundkopfschraube, M3 x 30mm (10) | Vis à tête bombée M3 x 30 mm (10) | Viti a testa tonda, M3 x 30 mm (10) |
| LOS235026 | Set Screw, M3 x 4mm Cup Point (10) | Stellschraube M3 x 4mm Ringschneide (10) | Vis de fixation M3 x 4mm Bout cuvette (10) | Kit viti, M3 x 4 mm, senza testa (10) |
| LOS235027 | Set Screw, M3 x 10mm Cup Point (10) | Stellschraube M3 x 10mm Ringschneide (10) | Vis de fixation M3 x 10mm Bout cuvette (10) | Kit viti, M3 x 10 mm, senza testa (10) |
| Part # | English | Deutsch | Français | Italiano |
| LOS236000 | E-Clips 2.5mm (12) | E-Klemmen, 2,5 mm (12) | Attaches en E 2,5 mm (12) | E-Clip 2,5 mm (12) |
| LOS236001 | 3.2 x 7 x .5mm Washer (10) | 3,2 x 7 x 5mm Unterlegscheibe (10) | Rondelle 3,2 × 7 × 0,5 mm (10) | Rondelle 3,2 x 7 x 0,5 mm (10) |
| LOS237000 | 12 x 18 x 4mm Ball Bearing (4) | 12 x 18 x 4mm, Kugellager (4) | Roulement à billes 12 x 18 x 4 mm (4) | Cuscinetto a sfera 12 x 18 x 4 mm (4) |
| LOS237001 | 10 x 15 x 4mm Ball Bearing (4) | 10 x 15 x 4mm, Kugellager (4) | Roulement à billes 10 x 15 x 4 mm (4) | Cuscinetto a sfera 10 x 15 x 4 mm (4) |
| LOS237002 | 5 x 11 x 4mm Ball Bearing (4) | 5 x 11 x 4mm, Kugellager (4) | Roulement à billes 5 x 11 x 4 mm (4) | Cuscinetto a sfera 5 x 11 x 4 mm (4) |
| LOS43028 | Wheel w/BFG Tire, Copper | Rad mit BFG-Reifen, Kupfer | Roue avec pneu BFG, cuivre | Ruota con pneumatico BFG, rame |
| LOSA3572 | 1.0 Module Pitch Pinion, 12T | 1.0 Modul Getrieberad, 12T | Module de pignon de pas 1.0, 12 dents | Pignone Modulo 1.0, 12T |
| LOSA3574 | 1.0 Module Pitch Pinion, 14T | 1.0 Modul Getrieberad, 14T | Module de pignon de pas 1.0, 14 dents | Pignone Modulo 1.0, 14T |
| LOSA6940 | 6 x 12mm Sealed Ball Bearing (4) | 6 x 12mm abgedichtetes Kugellager (4) | Roulement à billes hermétique 6 x 12 mm (4) | Cuscinetti a sfera sigillati 6 x 12 mm (4) |
| SPM2340 | DX3 SMART DSMR 3CH Transmitter w/SR315 | DX3 SMART DSMR-Sender mit 3 Kanälen mit SR315 | Émetteur DX3 SMART DSMR 3 canaux avec SR315 | Trasmittente DX3 SMART DSMR 3 CH con SR315 |
| SPMS614 | S614 Metal Gear Servo, 23T WP | S614 Metallgetriebeservo 23T WP | Servo à engrenages métalliques S614, 23 dents, étanche | Servo ingr. in metallo S614 23T WP |
| SPMSR6100AT | SR6100AT DSMR 6CH AVC Telemetry Surface Receiver | SR6100AT DSMR AVC Telemetrie Oberflächenempfänger mit 6 Kanälen | Récepteur de surface de télémétrie AVC 6 canaux SR6100AT DSMR | Ricevitore di superficie con telemetria SR6100AT DSMR 6CH AVC |
| SPMXSE1130 | Firma 130A Brushless Smart ESC | Firma 130 A Bürstenloser Smart- Geschwindigkeitsregler | Variateur ESC sans balais 130 A Smart Firma | Smart ESC Firma 130 A Brushless |
| SPMXSM2200 | 3668-1900Kv Motor | 3668 – 1900Kv Motor | Moteur 3668 – 1900Kv | Motore 3668 – 1900Kv |
| TLR5280 | Silicone Differential Fluid, 5,000CS | Differential-Silikonflüssigkeit, 5.000CS | Liquide silicone pour différentiel, 5 000 CS | Fluido siliconico per differenziale, 5.000 CS |
| TLR5282 | Silicone Differential Fluid, 10,000CS | Differential-Silikonflüssigkeit, 10.000CS | Liquide silicone pour différentiel, 10 000 CS | Fluido siliconico per differenziale, 10.000 CS |
| TLR5284 | Silicone Differential Fluid, 20,000CS | Differential-Silikonflüssigkeit, 20.000CS | Liquide silicone pour différentiel, 20 000 CS | Fluido siliconico per differenziale, 20.000 CS |
| TLR5901 | Button Head Screw, M3 x 6mm (10) | Rundkopfschraube, M3 x 6mm (10) | Vis à tête bombée M3 x 6mm (10) | Viti a testa tonda, M3 x 6 mm (10) |
| TLR5902 | Button Head Screw, M3 x 8mm (10) | Rundkopfschraube, M3 x 8mm (10) | Vis à tête bombée M3 x 8mm (10) | Viti a testa tonda, M3 x 8 mm (10) |
| TLR5903 | Button Head Screw, M3 x 10mm (10) | Rundkopfschraube, M3 x 10mm (10) | Vis à tête bombée M3 x 10mm (10) | Viti a testa tonda, M3 x 10 mm (10) |
| TLR5904 | Button Head Screw, M3 x 12mm (10) | Rundkopfschraube, M3 x 12mm (10) | Vis à tête bombée M3 x 12mm (10) | Viti a testa tonda, M3 x 12 mm (10) |
| TLR5905 | Button Head Screw, M3 x 18mm (10) | Rundkopfschraube, M3 x 18mm (10) | Vis à tête bombée M3 x 18mm (10) | Viti a testa tonda, M3 x 18 mm (10) |
| TLR5908 | Button Head Screw, M3 x 44mm (4) | Rundkopfschraube, M3 x 44mm (4) | Vis à tête bombée M3 x 44mm (4) | Viti a testa tonda, M3 x 44 mm (4) |
| TLR5909 | Button Head Screw, M3 x 16mm (10) | Rundkopfschraube, M3 x 16mm (10) | Vis à tête bombée M3 x 16mm (10) | Viti a testa tonda, M3 x 16 mm (10) |
| TLR5910 | Button Head Screw, M3 x 14mm (10) | Rundkopfschraube, M3 x 14mm (10) | Vis à tête bombée M3 x 14mm (10) | Viti a testa tonda, M3 x 14 mm (10) |
| TLR5911 | Button Head Screw, M3 x 20mm (10) | Rundkopfschraube, M3 x 20mm (10) | Vis à tête bombée M3 x 20mm (10) | Viti a testa tonda, M3 x 20 mm (10) |
| TLR5914 | Button Head Screw, M2 x 12mm (10) | Rundkopfschraube, M2 x 12mm (10) | Vis à tête bombée, M2 x 12mm (10) | Viti a testa tonda, M2 x 12 mm (10) |
| TLR5932 | Cap Head Screw, M3 x 10mm (10) | Inbusschraube, M3 x 10mm (10) | Vis d’assemblage creuse, M3 x 10mm (10) | Viti a testa cilindrica, M3 x 10 mm (10) |
| TLR5933 | Cap Head Screw, M3 x 12mm (10) | Inbusschraube, M3 x 12mm (10) | Vis d’assemblage creuse, M3 x 12mm (10) | Viti a testa cilindrica, M3 x 12 mm (10) |
| TLR5962 | Flathead Screw, M3 x 10mm (10) | Flachkopfschraube, M3 x 10mm (10) | Vis à tête plate, M3 x 10mm (10) | Viti a testa piana, M3 x 10 mm (10) |
| TLR5963 | Flathead Screw, M3 x 12mm (10) | Flachkopfschraube, M3 x 12mm (10) | Vis à tête plate, M3 x 12mm (10) | Viti a testa piana, M3 x 12 mm (10) |
| TLR5964 | Flathead Screw, M3 x 16mm (10) | Flachkopfschraube, M3 x 16mm (10) | Vis à tête plate, M3 x 16mm (10) | Viti a testa piana, M3 x 16 mm (10) |
| TLR5965 | Flathead Screw, M3 x 20mm (10) | Flachkopfschraube, M3 x 20mm (10) | Vis à tête plate, M3 x 20mm (10) | Viti a testa piana, M3 x 20 mm (10) |
| TLR6313 | Locknut, M3 x .5 x 5.5mm (10) | Kontermutter, M3 x 0,5 x 5,5 mm (10) | Contre-écrou M3 x 5 x 5,5 mm (10) | Controdadi, M3 x 0,5 x 5,5 mm (10) |
| TLR6352 | Washers, M3 (10) | Unterlegscheiben, M3 (10) | Rondelles, M3 (10) | Rondelle, M3 (10) |
| TLR8202 | Body Clips, Black (12) | Gehäuseklemmen, schwarz (12) | Clips de carrosserie, noir (12) | Clip carrozzeria, colore nero (12) |
| TLR74008 | Silicone Shock Oil, 35 wt, 2 oz | Stoßdämpfer-Silikonöl, 35 wt, 59 ml (2 oz) | Huile silicone pour amortisseurs, 35 wt, 59 mL | Olio di silicone per ammortizzatori, 35 wt, 60 ml (2 oz) |
| TLR235007 | Flat Head Screw, M2.5 x 10mm (10) | Flachkopfschraube M2,5 x 10mm (10) | Vis à tête plate M2,5 x 10 mm (10) | Smart ESC Firma 130 A Brushless |
| TLR255008 | Button Head Screw, M4 x 16mm (10) | Rundkopfschraube, M4 x 16mm (10) | Vis à tête bombée, M4 x 16 mm (10) | Viti a testa tonda, M4 x 16 mm (10) |
| TLR255013 | Flat Head Screws, M4 x 12mm (10) | Rundkopfschrauben, M4 x 12mm (10) | Vis à tête plate, M4 x 12mm (10) | Viti a testa piana, M4 x 12 mm (10) |
| TLR256005 | Nylock Nut, M4 (10) | Nylock-Mutter, M4 (10) | Contre-écrou Nylock, M4 (10) | Dado Nylock, M4 (10) |
| TLR336005 | M3 Flanged Aluminum Locknut, Black (10) | M3 Aluminium-Kontermutter mit Flansch, schwarz (10) | Contre-écrou M3 en aluminium à collet, noir (10) | Controdado allumino flangiato M3, nero (10) |
RECOMMENDED PARTS
| Part # | English | Deutsch | Français | Italiano |
| DYNC2005CA | Prophet Sport LiPo 35W AC Charger | Prophet Sport LiPo 35 W AC-Ladegerät | Chargeur CA Li-Po 35 W Prophet Sport | Caricabatterie Prophet Sport LiPo 35 W CA |
| SPMXC1080 | Spektrum Smart S100 AC Charger | Spectrum Smart S100 Wechselstrom- Ladegerät | Chargeur CA Spektrum Smart S100 | Caricabatterie Spektrum Smart S100 CA |
| SPMX50003S50H5 | 11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery: IC5 | 11,1 V 5000 mAh 3S 50C Smart LiPo-Akku, Hartschale: IC5 | Batterie LiPo Smart 11,1 V 5 000 mAh 3S 50C, boîtier rigide : IC5 | Batteria Li-Po 11,1 V 5000 mAh 3S 50C Smart Hardcase: IC5 |
| SPMX50004S50H5 | 14.8V 5000mAh 4S 50C Smart Hardcase LiPo Battery: IC5 | 14,8 V 5000 mAh 4S 50C Smart LiPo- Akku, Hartschale: IC5 | Batterie LiPo Smart 14,8V 5 000 mAh 4S 50C, boîtier rigide : IC5 | Batteria Li-Po 14,8 V 5000 mAh 4S 50C Smart Hardcase: IC5 |
OPTIONAL PARTS
| Part # | English | Deutsch | Français | Italiano |
| DYN2834 | Startup Tool Set: Metric | Anfänger-Werkzeugsatz: Metrisch | Jeu d’outils de démarrage : Métrique | Kit completo attrezzi base: metrico |
| DYN5500 | Magnum Force 2 Motor Spray, 13 oz | Magnum Force 2 Motorspray, 368 g | Vaporisateur pour moteur Magnum Force 2, 368 g | Spray per motore Magnum Force 2, 385 ml (13 oz) |
| DYNT2010 | Machined Nut Driver Set (4) Metric | Set gefräste Steckschlüssel (4) metrisch | Ensemble tourne-écrou usiné (4) Métrique | Kit di chiavi (4) metriche |
| DYNT2030 | Machined Hex Driver Set (4) Met | Set gefräste Inbusschraubendreher (4) Met | Ensemble clé à six pans usinée (4) Métrique | Kit di chiavi a brugola (4) metriche |
| LOS331012 | Mach Alum Motor Mount | Gefräste Motorhalterung, Aluminium | Support moteur en aluminium usiné | Supporto motore in alluminio lavorato |
| LOS334011 | Aluminum Rear Hubs (2) | Hintere Naben, Aluminium (2) | Moyeux arrière en aluminium (2) | Mozzi in alluminio, post. (2) |
| LOS334012 | Aluminum Front Spindle (2) | Front-Spindel, Aluminium (2) | Axe avant en aluminium (2) | Fuselli in alluminio, ant. (2) |
| LOS334013 | Aluminum Spindle Carrier (2) | Spindelträger, Aluminium (2) | Support d’axe en aluminium (2) | Portafuselli in alluminio (2) |
| LOS43011 | Desert Claws Tires w/Foam, Soft (2) | Desert Claws-Reifen mit Schaumstoff (2) | Pneus Desert Claws avec mousse, douce (2) | Pneumatici Desert Claw con schiuma, morbidi (2) |
| LOSA3571 | 1.0 Module Pitch Pinion,11T | 1.0 Modul Getrieberad, 11T | Module de pignon de pas 1.0, 11 dents | Pignone Modulo 1.0, 11T |
| LOSA3573 | 1.0 Module Pitch Pinion, 13T | 1.0 Modul Getrieberad, 13T | Module de pignon de pas 1.0, 13 dents | Pignone Modulo 1.0, 13T |
| LOSA3576 | 1.0 Module Pitch Pinion, 16T | 1.0 Modul Getrieberad, 16T | Module de pignon de pas 1.0, 16 dents | Pignone Modulo 1.0, 16T |
| LOSA3578 | 1.0 Module Pitch Pinion, 18T | 1.0 Modul Getrieberad, 18T | Module de pignon de pas 1.0, 18 dents | Pignone Modulo 1.0, 18T |
| LOSA99173 | Ride Height Gauge | Höhenmesser | Jauge de hauteur de course | Misuratore altezza di marcia |
| LOSA99174 | Car Stand | Fahrzeugständer | Socle | Supporto automodello |
| LOSB3493 | Aluminum Clamping Wheel Hex | Aluminium Klemmrad Sechskant | Roue de serrage hexagonale en aluminium | Rotella di bloccaggio esagonale in alluminio |
| SPM6730 | Spektrum Tx Storage Bag* | Spektrum Tx Aufbewahrungstasche* | Sac de rangement Spektrum Tx* | Sacco custodia Tx Spektrum |
| SPMSS6230 | S6230 U-T / M-S Digital WP Servo | S6230 U-T/M-S Digitaler WP Servo | Servo numérique S6230 U-T / M-S WP | Servo impermeabile digitale S6230 U-T/M-S |
| TLR332014 | Rear Hex, +0.5mm Width, Aluminum | Hinterer Sechskant, +0,5 mm Breite, Aluminium | Écrou hexagonal arrière, +0,5 mm de largeur, aluminium | Esagono posteriore, larghezza +0,5 mm, alluminio |
| TLR336000 | 4mm Aluminum Serrated Lock Nut, Black (6) | 4 mm Aluminium Rändelmutter, schwarz (6) | Contre-écrou en aluminium à embase striée 4 mm, noir (6) | Controdado dentato in alluminio 4 mm, nero (6) |
| TLR336001 | 4mm Aluminum Serrated Lock Nut, Blue (6) | 4 mm Aluminium Rändelmutter, blau (6) | Contre-écrou en aluminium à embase striée 4 mm, bleu (6) | Controdado dentato in alluminio 4 mm, blu (6) |
| TLR5062 | Bleeder Shock Cap, Aluminum (2) | Stoßdämpfer-Entlüfterkappe, Aluminium (2) | Contre-écrou en aluminium à embase striée 4 mm, bleu (6) | Tappi di sfiato per ammortizzatori, alluminio (2) |
| TLR74006 | Silicone Shock Oil, 30 wt, 2 oz | Stoßdämpfer-Silikonöl, 30 wt, 59 ml (2 oz) | Huile silicone pour amortisseurs, 30 WT, 59 mL | Olio di silicone per ammortizzatori, 30 wt, 60 ml (2 oz) |
| TLR74010 | Silicone Shock Oil, 40 wt, 2 oz | Stoßdämpfer-Silikonöl, 40 wt, 59 ml (2 oz) | Huile silicone pour amortisseurs, 40 WT, 59 mL | Olio di silicone per ammortizzatori, 40 wt, 60 ml (2 oz) |
| TLR76000 | Tire Glue, Standard | Reifenklebemittel, Standard | Colle de pneu, standard | Colla pneumatici, standard |
| TLR76004 | TLR Lok, Threadlock, Blue | TLR Lok, Schraubensicherung, blau | Verrou TLR, frein-filet, bleu | TLR Lok, frenafiletti, blu |

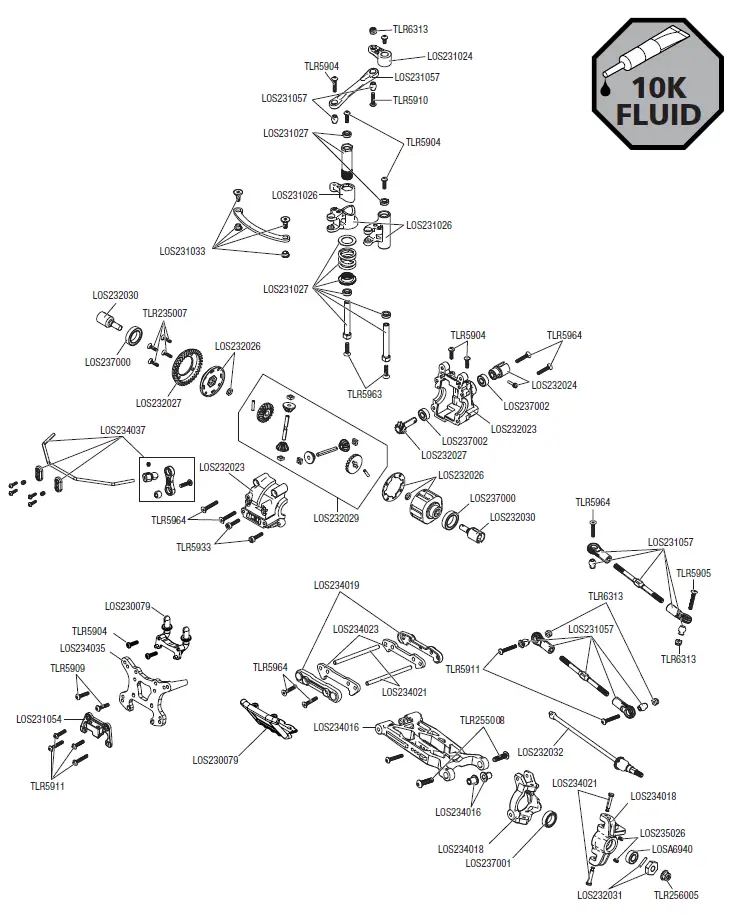

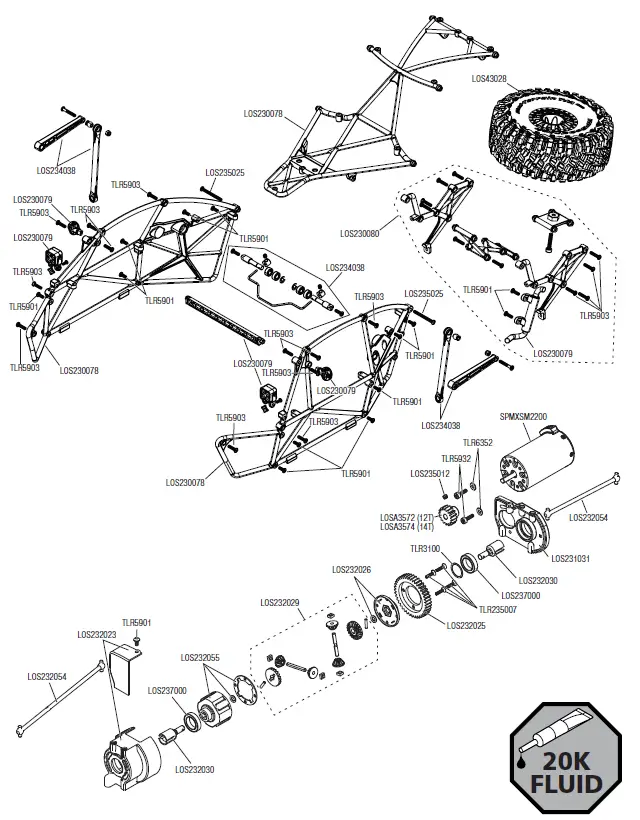

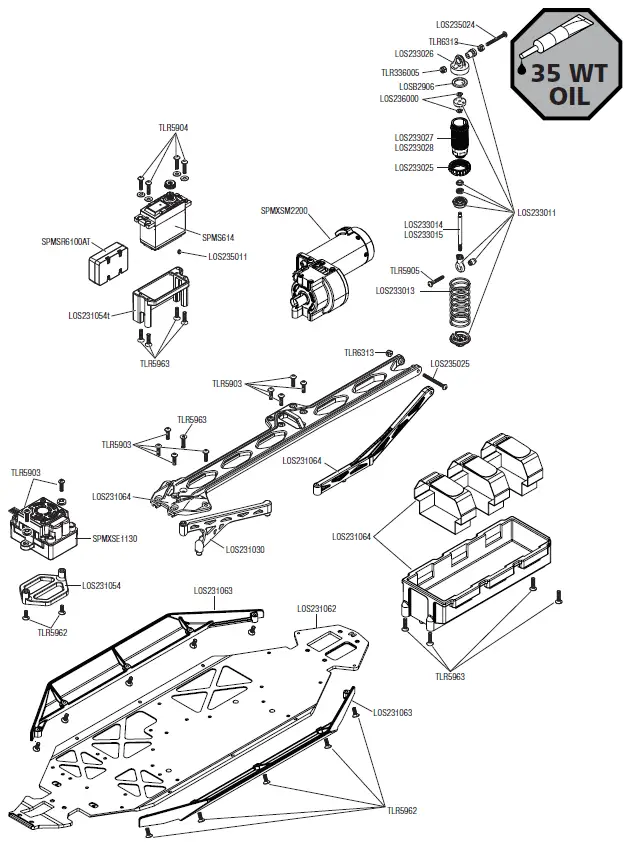

EXPLODED VIEW
60778.2 | ©2021 Horizon Hobby, LLC.
Losi, Tenacity, Firma, DX3, DSM, DSM2, DSMR, AVC, Active Vehicle Control, Fuze, IC5 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
The Lasernut name and logo and vehicle cage design are property of Cody Waggoner, used under license.
All other trademarks, service marks and logos are property of their respective owners.
US 9,320,977, US 10,528,060, US 9,930,567. US 10,419,970. US 10,849,013. Other patents pending.
Updated 03/21 | LOS03028
