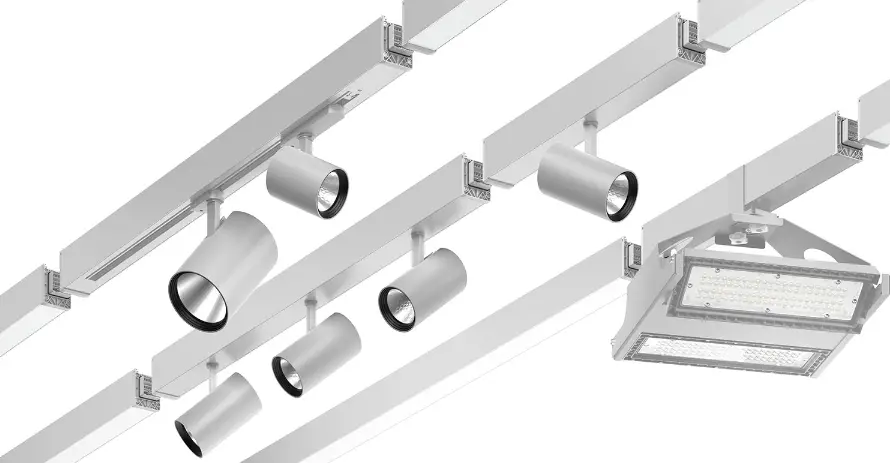

RZB 09-3255.002 Linedo
INSTRUCTION
09-3255.002
If you have any questions about our signs, visit the following website:
www.rzb.de/fileadmin/assets/downloads/PDF/RZB_Symbolklaerung.pdf

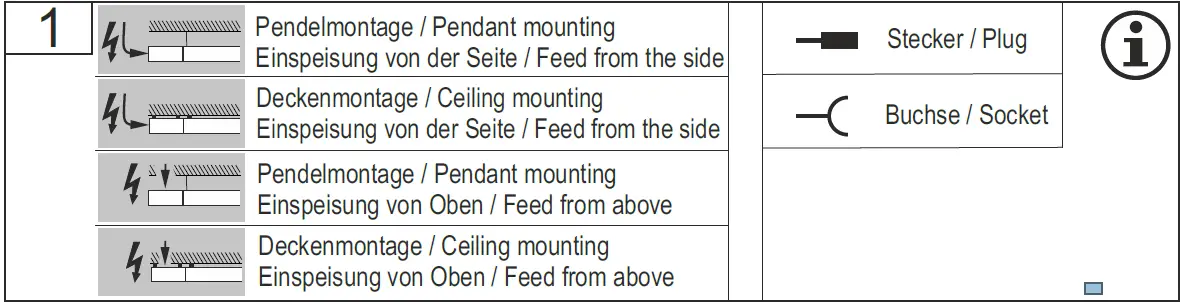

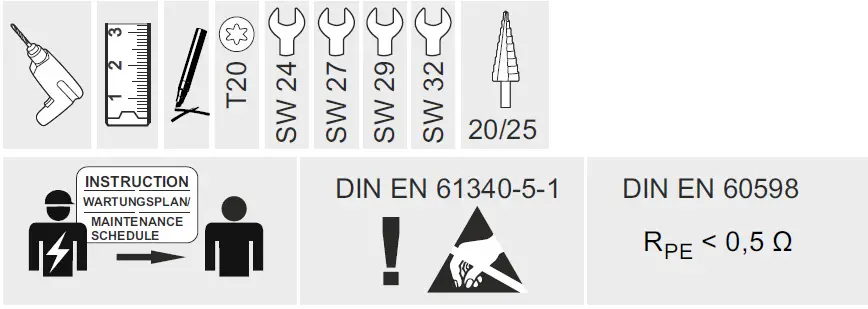

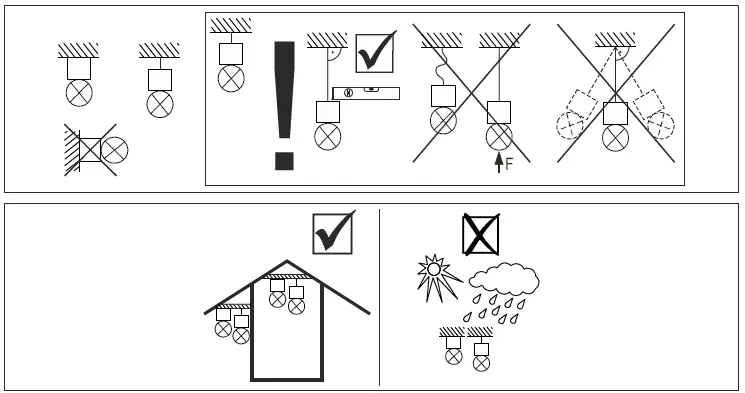

Reference for application of lumiaires with – marking according to EN 60598-2-24D

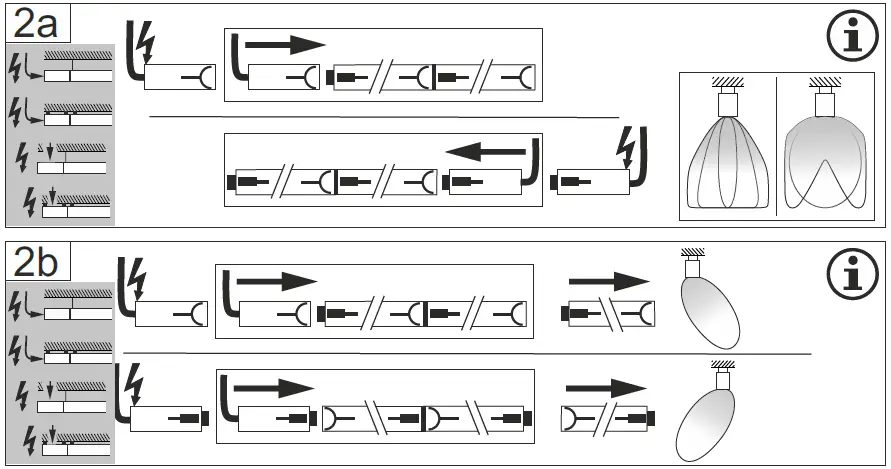

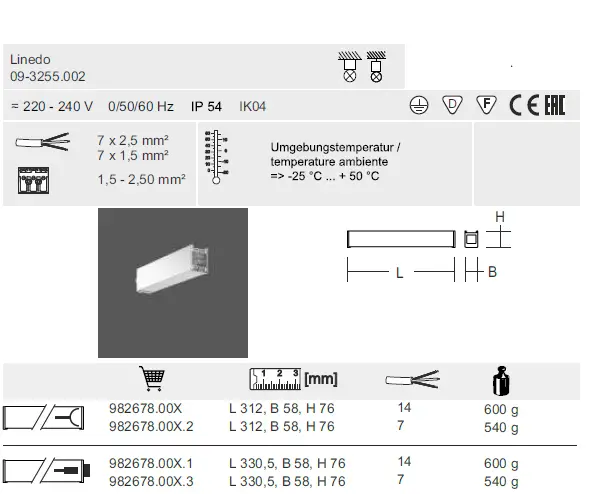

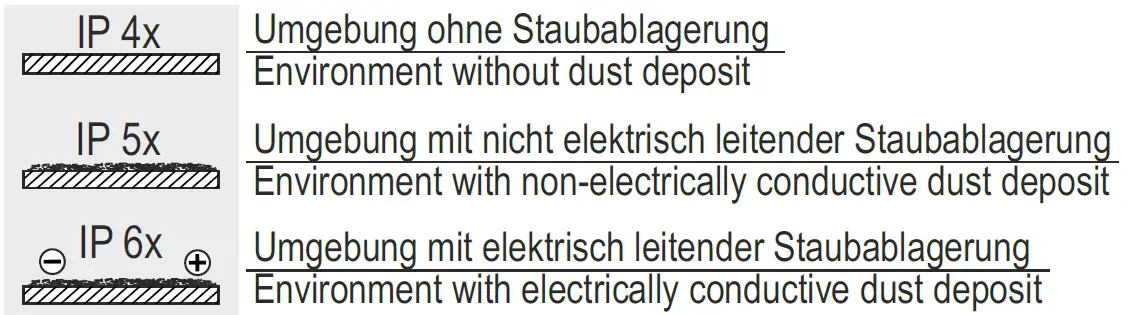

Environment without dust deposit
RZB – Rudolf Zimmermann, Bamberg GmbH
Rheinstraße 16
96052 Bamberg
Telefon: 0951/7909-0
Telefax: 0951/7909-198
E-mail: [email protected]

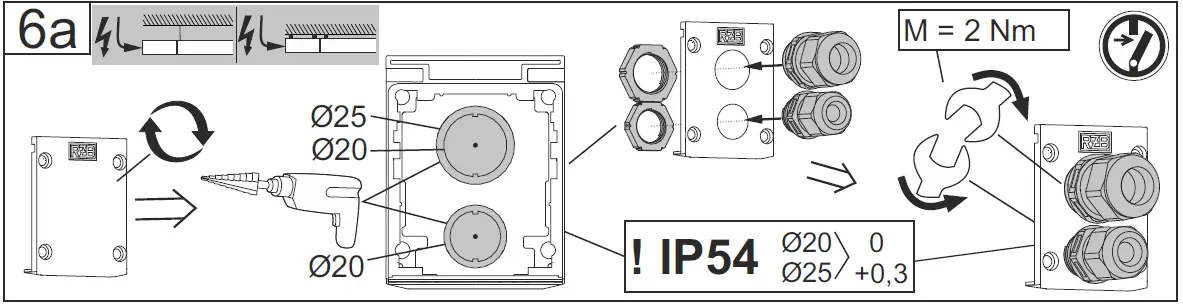

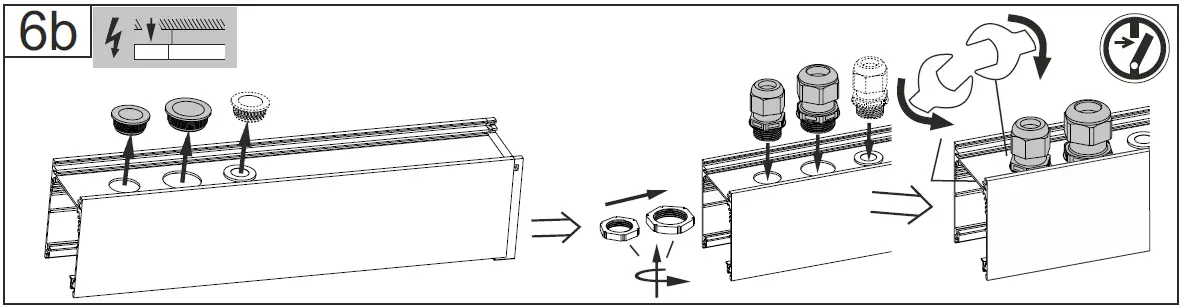

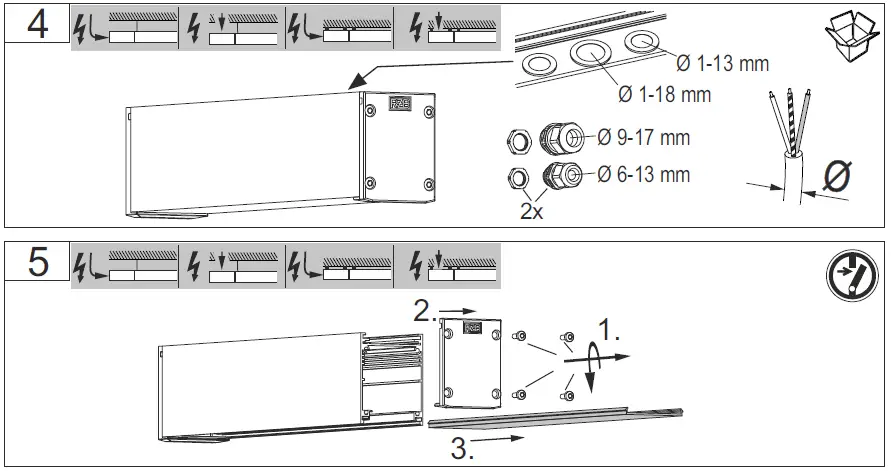

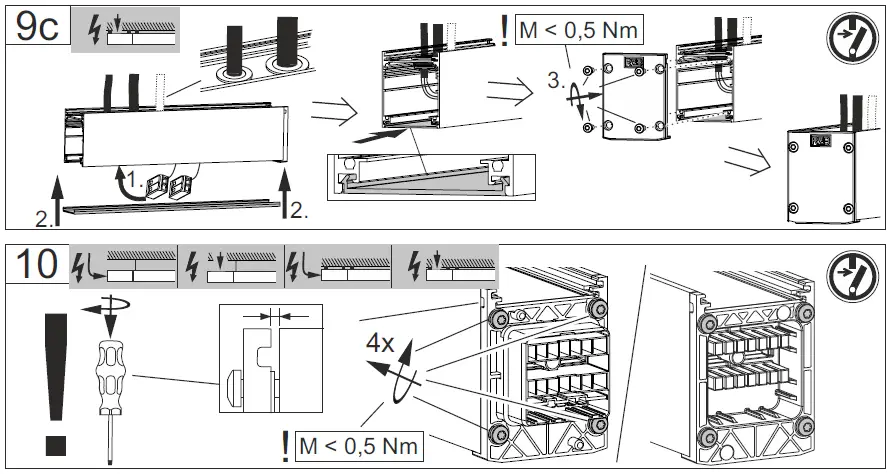

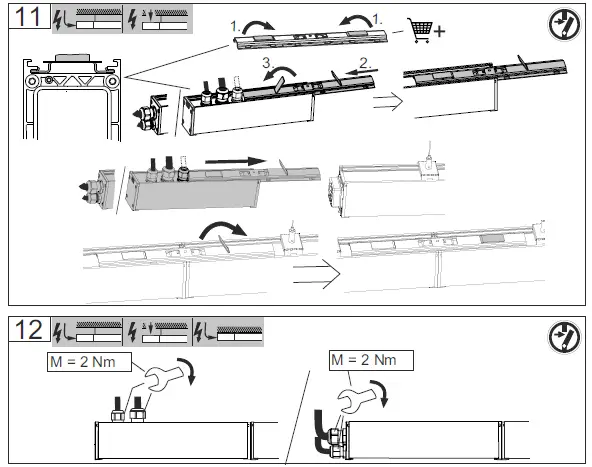

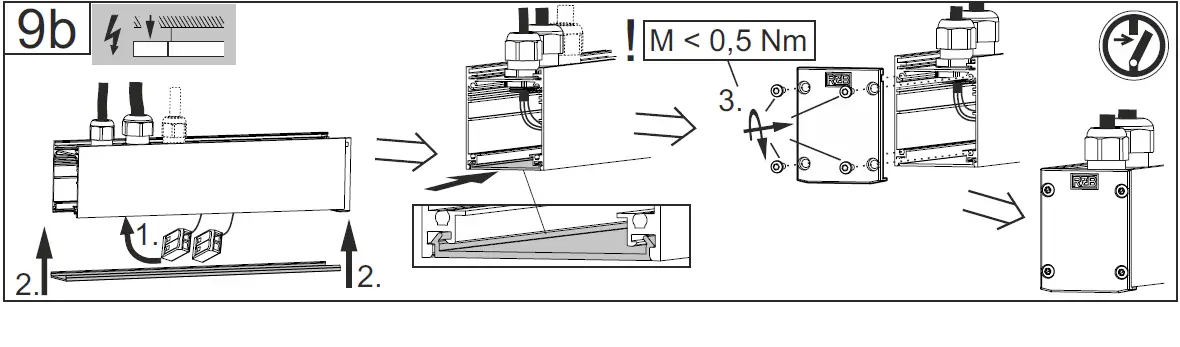

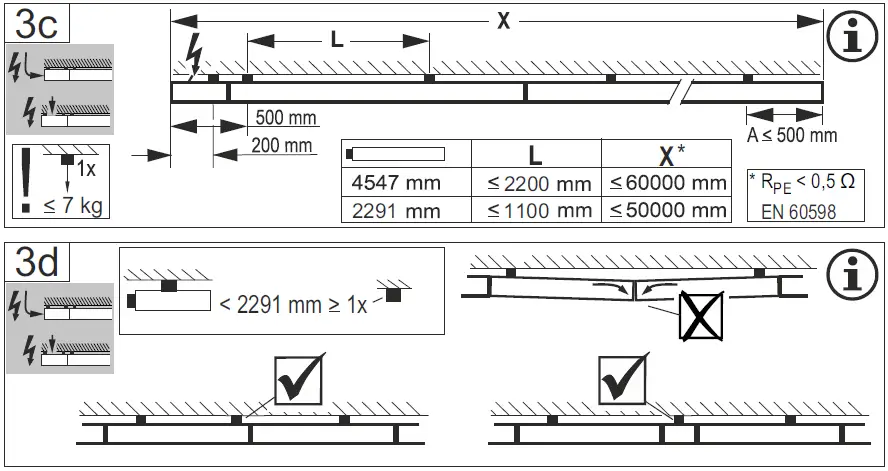

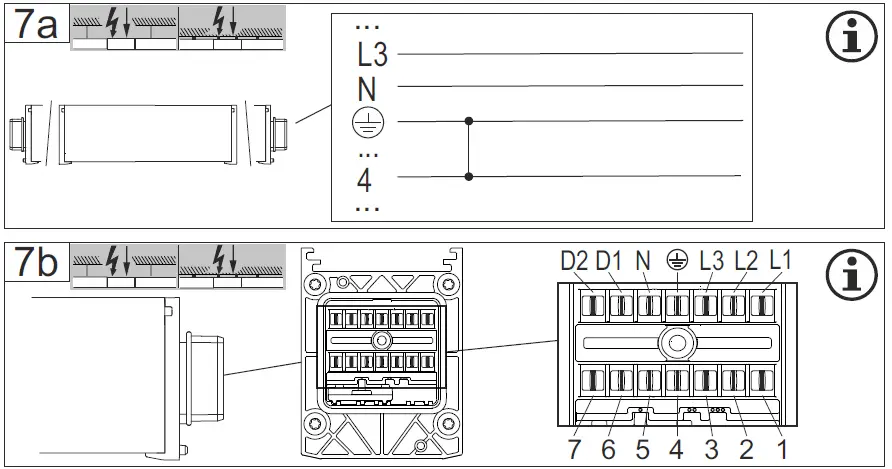

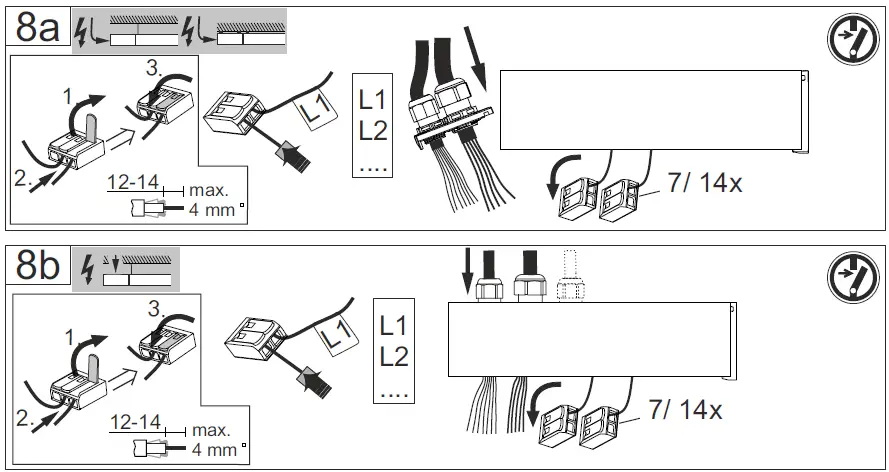

| wiring | I max. | 7x | 14x | ||||
| L1 | phase 1 | 16 A | |||||
| L2 | phase 2 | 16 A | |||||
| L3 | phase 3 | 16 A | |||||
| PE/ | Protective conductor | ||||||
| N | Neutral conductor | ||||||
| D1 | DALI DA | ||||||
| D2 | DALI DA | ||||||
| 1 | emergency lighting circle 1 | 6 A | |||||
| 2 | emergency lighting circle 1 | 6 A | |||||
| 3 | Control or switched signal | ||||||
| 4 | Protective conductor(emergency lighting) | ||||||
| 5 | Control or switched signal | ||||||
| 6 | emergency lighting circle 2 | 6 A | |||||
| 7 | emergency lighting circle 2 | 6 A | |||||
