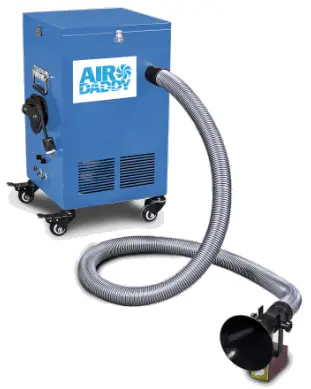

AIR DADDY Sidekick II Portable Fume Extractor
Overview
The Sidekick II Portable Fume Extractor is a mobile unit designed to capture and clean light to medium duty welding fumes. It may also be used to collect non-flammable sanding or grinding dust. Featuring two 0.75 kW (1.0 HP) motors that can be controlled independently, each motor is fitted with its own filter cartridge to maximize service life and optimize air flow.
Ideal for use with large sized machine tools and central systems.
Features
- Long filter life
- Low operating costs
- Low maintenance
- Clean air
- Designed for light-medium-duty welding
- Attaches quickly to GMAW fume extraction guns
- Exceptionally portable design
- Dual nanofiber MERV 15 filter cartridges
- Magnetic nozzle base for secure nozzle placement
- Service indicator for easy maintenance
Applications
Ideal for use with large sized machine tools and central systems.
- Welding
- Grinding
- Soldering
- Sanding
Technical Specifications
| Model | Nominal Free-Flow (CFM) | Standard Filter | Power | |
| Voltage (hz) | Power (kw) | |||
| Sidekick II | 90 /180 | 2 x 2.5 m² Nanofiber MERV 15 | 110V / 60Hz | 2×0.75 |
Dimensions
| Model | Net Weight (lbs.) | Inlet Hose Length (in.) | Product Dimensions (in.) | Cord Length (in.) | ||
| Width | Height | Length | ||||
| Sidekick II | 84 | 96 | 15.7 | 27.5 | 18.1 | 108 |
Coolant Filter Stages
- ME Mechanical Element
- AF Agglomerator Filter
- CM Coolant Fibre Bed Filter
- CP Blend Carbon Filter
Optional: OR Odor-Rid Filter
Oil Filtration Stages
- ME Mechanical Element
- DE Demister Element
- OM #5 Oil Mist Fibre Bed Filter
- OM #7 Oil Mist Fibre Bed Filter
- CP Blend Carbon Filter
Optional: OR Odor-Rid Filter
Product Usage Instructions
- Ensure the Sidekick II Portable Fume Extractor is placed in a stable and secure location.
- Connect the inlet hose to the source of fumes or dust to be extracted.
- Plug in the power cord to a 110V outlet with 60Hz frequency.
- Turn on the Sidekick II and adjust each motor speed as needed using the independent controls.
- The Sidekick II will capture and clean the fumes or dust, expelling clean air.
- Periodically check the filter cartridges and replace as necessary to maximize service life and optimize air flow.
- For coolant or oil filtration, follow the appropriate stages as listed in the user manual.
