Acuity Controls IECC 2021 Design with Wireless Open Office with nLight Air Enabled Fixtures

SEQUENCE OF OPERATION

LIGHTS

• ALL FIXTURES ARE DIMMABLE
• ALL FIXTURES ARE CONTROLLED TOGETHER OR INDEPENDENTLY
• MAXIMUM LEVEL CAN BE TASK TUNED TO ANY PERCENTAGE VIA PROGRAMMING

OCCUPANCY

• GENERAL LIGHTING IN EACH CONTROL ZONE MAY TURN ON TO 100% UPON OCCUPANCY. UNOCCUPIED ZONES MAY COME ON AUTOMATICALLY TO NOT MORE THAN 20% OR MAY STAY OFF
• FIXTURES AND PLUG LOAD AUTOMATICALLY TURN OFF WHEN ROOM BECOMES VACANT
• GENERAL LIGHTING MUST BE CONTROLLED IN ZONES NOT GREATER THAN 600 SQ. FT.
• PLUG LOAD TURNS ON AUTOMATICALLY

DAYLIGHT

• SMOOTH CONTINUOUS DIMMING
• DAYLIGHT ZONES SIZES ARE DEFINED BY WINDOW SIZE OR SKYLIGHT PLACEMENT (NOT SHOWN)
• NOT REQUIRED FOR OFFICES WITHOUT WINDOWS OR THAT HAVE LOADS <150W IN SIDELIT ZONES

MANUAL

• MASTER ON/OFF & RAISE/LOWER CONTROL OF THE ENTIRE ROOM

ADDITIONAL OPTIONS

• ROOM CAN BE CONNECTED TO NIGHT BACKBONE TO ENABLE NETWORK CONTROL OR TIME SCHEDULES (C405.2.2.1 – TIME-SWITCH CONTROLS), AND ALSO
• QUALIFY FOR ENHANCED DIGITAL LIGHTING CONTROLS (C406.4)
• HVAC CONTROL AVAILABLE THROUGH THE SYSTEM-WIDE BACNET® INTERFACE OPTION ON THE ECL YPSE CONTROLLER

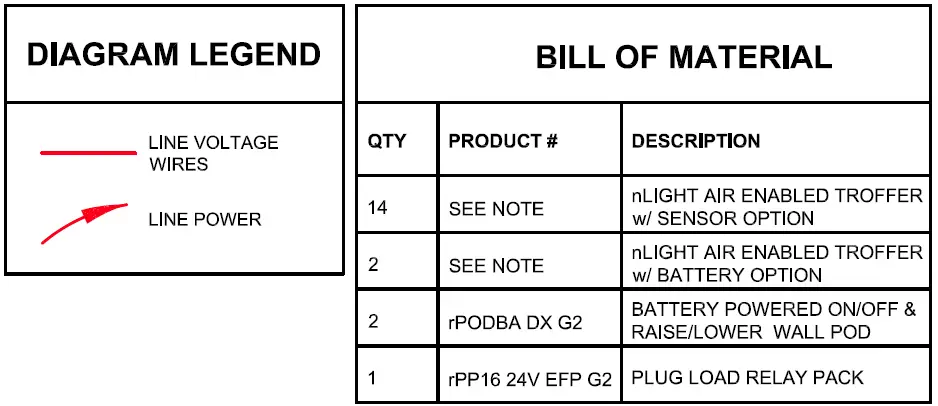

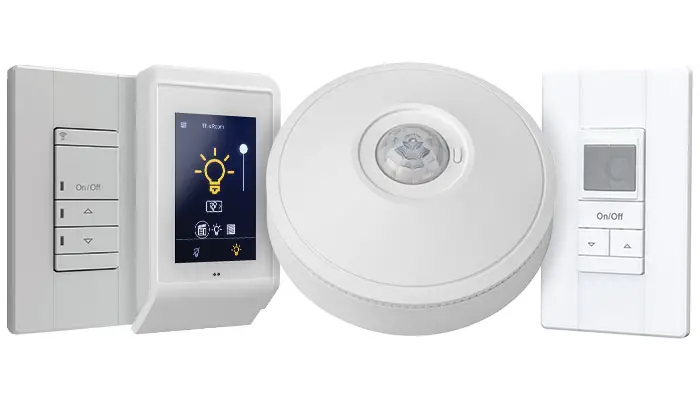

• WIRELESS FIXTURE EMBEDDED CONTROL AND OCCUPANCY/ DAYLIGHTING SENSOR OPTIONS AVAILABLE, PLEASE SEE THE FIXTURE SPECIFICATION SHEET
• NLIGHT-ENABLED FIXTURES COMPLY WITH MONITORING AND CONFIGURATION REQUIREMENTS OF LUMINAIRE LEVEL
  LIGHTING CONTROLS (LLLC) (C405.2.5)
• OCCUPANT SENSOR CONTROLS IN OPEN PLAN OFFICE SPACES LESS THAN 300 SQ. FT.

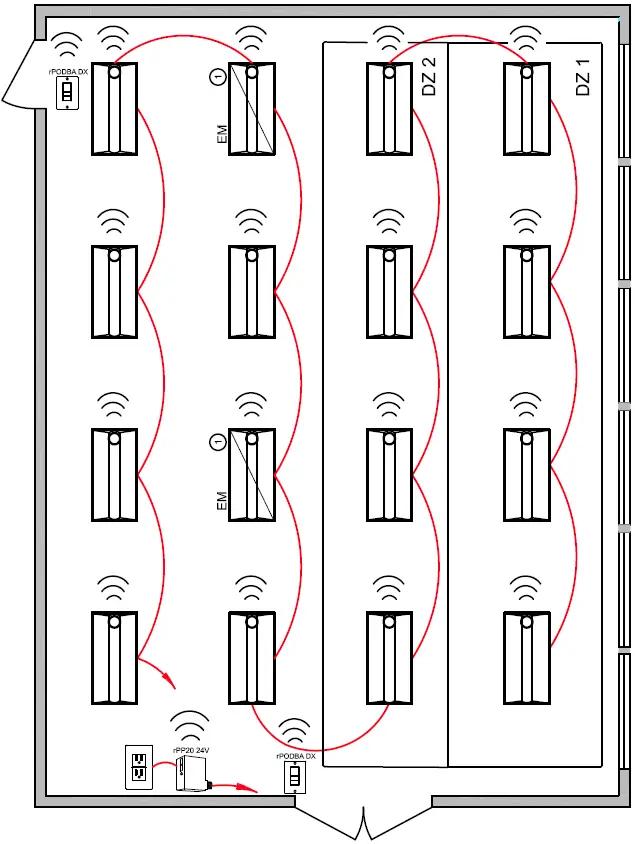

Wiring

Some nLight enabled EM fixtures to require a normal sense line connection. The wiring shown assumes a battery backup emergency option. See fixture spec sheets for details.

Note:
Contact your local lighting agent for more information on nlight-enabled fixtures. nlight enabled fixtures provide Luminaire Level Lighting Controls (LLLC), as specified in the IECC 2021 CODE.

SUPPORTS THE FOLLOWING REQUIREMENTS

• FULL AUTO-OFF VIA … OCCUPANCY SENSOR (C405.2.1.1)
• LOCAL SWITCH … (C405.2.2.3)
• LIGHTING REDUCTION … (C405.2.2.2)
• ENHANCED DIGITAL LIGHTING CONTROLS (C406.4)
• SIDELIGHT DAYLIGHT … ZONE (C405.2.3.2)
