DENVER MRD-166 Music Centre with Dual External Speakers Instruction Manual

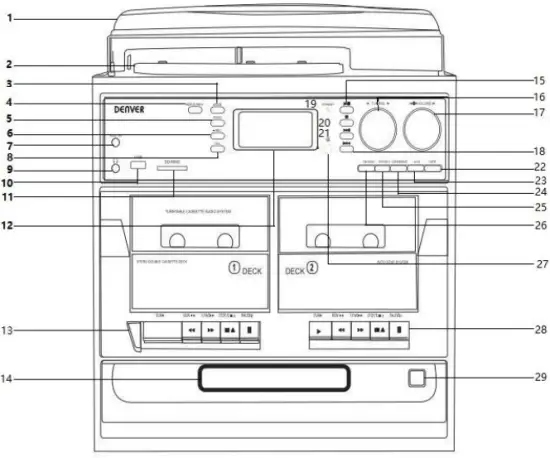

LOCATIONS OF CONTROLS AND INDICATORS

1. Dust cover
2. Turntable
3. Mode (EQ) button
4. Menu/Info button
5. Program button
6. Record button
7. Auxiliary input
8. Delete button
9. 3.5mm headphone socket
10. USB socket
11. SD/MMC socket
12. LCD display
13. DECK 1 button
14. Disk tray door
15. Play/Pause button
16. FM Tuning knob
17. Power ON/OFF/Volume
18. Skip up button
19. Standby/power light (beside display)
20. Stop button (beside display)
21. Skip down button (beside display)
22. Tape button
23. Aux button
24. CD/USB/SD button
25. Phono button
26. FM/DAB button
27. Remote control receiver
28. Deck 2 button
29. CD open/close button

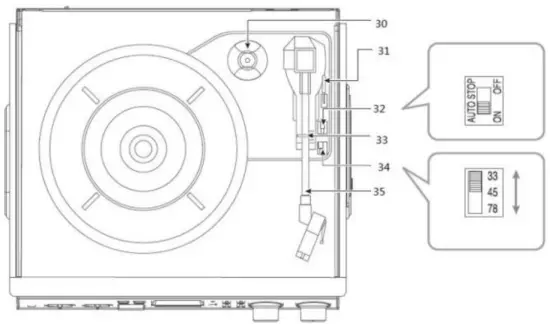

    PHONOGRAPH

30. 45 rpm adaptor
31. Lift lever
32. Auto stop control
33. Tone arm lock
34. Speed selector (33/45/78 rpm)
35. Tone arm

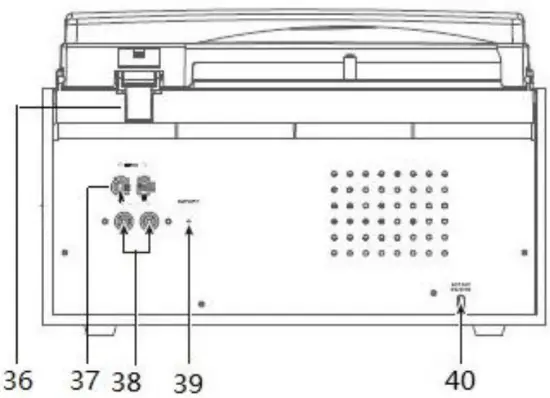

    BACK PANEL

36. Dust cover hinge
37. Line out R/L
38. Speaker jack R/L
39. FM wire antenna
40. AC power cord

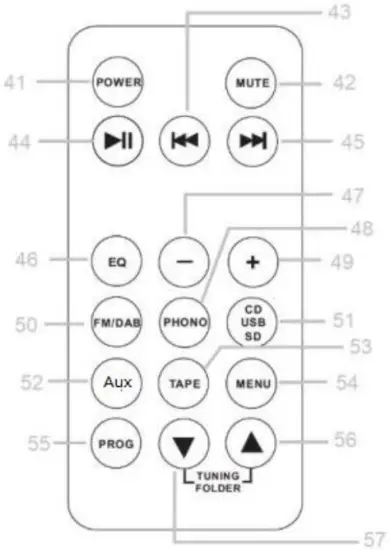

    REMOTE CONTROL


41. Power
42. Mute
43. Skip down button
44. Play/Pause
45. Skip up button
46. EQ
47. volume down
48. Phono
49. volume up
50. FM/DAB+
51. CD/USB/SD
52. Aux-in
53. Tape
54. Menu
55. Prog
56. Tuning/folder up

OPERATING INSTRUCTIONS

DAB radio
Press FM/DAB button to choose DAB Mode

If the system is switched on for the first time, it will automatically enter into the DAB mode and perform an auto scan function. During the scan the display will show “Scanning …” together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far. Once the scan has finished, the radio will select the first alphanumerically found station. You can now press the or button to explore the found stations followed by pressing the button to select the station of your choice.

Phono Operation

1. Press the volume/power ON/OFF knob to turn the equipment on.
2. Use the function selector to select PHONO mode.

NOTE: Should your record stop before the last track finishes, set the auto stop control to OFF. Your record will now play to the end, but you will have to stop the turntable rotation manually. (Return the tone arm to its rest manually and if the turntable is still rotating, switch off the unit via the volume control knob. Then set the auto stop control back to O

Encod

1. Set the function button to PHONO, CD, AUX or Cassette mode.
2. Press the record REC button. It will take about 3 – 4 seconds to read the memory device, then the USB or SD icon will flash on the LCD display.
3. Press the skip up or skip down button to select the desired mode (USB or SD) for encoding/recording, then press the record REC button again to confirm.
   (You can skip this step if only a USB drive or an SD/MMC card is inserted.)
4. The system will start in encoding/recording mode after a few seconds.
5. Start playback of the music you want to encode/record.
6. To finish encoding/recording, press the stop button. The display will show “END” and return to PHONO mode.

NOTE:

• The recording speed is 1:1. Recording time is governed by how long it takes for the music to play to its end.
• The recording format is preset at the MP3 bit rate of 128 Kbps

CD & Cassette Operation

1. Press the VOLUME knob to turn the equipment on.
2. Choose the mode you wish to use (CD or Cassette)
3. Start playback of the music.

The USB Port and SD Card Slot.

Playback of music in MP3/WMA format via USB device or memory card
The system is able to decode and playback all MP3/WMA files stored in the memory media connected to the USB port or SD/MMC card slot.

1. Press the VOLUME knob to turn on the equipment.
2. Set the function selector to CD/USB/SD mode. (If you have both a USB device and a memory card inserted, press the same button to toggle between CD/USB and SD mode.) The system will start reading the storage medium automatically after mode selection and will display the total number of folders and MP3/WMA files.
3. The system will then start audio playback from the media storage device (USB or SD card) automatically

The auxiliary input

1. Press the VOLUME knob to turn the equipment on.
2. Use the function selector to select AUX mode, then connect the external audio device (such as a CD player) to the AUX IN socket on the front of the equipment. The audio signal from the external audio device will now be played through the system

Please notice – All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

www.denever.electronics.com

Electric and electronic equipment contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Hereby, Inter Sales A/S declares that the radio equipment type MRD-166 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.denver electronics.com and then click the search ICON on topline of website. Write model number: MRD-166. Now enter product page, and RED directive is found under downloads/other downloads.

Operating Frequency Range: FM:87.5-108MHz DAB:168-240MHz
Max Output Power: 2*2W

DENVER ELECTRONICS A/S
Omega 5A, Soeften
DK-8382 Hinnerup
Denmark
