VWTA3357-L
MOBILE VIDEO WALL TROLLEY,
MODULAR 3X3
FOR 50″-57″ SCREENS, LANDSCAPE
With its modular design, VWTA3357-L allows the installation of nine 50″-57″ screens in a 3×3 landscape orientation. VWTA3357-L is characterized by high-end quality and aesthetics. Durable aluminum design and braked castors ensure high mobility, and as such VWTA3357-L enjoys great interest among exhibitors during trade fairs and conferences. The mounted accessories (computer shelf) and mini PC mount make the VWTA3357-L mobile structure suitable for places where there is a need for dynamic and effective communication with the audience, displaying and instantly updating information on the video wall.
FEATURES
- High-end quality and aesthetics
- Durable aluminum design
- Up to 9 x 50″-57″ screens
- Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
- Screens protected against being slid out accidentally
- Integrated cable management system for smart installation
- Computer shelf and mount mini PC mount as standard
- Braked castors
- Screws protect against accidental or unauthorized removal of the screen
- Possibility of mounting other accessories (e.g. shelves) on aluminum profile guides
PRODUCT SPECIFICATIONS
| Short index | VWTA3357-L |
| Category | Mobile Video Wall Trolleys |
| Product group | Video Wall & Menu Board Mounts |
| Colour | Black |
| Warranty | Limited 5-years |
| Number of screens | 9 |
| Minimum screen size | 50″ |
| Maximum screen size | 57″ |
| Maximum load | 290 kg |
| VESA Mounting Compatibility | 100×100 up to 600×400 |

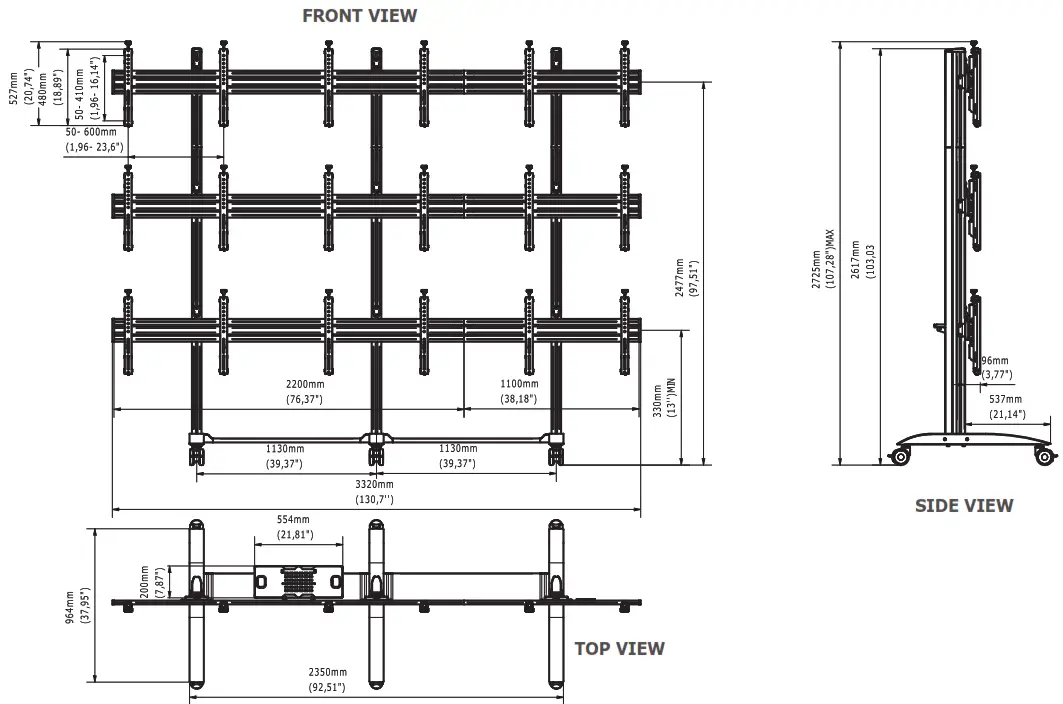

TECHNICAL DRAWINGS
TECHNICAL SPECIFICATIONS
| Product dimensions | W: 3320 mm D: 964 mm H: 2617 mm (W:130,71″ D:37,95″ H:103,03″) |
| Product weight | 144 kg (317 lb) |
| Max. distance from the surface | 2477 mm (97,52″) |
| Min. distance from the surface | 330 mm (12,99″) |
| Max. mounting pattern | 600 mm x 410 mm |
| Min. mounting pattern | 50 mm x 50 mm |
LOGISTICS DATA
PLEASE NOTE – THIS PRODUCT IS PACKED IN SEVERAL CARDBOARD PACKAGES
| SAP INDEX | EAN CODE | COLOUR | PACKAGE DIMENSIONS | PACKAGE WEIGHT |
| WWTR-VWTA3357-L | 5.9E+12 | BLACK |
HS Code (Harmonized System): 732690, HTS Code (Harmonized Tariff Schedule): 7326909890, Country of Origin: Poland
2021 – EDBAK Sp. z o.o. All rights reserved.
The information included in the specification reflects the current technical specifications at the time of printing. We reserve the right to modify technical or physical specifications without prior notice. EDBAK name and EDBAK logo are registered trademarks of EDBAK Sp. z o.o.
All EDBAK images and symbols are the sole property of EDBAK Sp. z o.o. Feedback shall not be held liable for any loss or damage caused by incorrect installation or mounting. Copying this specification in whole or in part is only allowed after obtaining written consent from EDBAK Sp. z o.o
VWTA3357-L-210601-EN
