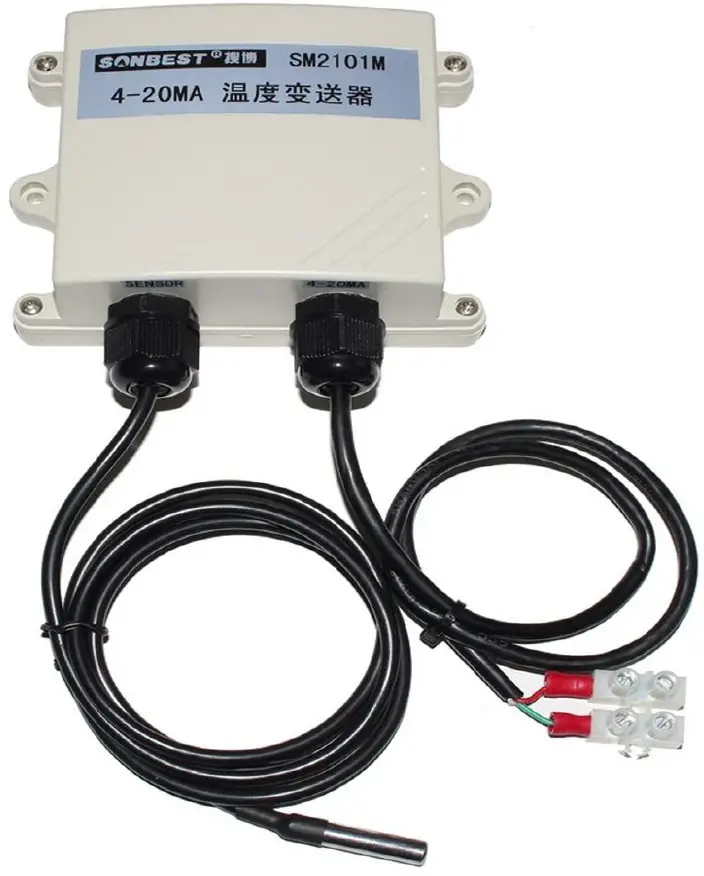

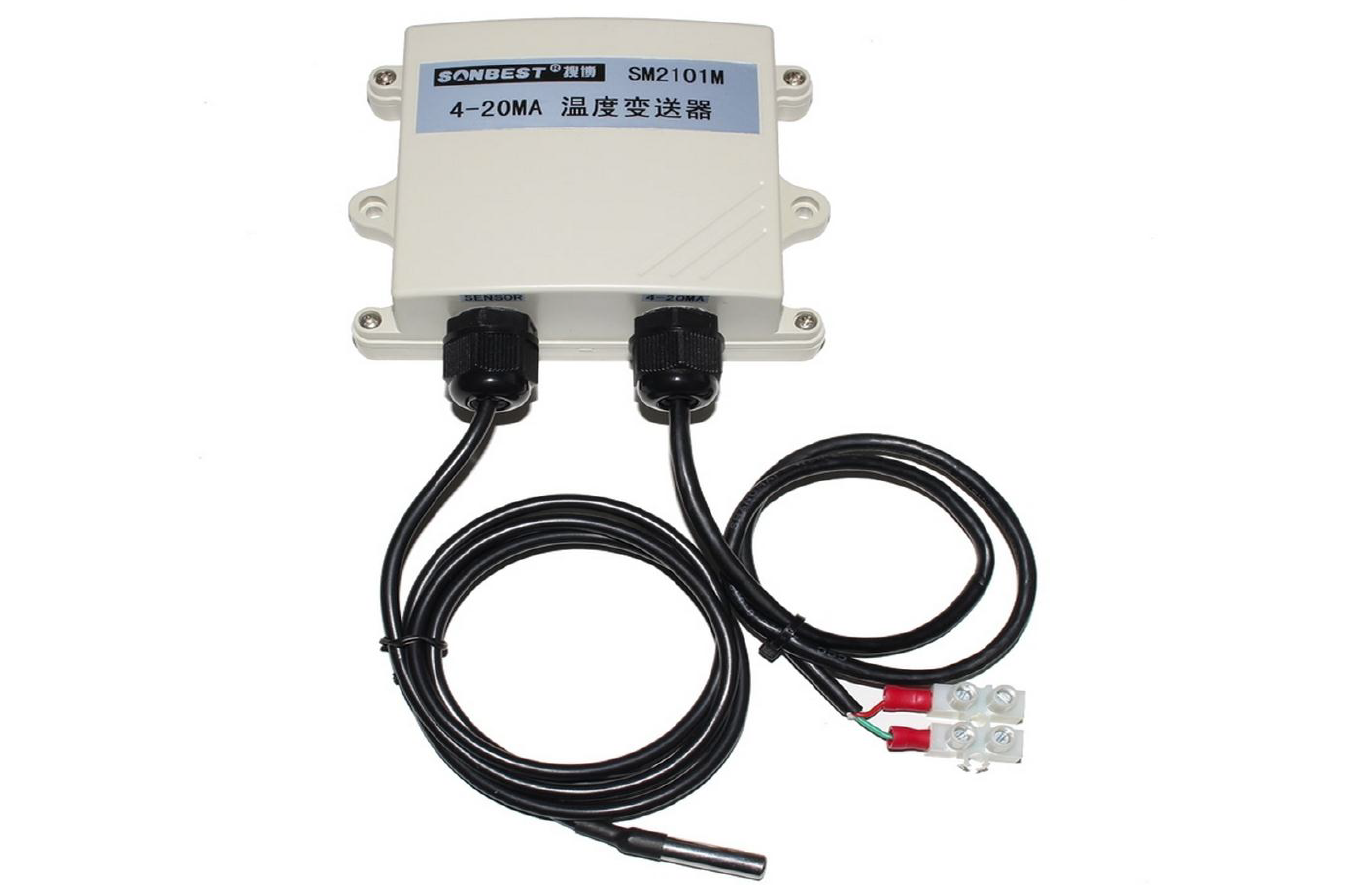

SONBUS SM2101M Protective 4-20ma Temperature PT100 Current Transmitter
SM2101M using the standard DC4-20mA current output signal, easy access to PLC，DCS and other instruments or systems for monitoring temperature state quantities. The internal use of high -precision sensing core and related devices to ensure high reliability and excellent long-term stability, can be customized RS232, RS485, CAN, 4-20mA, DC0~5V\10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.
Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Temperature measurement range | -50°C to +100°C (optional with other ranges) |
| Detecting Core Devices | PT100 |
| Temperature Measurement Accuracy | ± 0.5°C (0.5FS) |
| Thermal Response Coefficient | 10mΩ/K |
| The resistance @ °C | 1000Ω±0.12Ω/K |
| The resistance rate | 0.385Ω/K |
| Reference Standards | Using EN 60751 Class B Standards |
| Channels | 1 |
| Communication Interface | DC4~20mA |
| Power | DC12~24V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH |
Wiring instructions
Any incorrect wiring can cause irreversible damage to the product. Please carefully wire the cable as follows in the case of power failure, and then connect the cable to confirm the correctness and then use it again.
| ID | Core color | Identification | Note |
| 1 | Red | V+ | Power V+ |
| 2 | Blue | I+ | sensor output |
| 3 | BLACK | V- | Power negative electrode |
In the case of broken wires, wire the wires as shown in the figure. If the product itself has no leads, the core color is for reference.
