PRODUCT NUMBER: 4CP200 v1 001

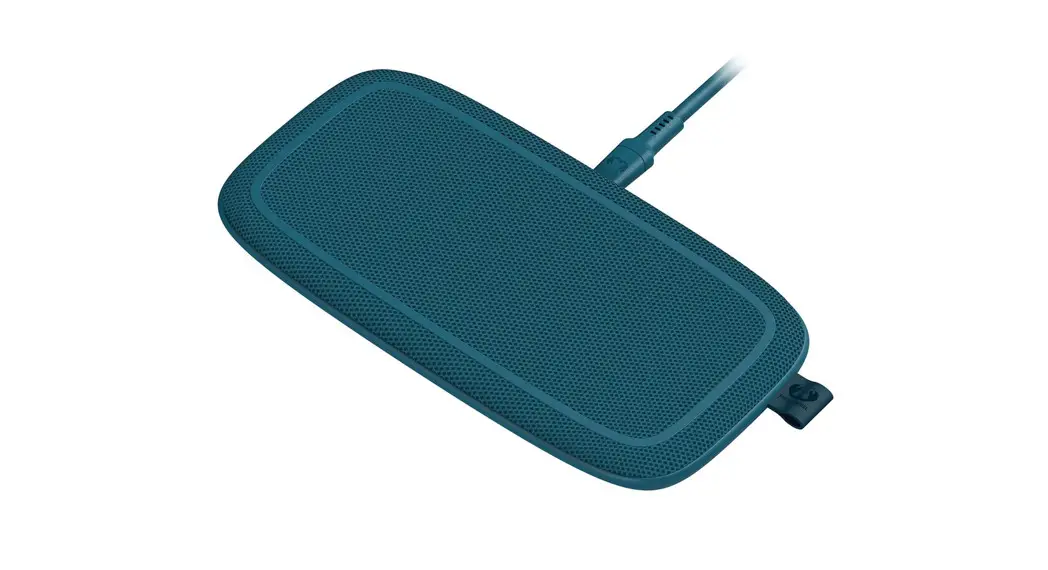

BASE DUO DOUBLE WIRELESS CHARGING PAD USER MANUAL
Hereby, Sitecom declares that this product is in compliance with the applicable EU Regulations. The full text of the EU declaration of conformity is available at the following internet address: www.freshnrebel.com
IMPORTANT SAFETY INSTRUCTIONS
- Do not throw, drop, shake and avoid strong blows and collisions
- Do not disassemble or modify
- Do not cover with objects which may affect heat dissipation
- Do not expose to liquids
- Do not use or store in damp, humid or wet environments
- Do not expose to excessive heat
- Do not burn or incinerate
- Do not use near strong magnetic fields, inflammable materials or explosive gases
- Do not place metal objects on the wireless charging zone
- Do not place cards with magnetic stripes and chips on the wireless charging zone
- Do not use close to (implanted) medical devices such as a pacemaker; keep a distance of at least 25cm
- Only use the included cable or cables included with your device
- Only use the included USB Wall Charger
- Only use Qi-Certified devices for charging on the Wireless Charging zone
SPECIFICATIONS
- 2 x 10W Wireless Charging Pad
- 5 Charging Coils
- Qi certified (version 1.2.4)
- USB-C Input: 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
- Wireless Output 1: 5V/1A, 5V/1.5A, 9V/1.1A
- Wireless Output 2: 5V/1A, 5V/1.5A, 9V/1.1A
- Output modes: 5W, 7.5W, 10W
- Charging Sensing Distance 8 mm
- Status indication LED
- 30W USB-C PD Wall Charger
- 1.5 m USB-C to USB-C Cable
FEATURES
- 2 x 10W Wireless charging
- Fast Charging: charge up to 40% faster
- Supports 5W / 7.5W / 10W wireless charging
- 5 Charging coils for easy positioning
- Charges through most cases under 3 mm thick
- Foreign Object Detection protection
- Overcurrent and overload protection
- Overheating and short circuit protection
BOX CONTENT
- Base Duo Double Wireless Charging Pad
- 30W USB-C PD Wall Charger
- 1.5 m USB-C to USB-C Cable
- Quick Install Guide
SYSTEM REQUIREMENTS
- Qi-enabled device
- 30W USB PD Wall Charger (included)
- USB-C to USB-C Cable (included)
If you use a protective case for your smartphone, please note that wireless charging only works with non-metal cases, without any magnetic parts, up to 3mm thick.
HOW TO USE YOUR DUO WIRELESS CHARGING PAD

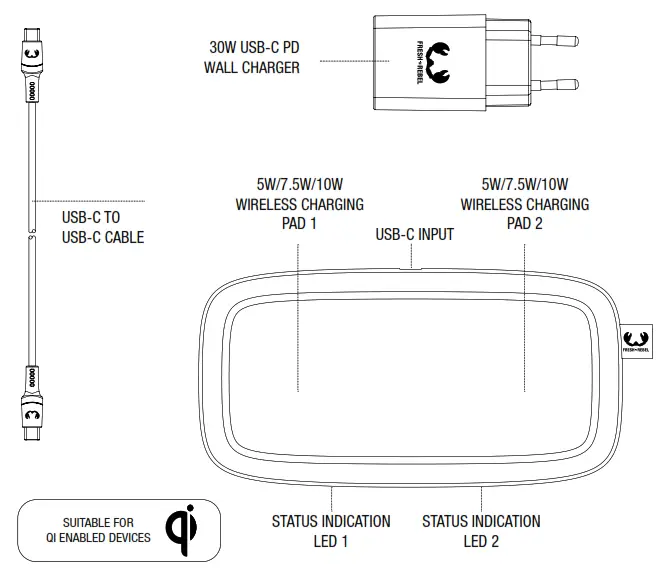

OVERVIEW
LED BEHAVIOUR
| ACTION | LED 1 & LED 2 |
| Connect power / boot | Colour: white Light fades in slowly → duration: 1 second The light stays on → duration: 3 seconds Light fades out → duration: 1 second |
| Foreign Object Detection | Colour: white blinking rapidly |
| Power or another failure | Colour: white blinking rapidly |
| Placing and charging Oi device | Colour: white Light fades into full brightness → duration: 1 second The light stays on in full brightness → duration: 3 seconds Light fades to 20% brightness → duration: 2 seconds The light stays on at 20% brightness when charging is in progress |
| Di device fully charged | Colour: white Light fades from 20% into full brightness 4 duration: 1 second The light stays on in full brightness → duration: 2 seconds Light fades out → duration: 1 second |
| Qi device removed when not fully charged | Colour: white Light fades from 20% into full brightness → duration: 1 second Light fades out → duration: 2 seconds |

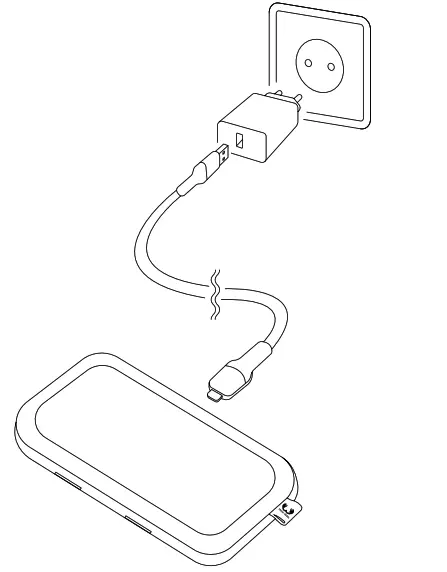

SETUP

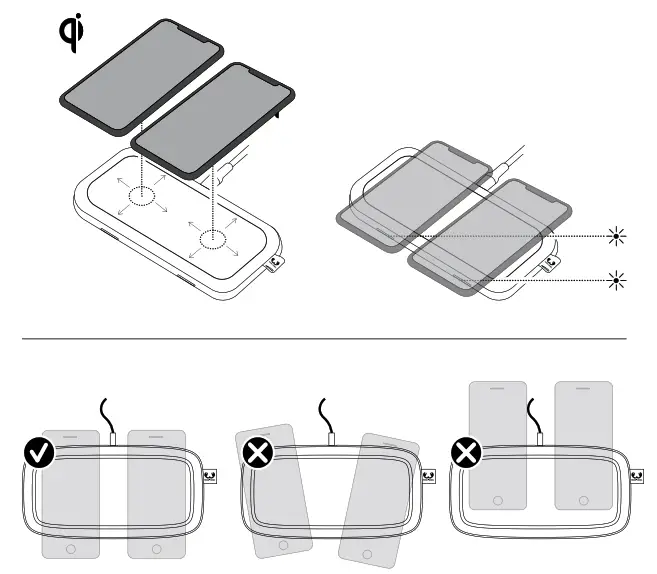

CHARGING

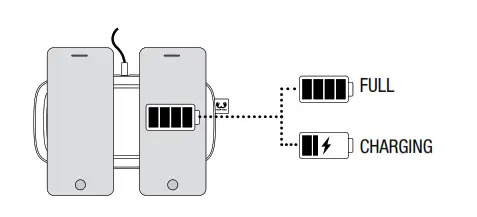

FULLY CHARGED
