Quick-change Toolhead for Dillon Super 1050
Instructions for use
Armanov d.o.o. Brezovce 9, 1236 Trzin, Slovenija
Tel: +386 30 467 000
Features
Quick Change Toolhead

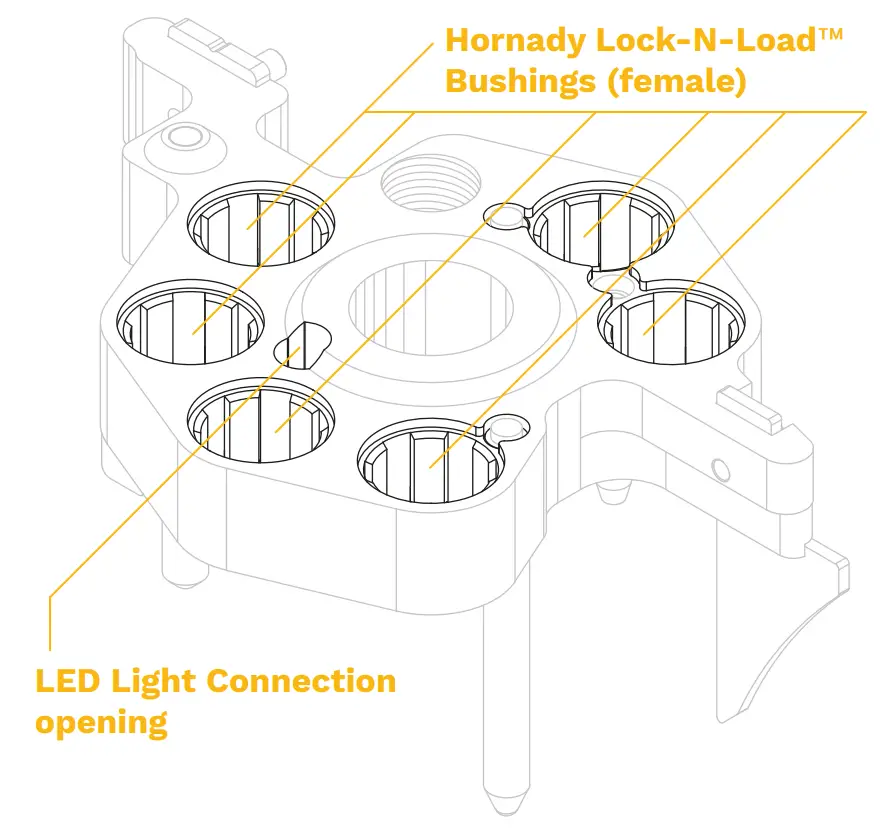

Hornady Lock-N-LoadTM Bushings (female)
Easy Shellplate Lock-Ring
Bright LED Light
Bright LED Light

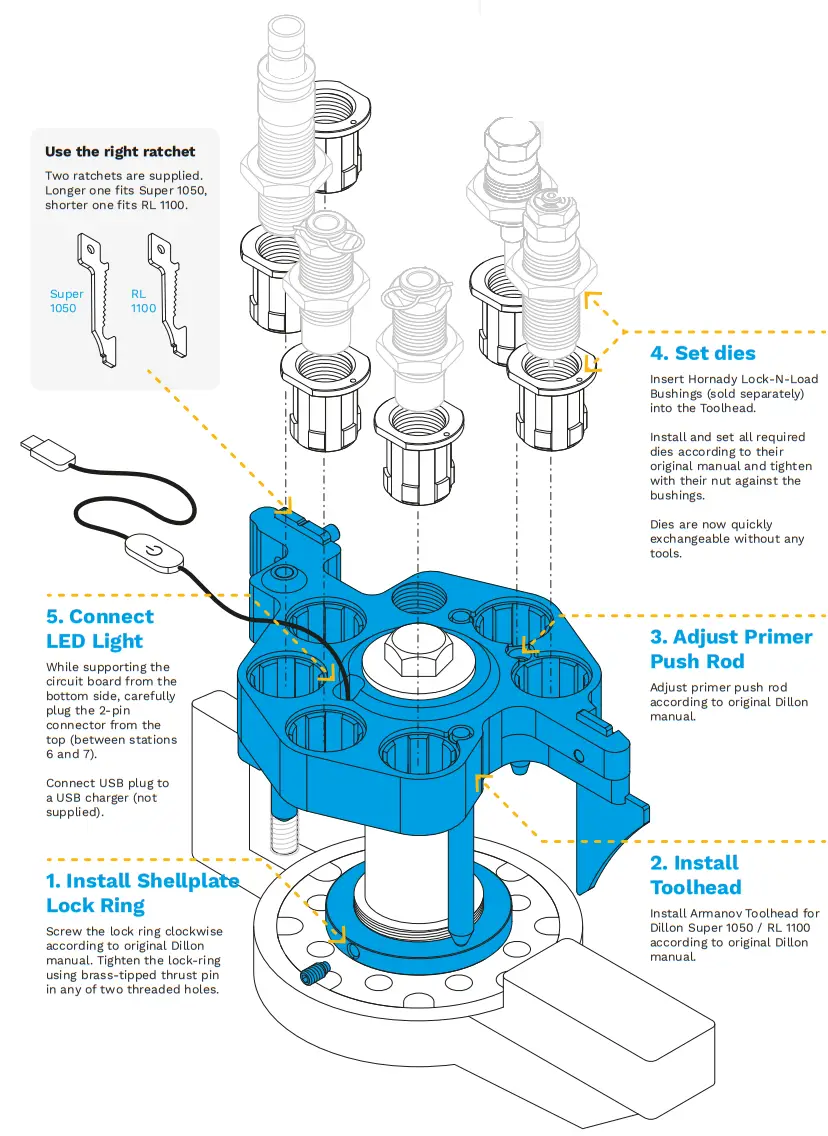

Installation instructions

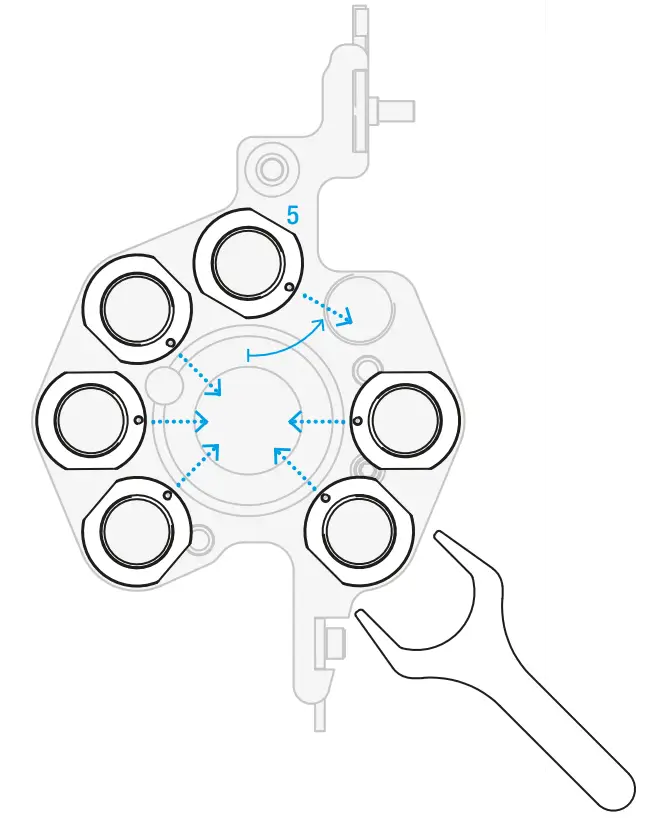

LNL bushings orientation
Set all bushings (sold separately) so that the threaded hole is oriented 5 toward the tool head center. Then rotate bushing on station #5 counter-clockwise for one lug. Use the
supplied wrench.

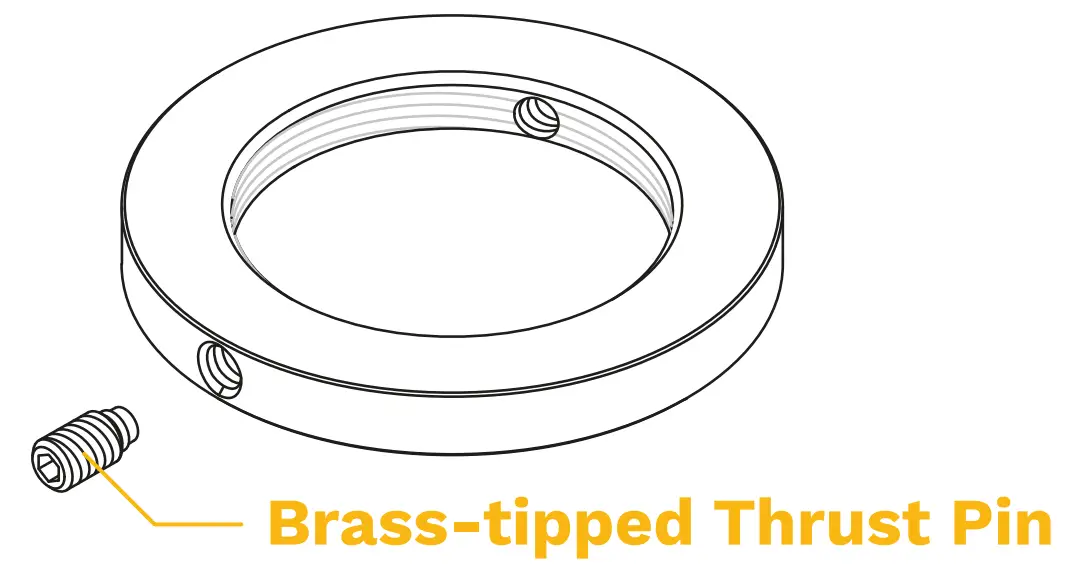

Important! DO NOT overtighten the thrust pin! Screw-in thrust pin just enough that Lock Ring doesn’t move by hand anymore, then tighten it by approximately 1/8 turn clockwise.
