Schneider Electric MTN2367-0319 Schuko Socket Outlet with USB 3.0 A Charger Instruction Manual

DANGER:

HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH

• Turn off all power supplying this equipment before working on the equipment.
• Use a Voltage Tester of appropriate rating.
  Failure to follow these instructions will result in death or serious injury

WARNING:

HAZARD OF FIRE
Use only original charging cable for a proper charging performance.
Failure to follow these instructions can result in death, serious injury, or equipment damage.

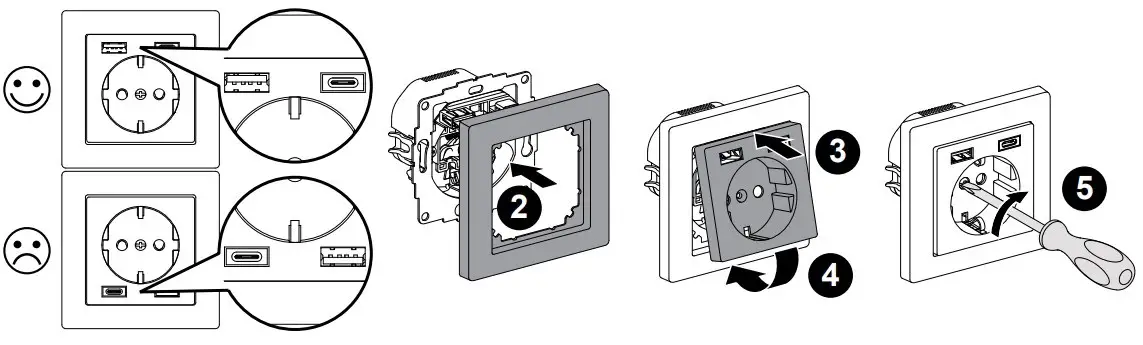

Mounting Connection

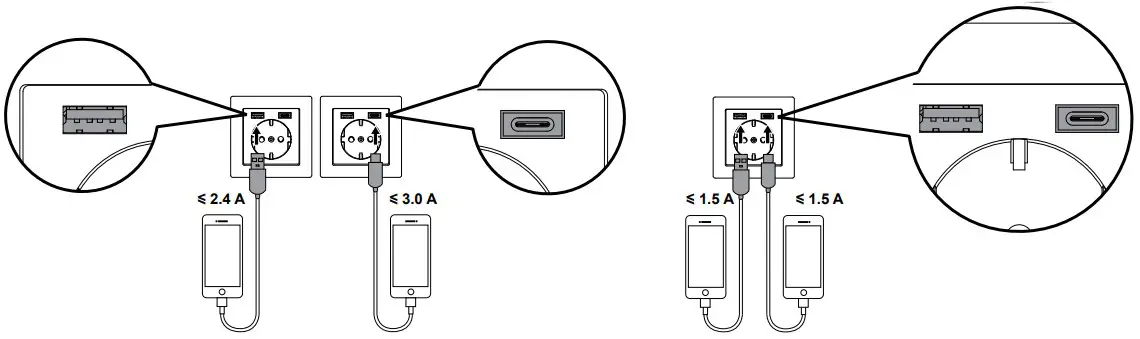

Use

USB Charger: 2 outputs type A + C

• Nominal input voltage: 220 – 250 V~
• Input current: 0,15 A
• Output voltage: 4,5 – 5,5 V DC
• Output current USB-A: max 3,0 A
• Output current USB-C: max 3,0 A
• Output power: 15 W
• Power consumption: < 60 mW
• Operating temperature: 0 – 40 °C
• Expected lifetime: 20.000 hours by full load
• Overvoltage category: III

Socket outlet 16 A – 250 V~

• Terminals: Screwless Terminals
• Stripping length: 11 mm
• Wire dimension: 1,5 – 2,5 mm² (rigid, rigid stranded and flexible)
